CERAMIC PANEL & LOG PLACEMENT GUIDE FOR LSS-35 & LSS-40
LENNOX HEARTH PRODUCTS
CERAMIC PANEL & LOG PLACEMENT GUIDE FOR LSS-35 & LSS-40 SPECTRA SERIES GAS APPLIANCES
GENERAL INFORMATION
This ceramic panel and log and placement guide has been prepared to
present detailed placement illustrations and provide instruction to assist
in the initial (new appliance) setup and after the annual cleaning and
inspection cycles. The information provided here is to be used in
conjunction with the Homeowner's Care and Operation Instructions
provided together with this document in the appliance literature packet.
Please read the Homeowner's Care and Operation Instructions completely
before completing the procedures detailed in this placement guide.
INITIAL INSTALLATION CONSIDERATIONS
If the ceramic panels and logs are being installed for the first time,
the following paragraphs apply:
f i r e - p a r t s . c o m
DO NOT attempt to install the logs until the appliance installation
has been completed, the gas line connected and tested for leaks
and the initial burner operation has been checked out.
Step 1. Remove the boxed ceramic panels on top of the appliance.
Handle panels carefully to prevent breakage.
Step 2. Remove the appliance front door.
Step 3. Cut and remove the nylon securing the log grate and the
boxed log set to the interior of the fireplace.
Step 4. Remove the logs from their packaging. Handle logs
carefully to prevent breakage.
Step 5. Remove the restraining strap from the grate tines.
Remove the grate from the interior of the fireplace.
CERAMIC PANEL, LOG AND GLOWING EMBER PLACEMENT
Step 1. Install the ceramic panels as shown in Figure 3 . Panels
should be placed in the order shown.
A. Tilt and slide the top edge of the back panel toward the rear,
behind the baffle and pivot the bottom inward to position it
vertically as shown.
B. Align and slide the left and right bottom panels inward as
shown. Slide the front panel toward the back, until it touches the
left and right panels. Be sure there are no gaps between the panels.
C. Slide the left and right side panel inward with the orientation
of the marked "L" and "R" in their proper position as shown.
Step 2. Position the individual logs as shown in Figures 4 and 5 .
Logs should be placed in the order shown.
P750148M
P/N 750148M Rev. D 05/2015
SPECTRA SERIES GAS APPLIANCES
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE
CERAMIC PANEL AND LOG
750,148M
REV. C
05/2003
LSS-35 AND LSS-40
SPECTRA SERIES

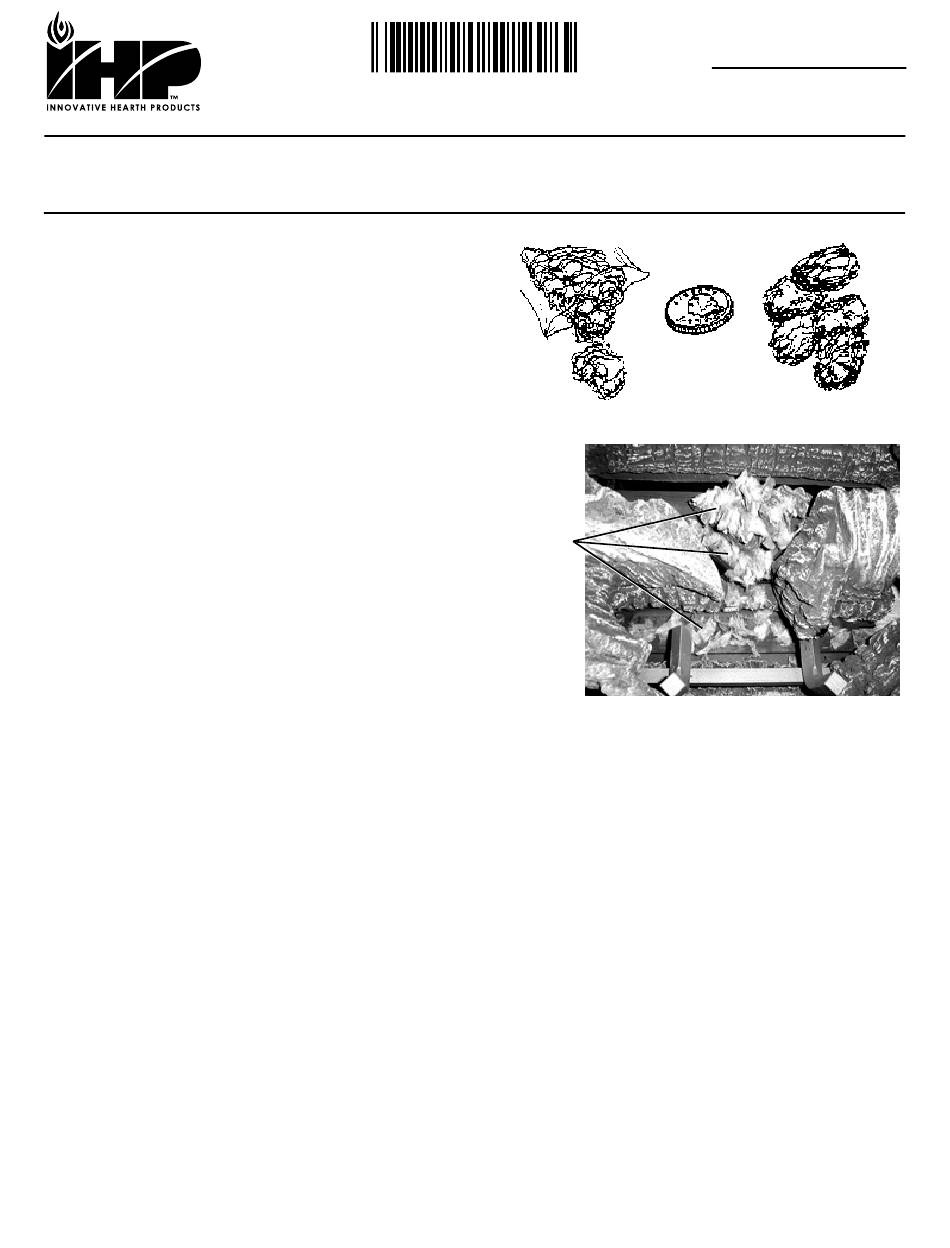

Figure 1
Glowing
Embers
(Rockwool)
Figure 2
Step 3. Separate the Glowing Ember (Rockwool) into pieces about
the size of a quarter ( see Figure 1) . Keep the pieces fluffed up, not
matted. Distribute these pieces over the front burner and between
the log as shown in Figure 2 . Do not use more than is necessary.
When properly positioned, the Glowing Embers will cover
approximately 85% of the front burner.
Note: This appliance is provided with enough Glowing Embers for
several applications, do not feel compelled to use all that is in a new
bag. For best glowing effect, replace the ember material annually
Replacement Glowing Embers are available (Catalog Number 88L53).
Proper log and twig placement is critical to encourage outstanding
flame appearance and prevent sooting. When positioned properly
as shown, twigs will be positioned between flame peaks and will not
impinge any flames.
Refer to page 3 for LSS-35 appliances and to page 4 for LSS-40 appliances.
