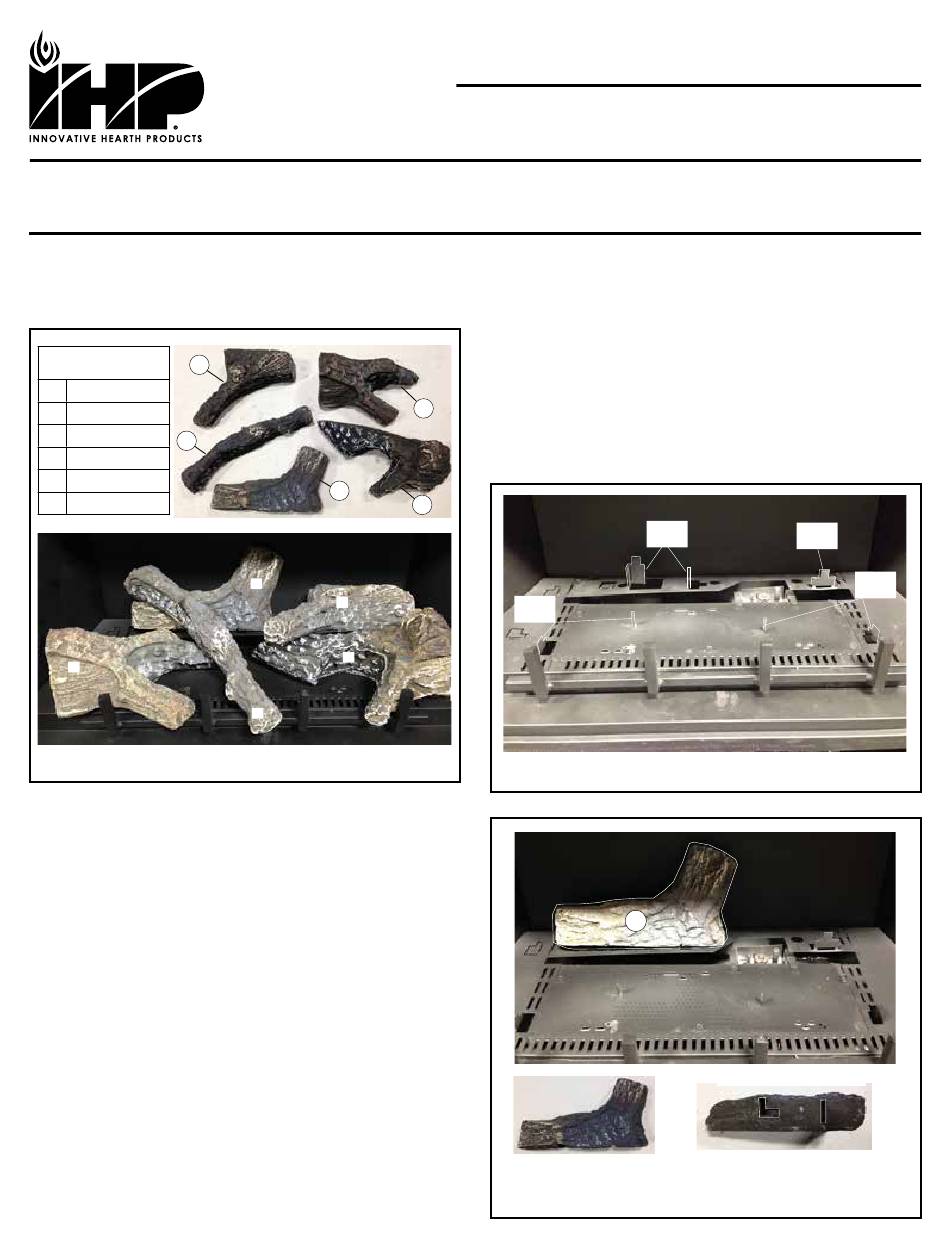

GAS LOG PLACEMENT GUIDE FOR INSTALLING GAS LOG SETS
[For Use With Aries35, DRT2035, Bellevue 32, and DRI2032 Series Direct-Vent Gas Fireplaces/Inserts]
KIT CONTENTS
1 ea. Log Set
1 ea. Instruction Sheet
Log Set
4
I.D.#
Description
1
Left Rear Log
2
Left Front Bottom Log
5
3
Right Front Bottom Log
4
Right Rear Log
5
Twig Log
f i r e - p a r t s . c o m
2
Figure 1 - Log Set
GENERAL INFORMATION
This log placement guide has been prepared to present detailed log placement
illustrations and provide instruction to assist in the setup of replacement
logs and after the annual cleaning and inspection cycles. The information
provided here is to be used in conjunction with the Installation and Operation
Instructions provided with the appliance.
If you encounter any problems, need clarification of these instructions or are
not qualified to properly install this kit, contact your local distributor or dealer.
Read this instruction sheet in its entirety before beginning the installation.
DO NOT attempt to install the logs until the appliance installation has been
completed, the gas line connected and tested for leaks and the initial burner
operation has been checked out.
The logs have notches/tabs/pins to assist proper positioning. Proper log
placement is critical to prevent sooting. Place the logs in the gaps between
flame peaks, so they do not impinge the flames. Follow the log placement
instructions precisely.
ALL WARNINGS AND PRECAUTIONS IN THE INSTALLATION AND OPERA-
TION MANUAL PROVIDED WITH THE APPLIANCE APPLY TO THESE
INSTRUCTIONS.
SHUT DOWN THE APPLIANCE AND ALLOW IT TO COMPLETELY COOL
BEFORE PROCEEDING.
TOOLS NEEDED
None
2
1
3
1
4
3
5
P/N 900935-00
Rev. NC, 10/2018
INSTALLATION INSTRUCTIONS
Pre-installation Instructions:
1. Allow the fireplace to cool completely before proceeding.
2. Remove the barrier and door (see instructions in the Installation and
Operation Manual provided with the appliance).
3. Remove the old logs that need replacing. Discard old logs.
Install new logs per the following instructions:
1. Locate the placement tabs (Figure 2).
2. Bend up the log placement tabs (Figure 2).
3. Install the rear left log (1) (Figure 3).
Tabs for
Log #2
Figure 2 - Locate the log placement tabs
1
Front View
Figure 3 - Place left rear log (1)
HEARTH PRODUCTS
KITS AND ACCESSORIES
GAS LOG SETS
Tabs for
Tabs for
Log #1
Log #4
Slots fit over Tabs shown in Figure 2
Bottom View
Tabs for
Log #3
1
Advertisement
Table of Contents
Related Manuals for IHP 900935-00
Summary of Contents for IHP 900935-00
- Page 1 HEARTH PRODUCTS KITS AND ACCESSORIES P/N 900935-00 GAS LOG SETS Rev. NC, 10/2018 GAS LOG PLACEMENT GUIDE FOR INSTALLING GAS LOG SETS [For Use With Aries35, DRT2035, Bellevue 32, and DRI2032 Series Direct-Vent Gas Fireplaces/Inserts] TOOLS NEEDED KIT CONTENTS INSTALLATION INSTRUCTIONS None 1 ea.
- Page 2 4. Install left front bottom log (2) on two tabs (Figure 4). 6. Install right rear log (4) (Figure 6). This log should be placed as far to the right as the slot allows. 5. Install right front bottom log (3) on two tabs (Figure 5). 7.
- Page 3 8. Tear the glowing embers into dime size pieces. Place glowing embers as shown in Figure 8. Do NOT place embers on or close to large ports or the pilot area as seen here (circled). Figure 8 - Place glowing embers (rockwool) 9.
- Page 4 - p a r t s . c o m Innovative Hearth Products (IHP) reserves the right to make changes at any time, without notice, in design, materials, specifications, prices and also to discontinue colors, styles and products.
