VF GEORGIAN BRICK RETENTION KIT F3784
[FOR USE WITH MODELS: VRT4536/42/50 SERIES & VRE6036/42/50 SERIES]
KIT CONTENTS
Qty. Part No. Description
3 ea. 120520-01 Retainer Brackets
6 ea. 11203 Self tapping Screw
1 ea. 900914-00 Instruction Sheet
REQUIRED TOOLS
Phillips Screwdriver
5/16'' Hex Socket Wrench or Nut Driver
f i r e - p a r t s . c o m
GENERAL INFORMATION
READ ENTIRE INSTRUCTION SHEET BEFORE STARTING THE
INSTALLATION
THE FIREPLACE MUST BE OFF AND COLD BEFORE BEGINNING.
ALL WARNINGS, PRECAUTIONS AND INSTRUCTIONS IN THE
INSTALLATION AND OPERATION MANUAL PROVIDED WITH THE
APPLIANCE APPLY TO THESE INSTRUCTIONS.
If you encounter any problems, need clarification of these instructions
or are not qualified to properly install this kit, contact you local
distributor or dealer.
If any of these parts are missing or damaged, contact your dealer or
IHP.us.com for referral information.
If you have any questions concerning the installation or applica-
tion of this kit, please contact our customer service department
at IHP.us.com
WARNING
• Turn off, unplug, and let fireplace cool before install-
ing brick liner. Only a qualified service person should
service and repair fireplace.
• A qualified service person must connect and discon-
nect fireplace to gas supply. Follow all local codes.
P/N 900914-00
Rev. NC, 08/2018
If already installed, you must remove log assembly
before installing refractory kit. Refer to log assembly
owner's manual.
NOTE: Some installations may require the gas supply line to be
disconnected before removing log assembly. If so, call a qualified
service person to disconnect gas supply from fireplace.
IMPORTANT: Always handle refractory panels with two hands.
Screw
(6 ea.)
Note: Refractory panels
shown are not part of this Kit

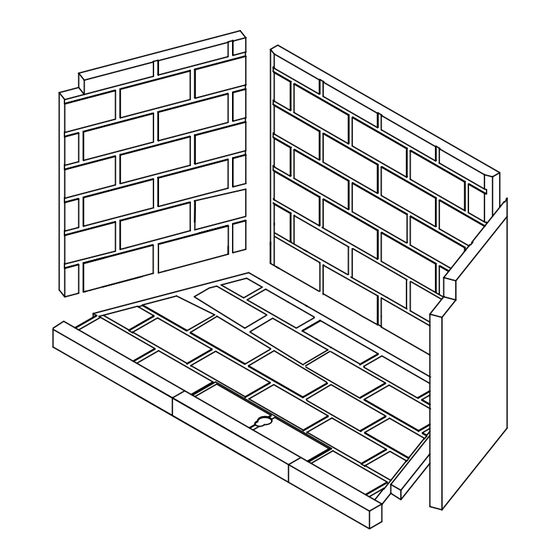

Figure 1 - Brick Retention Kit
IHP.us.com
HEARTH PRODUCTS
KITS AND ACCESSORIES
FIREBOX LINER KITS
36/42/50 VF FIREPLACES
NOTICE
Bracket (3 ea.)
