Mounting instructions LANCOM AirLancer ON-QT60 / ON-QT90

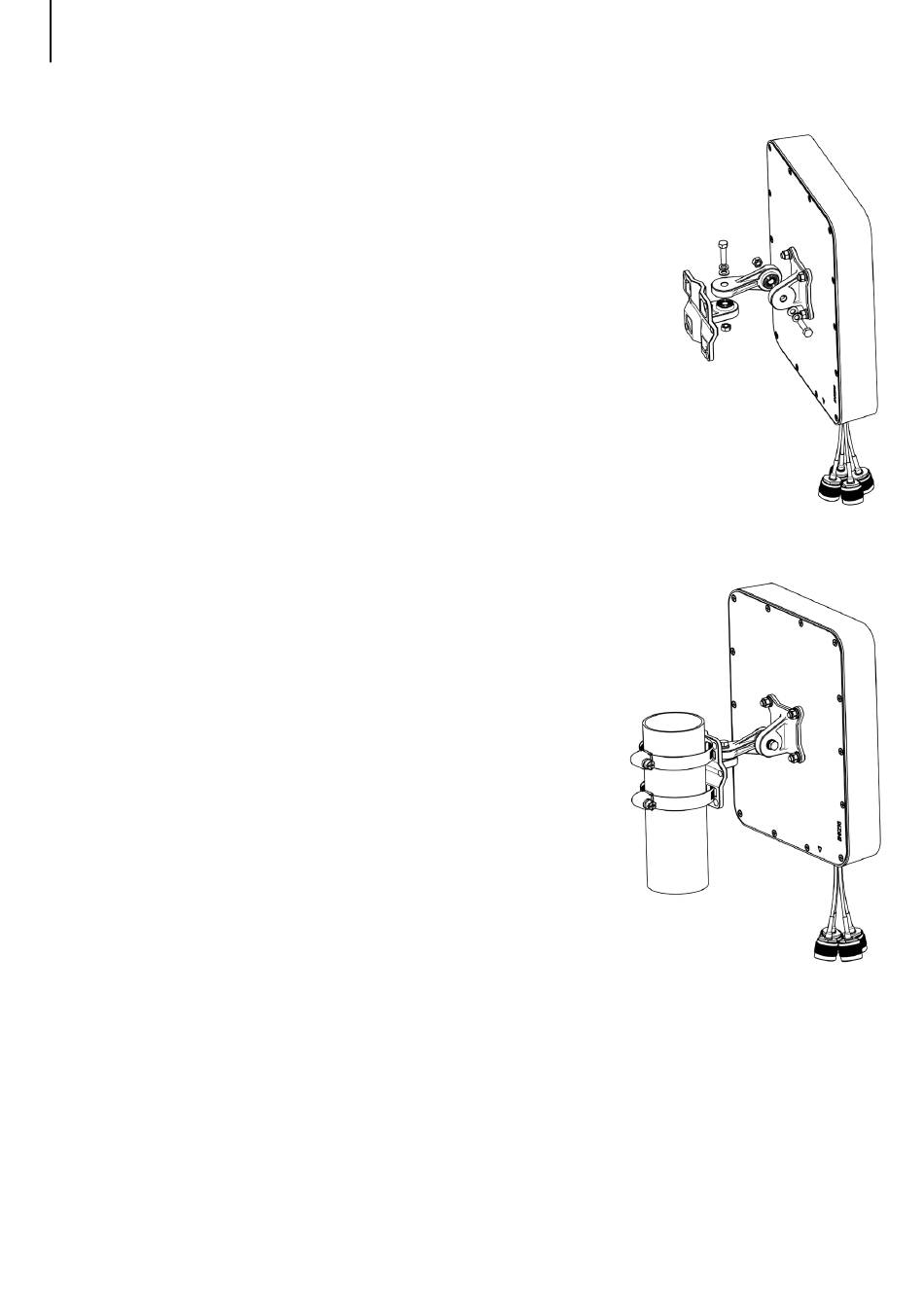

Wall mounting of the antenna
Align the wall bracket with the drill holes and fasten it with suitable
screws.
Now fasten the connecting arm (B), which is already mounted on the
antenna, to the connecting flange hand-tight using a screw (D), a
spring washer (E), a washer (F), and a nut (G).
Make sure that the spring washer
and that the cables of the antenna point downwards.
Align the antenna according to your wishes and then tighten the
screws of the connection arm with suitable torque.
Pole mounting of the antenna
Position the pole flange
with sufficient load-bearing capacity and a diameter between 40
and 64 mm.
Then, as shown in the overview, guide the two band
through the pole flange
after aligning the pole flange.
Then connect the pole flange
(B) mounted on the antenna by means of an enclosed screw (D), a
washer (F), a spring washer (E), and a nut (G).
Make sure that the spring washer
screw head.
Align the antenna according to your requirements and then tighten
the screws of the connection arm with suitable torque.
(E) is directly under the screw head
(C) at the desired height on a suitable pole
(C) and around the pole and tighten them
(C)
hand-tight to the connecting arm
(E) is located directly under the
clamps (H)
