Mounting Instructions LANCOM AirLancer ON-QT60 / ON-QT90
Übersicht des Befestigungs-Kits
D
G
E F
A

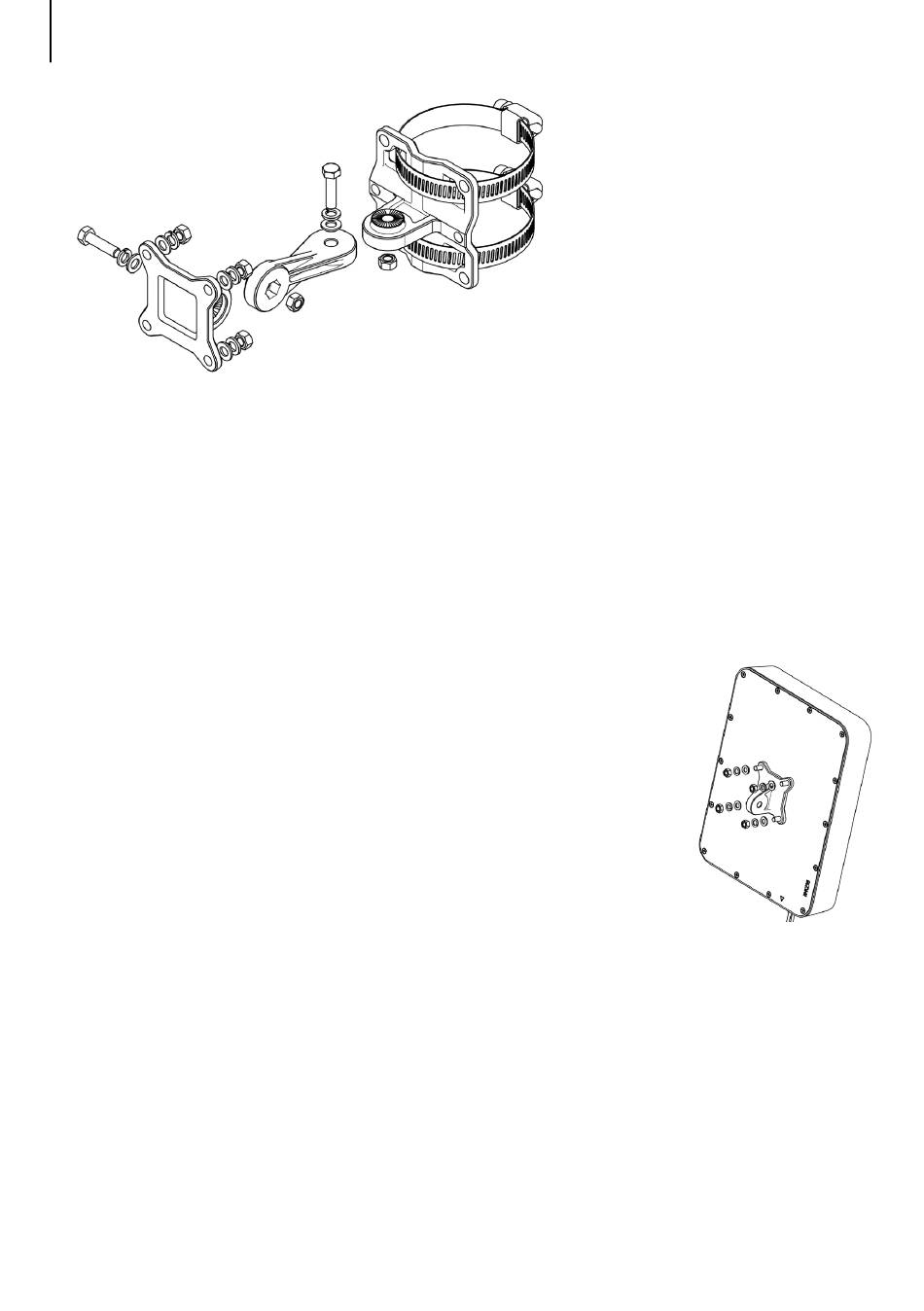

Mounting kit contents
(A)
1 Conection flange
(B)
1 Connection arm
1 Pole flange / wall bracket
2 Hexagon head screws M5x25
6 Spring washers M5
(F)
6 Washers M5
(G)
6 Nuts M5
(H)
2 Band clamps 2,5"
Mounting the antenna flange
Screw the connection flange
using the enclosed washers (F), lock washers
sure that the spring washers
Then fasten the connecting arm
using a screw (D), a spring washer (E), a washer (F), and a nut (G).
Make sure that the spring washer
screw head.
Preparation for wall mounting
If you want to mount the antenna on a wall, use the wall mount
the drill holes for wall mounting.
Drill the corresponding holes at the markings and insert dowels (not included) into them if
necessary. Depending on the wall material and condition, the depth and diameter of the holes
must be adjusted.
B
(C)
(D)
(E)
(A) to the back of the antenna housing
(E)
are located directly under the nuts.
(B) hand-tight to the connecting flange
(E) is located directly under the
H
C
(E) and nuts (G). Make
(C) as a drilling template to mark
