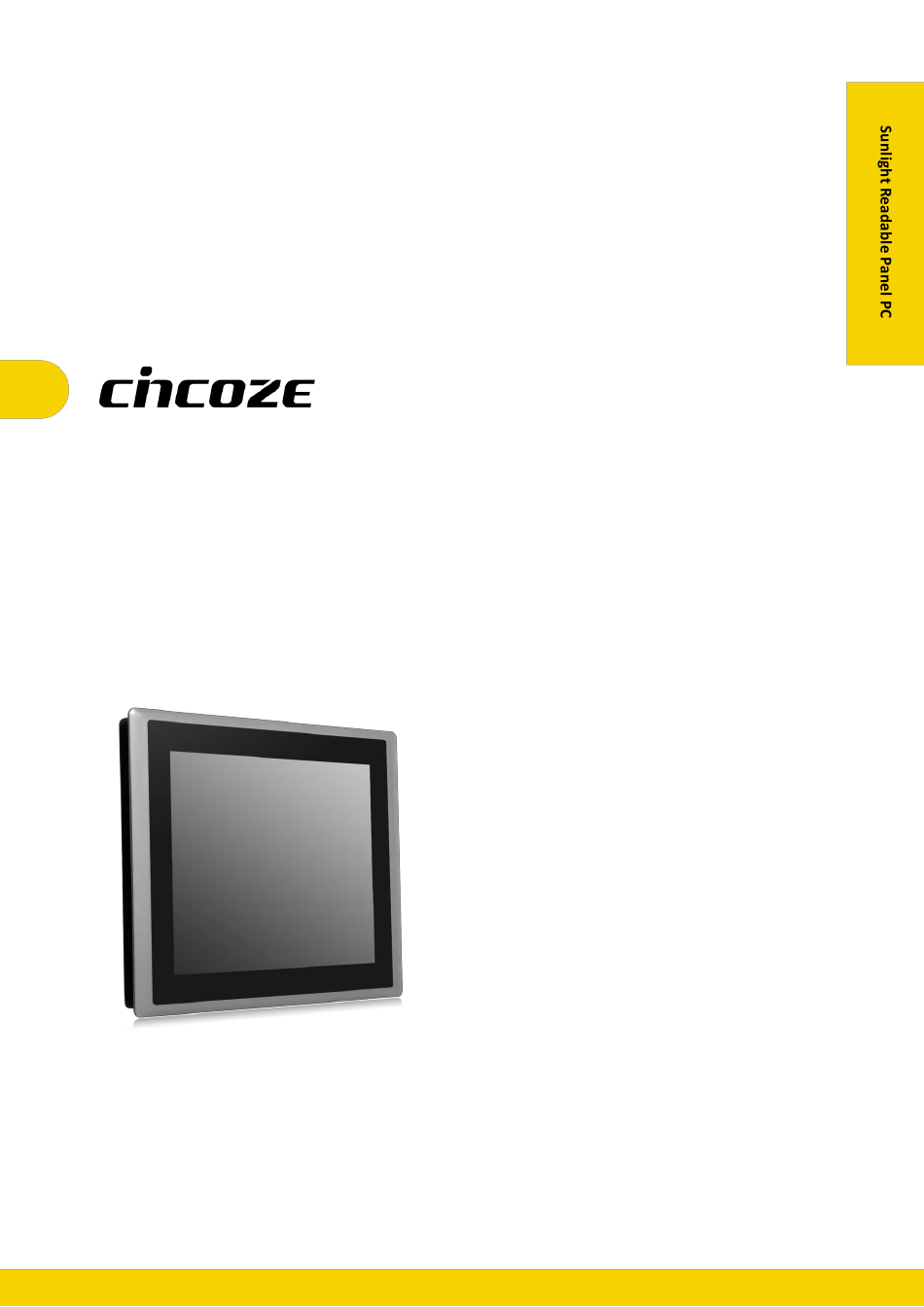

- Page 1 CS-100/P1101 Series User Manual Industrial Panel PC Power Efficient Sunlight Readable Series Version: V1.39...
-
Page 2: Table Of Contents
Contents Preface ..............................5 Revision .............................. 5 Copyright Notice ..........................5 Acknowledgement ..........................5 Disclaimer ............................5 Declaration of Conformity ........................6 Product Warranty Statement ......................6 Technical Support and Assistance ...................... 7 Conventions Used in this Manual ...................... 8 Safety Precautions .......................... - Page 3 1.6.3 Side (Right) ........................... 48 1.6.4 Side (Left) ..........................48 1.6.5 Top ............................49 Chapter 2 Switches & Connectors ....................... 50 2.1 Location of Switches and Connectors ..................51 2.1.1 Top View ..........................51 2.1.2 Bottom View ........................52 2.2 Switches and Connectors Definition ..................53 2.3 Definition of Switches ........................
- Page 4 4.3.5 S5 RTC Wake Settings ......................85 4.3.6 Serial Port Console Redirection ................... 85 4.3.7 CPU Configuration ....................... 86 4.3.8 Network Stack Configuration ....................86 4.3.9 CSM Configuration ....................... 87 4.3.10 USB Configuration ......................88 4.4 Chipset Setup ..........................89 4.4.1 North Bridge ........................
-
Page 5: Preface
2023/04/14 Copyright Notice © 2018 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Cincoze Co., Ltd. All information and specification provided in this manual are for reference only and remain subject to change without prior notice. -
Page 6: Declaration Of Conformity
(such as a fuse, battery, etc.), are not warranted. Before sending your product in, you will need to fill in Cincoze RMA Request Form and obtain a RMA number from us. Our staff is available at any time to provide you with the most friendly and immediate service. -
Page 7: Technical Support And Assistance
Limitation of Liability Cincoze’ liability arising out of the manufacture, sale, or supplying of the product and its use, whether based on warranty, contract, negligence, product liability, or otherwise, shall not exceed the original selling price of the product. The remedies provided herein are the customer’s sole and exclusive remedies. -
Page 8: Conventions Used In This Manual
Conventions Used in this Manual Safety Precautions Before installing and using this device, please note the following precautions. Read these safety instructions carefully. Keep this User’s Manual for future reference. Disconnected this equipment from any AC outlet before cleaning. For plug-in equipment, the power outlet socket must be located near the equipment and must be easily accessible. - Page 9 13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel. If one of the following situations arises, get the equipment checked by service personnel: ⚫ The power cord or plug is damaged. ⚫...
-
Page 10: Package Contents
Package Contents Before installation, please ensure all the items listed in the following table are included in the package. Item Description Q’ty Panel PC Screw Pack Panel Mounting Kit (The quantity varies with the size of the display module, please refer to the datasheet for the actual quantity) Power Terminal Block Connector Remote Power On/Off Terminal Block Connector DIO Terminal Block Connector... - Page 11 15" TFT-LCD 1600nits Sunlight Readable Touch Panel CS-115C/P1101-N42 PC with Intel® Pentium® N4200 Quad Core Processor and P-Cap. Touch 17" TFT-LCD 1500nits Sunlight Readable Touch Panel CS-117C/P1101-E50 PC with Intel® Atom® E3950 Quad Core Processor and P-Cap. Touch 17" TFT-LCD 1500nits Sunlight Readable Touch Panel CS-117C/P1101-N42 PC with Intel®...
-
Page 12: Chapter 1 Product Introductions
Chapter 1 Product Introductions CS-100/ P1101 Series | User Manual... -
Page 13: Overview
1.1 Overview CS-100/P1101 Series is a TFT-LCD sunlight readable touch panel PC offering ultra-high brightness and high resolution. The system is based on Intel® Atom® / Pentium® processor and supports triple independent displays (via VGA and DisplayPort outputs). CS-100/P1101 Series features extensive connectivity including 2x GbE, 4x USB 3.0, 4x COM, and 8x isolated DIO. -
Page 14: Product Pictures
1.3 Product Pictures 1.4 Key Features ⚫ 8.4” ~ 24” TFT LCD with Ultra High Brightness up to 1,600nits ⚫ Onboard Intel® Atom® / Pentium® Processor ⚫ Triple Independent Displays (via VGA and DisplayPort outputs) ⚫ Rich I/O (2x GbE LAN, 4x USB 3.0, 4x COM, 8x Isolated DIO) ⚫... -
Page 15: Hardware Specification
1.5 Hardware Specification 1.5.1 CS-108C/P1101 Series The table on this page refers to the specifications of CS-108 alone. Display • 8.4" (4:3) LCD Size • 800 x 600 Max. Resolution • 1600 Brightness • 600 : 1 Contract Ratio • 16.2M LCD Color •... - Page 16 Model Name P1101 System • Onboard Intel® Atom® x7-E3950 Quad Core Processor, up to 2.00 GHz Processor • Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz • 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket Memory • Support up to 8 GB (un-buffered and non-ECC) Graphics •...
- Page 17 Model Name P1101 Other Function • Support 0.2sec Instant Reboot • Software Programmable Supports 256 Levels System Reset Watchdog Timer • AMP 2W + 2W Internal Speaker • LCD On/Off, Brightness Up, Brightness Down OSD Function Power • Support AT, ATX Mode AT/ATX Power •...
- Page 18 Dimension CS-108C/P1101 Unit: mm CS-100/ P1101 Series | User Manual...
-
Page 19: Cs-110Hc/P1101 Series
1.5.2 CS-110HC/P1101 Series The table on this page refers to the specifications of CS-110H alone. Display • 10.4" (4:3) LCD Size • 1024 x 768 Max. Resolution • 1500 Brightness • 1400 : 1 Contract Ratio • 16.2M LCD Color •... - Page 20 Model Name P1101 System • Onboard Intel® Atom® x7-E3950 Quad Core Processor, up to 2.00 GHz Processor • Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz • 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket Memory • Support up to 8 GB (un-buffered and non-ECC) Graphics •...
- Page 21 Model Name P1101 Other Function • Support 0.2sec Instant Reboot • Software Programmable Supports 256 Levels System Reset Watchdog Timer • AMP 2W + 2W Internal Speaker • LCD On/Off, Brightness Up, Brightness Down OSD Function Power • Support AT, ATX Mode AT/ATX Power •...
- Page 22 Dimension CS-110HC/P1101 Unit: mm CS-100/ P1101 Series | User Manual...
-
Page 23: Cs-112Hc/P1101 Series
1.5.3 CS-112HC/P1101 Series The table on this page refers to the specifications of CS-112H alone. Display • 12.1" (4:3) LCD Size • 1024 x 768 Max. Resolution • 1500 Brightness • 700 : 1 Contract Ratio • 16.2M LCD Color •... - Page 24 Model Name P1101 System • Onboard Intel® Atom® x7-E3950 Quad Core Processor, up to 2.00 GHz Processor • Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz • 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket Memory • Support up to 8 GB (un-buffered and non-ECC) Graphics •...
- Page 25 Model Name P1101 Other Function • Support 0.2sec Instant Reboot • Software Programmable Supports 256 Levels System Reset Watchdog Timer • AMP 2W + 2W Internal Speaker • LCD On/Off, Brightness Up, Brightness Down OSD Function Power • Support AT, ATX Mode AT/ATX Power •...
- Page 26 Dimension CS-112HC/P1101 Unit: mm CS-100/ P1101 Series | User Manual...
-
Page 27: Cs-115C/P1101 Series
1.5.4 CS-115C/P1101 Series The table on this page refers to the specifications of CS-115 alone. Display • 15" (4:3) LCD Size • 1024 x 768 Max. Resolution • 1600 Brightness • 800 : 1 Contract Ratio • 16.2M LCD Color •... - Page 28 Model Name P1101 System • Onboard Intel® Atom® x7-E3950 Quad Core Processor, up to 2.00 GHz Processor • Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz • 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket Memory • Support up to 8 GB (un-buffered and non-ECC) Graphics •...
- Page 29 Model Name P1101 Other Function • Support 0.2sec Instant Reboot • Software Programmable Supports 256 Levels System Reset Watchdog Timer • AMP 2W + 2W Internal Speaker • LCD On/Off, Brightness Up, Brightness Down OSD Function Power • Support AT, ATX Mode AT/ATX Power •...
- Page 30 Dimension CS-115C/P1101 Unit: mm CS-100/ P1101 Series | User Manual...
-
Page 31: Cs-117C/P1101 Series
1.5.5 CS-117C/P1101 Series The table on this page refers to the specifications of CS-117 alone. Display • 17" (5:4) LCD Size • 1280 x 1024 Max. Resolution • 1500 Brightness • 800 : 1 Contract Ratio • 16.7M LCD Color •... - Page 32 Model Name P1101 System • Onboard Intel® Atom® x7-E3950 Quad Core Processor, up to 2.00 GHz Processor • Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz • 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket Memory • Support up to 8 GB (un-buffered and non-ECC) Graphics •...
- Page 33 Model Name P1101 Other Function • Support 0.2sec Instant Reboot • Software Programmable Supports 256 Levels System Reset Watchdog Timer • AMP 2W + 2W Internal Speaker • LCD On/Off, Brightness Up, Brightness Down OSD Function Power • Support AT, ATX Mode AT/ATX Power •...
- Page 34 Dimension CS-117C/P1101 Unit: mm CS-100/ P1101 Series | User Manual...
-
Page 35: Cs-119C/P1101 Series
1.5.6 CS-119C/P1101 Series The table on this page refers to the specifications of CS-119 alone. Display • 19" (5:4) LCD Size • 1280 x 1024 Max. Resolution • 1600 Brightness • 1000 : 1 Contract Ratio • 16.7M LCD Color •... - Page 36 Model Name P1101 System • Onboard Intel® Atom® x7-E3950 Quad Core Processor, up to 2.00 GHz Processor • Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz • 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket Memory • Support up to 8 GB (un-buffered and non-ECC) Graphics •...
- Page 37 Model Name P1101 Other Function • Support 0.2sec Instant Reboot • Software Programmable Supports 256 Levels System Reset Watchdog Timer • AMP 2W + 2W Internal Speaker • LCD On/Off, Brightness Up, Brightness Down OSD Function Power • Support AT, ATX Mode AT/ATX Power •...
- Page 38 Dimension CS-119C/P1101 Unit: mm CS-100/ P1101 Series | User Manual...
-
Page 39: Cs-W121C/P1101 Series
1.5.7 CS-W121C/P1101 Series The table on this page refers to the specifications of CS-W121 alone. Display • 21.5” (16:9) LCD Size • 1920x1080 (Full HD) Max. Resolution • 1000 Brightness • 5000 : 1 Contract Ratio • 16.7M LCD Color •... - Page 40 Model Name P1101 System • Onboard Intel® Atom® x7-E3950 Quad Core Processor, up to 2.00 GHz Processor • Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz • 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket Memory • Support up to 8 GB (un-buffered and non-ECC) Graphics •...
- Page 41 Model Name P1101 Other Function • Support 0.2sec Instant Reboot • Software Programmable Supports 256 Levels System Reset Watchdog Timer • AMP 2W + 2W Internal Speaker • LCD On/Off, Brightness Up, Brightness Down OSD Function Power • Support AT, ATX Mode AT/ATX Power •...
- Page 42 Dimension CS-W121C/P1101 Unit: mm CS-100/ P1101 Series | User Manual...
-
Page 43: Cs-W124C/P1101 Series
1.5.8 CS-W124C/P1101 Series The table on this page refers to the specifications of CS-W124 alone. Display • 24” (16:9) LCD Size • 1920x1080 Max. Resolution • 1500 Brightness • 5000 : 1 Contract Ratio • 16.7M LCD Color • 0.27675 (H) x 0.27675 (V) Pixel Pitch •... - Page 44 Model Name P1101 System • Onboard Intel® Atom® x7-E3950 Quad Core Processor, up to 2.00 GHz Processor • Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz • 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket Memory • Support up to 8 GB (un-buffered and non-ECC) Graphics •...
- Page 45 Model Name P1101 Other Function • Support 0.2sec Instant Reboot • Software Programmable Supports 256 Levels System Reset Watchdog Timer • AMP 2W + 2W Internal Speaker • LCD On/Off, Brightness Up, Brightness Down OSD Function Power • Support AT, ATX Mode AT/ATX Power •...
- Page 46 Dimension CS-W124C/P1101 Unit: mm CS-100/ P1101 Series | User Manual...
-
Page 47: System I/O
1.6 System I/O 1.6.1 Front Power On/Off Switch SIM Card Slot Press to power-on or power-off the system Used to inserts a SIM card Antenna Hole IGN Switch Used to install an antenna jack Used to set up IGN function Power LED 12 /24V Switch Indicates the power status of the system... -
Page 48: Side (Right)
1.6.3 Side (Right) Reset Button Decrease Brightness Used to reset the system Press to decrease brightness of the screen Temperature LED LCD On/Off Indicates the temperature of the system Press to turn-on or turn-off the display Antenna Hole USB 3.2 GEN1 port Used to install an antenna jack Used to connect USB 3.2 GEN1/2.0/1.1 device Increase Brightness... -
Page 49: Top
1.6.5 Top VESA Mounting Hole These are mounting holes for VESA mount (75x75mm and 100x100mm) CS-100/ P1101 Series | User Manual... -
Page 50: Chapter 2 Switches & Connectors
Chapter 2 Switches & Connectors CS-100/ P1101 Series | User Manual... -
Page 51: Location Of Switches And Connectors
2.1 Location of Switches and Connectors 2.1.1 Top View CS-100/ P1101 Series | User Manual... -
Page 52: Bottom View
2.1.2 Bottom View CS-100/ P1101 Series | User Manual... -
Page 53: Switches And Connectors Definition
2.2 Switches and Connectors Definition List of Switches & Connectors Location Definition AT_ATX AT / ATX Power Mode Switch CLR_CMOS Clear CMOS Switch RESET1 Reset Button BL_UP1 Backlight Increase Button BL_UP2 Backlight Decrease Button BL_PWR1 Backlight Power On / Off Button USB3_1 / USB3_2 / USB3_3 USB 3.0 Ports COM1_1 / COM2_1 /... -
Page 54: Definition Of Switches
2.3 Definition of Switches AT_ATX: AT / ATX Power Mode Switch Switch Definition 1-2 (Left) AT Power Mode 2-3 (Right) ATX Power Mode (Default) CLR_CMOS: Clear CMOS Switch Switch Definition 1-2 (Left) Normal Status (Default) 2-3 (Right) Clear CMOS BL_PWR1: Backlight Power on / off Switch Definition Push... - Page 55 SW1: Super CAP SW / COM3~4 with Power Select Location Function DIP1 DIP2 Enabled ON (Default) Super Disabled Location Function DIP3 DIP4 0V (RI) ON (Default) ON (Default) COM3 Location Function DIP5 DIP6 0V (RI) ON (Default) ON (Default) COM4 SW2: COM1~2 with Power Select Location Function...
-
Page 56: Definition Of Connectors
2.4 Definition of Connectors MINIPCIE1 : Mini PCI-Express Socket (Support SIM Card to Link feature) Pin Definition Definition Definition WAKE# RESERVED 3.3V 3.3V USB_D+ RESERVED PERST# PERN0 (USB3RN0) / 3.3V SATARP0 1.5V 3.3V PERP0 (USB3RP0) / CLKREQ# SATARN0 SIM_VCC 10 SIM_DATA +1.5V 11 REFCLK- 12 SIM_CLK... - Page 57 MINIPCIE2 : Mini PCI-Express Socket (Support mSATA feature) Pin Definition Definition Definition WAKE# 3.3V 3.3V USB_D+ 3.3V PERST# PERN0 / SATARP0 3.3V 1.5V +3.3VAUX CLKREQ# PERP0 / SATARN0 10 NA +1.5V 11 REFCLK- 12 NA SMB_CLK +1.5V 13 REFCLK+ PETN0 / ATATN0 14 NA SMB_DATA 15 GND...
- Page 58 PWR_SW2: Remote Power On/Off Connector Definition PWR_SW Do not apply power to this connector! This port is used to connect a SWITCH! DC_IN1: DC Power Input Connector (+9~48V) Connector Type: Terminal Block 1x3 3-pin, 5.0mm pitch Definition +9~48V IN Ignition (IGN) Please disconnect the power source before mounting the DC power cables or connecting the DC power connector to system.
- Page 59 COM1_1 / COM2_1 / COM3_1 / COM4_1: RS232 / RS422 / RS485 Connector Connector Type: 9-pin D-Sub RS422 / 485 RS485 RS232 Definition Full Duplex Half Duplex Definition Definition DATA - DATA + POWER1/ POWER2: Power Connector Pin 1 Connector Type: 1x4 4-pin Wafer, 2.0mm pitch Definition +12V CS-100/...
-
Page 60: Chapter 3 System Setup
Chapter 3 System Setup CS-100/ P1101 Series | User Manual... -
Page 61: Removing Top Cover
3.1 Removing Top Cover 1. Loosen the 8 screws of front and rear panel, then place them aside. 2. Remove the cover from the chassis. Place the top cover gently. CS-100/ P1101 Series | User Manual... -
Page 62: Installing So-Dimm Memory
3.2 Installing SO-DIMM Memory 1. Locate the SO-DIMM sockets. 2. Tilt the SO-DIMM module at a 45-degree angle and insert it to SO-DIMM socket until the gold-pated connector of module contacted firmly with the socket. 45° 3. Press the modules down until it’s fixed firmly by the two locking latches on each side. CS-100/ P1101 Series | User Manual... -
Page 63: Installing Mini-Pcie Card
3.3 Installing Mini-PCIe Card (Applicable for full or half size card) Locate the Mini PCIe slot. Insert the Mini-PCIe card at a 45-degree angle and insert it to the slot until the gold-pated connector of module contacted firmly with the slot. 45°... -
Page 64: Installing Antenna(S)
If you have a Half-size Mini-PCIe card, make sure use extender to make it Full-size as shown below. 3.4 Installing Antenna(s) 1. Remove the antenna hole covers at front panel. 2. Have antenna jack penetrate through the hole. CS-100/ P1101 Series | User Manual... - Page 65 3. Put on washer and fasten the nut with antenna jack. 4. Assemble the antenna and antenna jack together. 5. Attach the RF connector at another end of cable onto the module. CS-100/ P1101 Series | User Manual...
-
Page 66: Installing Cpu Thermal Pad
3.5 Installing CPU Thermal Pad 1. Place the thermal pad on the CPU heatsink. thermal pad Before assembling the system’s chassis cover, please make sure the protective film on the Thermal Pad has been removed! CS-100/ P1101 Series | User Manual... -
Page 67: Installing Top Cover
3.6 Installing Top Cover 1. Put on the cover. 2. Fasten the 8 screws to fix the cover. CS-100/ P1101 Series | User Manual... -
Page 68: Installing Sata Hard Drive
3.7 Installing SATA Hard Drive 1. Loosen 2 screws on front panel to remove cover plate. 2. Turn over the unit to have the bottom side face up and loosen 1 screw. 3. Pull out the HDD bracket. CS-100/ P1101 Series | User Manual... - Page 69 4. Make the bottom side of the HDD face up, place the HDD bracket on it. Ensure the direction of bracket is correct and use 4 provided screws to assemble HDD and HDD bracket together. 5. Align the HDD bracket with the entrance of HDD bay. And insert the HDD bracket until the connector of HDD contact the SATA connector firmly.
-
Page 70: Installing Sim Card
3.8 Installing SIM Card 1. Loosen 2 screws on front panel to remove cover plate. 2. SIM card slot is at the front panel of the system. 3. Insert the SIM card. CS-100/ P1101 Series | User Manual... -
Page 71: Connecting With Cs Display Module
3.9 Connecting with CS Display Module 1. Locate the module connector slot. 2. Turn over the unit to have the bottom side face up, loosen the 2 screws of the module connector bracket. The photos show the male connector (on display module) and female connector (on PC module) 3. - Page 72 4. Fasten the 6 screws to fix the PC module on the display module. CS-100/ P1101 Series | User Manual...
-
Page 73: Installing Vesa Mount Bracket
3.10 Installing VESA Mount Bracket The following picture indicates VESA mounting hole pattern on P1101 series, which is compliant with VESA mounting standard. 1. The following picture uses a panel PC (P1101 series +CS display module) as a demonstration. To attach the panel PC to a VESA stand, please fasten eight screws as indicated to fix it on the stand. -
Page 74: Installing Panel Mount
3.11 Installing Panel Mount 1. Accessories provided by Cincoze are as follows. (Please note that the quantity of mounting kits varies with the size of the display module, please refer to the datasheet for the actual quantity) CS-100/ P1101 Series | User Manual... - Page 75 2. All mounting kits displayed are to be inserted into holes. 3. Installation preparation and steps. CS-100/ P1101 Series | User Manual...
- Page 76 CS-100/ P1101 Series | User Manual...
- Page 77 4. Apply all mount kits to the rest of holes. And you have completed the panel mount installation, as shown below. CS-100/ P1101 Series | User Manual...
-
Page 78: Chapter 4 Bios Setup
Chapter 4 BIOS Setup CS-100/ P1101 Series | User Manual... -
Page 79: Bios Introduction
4.1 BIOS Introduction The BIOS (Basic Input/ Output System) is a program located on a Flash Memory on the motherboard. When you start the computer, the BIOS program will gain control. The BIOS first operates an auto-diagnostic test called POST (power on self-test) for all the necessary hardware, it detects the entire hardware device and configures the parameters of the hardware synchronization. -
Page 80: Main Setup
4.2 Main Setup Press <Del> to enter BIOS CMOS Setup Utility, the Main Menu (as shown below) will appears on the screen. Use arrow keys to move among the items and press <Enter> to accept or enter a sub-menu. 4.2.1 System Date Set the date. -
Page 81: Advanced Setup
4.3 Advanced Setup This section allows you to configure and improve your system and allows you to set up some system features according to your preference. 4.3.1 Trusted Computing Settings ■ Security Device Support [Enabled] Enables or disables Security Device Support function. ■... -
Page 82: Acpi Settings
■ Pending Operation [None] Allows you to select which mode Pending Operation will operate. Configuration options: [None], [TPM Clear] ■ Platform Hierarchy [Enabled] Enables or disables Platform Hierarchy function. ■ Storage Hierarchy [Enabled] Enables or disables Storage Hierarchy function. ■ Endorsement Hierarchy [Enabled] Enables or disables Endorsement Hierarchy function. -
Page 83: F81866 Super Io Configuration
4.3.3 F81866 Super IO Configuration Set Parameters of Serial Ports. User can Enable/Disable the serial port and Select an optimal setting for the Super IO Device. ■ Serial Port 1~4 Configuration. CS-100/ P1101 Series | User Manual... -
Page 84: Hardware Monitor
❑ Serial Port [Enabled] Enables or disables serial port. ❑ Change Settings [Auto] Allows you to change the IO Address & IRQ settings of the specified serial port. ❑ Onboard Serial Port 1~6 Mode [RS232] Allows you to select Serial Port Mode. Configuration options: [RS232] [RS422/RS485 Full Duplex] [RS485 Half Duplex] ■... -
Page 85: S5 Rtc Wake Settings
4.3.5 S5 RTC Wake Settings ■ Wake system from S5 [Disabled] Enables or disables wake system from S5 (soft-off state). [Disabled]: Disables wake system from S5. [Fixed Time]: Sets a fixed time (HH:MM:SS) to wake system from S5. [Dynamic Time]: Sets an increase minute(s) from current time to wake system from S5. 4.3.6 Serial Port Console Redirection ■... -
Page 86: Cpu Configuration
4.3.7 CPU Configuration ■ Socket 0 CPU Information This section provides information on your CPU, frequency, and cache memory. ■ Active Processor Cores [Enabled] Number of cores to enable in each processor package. ■ Intel Virtualization Technology [Enabled] Enables or disables Intel Virtualization Technology. Virtualization enhanced by Intel Virtualization Technology will allow a platform to run multiple operating systems and applications in independent partitions. -
Page 87: Csm Configuration
■ Network Stack [Disabled] Enables or disables UEFI Network Stack. 4.3.9 CSM Configuration This option controls legacy/UEFI ROMs priority. ■ CSM Support [Disabled] Enables or disables compatibility support module. ■ Boot option filter [UEFI and Legacy] Allows you to select which type of operating system to boot. [UEFI and Legacy]: Allows booting from operating systems that support legacy option ROM or UEFI option ROM. -
Page 88: Usb Configuration
[UEFI]: Enables UEFI option ROM only. [Legacy]: Enables legacy option ROM only. ■ Other PCI devices [Do not launch] Allows users to determine option ROM execution policy for devise other than network, storage, or video. 4.3.10 USB Configuration ■ Legacy USB Support [Enabled] This item allows you to enable or disable legacy USB support. -
Page 89: Chipset Setup
4.4 Chipset Setup This section allows you to configure chipset related settings according to user’s preference. 4.4.1 North Bridge This section provides information on the installed memory size and memory/onboard graphics-related configuration options. CS-100/ P1101 Series | User Manual... -
Page 90: South Bridge
4.4.2 South Bridge ■ OS Selection [Windows] Allows you to configure Operating System version to install. Configuration options: [Windows] [Intel Linux] ■ Mini PCIE1/USB3 Switch [Mini PCIE] Allows you to change Mini PCIE1 as [Mini PCIE] or [USB3]. ■ Mini PCIE2/mSATA Switch [Mini PCIE] Allows you to change Mini PCIE2 as [Mini PCIE] or [mSATA]. -
Page 91: South Cluster Configuration
4.4.3 South Cluster Configuration ■ PCI Express Configuration PCI Express Root Port 5 (MiniPcie2) ❑ PCI Express Root Port 5 (MiniPcie2) [Enabled] Enables or disables PCI Express Root Port. ❑ PCIe Speed [Auto] Allows you to select PCI Express port speed. Configuration options: [Auto] [Gen1] [Gen2]. - Page 92 ❑ PCIe Speed [Auto] Allows you to select PCI Express port speed. Configuration options: [Auto] [Gen1] [Gen2]. ■ SATA Devices SATA Port 0 ❑ Port 0 [Enabled] Enables or disables SATA Port 0 (SATA1). SATA Port 1 ❑ Port 1 [Enabled] Enables or disables SATA Port 1 (MINIPCIE2).
- Page 93 ❑ Restore AC Power Loss [Last state] Allows you to specify which power state system will enter when power is resumed after a power failure (G3 state). [Always on]: Enters to power on state. [Always off]: Enters to power off state. [Last state]: Enters to the last power state before a power failure sables.
-
Page 94: Security Setup
4.5 Security Setup This section allows users to configure BIOS security settings. 4.5.1 Administrator Password Administrator Password controls access to the BIOS Setup utility. 4.5.2 User Password User Password controls access to the system at boot and to the BIOS Setup utility. CS-100/ P1101 Series | User Manual... -
Page 95: Boot Setup
4.6 Boot Setup This section allows you to configure Boot settings. ■ Bootup NumLock State Allows you to set NumLock key to [On] or [Off] state when system boots up. ■ Quiet Boot Allows you to enable or disable Quiet Boot function. ■... -
Page 96: Save & Exit
4.7 Save & Exit ■ Save Changes and Reset This item allows you to reset the system after saving changes. ■ Discard Changes and Reset This item allows you to reset system setup without saving any changes. ■ Restore Defaults This item allows you to restore/ load default values for all the setup options. -
Page 97: Chapter 5 Product Application
Chapter 5 Product Application CS-100/ P1101 Series | User Manual... -
Page 98: Digital I/O (Dio) Application
This section describes DIO application of the product. The content and application development are better understood and implemented by well experienced professionals or developers. 5.1.1 Digital I/O Programming Guide 5.1.1.1 Pins for Digital I/O of Cincoze P1101 series product Item Standard... - Page 99 5.1.1.3 Relative Registers To program the F81866A configuration registers, see the following configuration procedures. CS-100/ P1101 Series | User Manual...
- Page 100 5.1.1.4 Sample Code in C Language 5.1.1.4.1 Control of GP74 to GP77 (DI1 ~ DI4) #define AddrPort 0x4E #define DataPort 0x4F <Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) // Must write twice to enter Extended mode <Select Logic Device> WriteByte(AddrPort, 0x07) WriteByte(dataPort, 0x06) // Select logic device 06h...
- Page 101 5.1.1.4.2 Control of GP80 to GP83 (DO1 ~ DO4) #define AddrPort 0x4E #define DataPort 0x4F <Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) // Must write twice to enter Extended mode <Select Logic Device> WriteByte(AddrPort, 0x07) WriteByte(DataPort, 0x06) // Select logic device 06h <Output Mode Selection>...
- Page 102 5.1.1.5 Change base address - DIO base address (Cincoze default 0xA00) <Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) // Must write twice to enter Extended mode <Select Logic Device> WriteByte(AddrPort, 0x07) WriteByte(dataPort, 0x06) // Select logic device 06h...
- Page 103 5.1.1.6 DATA Bit Table (DIO) 7 6 5 4 3 2 1 0 7 6 5 4 3 2 1 0 0 0 0 1 - - - - value = DI1 - - - - 0 0 0 1 value = DO1 7 6 5 4 3 2 1 0...
-
Page 104: Digital I/O (Dio) Hardware Specification
5.2 Digital I/O (DIO) Hardware Specification ⚫ XCOM+: Isolated power in V+ ⚫ XCOM-: Isolated power in V- ⚫ Isolated power in DC voltage: 9~30V ⚫ 4x Digital Input (Source Type) ⚫ Input Signal Voltage Level Signal Logic 0: XCOM+ = 9V, Signal Low <... - Page 105 CS-100/ P1101 Series | User Manual...
-
Page 106: Chapter 6 Optional Modules And Accessories
Chapter 6 Optional Modules and Accessories Pin Definitions and Settings CS-100/ P1101 Series | User Manual... -
Page 107: Location Of The Connectors And Switches
6.1 Location of the Connectors and Switches Model No. Description CFM Module with Power Ignition Sensing Control Function, 12V/24V CFM-IGN101 Selectable CFM-PoE02 CFM Module with PoE Control Function, Individual Port 25.5W 6.2 Installing CFM-IGN Module 1. Locate the IGN connector on system motherboard as indicated. 2. - Page 108 3. Loosen 2 screws on front panel to remove cover plate. 4. IGN function switch is at the front panel of the system. SW2: IGN Function Switch Set shutdown delay timer when ACC is turned off Pin 1 Pin 2 Pin 3 Pin 4 Definition...
-
Page 109: Installing Cfm-Poe Module
6.3 Installing CFM-PoE Module 1. Locate the PoE connector on system motherboard as indicated. 2. Insert the female connector of CFM-PoE module to the male connector on system motherboard. 3. Turn over the heatsink and paste the thermal pad onto the marked by red squares. Before putting on the thermal block (in the next step), please make sure the protective film on the Thermal Pad has been removed! CS-100/... - Page 110 4. Paste the heatsink onto the CFM-PoE module carefully and fasten 2 screws to fix it. 5. Paste the thermal pads onto the heatsink and coil carefully. Before assembling the system’s chassis cover, please make sure the protective films on the Thermal Pads have been removed! 6.
- Page 111 © 2020 Cincoze Co., Ltd. All rights reserved. The Cincoze logo is a registered trademark of Cincoze Co., Ltd. All other logos appearing in this catalog are the intellectual property of the respective company, product, or organization associated with the logo.
