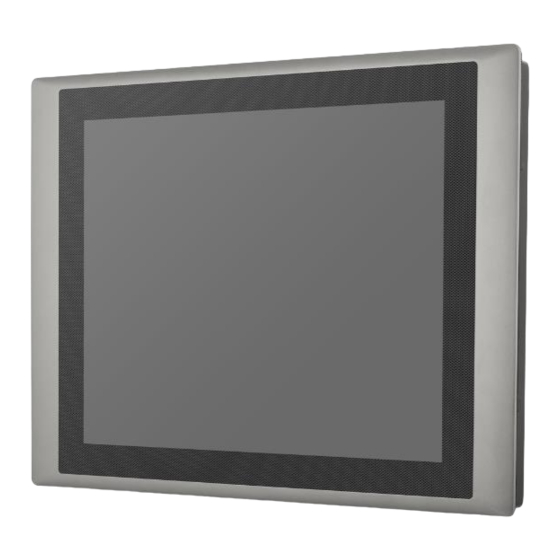

Cincoze CS-100 Series User Manual

Convertible touch monitor, display computing solution
Hide thumbs Also See for CS-100 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
CS-100 Series
User Manual
Version: V1.02
Convertible Touch Monitor
CS-100 Series
Display Computing Solution

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS-100 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cincoze CS-100 Series

Summary of Contents for Cincoze CS-100 Series

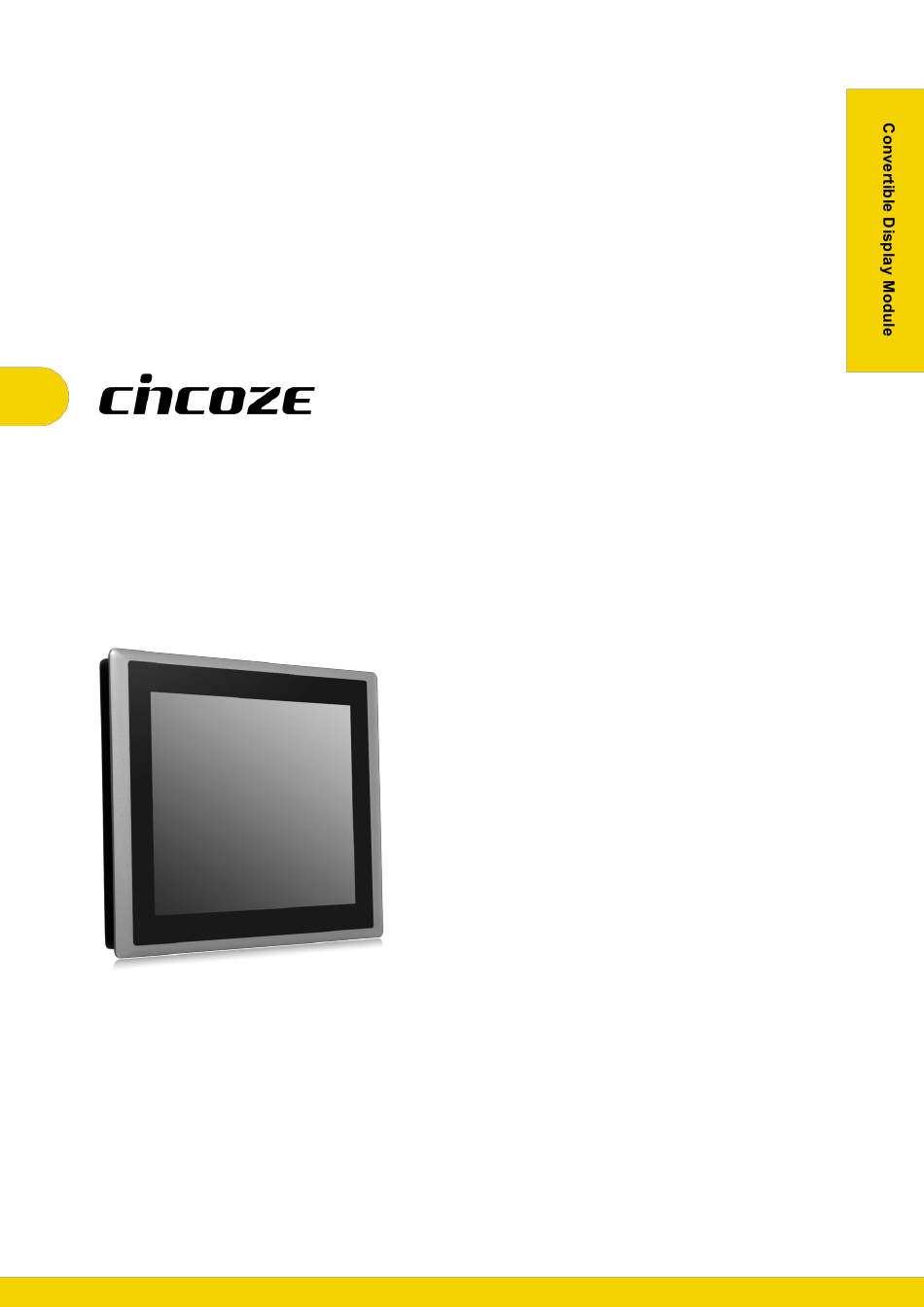

  • Page 1 CS-100 Series User Manual Convertible Touch Monitor CS-100 Series Display Computing Solution Version: V1.02...

  • Page 2: Table Of Contents

    Contents Preface ..........................3 Copyright Notice ........................3 Acknowledgement .........................3 Disclaimer ..........................3 Declaration of Conformity ......................3 Product Warranty Statement ....................4 Technical Support and Assistance ..................5 Conventions Used in this Manual ..................6 Safety Precautions.........................6 Package Contents .........................8 Ordering Information ......................10 Chapter 1 ..........................11 1.1 Overview ........................

  • Page 3: Preface

    1.02 Copyright Notice © 2021 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Cincoze Co., Ltd. All information and specification provided in this manual are for reference only and remain subject to change without prior notice.

  • Page 4: Product Warranty Statement

    Product Warranty Statement Warranty Cincoze products are warranted by Cincoze Co., Ltd. to be free from defect in materials and workmanship for 2 years (2 Years for PC Module, 1 Year for Display Module) from the date of purchase by the original purchaser. During the warranty period, we shall, at our option, either repair or replace any product that proves to be defective under normal operation.

  • Page 5: Technical Support And Assistance

    Limitation of Liability Cincoze’ liability arising out of the manufacture, sale, or supplying of the product and its use, whether based on warranty, contract, negligence, product liability, or otherwise, shall not exceed the original selling price of the product. The remedies provided herein are the customer’s sole and exclusive remedies.

  • Page 6: Conventions Used In This Manual

    Conventions Used in this Manual Safety Precautions Before installing and using this device, please note the following precautions. Read these safety instructions carefully. Keep this User’s Manual for future reference. Disconnected this equipment from any AC outlet before cleaning. For plug-in equipment, the power outlet socket must be located near the equipment and must be easily accessible.
  • Page 7 11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage. 12. Never pour any liquid into an opening. This may cause fire or electrical shock. 13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

  • Page 8: Package Contents

    Package Contents Before installation, please ensure all the items listed in the following table are included in the package. CS-108C-R10 Item Description Q’ty CS-108C Display Module Panel Mounting Kit CS-110HC-R10 Item Description Q’ty CS-110HC Display Module Panel Mounting Kit CS-112HC-R10 Item Description Q’ty CS-112HC Display Module...
  • Page 9 CV-117C-R10 Item Description Q’ty CS-117C Display Module Panel Mounting Kit CS-119C-R10 Item Description Q’ty CS-119C Display Module Panel Mounting Kit CS-W121C-R10 Item Description Q’ty CS-W121C Display Module Panel Mounting Kit CS-W124C-R10 Item Description Q’ty CS-W124C Display Module Panel Mounting Kit Note: Notify your sales representative if any of the above items are missing or damaged.

  • Page 10: Ordering Information

    Ordering Information Display Module with Projected Capacitive Touch Model No. Product Description 8.4" TFT-LCD 1600 nits SVGA 4:3 Display Module with CS-108C-R10 Projected Capacitive Touch 10.4" TFT-LCD 1500 nits XGA 4:3 Display Module with CS-110HC-R10 Projected Capacitive Touch 12.1" TFT-LCD 1500 nits XGA 4:3 Display Module with CS-112HC-R10 Projected Capacitive Touch 15"...

  • Page 11: Chapter 1

    Chapter 1 Product Introductions Series | User Manual CS-100...

  • Page 12: Overview

    1.1 Overview CS-100 Series is TFT-LCD touch display module. It offers ultra high brightness and high resolution, allowing viewers to see clear images even under any bright ambient light or direct sunlight environments. CS-100 Series is a rugged and reliable display solution featuring wide range operating temperature -20°C to 70°C, a solid aluminum die-casting front bezel...

  • Page 13: Hardware Specification

    1.3 Hardware Specification 1.3.1 CS-108C-R10 Display • LCD Size: 8.4" (4:3) • Max. Resolution: 800 x 600 • Brightness (cd/m2): 1600 • Contrast Ratio: 600 : 1 • LCD Color: 16.2M • Pixel Pitch (mm): 0.213 (H) x 0.213 (V) •...
  • Page 14 External Layout Dimension Unit: mm Series | User Manual CS-100...

  • Page 15: Cs-110Hc-R10

    1.3.2 CS-110HC-R10 Display • LCD Size: 10.4" (4:3) • Max. Resolution: 1024 x 768 • Brightness (cd/m2): 1500 • Contrast Ratio: 1400 : 1 • LCD Color: 16.2M • Pixel Pitch (mm): 0.206 (H) x 0.206 (V) • Viewing Angle (H-V): 178 / 178 •...
  • Page 16 External Layout Dimension Unit: mm Series | User Manual CS-100...

  • Page 17: Cs-112Hc-R10

    1.3.3 CS-112HC-R10 Display • LCD Size: 12.1" (4:3) • Max. Resolution: 1024 x 768 • Brightness (cd/m2): 1500 • Contrast Ratio: 700 : 1 • LCD Color: 16.2M • Pixel Pitch (mm): 0.24 (H) x 0.24 (V) • Viewing Angle (H-V): 160 / 160 •...
  • Page 18 External Layout Dimension Unit: mm Series | User Manual CS-100...

  • Page 19: Cs-115C-R10

    1.3.4 CS-115C-R10 Display • LCD Size: 15" (4:3) • Max. Resolution: 1024 x 768 • Brightness (cd/m2): 1600 • Contrast Ratio: 800 : 1 • LCD Color: 16.2M • Pixel Pitch (mm): 0.297 (H) x 0.297 (V) • Viewing Angle (H-V): 160 / 150 •...
  • Page 20 External Layout Dimension Unit: mm Series | User Manual CS-100...

  • Page 21: Cs-W115Fhc-R10

    1.3.5 CS-W115FHC-R10 Display • LCD Size: 15.6" (16:9) • Max. Resolution: 1920 x 1080 (Full HD) • Brightness (cd/m2): 1500 • Contrast Ratio: 700 : 1 • LCD Color: 16.7M • Pixel Pitch (mm): 0.17925 (H) x 0.17925 (V) • Viewing Angle (H-V): 160 / 140 •...
  • Page 22 External Layout Dimension Unit: mm Series | User Manual CS-100...

  • Page 23: Cs-117C-R10

    1.3.6 CS-117C-R10 Display • LCD Size: 17" (5:4) • Max. Resolution: 1280 x 1024 (Full HD) • Brightness (cd/m2): 1500 • Contrast Ratio: 800 : 1 • LCD Color: 16.7M • Pixel Pitch (mm): 0.264 (H) x 0.264 (V) • Viewing Angle (H-V): 160 / 140 •...
  • Page 24 External Layout Dimension Unit: mm Series | User Manual CS-100...

  • Page 25: Cs-119C-R10

    1.3.7 CS-119C-R10 Display • LCD Size: 19" (5:4) • Max. Resolution: 1280 x 1024 (Full HD) • Brightness (cd/m2): 1600 • Contrast Ratio: 1000 : 1 • LCD Color: 16.7M • Pixel Pitch (mm): 0.294 (H) x 0.294 (V) • Viewing Angle (H-V): 170 / 160 •...
  • Page 26 External Layout Dimension Unit: mm Series | User Manual CS-100...

  • Page 27: Cs-W121C-R10

    1.3.8 CS-W121C-R10 Display • LCD Size: 21.5" (16:9) • Max. Resolution: 1920 x 1080 (Full HD) • Brightness (cd/m2): 1000 • Contrast Ratio: 5000 : 1 • LCD Color: 16.7M • Pixel Pitch (mm): 0.24825 (H) x 0.24825 (V) • Viewing Angle (H-V): 178 / 178 •...
  • Page 28 External Layout Dimension Unit: mm Series | User Manual CS-100...

  • Page 29: Cs-W124C-R10

    1.3.9 CS-W124C-R10 Display • LCD Size: 24" (16:9) • Max. Resolution: 1920 x 1080 (Full HD) • Brightness (cd/m2): 1500 • Contrast Ratio: 5000 : 1 • LCD Color: 16.7M • Pixel Pitch (mm): 0.27675 (H) x 0.27675 (V) • Viewing Angle (H-V): 178 / 178 •...
  • Page 30 External Layout Dimension Series | User Manual CS-100...

  • Page 31: Chapter 2

    Chapter 2 System Setup Series | User Manual CS-100...

  • Page 32: Connecting With Pc Module Or Monitor Module

    2.1 Connecting with PC Module or Monitor Module The photos show the male connector (on display module) and female connector (on PC module or monitor module) PC module Monitor module 1. Connect the modules. Series | User Manual CS-100...
  • Page 33 2. Fasten the 6 screws to fix the PC module or monitor module on the display module. Series | User Manual CS-100...

  • Page 34: Panel Mount

    2.2 Panel Mount 1. Accessories provided by Cincoze are as follows. Series | User Manual CS-100...
  • Page 35 2. All mounting kits displayed are to be inserted into holes. 3. Installation preparation and steps. Series | User Manual CS-100...
  • Page 36 Series | User Manual CS-100...
  • Page 37 4. Apply all mount kits to the rest of holes. And you have completed the panel mount installation, as shown below. Series | User Manual CS-100...
  • Page 38 © 2021 Cincoze Co., Ltd. All rights reserved. The Cincoze logo is a registered trademark of Cincoze Co., Ltd. All other logos appearing in this catalog are the intellectual property of the respective company, product, or organization associated with the logo.
