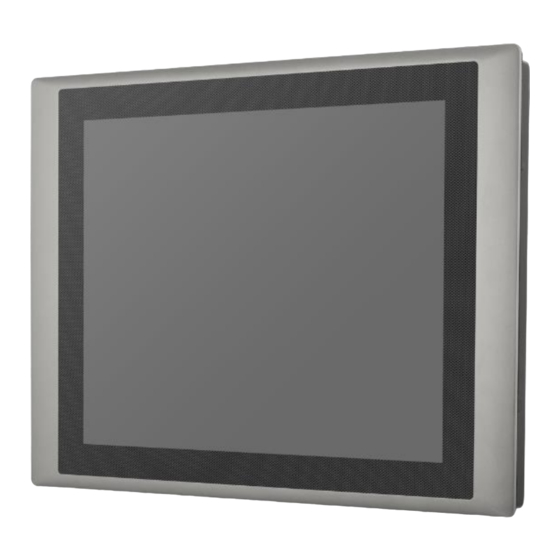

Cincoze CS-100/P2100 Series User Manual

Industrial panel pc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

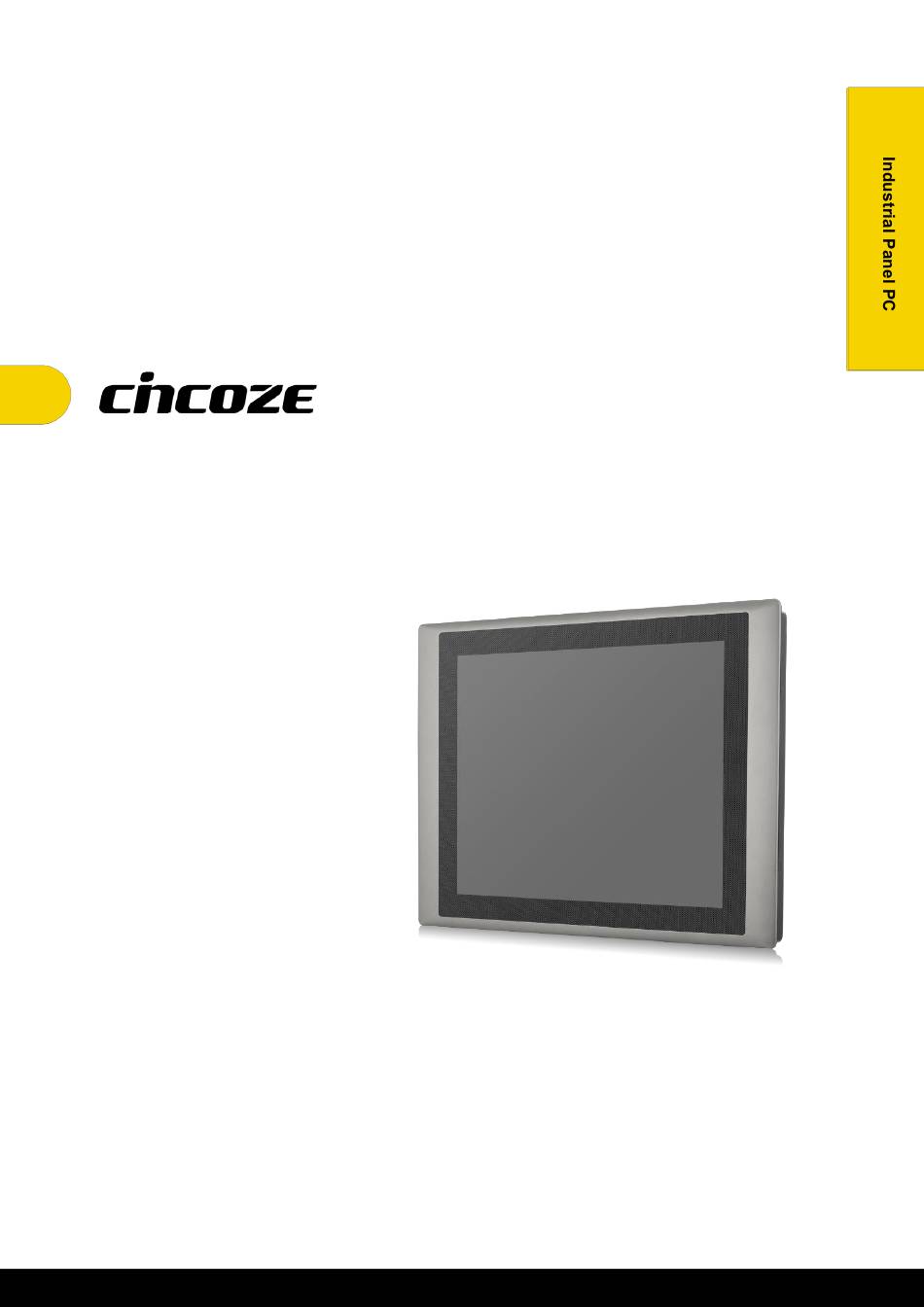

CS-100/P2100 Series
User Manual
Industrial Panel PC
High Performance Sunlight Readable Panel PC
Version: V1.00
2020/01/13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS-100/P2100 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cincoze CS-100/P2100 Series

Summary of Contents for Cincoze CS-100/P2100 Series

  • Page 1 CS-100/P2100 Series User Manual Industrial Panel PC High Performance Sunlight Readable Panel PC Version: V1.00 2020/01/13...

  • Page 2: Table Of Contents

    Contents Preface Revision……………………………………………..……………….……………...……………...05 Copyright Notice …………………………………………………………………………………...05 Acknowledgement ………………………………………………………………......05 Disclaimer ………………………………………………………………….………………...05 Declaration of Conformity ………………………………………………….……………………05 Product Warranty Statement …………………………………………………………….....06 Technical Support and Assistance …………………………………………….…………………07 Conventions Used in this Manual …………………………………………….…………....08 Safety Precaution …...……………………………………………….………….………....08 Package Contents ………………………………………………………….…….………...……10 Optional Modules & Accessories……………………………………........10 Ordering Information …………………………………...…………………….…….……...……...11 Chapter 1 Product Introductions 1.1 Overview …………………………………………………….……..…………....15 1.2 Highlights …………………………………………………….…………..……………..15...
  • Page 3 3.3 Installing a Full Size Mini PCIe Card …………………………..…………….……………39 3.4 Installing a M.2 E Key Card…………………………….………...……………….....40 3.5 Installing Antennas …………………………………..….………..…………..41 3.6 Installing a SO-DIMM Module ………………………………..…………...…….……..43 3.7 Installing a PCI(e) Card ………………...……………..………...….…………………...…44 3.8 Installing Thermal Pad of Thermal Block…...……………………….….……………..47 3.9 Installing the Top Cover ………………………...……………..….…………….………..48 3.10 Installing a SATA Hard Drive at Front Pane…………………...….……………………..49 3.11 Installing a SATA Hard Drive on Bottom Side …...……………….………………..….52 3.12 Installing a SIM Card …………………….………………………...….……………....54...
  • Page 4 4.6.1 Setup Prompt Timeout………………………….……………………………………..79 4.6.2 Bootup NumLock State…………………..……………………………………………79 4.6.3 Quiet Boot ……………………………………………………….………………..……79 4.6.4 Fast Boot ……………..………………………………………………………………...79 4.7 Save & Exit …...……….….…………………..…..….…..………………………....80 4.7.1 Save Changes and Exit ………………..……………………………….....80 4.7.2 Discard Changes and Exit …………………………………………………………….80 4.7.3 Save Changes and Reset …………………………………………………………….80 4.7.4 Discard Changes and Reset ….………………………………………………………80 4.7.5 Save Changes …………………………………………………………………………80 4.7.6 Discard Changes ………………………………………………………………………80 4.7.7 Restore Defaults …………………………………….…………………………………80...

  • Page 5: Revision

    2020/01/13 Copyright Notice © 2020 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Cincoze Co., Ltd. All information and specification provided in this manual are for reference only and remain subject to change without prior notice.

  • Page 6: Product Warranty Statement

    Product Warranty Statement Warranty Cincoze products are warranted by Cincoze Co., Ltd. to be free from defect in materials and workmanship for 2 years from the date of purchase by the original purchaser. During the warranty period, we shall, at our option, either repair or replace any product that proves to be defective under normal operation.

  • Page 7: Technical Support And Assistance

    Limitation of Liability Cincoze’ liability arising out of the manufacture, sale, or supplying of the product and its use, whether based on warranty, contract, negligence, product liability, or otherwise, shall not exceed the original selling price of the product. The remedies provided herein are the customer’s sole and exclusive remedies.

  • Page 8: Conventions Used In This Manual

    Conventions Used in this Manual Safety Precautions Before installing and using this device, please note the following precautions. Read these safety instructions carefully. Keep this User’s Manual for future reference. Disconnected this equipment from any AC outlet before cleaning. For plug-in equipment, the power outlet socket must be located near the equipment and must be easily accessible.
  • Page 9 damage by transient overvoltage. 12. Never pour any liquid into an opening. This may cause fire or electrical shock. 13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel. If one of the following situations arises, get the equipment checked by service personnel: ⚫...

  • Page 10: Package Contents

    Package Contents Before installation, please ensure all the items listed in the following table are included in the package. Item Description Q’ty Panel PC Thermal Pad (for CPU Thermal Block) Power Terminal Block Connector Remote Power On/Off Terminal Block Connector DIO Terminal Block Connector Utility Driver DVD Screws Pack...

  • Page 11: Ordering Information

    Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ GST120A24-CIN +70°C), level VI Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm GST220A24-CIN Pitch, with TUBES, level VI US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black SL2-SL3 1.8M SL-2+SL-3 EU 2 heads power cord, EU G type to IEC C13, H05VV-F...
  • Page 12 CS-115C-R11/P210 15" 1600nits TFT-LCD Sunlight Readable and Modular Panel PC with 8th 2-i5-R10 Gen. Intel Core i5-8365UE Quad Core Processor and P-Cap. Touch 15" 1600nits TFT-LCD Sunlight Readable and Modular Panel PC with 8th CS-115C-OB-R11/ Gen. Intel Core i5-8365UE Quad Core Processor, P-Cap. Touch and P2102-i5-R10 Optical Bonding 15"...
  • Page 13 17" 1500nits TFT-LCD Sunlight Readable, Modular and Expandable CS-117C-R11/P210 Panel PC with 8th Gen. Intel Core i3-8145UE Quad Core Processor and 2E-i3-R10 P-Cap. Touch 17" 1500nits TFT-LCD Sunlight Readable, Modular and Expandable CS-117C-OB-R11/ Panel PC with 8th Gen. Intel Core i3-8145UE Quad Core Processor, P2102E-i3-R10 P-Cap.

  • Page 14: Chapter 1 Product Introductions

    Chapter 1 Product Introductions P2100 Series | User Manual CS-100-...

  • Page 15: Overview

    84% at a TDP of 15 watts, compared to 6th generation Intel® Core™ U series. To enable faster responsiveness and deal with multi tasks with ease, the CS-100/P2100 series is equipped with two DDR4 2400 SODIMM sockets for up to 64 GB memory.

  • Page 16: Key Features

    1.3 Key Features 12.1”~19” TFT-LCD with Ultra-high Brightness and high resolution ⚫ ⚫ Onboard 8th Generation Intel® Core™ U Series Processor ⚫ 2x DDR4 SO-DIMM Socket, Supports Up to 2400MHz, 64GB ⚫ Supports Triple Independent Display ⚫ Integrated USB 3.2 Gen 2 supports up to 10Gbps ⚫...

  • Page 17: Hardware Specification

    1.4 Hardware Specification 1.4.1 CS-112HC/P2100 Series Display I/O Interface • LCD Size: 12.1" (4:3) • 1x VGA (1920 x 1200 @ 60Hz) • Max. Resolution: 1024 x 768 • 1x DisplayPort (4096 x 2304 @ 60Hz) • Brightness (cd/m2):1500 • 2x GbE LAN (Support WoL, Teaming, Jumbo Frame and •...
  • Page 18 1.4 Hardware Specification 1.4.1 CS-112HC/P2100 Series Dimensions CS-112HC/P2102 CS-112HC/P2102E P2100 Series | User Manual CS-100-...
  • Page 19 1.4 Hardware Specification 1.4.2 CS-115C/P2100 Series Display I/O Interface • LCD Size: 15" (4:3) • 1x VGA (1920 x 1200 @ 60Hz) • Max. Resolution: 1024 x 768 • 1x DisplayPort (4096 x 2304 @ 60Hz) • Brightness (cd/m2): 1600 •...
  • Page 20 1.4 Hardware Specification 1.4.1 CS-112HC/P2100 Series Dimensions CS-115C/P2102 CS-115C/P2102E P2100 Series | User Manual CS-100-...
  • Page 21 1.4 Hardware Specification 1.4.3 CS-117C/P2100 Series Display I/O Interface • LCD Size: 17" (5:4) • 1x VGA (1920 x 1200 @ 60Hz) • Max. Resolution: 1280 x 1024 • 1x DisplayPort (4096 x 2304 @ 60Hz) • Brightness (cd/m2): 1500 •...
  • Page 22 1.4 Hardware Specification 1.4.1 CS-112HC/P2100 Series Dimensions CS-117C/P2102 CS-117C/P2102E P2100 Series | User Manual CS-100-...
  • Page 23 1.4 Hardware Specification 1.4.4 CS-119C/P2100 Series Display I/O Interface • LCD Size: 19" (5:4) • 1x VGA (1920 x 1200 @ 60Hz) • Max. Resolution: 1280 x 1024 • 1x DisplayPort (4096 x 2304 @ 60Hz) • Brightness (cd/m2): 1600 •...

  • Page 24: System I/O

    1.5 System I/O 1.5.1 Front Antenna Hole Clear CMOS Used to connect an antenna for optional wireless Used to clear CMOS to reset BIOS module Removable HDD SIM Card Used to insert a 2.5” SATA HDD/SSD Used to insert a SIM card Power LED IGN Switch Indicates the power status of the system...

  • Page 25: Left

    1.5.3 Left Antenna Hole COM Port Used to connect an antenna for optional wireless Used to connect to RS-232/422/485 serial WIFI module devices USB 2.0 Used to connect to USB 2.0/1.1 compatible devices CS-100/P2102 CS-100/P2102E 1.5.4 Right COM Port OSD Function (For CDS Display Module) Used to connect to RS-232/422/485 serial LCD On/Off...
  • Page 26 Chapter 2 Switches & Connectors P2100 Series | User Manual CS-100-...

  • Page 27: Location Of Switches And Connectors

    2.1 Location of Switches and Connectors 2.1.1 Top View 2.1.2 Bottom View P2100 Series | User Manual CS-100-...

  • Page 28: Switches And Connectors Definition

    2.2 Switches and Connectors Definition List of Switch Location Definition AT_ATX1 AT / ATX Power Mode Switch BL_PWR1 Backlight Power on / off switching BL_UP1 Backlight Increase BL_DN1 Backlight Decrease LED1 HDD / Power Access LED Status PWR_SW2 Power button RTC2 Clear COMS Switch Reset1...

  • Page 29: Definition Of Switches

    2.3 Definition of Switches AT_ATX1: AT / ATX Power Mode Switch Switch Definition 1-2 (Left) AT Power Mode 2-3 (Right) ATX Power Mode (Default) BL_PWR1: Backlight Power on / off Switch Definition Push Backlight Power on / off switching BL_UP1: Backlight Increase Switch Definition Push...
  • Page 30 RTC2：Clear CMOS Switch Switch Definition 1-2 (Left) No Operation (Default) 2-3 (Right) Clear CMOS RESET1: Reset Switch Switch Definition Push Reset System SW1: COM1~4 with Power Select Switch Location Function DIP1 DIP2 0V(RI) ON (Default) ON (Default) COM1 Location Function DIP3 DIP4 0V(RI)

  • Page 31: Definition Of Connectors

    2.4 Definition of Connectors COM1 / COM2 / COM3/ COM4: RS232 / RS422 / RS485 Connector Connector Type: 9-pin D-Sub RS422 / 485 Full RS485 Half RS232 Duplex Duplex Definition Definition Definition DATA - DATA + P2100 Series | User Manual CS-100-...
  • Page 32 CN1： Mini PCI-Express Socket (Support mPCIE & SIM Module & USB) Definition Definition WAKE# 3.3V +1.5V SMB_CLK 31 PETN0(USB3TN0)/SATATN0 1.5V SMB_DATA CLKREQ# 33 PETP0(USB3TP0)/SATATP0 SIM_VCC SIM_DATA USB_D- REFCLK- RESERVED SIM_CLK USB_D+ REFCLK+ RESERVED SIM_Reset 3.3V SIM_VPP 3.3V PERST# +1.5V 23 PERN0(USB3RN0)/SATARP0 49 3.3V 25 PERP0(USB3RP0)/SATARN0 51 +3.3V...
  • Page 33 CN2： Mini PCI-Express Socket (Support mPCIE & USB) Definition Definition WAKE# 3.3V +1.5V SMB_CLK PETN0/SATATN0 1.5V SMB_DATA CLKREQ# PETP0/SATATP0 USB_D- REFCLK- USB_D+ REFCLK+ 3.3V 3.3V 3.3V PERST# +1.5V PERN0/SATARP0 +3.3VAUX PERP0/SATARN0 +3.3V P2100 Series | User Manual CS-100-...
  • Page 34 CN3： M.2 Key E Socket (Support M.2 PCIE / Intel CNVi ) Definition Definition Definition +3.3V PULL-UP USB_D+ PEWAKE0# +3.3V USB_D- RGI_DT I2C_DATA WTD1N/PETP1 PCM_CLK RGI_RSP I2C_CLK WGR_D1N PETP0 WTD1P/PETN1 RBI_DT PCM_SYNC/LPCRSTN WGR_D1N PETN0 PCM_IN CLINK_REST REF_CLK WTD0N/PETP1 PCM_OUT CLINK_DATA WGR_D0N PERP0 WTD0P/PERN1...
  • Page 35 DC_IN1: DC Power Input Connector (+9~48V) Connector Type: Terminal Block 1X3 3-pin, 5.0mm pitch Definition +9~48VIN Ignition (IGN) LAN1 / LAN2 LED： LAN1 / 2 LED Status Definition LAN LED Status Definition Blinking Yellow Data Activity Act LED No Activity Steady Green 1Gbps Network Link Link LED...

  • Page 36: Chapter 3 System Setup

    Chapter 3 System Setup P2100 Series | User Manual CS-100-...

  • Page 37: Removing The Top Cover

    3.1 Removing the Top Cover 1. Loosen the eight screws at front and rear panel. 2. Raise the edge of top cover (1), and raise the other side (2) subsequently to remove it from the chassis. 3. Place the top cover aside gently. P2100 Series | User Manual CS-100-...

  • Page 38: Installing A Half Size Mini Pcie Card

    3.2 Installing a Half Size Mini PCIe Card Locate the Mini PCIe socket on the system board. Use two screws provided on adapter bracket to fasten the card and bracket together. Tilt the Mini PCIe card at a 45-degree angle and insert it into the socket until the golden finger connector of the card seated firmly.

  • Page 39: Installing A Full Size Mini Pcie Card

    Press down the card and secure it with two screws. 3.3 Installing a Full Size Mini PCIe Card 1. Locate the Mini PCIe slot on the system board. 2. Tilt the Mini PCIe card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly.

  • Page 40: Installing A M.2 E Key Card

    3. Press the card down and secure it with 2 screws. 3.4 Installing a M.2 E Key Card 1. Locate the M.2 E Key slot on the system board. 2. Tilt the M.2 E Key card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly.

  • Page 41: Installing Antennas

    3. Press the card down and secure it with 1 screw. 3.5 Installing Antennas 1. Remove the antenna rubber cover on front, left or right panel. 2. Penetrate the antenna jack through the hole. P2100 Series | User Manual CS-100-...
  • Page 42 3. Put on the washer and fasten the nut with antenna jack. 4. Assemble the antenna and antenna jack together. Attach the RF connector at another end of the cable onto the card. P2100 Series | User Manual CS-100-...

  • Page 43: Installing A So-Dimm Module

    3.6 Installing a SO-DIMM Module 1. Locate the SO-DIMM socket on the system board. 2. Tilt the memory module at a 45-degree angle, and insert it into SO-DIMM socket until the golden finger connector of the module is seated firmly. 3.

  • Page 44: Installing A Pci(E) Card

    4. For the upper SO-DIMM socket, please follow the same steps described earlier to install. 3.7 Installing a PCI(e) Card 1. Loosen the two screws as indicated at rear panel. 2. Attach the PCI / PCIe Card Installation Kit on, and fasten the two screws back on rear panel to fix the Kit.
  • Page 45 4. Align the notch of golden fingers of Riser card(Optional) with the slot. Insert the card vertically, and press the card straight down into the slot until it’s seated firmly. 5. Align the notch of golden fingers of PCI(e) card with the expansion slot. Insert the card horizontally, and press the card straight down into the slot until it’s seated firmly.
  • Page 46 7. Locate the retention module of PCI(e) expansion card. 8. Loosen the two screw as indicated to have the clamp arm slidable. 9. Slide the clamp arm of retention module until it contacts the edge of PCI(e) expansion card. P2100 Series | User Manual CS-100-...

  • Page 47: Installing Thermal Pad Of Thermal Block

    10. Finally, fasten the two screws that were previously loosen halfway to fix the retention module. 3.8 Installing Thermal Pad of Thermal Block 1. Place thermal pad on the top of CPU thermal block in order to provide a seamless contact with the body of chassis to create an efficient heat dissipation.

  • Page 48: Installing The Top Cover

    3.9 Installing the Top Cover 1. Put on the edge of top cover onto system, and the other side subsequently. 2. Fasten the eight screws at front and rear panel to secure the top cover. P2100 Series | User Manual CS-100-...

  • Page 49: Installing A Sata Hard Drive At Front Pane

    3.10 Installing a SATA Hard Drive at Front Panel 1. Turn over the system to bottom side, and remove the screw. 2. Loosen the screw to remove the HDD bay cover bracket. 3. Pull the rotating arm of HDD bracket outward as indicated. P2100 Series | User Manual CS-100-...
  • Page 50 4. Hold the rotating arm to pull out the HDD bracket. 5. Place the HDD bracket on screw-hole side of HDD. Use four screws provided to assemble HDD on the bracket. 6. Align the HDD bracket with the entrance of HDD bay. And insert the HDD bracket and push it until the edge connector of HDD fully inserted into SATA slot.
  • Page 51 7. Put back HDD bay cover at front panel, and fasten it with the screw. 8. Fasten the screw to secure the HDD bracket on the system chassis. P2100 Series | User Manual CS-100-...

  • Page 52: Installing A Sata Hard Drive On Bottom Side

    3.11 Installing a SATA hard drive on Bottom Side 1. Turn over the system to bottom side. Locate the cover of HDD compartment. 2. Loosen the two screws, lift the cover, and then remove it. 3. Loosen three screws and take the HDD bracket out of HDD compartment. P2100 Series | User Manual CS-100-...
  • Page 53 4. Place the HDD bracket on screw-hole side of HDD. Use four screws provided to assemble HDD on the bracket. 5. Seat the HDD bracket into HDD compartment, and line up the connector of HDD with SATA slot, then push it until HDD is fully connected into slot. 6.

  • Page 54: Installing A Sim Card

    7. Put back the cover and fasten the two screws. 3.12 Installing a SIM Card 1. Loosen the screw to remove the Maintenance cover bracket. 2. Locate the SIM card slot. 3. Insert the SIM card. P2100 Series | User Manual CS-100-...

  • Page 55: Connecting With Cv Display Module

    3.13 Connecting with CV Display Module 1. Prepare the mounting kit that accompanied with P2100 as shown. (including two mounting brackets and one screw pack) 2. Remove the six screws at left and right panel. 3. Assemble two mounting brackets by fastening six screws from the screws pack. P2100 Series | User Manual CS-100-...
  • Page 56 4. Turn over the system to bottom side. Locate the connector cover of display module. 5. Loosen two screws to remove the cover. The following photos indicates the male connector (on display module) and female connector (on P2100). P2100 Series | User Manual CS-100-...
  • Page 57 6. Place the P2100 on the display module through its display connector hole as indicated. 7. Align the mounting holes of P2100 with the screw holes of display module underneath. Then slide the PC2100 carefully as indicated to have P2100 and display module connected together.

  • Page 58: Panel Mount

    3.14 Panel Mount 1. Accessories provided by Cincoze are as below. Before assembly, please prepare panel mount PPC and customer’s fixture. P2100 Series | User Manual CS-100-...
  • Page 59 2. All mounting kits displayed are to be inserted into holes. 3. Installation preparation and steps. P2100 Series | User Manual CS-100-...
  • Page 60 P2100 Series | User Manual CS-100-...
  • Page 61 4. Apply all mount kits to the rest of holes. And you have completed the panel mount installation, as shown below. P2100 Series | User Manual CS-100-...

  • Page 62: Chapter 4 Bios Setup

    Chapter 4 BIOS Setup P2100 Series | User Manual CS-100-...

  • Page 63: Bios Introduction

    4.1 BIOS Introduction The BIOS (Basic Input/ Output System) is a program located on a Flash Memory on the motherboard. When you start the computer, the BIOS program will gain control. The BIOS first operates an auto-diagnostic test called POST (power on self-test) for all the necessary hardware, it detects the entire hardware device and configures the parameters of the hardware synchronization.

  • Page 64: Main Setup

    4.2 Main Setup Press <Del> to enter BIOS CMOS Setup Utility, the Main Menu (as shown below) will appears on the screen. Use arrow keys to move among the items and press <Enter> to accept or enter a sub-menu. 4.2.1 System Date Set the date.

  • Page 65: Advanced Setup

    4.3 Advanced Setup 4.3.1 CPU Configuration ■ Intel® Virtualization Technology [Enabled] Enables or disables Intel® Virtualization Technology. Virtualization enhanced by Intel® Virtualization Technology will allow a platform to run multiple operating systems and applications in independent partitions. With virtualization, one computer system can function as multiple virtual systems.

  • Page 66: Pch-Fw Configuration

    ■ Hyper-Threading [Enabled] Allows you to enable or disable Intel® Hyper-Threading function of processor. 4.3.2 PCH-FW Configuration ■ Intel AMT [Enabled] Allows you to enable or disable Intel® Active Management Technology BIOS execution. ■ Firmware Update Configuration ❑ ME FW Image Re-Flash [Disabled] Allows you to enable or disable ME firmware image re-flash function.

  • Page 67: Trusted Configuration

    4.3.3 Trusted Computing ■ Security Device Support [Disable] Allow you to enables or disables Security Device Support function. 4.3.4 ACPI Settings This item allows users to configure ACPI settings. ■ Enable ACPI Auto Configuration [Enabled] Enables or disables BIOS Advanced Configuration Power Interface® (ACPI) auto configuration.

  • Page 68: F81866 Super Io Configuration

    ■ ACPI Sleep State [S3 (Suspend to RAM)] Allows users to select the highest Advanced Configuration Power Interface® (ACPI) sleep state that system will enter when suspend button is pressed. [Suspend Disabled]: Disables entering suspend state. [S3 (suspend to RAM)]: Enables suspend to RAM state. 4.3.5 F81866 Super IO Configuration The screen allows users to select options for the Super IO configuration, and change the value of the selected option.

  • Page 69: Hardware Monitor

    ❑ Serial Port [Enabled] This item allows users to enable or disable serial port. ❑ Change Settings [Auto] This item allows users to change the address & IRQ settings of the specified serial port. ❑ Onboard Serial Port 1 Mode [RS232] This item allows users to select Serial Port Mode.

  • Page 70: S5 Rtc Wake Settings

    4.3.7 S5 RTC Wake Settings ■ Wake System from S5 [Disabled] This item allows users to change the way to wake system from S5 state. [Fixed Time]: Set the specified time (HH:MM:SS) to wake system. [Dynamic Time]: Set the increase time from current time to wake system. 4.3.8 Serial Port Console Redirection ■...

  • Page 71: Usb Configuration

    4.3.9 USB Configuration ■ Legacy USB Support [Enabled] This item allows users to enable or disable legacy USB support. When set to [Auto], legacy USB support will be disabled automatically if no USB devices are connected. ■ XHCI Hand-off [Enabled] This item allows users to enable or disable XHCI (USB3.2) hand-off function.

  • Page 72: Nvme Configuration

    ■ CSM Support [Disabled] This item allows users to enable or disable UEFI Compatibility Support Module (CSM) to support a legacy PC boot process. 4.3.11 NVMe Configuration The screen allows users to select options for the NVMe configuration, and change the value of the selected option.

  • Page 73: Chipset Setup

    4.4 Chipset Setup This section allows you to configure chipset related settings according to user’s preference. 4.4.1 System Agent (SA) Configuration ■ Memory Configuration This item displays detailed memory information in the system. P2100 Series | User Manual CS-100-...

  • Page 74: Pch-Io Configuration

    ■ Graphics Configuration ❑ Primary Display [Auto] Allows users to select which graphics device should be primary display or select SG for switchable graphics. Configuration options: [Auto] [IGFX] [PEG] [PCIe] [SG] ❑ Internal Graphics [Auto] This item allows users to enable or disable Internal Graphics. When set to [Auto], it will detect by BIOS.
  • Page 75 ■ PCI Express Configuration ❑ PCI Express Root Port (CN1 mPCIe) ◼ PCI Express Root Port [Enabled] Allows you to enable or disable the PCI Express Port. ◼ PCIe Speed [Auto] Allows you to select PCI Express interface speed. Configuration options: [Auto] [Gen1] [Gen2] [Gen3]. ❑...
  • Page 76 ■ SATA Configuration ❑ SATA Controller(s) [Enabled] Enables or disables Serial ATA controller. ❑ SATA Mode [AHCI] This item allows users to choose [AHCI] or [RAID] mode. ❑ Serial ATA Port 0 Port 0 [Enabled] Enables or disables SATA Port 0. ❑...
  • Page 77 ❑ HD Audio [Enabled] Allows you to select HD Audio options. [Enabled]: HD Audio device is unconditionally enabled. [Disabled]: HD Audio device is unconditionally disabled. ■ LAN i219LM Controller [Enabled] Enables or disables i219LM LAN Controller. ■ Wake On LAN (i219) [Enabled] Enables or disables integrated LAN i219LM Wake On LAN function.

  • Page 78: Security Setup

    4.5 Security Setup This section allows users to configure BIOS security settings. 4.5.1 Administrator Password Administrator Password controls access to the BIOS Setup utility. 4.5.2 User Password User Password controls access to the system at boot and to the BIOS Setup utility. 4.5.3 Security Boot ❑...

  • Page 79: Boot Setup

    4.6 Boot Setup This section allows you to configure Boot settings. 4.6.1 Setup Prompt Timeout [1] Use this item to set number of seconds (1..65535) to wait for setup activation key. 4.6.2 Bootup NumLock State [Off] Allows you to select the power-on state for keyboard NumLock. 4.6.3 Quiet Boot [Disabled] Allows you to enable or disable Quiet Boot function.

  • Page 80: Save & Exit

    4.7 Save & Exit 4.7.1 Save Changes and Exit This item allows you to exit system setup after saving changes. 4.7.2 Discard Changes and Exit This item allows you to exit system setup without saving changes. 4.7.3 Save Changes and Reset This item allows you to reset the system after saving changes.

  • Page 81: Chapter 5 Product Application

    Chapter 5 Product Application P2100 Series | User Manual CS-100-...

  • Page 82: Digital I/O (Dio) Application

    5.1 Digital I/O (DIO) application This section describes DIO application of the product. The content and application development are better understood and implemented by well experienced professionals or developers. 5.1.1 Digital I/O Programming Guide 5.1.1.1 Pins for Digital I/O Item Standard GPIO70 (Pin103) GPIO71 (Pin104)
  • Page 83 5.1.1.2 Programming Guide To program the Super I/O chip F81866A configuration registers, the following configuration procedures must be followed in sequence: (1) Enter the Extended Function Mode (2) Configure the configuration registers (3) Exit the Extended Function Mode The configuration register is used to control the behavior of the corresponding devices. To configure the register, use the index port to select the index and then write data port to alter the parameters.
  • Page 84 P2100 Series | User Manual CS-100-...
  • Page 85 5.1.1.4 Sample Code in C Language 5.1.1.4.1 Control of GP70 to GP77 #define AddrPort 0x4E #define DataPort 0x4F <Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) // Must write twice to enter Extended mode <Select Logic Device> WriteByte(AddrPort, 0x07) WriteByte(dataPort, 0x06) // Select logic device 06h <Output/Input Mode Selection>...
  • Page 86 5.1.1.4.2 Control of GP80 to GP87 #define AddrPort 0x4E #define DataPort 0x4F <Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) // Must write twice to enter Extended mode <Select Logic Device> WriteByte(AddrPort, 0x07) WriteByte(DataPort, 0x06) // Select logic device 06h <Output/Input Mode Selection>...
  • Page 87 // Select configuration register 60h WriteByte(DataPort, (ReadByte(DataPort) ǀ 0x03)) WriteByte(AddrPort, 0x61) // Select configuration register 61h WriteByte(DataPort, (ReadByte(DataPort) ǀ 0x20)) <Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA) Cincoze default GPIO Port base address is 0xA00h P2100 Series | User Manual CS-100-...
  • Page 88 5.1.1.6 DATA Bit Table (DIO) = DI1 = DO1 = DI2 = DO2 = DI3 = DO3 = DI4 = DO4 = DI5 = DO5 = DI6 = DO6 = DI7 = DO7 = DI8 = DO8 DIO I/O Port Address 5.1.1.7 P2100 Series | User Manual CS-100-...

  • Page 89: P2100 Digital I/O (Dio) Hardware Specification

    5.2 P2100 Digital I/O (DIO) Hardware Specification • XCOM+ / 2XCOM+ : Isolated power in V+ • XCOM- / 2XCOM- : Isolated power in V- • Isolated power in DC voltage : 9~30V • 8x / 16x Digital Input (Source Type) •...

  • Page 90: P2100 Dio Connector Definition

    5.2.1 P2100 DIO Connector Definition DIO-1/DIO-2 : Digital Input / Output Connector Connector Type: Terminal Block 2X10 10-pin, 3.5mm pitch Location Definition Location Definition DC INPUT DC INPUT DIO-1 DIO-2 P2100 Series | User Manual CS-100-...
  • Page 91 Reference Input Circuit Reference Output Circuit P2100 Series | User Manual CS-100-...
  • Page 92 Chapter 6 Optional Modules & Accessories Pin Definitions and Settings P2100 Series | User Manual CS-100-...

  • Page 93: Pin Definition And Settings Of Ign Module

    6.1 Pin Definition and Settings of IGN Module SW2 on CFM-IGN101: IGN Module Timing Setting Switch Set shutdown delay timer when ACC is turned off Pin 1 Pin 2 Pin 3 Pin 4 Definition 0 second 1 minute 5 minutes ON (IGN enabled) 10 minutes 30 minutes...

  • Page 94: Installing An Ign Module

    6.2 Installing an IGN Module Locate the power Ignition connector on system motherboard as indicated. Insert the female connector of power ignition board to the male connector on system motherboard. Fasten two screws to secure the power ignition board. P2100 Series | User Manual CS-100-...

  • Page 95: Installing A Poe Module

    6.3 Installing a PoE Module 1. Place a thermal pad on the top of the heatsink, and locate the two regions as marked. 2. Turn over the heatsink and paste the thermal pad at the marked region. 3. Paste the thermal pad onto the coil of the CFM-PoE module. Locate the PoE connector on system motherboard as indicated.
  • Page 96 Insert the female connector of PoE daughter board to the male connector on system motherboard. Put on the PoE thermal block and fasten two screws to secure the PoE board. P2100 Series | User Manual CS-100-...

  • Page 97: Vesa Mount

    6.4 VESA Mount The following picture indicates VESA mounting hole pattern on P2100, which is compliant with VESA mounting standard. 1. The following picture uses a panel PC (P2100+CV/CS display module) as a demonstration. To attach the panel PC to a VESA stand, please fasten eight screws as indicated to fix it on the stand.
  • Page 98 © 2019 Cincoze Co., Ltd. All rights reserved. The Cincoze logo is a registered trademark of Cincoze Co., Ltd. All other logos appearing in this catalog are the intellectual property of the respective company, product, or organization associated with the logo.
