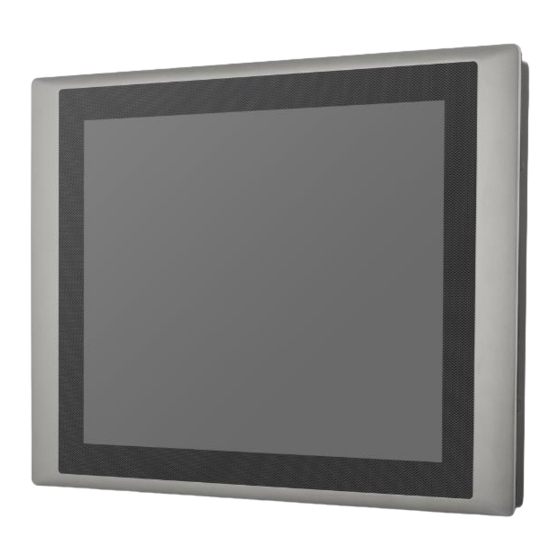

Cincoze CS-100 Series User Manual

Industrial panel pc
Hide thumbs Also See for CS-100 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
CS-100/P2100 Series
User Manual
Industrial Panel PC
High Performance Sunlight Readable Panel PC
Version: V1.10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS-100 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Cincoze CS-100 Series

Summary of Contents for Cincoze CS-100 Series

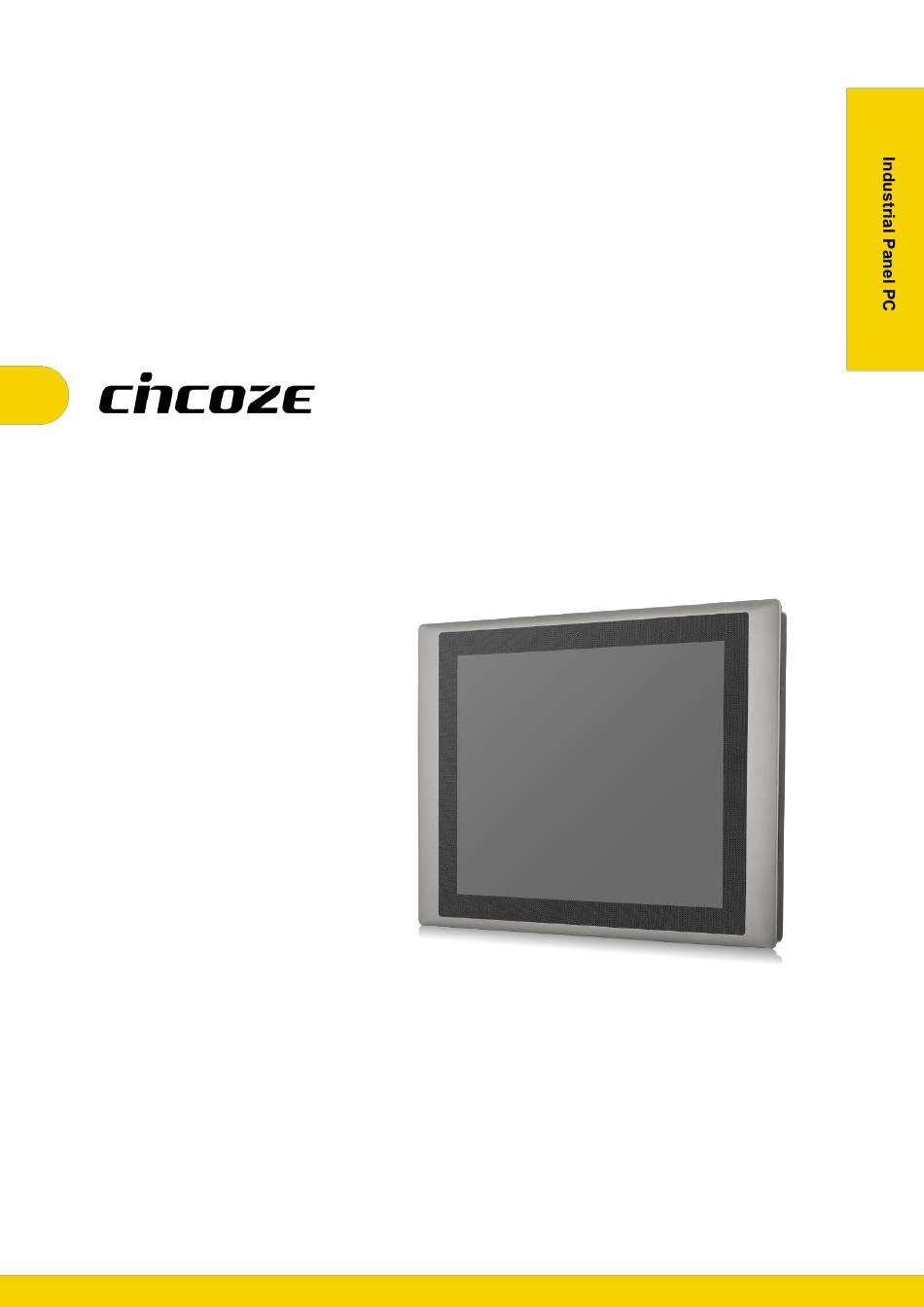

  • Page 1 CS-100/P2100 Series User Manual Industrial Panel PC High Performance Sunlight Readable Panel PC Version: V1.10...

  • Page 2: Table Of Contents

    Contents Preface ..........................5 Revision ..........................5 Copyright Notice .........................5 Acknowledgement ......................5 Disclaimer...........................5 Declaration of Conformity ....................5 Product Warranty Statement ....................6 Technical Support and Assistance ..................7 Conventions Used in this Manual ..................8 Safety Precautions ......................8 Package Contents ......................10 Ordering Information ......................10 Chapter 1 Product Introductions ..................
  • Page 3 1.5.4 Right ........................47 1.5.5 Top ........................47 Chapter 2 Switches & Connectors ..................48 2.1 Location of Switches and Connectors ................ 49 2.1.1 Top View ......................49 2.1.2 Bottom View ......................49 2.2 Switches and Connectors Definition ................50 2.3 Definition of Switches ....................
  • Page 4 4.3.2 PCH-FW Configuration ..................88 4.3.3 Trusted Computing ....................88 4.3.4 ACPI Settings ....................... 89 4.3.5 F81866 Super IO Configuration ................90 4.3.6 Hardware Monitor ....................91 4.3.7 S5 RTC Wake Settings ..................91 4.3.8 Serial Port Console Redirection ................92 4.3.9 USB Configuration ....................

  • Page 5: Preface

    Remove CS-W115FHC Display Module Copyright Notice © 2020 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Cincoze Co., Ltd.

  • Page 6: Product Warranty Statement

    Product Warranty Statement Warranty Cincoze products are warranted by Cincoze Co., Ltd. to be free from defect in materials and workmanship for 2 years from the date of purchase by the original purchaser. During the warranty period, we shall, at our option, either repair or replace any product that proves to be defective under normal operation.

  • Page 7: Technical Support And Assistance

    Limitation of Liability Cincoze’ liability arising out of the manufacture, sale, or supplying of the product and its use, whether based on warranty, contract, negligence, product liability, or otherwise, shall not exceed the original selling price of the product. The remedies provided herein are the customer’s sole and exclusive remedies.

  • Page 8: Conventions Used In This Manual

    Conventions Used in this Manual Safety Precautions Before installing and using this device, please note the following precautions. Read these safety instructions carefully. Keep this User’s Manual for future reference. Disconnected this equipment from any AC outlet before cleaning. For plug-in equipment, the power outlet socket must be located near the equipment and must be easily accessible.
  • Page 9 damage by transient overvoltage. 12. Never pour any liquid into an opening. This may cause fire or electrical shock. 13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel. If one of the following situations arises, get the equipment checked by service personnel: ⚫...

  • Page 10: Package Contents

    Package Contents Before installation, please ensure all the items listed in the following table are included in the package. Item Description Q’ty Panel PC Thermal Pad (for CPU Thermal Block) Power Terminal Block Connector Remote Power On/Off Terminal Block Connector DIO Terminal Block Connector Utility Driver DVD Screws Pack...
  • Page 11 Intel Core i5-8365UE Quad Core Processor and P-Cap. Touch 17" 1500nits TFT-LCD Sunlight Readable and Modular Panel PC with 8th Gen. Intel Core CS-117C/P2102-i3 i3-8145UE Quad Core Processor and P-Cap. Touch 17" 1500nits TFT-LCD Sunlight Readable, Modular and Expandable Panel PC with 8th Gen. CS-117C/P2102E-i3 Intel Core i3-8145UE Quad Core Processor and P-Cap.

  • Page 12: Chapter 1 Product Introductions

    Chapter 1 Product Introductions P2100 Series | User Manual CS-100-...

  • Page 13: Overview

    48VDC), the CS-100/P2100 series is appropriate for tough outdoor applications under direct sunlight. Furthermore, the CS-100/P2100 series supports Cincoze patented Convertible Display System (CDS) technology, allowing users to replace display module or computer module on-site easily and thereby reducing maintenance costs and downtime.

  • Page 14: Key Features

    1.3 Key Features 12.1”~24” TFT-LCD with Ultra-high Brightness and high resolution ⚫ ⚫ Onboard 8th Generation Intel® Core™ U Series Processor ⚫ 2x DDR4 SO-DIMM Socket, Supports Up to 2400MHz, 64GB ⚫ Supports Triple Independent Display ⚫ Integrated USB 3.2 Gen 2 supports up to 10Gbps ⚫...

  • Page 15: Hardware Specification

    1.4 Hardware Specification 1.4.1 CS-112HC/P2100 The table on this page refers to the specifications of CS-112H alone Display • 12.1" (4:3) LCD Size • 1024 x 768 Max. Resolution • 1500 Brightness • 700 : 1 Contract Ratio • 16.2M LCD Color •...
  • Page 16 Model Name P2102 P2102E System Processor • Onboard 8th Intel® Core™ U Processors (Whiskey Lake) - Intel® Core™ i5-8365UE Quad Core Processor (6M Cache, up to 4.10 GHz) - Intel® Core™ i3-8145UE Dual Core Processor (4M Cache, up to 3.90 GHz) - TDP: 15 W Memory •...
  • Page 17 Model Name P2102 P2102E Expansion • 2x Full-size Mini-PCIe Sockets Mini PCI Express • 1x PCI or 1x PCIe x4 Expansion slot (with PCI Express Optional Riser Card) • 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module M.2 E Key Socket •...
  • Page 18 Model Name P2102 P2102E Reliability & Protection • Yes Reverse Power Input • Protection Range: 51-58V Over Voltage Protection • Protection Type: shut down operating voltage, • re-power on at the present level to recover • 15A Over Current Protection •...
  • Page 19 Dimension CS-112HC/P2102 Unit: mm CS-112HC/P2102E Unit: mm P2100 Series | User Manual CS-100-...

  • Page 20: Cs-115C/P2100

    1.4.2 CS-115C/P2100 The table on this page refers to the specifications of CS-115 alone Display • 15" (4:3) LCD Size • 1024 x 768 Max. Resolution • 1600 Brightness • 800 : 1 Contract Ratio • 16.2M LCD Color • 0.297 (H) x 0.297(V) Pixel Pitch •...
  • Page 21 Model Name P2102 P2102E System Processor • Onboard 8th Intel® Core™ U Processors (Whiskey Lake) - Intel® Core™ i5-8365UE Quad Core Processor (6M Cache, up to 4.10 GHz) - Intel® Core™ i3-8145UE Dual Core Processor (4M Cache, up to 3.90 GHz) - TDP: 15 W Memory •...
  • Page 22 Model Name P2102 P2102E Expansion • 2x Full-size Mini-PCIe Sockets Mini PCI Express • 1x PCI or 1x PCIe x4 Expansion slot (with PCI Express Optional Riser Card) • 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module M.2 E Key Socket •...
  • Page 23 Model Name P2102 P2102E Reliability & Protection • Yes Reverse Power Input • Protection Range: 51-58V Over Voltage Protection • Protection Type: shut down operating voltage, • re-power on at the present level to recover • 15A Over Current Protection •...
  • Page 24 Dimension CS-115C/P2102 Unit: mm CS-115C/P2102E Unit: mm P2100 Series | User Manual CS-100-...

  • Page 25: Cs-117C/P2100

    1.4.3 CS-117C/P2100 The table on this page refers to the specifications of CS-117 alone Display • 17" (5:4) LCD Size • 1280 x 1024 Max. Resolution • 1500 Brightness • 800 : 1 Contract Ratio • 16.7M LCD Color • 0.264 (H) x 0.264 (V) Pixel Pitch •...
  • Page 26 Model Name P2102 P2102E System Processor • Onboard 8th Intel® Core™ U Processors (Whiskey Lake) - Intel® Core™ i5-8365UE Quad Core Processor (6M Cache, up to 4.10 GHz) - Intel® Core™ i3-8145UE Dual Core Processor (4M Cache, up to 3.90 GHz) - TDP: 15 W Memory •...
  • Page 27 Model Name P2102 P2102E Expansion • 2x Full-size Mini-PCIe Sockets Mini PCI Express • 1x PCI or 1x PCIe x4 Expansion slot (with PCI Express Optional Riser Card) • 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module M.2 E Key Socket •...
  • Page 28 Model Name P2102 P2102E Reliability & Protection • Yes Reverse Power Input • Protection Range: 51-58V Over Voltage Protection • Protection Type: shut down operating voltage, • re-power on at the present level to recover • 15A Over Current Protection •...
  • Page 29 Dimension CS-117C/P2102 Unit: mm CS-117C/P2102E Unit: mm P2100 Series | User Manual CS-100-...

  • Page 30: Cs-119C/P2100

    1.4.4 CS-119C/P2100 The table on this page refers to the specifications of CS-119 alone Display • 19" (5:4) LCD Size • 1280 x 1024 Max. Resolution • 1600 Brightness • 1000 : 1 Contract Ratio • 16.7M LCD Color • 0.294 (H) x 0.294 (V) Pixel Pitch •...
  • Page 31 Model Name P2102 P2102E System Processor • Onboard 8th Intel® Core™ U Processors (Whiskey Lake) - Intel® Core™ i5-8365UE Quad Core Processor (6M Cache, up to 4.10 GHz) - Intel® Core™ i3-8145UE Dual Core Processor (4M Cache, up to 3.90 GHz) - TDP: 15 W Memory •...
  • Page 32 Model Name P2102 P2102E Expansion • 2x Full-size Mini-PCIe Sockets Mini PCI Express • 1x PCI or 1x PCIe x4 Expansion slot (with PCI Express Optional Riser Card) • 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module M.2 E Key Socket •...
  • Page 33 Model Name P2102 P2102E Reliability & Protection • Yes Reverse Power Input • Protection Range: 51-58V Over Voltage Protection • Protection Type: shut down operating voltage, • re-power on at the present level to recover • 15A Over Current Protection •...
  • Page 34 Dimension CS-119C/P2102 Unit: mm CS-119C/P2102E Unit: mm P2100 Series | User Manual CS-100-...

  • Page 35: Cs-W121C/P2100

    1.4.5 CS-W121C/P2100 The table on this page refers to the specifications of CS-W121 alone Display • 21.5” (16:9) LCD Size • 1920x1080 (Full HD) Max. Resolution • 1000 Brightness • 5000 : 1 Contract Ratio • 16.7M LCD Color • 0.24825 (H) x 0.24825 (V) Pixel Pitch •...
  • Page 36 Model Name P2102 P2102E System Processor • Onboard 8th Intel® Core™ U Processors (Whiskey Lake) - Intel® Core™ i5-8365UE Quad Core Processor (6M Cache, up to 4.10 GHz) - Intel® Core™ i3-8145UE Dual Core Processor (4M Cache, up to 3.90 GHz) - TDP: 15 W Memory •...
  • Page 37 Model Name P2102 P2102E Expansion • 2x Full-size Mini-PCIe Sockets Mini PCI Express • 1x PCI or 1x PCIe x4 Expansion slot (with PCI Express Optional Riser Card) • 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module M.2 E Key Socket •...
  • Page 38 Model Name P2102 P2102E Reliability & Protection • Yes Reverse Power Input • Protection Range: 51-58V Over Voltage Protection • Protection Type: shut down operating voltage, • re-power on at the present level to recover • 15A Over Current Protection •...
  • Page 39 Dimension CS-W121C/P2102 Unit: mm CS-W121C/P2102E Unit: mm P2100 Series | User Manual CS-100-...

  • Page 40: Cs-W124C/P2100

    1.4.6 CS-W124C/P2100 The table on this page refers to the specifications of CS-W124 alone Display • 24” (16:9) LCD Size • 1920x1080 Max. Resolution • 1500 Brightness • 5000 : 1 Contract Ratio • 16.7M LCD Color • 0.27675 (H) x 0.27675 (V) Pixel Pitch •...
  • Page 41 Model Name P2102 P2102E System Processor • Onboard 8th Intel® Core™ U Processors (Whiskey Lake) - Intel® Core™ i5-8365UE Quad Core Processor (6M Cache, up to 4.10 GHz) - Intel® Core™ i3-8145UE Dual Core Processor (4M Cache, up to 3.90 GHz) - TDP: 15 W Memory •...
  • Page 42 Model Name P2102 P2102E Expansion • 2x Full-size Mini-PCIe Sockets Mini PCI Express • 1x PCI or 1x PCIe x4 Expansion slot (with PCI Express Optional Riser Card) • 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module M.2 E Key Socket •...
  • Page 43 Model Name P2102 P2102E Reliability & Protection • Yes Reverse Power Input • Protection Range: 51-58V Over Voltage Protection • Protection Type: shut down operating voltage, • re-power on at the present level to recover • 15A Over Current Protection •...
  • Page 44 Dimension CS-W124C/P2102 Unit: mm CS-W124C/P2102E Unit: mm P2100 Series | User Manual CS-100-...

  • Page 45: System I/O

    1.5 System I/O 1.5.1 Front Antenna Hole Clear CMOS Used to clear CMOS to reset BIOS Used to connect an antenna for optional wireless module Removable HDD SIM Card Used to insert a 2.5” SATA HDD/SSD Used to insert a SIM card Power LED IGN Switch Indicates the power status of the system...

  • Page 46: Rear

    1.5.2 Rear DC IN Display Port Used to plug a DC power input with terminal Used to connect a monitor with DisplayPort block interface Digital I/O Terminal Block Used to connect to a monitor with analog signal The Digital I/O terminal block supports 16 interface isolated DIO (8 digital input and 8 digital output) Remote Power On/Off Terminal Block...

  • Page 47: Right

    1.5.4 Right COM Port OSD Function (For CDS Display Module) LCD On/Off Used to connect to RS-232/422/485 serial devices Press to turn-on or turn-off the backlight of display USB 2.0 Increase Brightness Used to connect to USB 2.0/1.1 compatible Press to increase brightness of the screen devices Decrease Brightness Line-Out...

  • Page 48: Chapter 2 Switches & Connectors

    Chapter 2 Switches & Connectors P2100 Series | User Manual CS-100-...

  • Page 49: Location Of Switches And Connectors

    2.1 Location of Switches and Connectors 2.1.1 Top View 2.1.2 Bottom View P2100 Series | User Manual CS-100-...

  • Page 50: Switches And Connectors Definition

    2.2 Switches and Connectors Definition List of Switch Location Definition AT_ATX1 AT / ATX Power Mode Switch BL_PWR1 Backlight Power on / off switching BL_UP1 Backlight Increase BL_DN1 Backlight Decrease LED1 HDD / Power Access LED Status PWR_SW2 Power button RTC2 Clear COMS Switch Reset1...

  • Page 51: Definition Of Switches

    2.3 Definition of Switches AT_ATX1: AT / ATX Power Mode Switch Switch Definition 1-2 (Left) AT Power Mode 2-3 (Right) ATX Power Mode (Default) BL_PWR1: Backlight Power on / off Switch Definition Push Backlight Power on / off switching BL_UP1: Backlight Increase Switch Definition Push...
  • Page 52 RTC2：Clear CMOS Switch Switch Definition 1-2 (Left) No Operation (Default) 2-3 (Right) Clear CMOS RESET1: Reset Switch Switch Definition Push Reset System SW1: COM1~4 with Power Select Switch Location Function DIP1 DIP2 0V(RI) ON (Default) ON (Default) COM1 Location Function DIP3 DIP4 0V(RI)

  • Page 53: Definition Of Connectors

    SW2: Super CAP Switch Location Function DIP1 DIP2 Super CAP ON (Default) Enabled OFF (Default) Super CAP Disabled 2.4 Definition of Connectors COM1 / COM2 / COM3/ COM4: RS232 / RS422 / RS485 Connector Connector Type: 9-pin D-Sub RS422 / 485 Full RS485 Half RS232 Duplex...
  • Page 54 CN1： Mini PCI-Express Socket (Support mPCIE & SIM Module & USB) Definition Definition WAKE# 3.3V +1.5V SMB_CLK 31 PETN0(USB3TN0)/SATATN0 1.5V SMB_DATA CLKREQ# 33 PETP0(USB3TP0)/SATATP0 SIM_VCC SIM_DATA USB_D- REFCLK- RESERVED SIM_CLK USB_D+ REFCLK+ RESERVED SIM_Reset 3.3V SIM_VPP 3.3V PERST# +1.5V 23 PERN0(USB3RN0)/SATARP0 49 3.3V 25 PERP0(USB3RP0)/SATARN0 51 +3.3V...
  • Page 55 CN2： Mini PCI-Express Socket (Support mPCIE & USB) Definition Definition WAKE# 3.3V +1.5V SMB_CLK PETN0/SATATN0 1.5V SMB_DATA CLKREQ# PETP0/SATATP0 USB_D- REFCLK- USB_D+ REFCLK+ 3.3V 3.3V 3.3V PERST# +1.5V PERN0/SATARP0 +3.3VAUX PERP0/SATARN0 +3.3V P2100 Series | User Manual CS-100-...
  • Page 56 CN3： M.2 Key E Socket (Support M.2 PCIE / Intel CNVi ) Definition Definition Definition +3.3V PULL-UP USB_D+ PEWAKE0# +3.3V USB_D- RGI_DT I2C_DATA WTD1N/PETP1 PCM_CLK RGI_RSP I2C_CLK WGR_D1N PETP0 WTD1P/PETN1 RBI_DT PCM_SYNC/LPCRSTN WGR_D1N PETN0 PCM_IN CLINK_REST REF_CLK WTD0N/PETP1 PCM_OUT CLINK_DATA WGR_D0N PERP0 WTD0P/PERN1...
  • Page 57 DC_IN1: DC Power Input Connector (+9~48V) Connector Type: Terminal Block 1X3 3-pin, 5.0mm pitch Definition +9~48VIN Ignition (IGN) Please disconnect the power source before mounting the DC power cables or connecting the DC power connector to system. LAN1 / LAN2 LED： LAN1 / 2 LED Status Definition LAN LED Status Definition...

  • Page 58: Chapter 3 System Setup

    Chapter 3 System Setup P2100 Series | User Manual CS-100-...

  • Page 59: Removing The Top Cover

    3.1 Removing the Top Cover 1. Loosen the eight screws at front and rear panel. 2. Raise the edge of top cover (1), and raise the other side (2) subsequently to remove it from the chassis. 3. Place the top cover aside gently. P2100 Series | User Manual CS-100-...

  • Page 60: Installing A Half Size Mini Pcie Card

    3.2 Installing a Half Size Mini PCIe Card Locate the Mini PCIe socket on the system board. Use two screws provided on adapter bracket to fasten the card and bracket together. Tilt the Mini PCIe card at a 45-degree angle and insert it into the socket until the golden finger connector of the card seated firmly.

  • Page 61: Installing A Full Size Mini Pcie Card

    Press down the card and secure it with two screws. Installing a Full Size Mini PCIe Card 1. Locate the Mini PCIe slot on the system board. 2. Tilt the Mini PCIe card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly.

  • Page 62: Installing A M.2 E Key Card

    3. Press the card down and secure it with 2 screws. Installing a M.2 E Key Card 1. Locate the M.2 E Key slot on the system board. 2. Tilt the M.2 E Key card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly.

  • Page 63: Installing Antennas

    3. Press the card down and secure it with 1 screw. Installing Antennas 1. Remove the antenna rubber cover on front, left or right panel. 2. Penetrate the antenna jack through the hole. P2100 Series | User Manual CS-100-...
  • Page 64 3. Put on the washer and fasten the nut with antenna jack. 4. Assemble the antenna and antenna jack together. Attach the RF connector at another end of the cable onto the card. P2100 Series | User Manual CS-100-...

  • Page 65: Installing A So-Dimm Module

    Installing a SO-DIMM Module 1. Locate the SO-DIMM socket on the system board. 2. Tilt the memory module at a 45-degree angle, and insert it into SO-DIMM socket until the golden finger connector of the module is seated firmly. 3. Press down the memory module until retaining clips snap back in place. P2100 Series | User Manual CS-100-...

  • Page 66: Installing A Pci(E) Card

    4. For the upper SO-DIMM socket, please follow the same steps described earlier to install. Installing a PCI(e) Card 1. Loosen the two screws as indicated at rear panel. 2. Attach the PCI / PCIe Card Installation Kit on, and fasten the two screws back on rear panel to fix the Kit.
  • Page 67 4. Align the notch of golden fingers of Riser card(Optional) with the slot. Insert the card vertically, and press the card straight down into the slot until it’s seated firmly. 5. Align the notch of golden fingers of PCI(e) card with the expansion slot. Insert the card horizontally, and press the card straight down into the slot until it’s seated firmly.
  • Page 68 7. Locate the retention module of PCI(e) expansion card. 8. Loosen the two screw as indicated to have the clamp arm slidable. 9. Slide the clamp arm of retention module until it contacts the edge of PCI(e) expansion card. P2100 Series | User Manual CS-100-...

  • Page 69: Installing Thermal Pad Of Thermal Block

    10. Finally, fasten the two screws that were previously loosen halfway to fix the retention module. Installing Thermal Pad of Thermal Block 1. Place thermal pad on the top of CPU thermal block in order to provide a seamless contact with the body of chassis to create an efficient heat dissipation. Before assembling the system’s chassis cover, please make sure the protective film on the Thermal Pad has been removed! P2100 Series | User Manual...

  • Page 70: Installing The Top Cover

    Installing the Top Cover 1. Put on the edge of top cover onto system, and the other side subsequently. 2. Fasten the eight screws at front and rear panel to secure the top cover. P2100 Series | User Manual CS-100-...

  • Page 71: Installing A Sata Hard Drive At Front Panel

    3.10 Installing a SATA Hard Drive at Front Panel 1. Turn over the system to bottom side, and remove the screw. 2. Loosen the screw to remove the HDD bay cover bracket. 3. Pull the rotating arm of HDD bracket outward as indicated. P2100 Series | User Manual CS-100-...
  • Page 72 4. Hold the rotating arm to pull out the HDD bracket. 5. Place the HDD bracket on screw-hole side of HDD. Use four screws provided to assemble HDD on the bracket. 6. Align the HDD bracket with the entrance of HDD bay. And insert the HDD bracket and push it until the edge connector of HDD fully inserted into SATA slot.
  • Page 73 7. Put back HDD bay cover at front panel, and fasten it with the screw. 8. Fasten the screw to secure the HDD bracket on the system chassis. P2100 Series | User Manual CS-100-...

  • Page 74: Installing A Sata Hard Drive On Bottom Side

    3.11 Installing a SATA hard drive on Bottom Side 1. Turn over the system to bottom side. Locate the cover of HDD compartment. 2. Loosen the two screws, lift the cover, and then remove it. 3. Loosen three screws and take the HDD bracket out of HDD compartment. P2100 Series | User Manual CS-100-...
  • Page 75 4. Place the HDD bracket on screw-hole side of HDD. Use four screws provided to assemble HDD on the bracket. 5. Seat the HDD bracket into HDD compartment, and line up the connector of HDD with SATA slot, then push it until HDD is fully connected into slot. 6.

  • Page 76: Installing A Sim Card

    7. Put back the cover and fasten the two screws. 3.12 Installing a SIM Card 1. Loosen the screw to remove the Maintenance cover bracket. 2. Locate the SIM card slot. 3. Insert the SIM card. P2100 Series | User Manual CS-100-...

  • Page 77: Connecting With Cs Display Module

    3.13 Connecting with CS Display Module 1. Prepare the mounting kit that accompanied with P2100 as shown. (including two mounting brackets and one screw pack) 2. Remove the six screws at left and right panel. 3. Assemble two mounting brackets by fastening six screws from the screws pack. P2100 Series | User Manual CS-100-...
  • Page 78 4. Turn over the system to bottom side. Locate the connector cover of display module. 5. Loosen two screws to remove the cover. The following photos indicates the male connector (on display module) and female connector (on P2100). P2100 Series | User Manual CS-100-...
  • Page 79 6. Place the P2100 on the display module through its display connector hole as indicated. 7. Align the mounting holes of P2100 with the screw holes of display module underneath. Then slide the PC2100 carefully as indicated to have P2100 and display module connected together.

  • Page 80: Panel Mount

    3.14 Panel Mount 1. Accessories provided by Cincoze are as below. Before assembly, please prepare panel mount PPC and customer’s fixture. P2100 Series | User Manual CS-100-...
  • Page 81 2. All mounting kits displayed are to be inserted into holes. 3. Installation preparation and steps. P2100 Series | User Manual CS-100-...
  • Page 82 P2100 Series | User Manual CS-100-...
  • Page 83 4. Apply all mount kits to the rest of holes. And you have completed the panel mount installation, as shown below. P2100 Series | User Manual CS-100-...

  • Page 84: Chapter 4 Bios Setup

    Chapter 4 BIOS Setup P2100 Series | User Manual CS-100-...

  • Page 85: Bios Introduction

    4.1 BIOS Introduction The BIOS (Basic Input/ Output System) is a program located on a Flash Memory on the motherboard. When you start the computer, the BIOS program will gain control. The BIOS first operates an auto-diagnostic test called POST (power on self-test) for all the necessary hardware, it detects the entire hardware device and configures the parameters of the hardware synchronization.

  • Page 86: Main Setup

    4.2 Main Setup Press <Del> to enter BIOS CMOS Setup Utility, the Main Menu (as shown below) will appears on the screen. Use arrow keys to move among the items and press <Enter> to accept or enter a sub-menu. 4.2.1 System Date Set the date.

  • Page 87: Advanced Setup

    4.3 Advanced Setup 4.3.1 CPU Configuration ■ Intel® Virtualization Technology [Enabled] Enables or disables Intel® Virtualization Technology. Virtualization enhanced by Intel® Virtualization Technology will allow a platform to run multiple operating systems and applications in independent partitions. With virtualization, one computer system can function as multiple virtual systems.

  • Page 88: Pch-Fw Configuration

    ■ Hyper-Threading [Enabled] Allows you to enable or disable Intel® Hyper-Threading function of processor. 4.3.2 PCH-FW Configuration ■ Intel AMT [Enabled] Allows you to enable or disable Intel® Active Management Technology BIOS execution. ■ Firmware Update Configuration ❑ ME FW Image Re-Flash [Disabled] Allows you to enable or disable ME firmware image re-flash function.

  • Page 89: Acpi Settings

    ■ Security Device Support [Disable] Allow you to enables or disables Security Device Support function. 4.3.4 ACPI Settings This item allows users to configure ACPI settings. ■ Enable ACPI Auto Configuration [Enabled] Enables or disables BIOS Advanced Configuration Power Interface® (ACPI) auto configuration.

  • Page 90: F81866 Super Io Configuration

    Allows users to select the highest Advanced Configuration Power Interface® (ACPI) sleep state that system will enter when suspend button is pressed. [Suspend Disabled]: Disables entering suspend state. [S3 (suspend to RAM)]: Enables suspend to RAM state. 4.3.5 F81866 Super IO Configuration The screen allows users to select options for the Super IO configuration, and change the value of the selected option.

  • Page 91: Hardware Monitor

    This item allows users to enable or disable serial port. ❑ Change Settings [Auto] This item allows users to change the address & IRQ settings of the specified serial port. ❑ Onboard Serial Port 1 Mode [RS232] This item allows users to select Serial Port Mode. Configuration options: [RS232] [RS422/RS485 Full Duplex] [RS485 Half Duplex] ■...

  • Page 92: Serial Port Console Redirection

    ■ Wake System from S5 [Disabled] This item allows users to change the way to wake system from S5 state. [Fixed Time]: Set the specified time (HH:MM:SS) to wake system. [Dynamic Time]: Set the increase time from current time to wake system. 4.3.8 Serial Port Console Redirection ■...

  • Page 93: Csm Configuration

    ■ Legacy USB Support [Enabled] This item allows users to enable or disable legacy USB support. When set to [Auto], legacy USB support will be disabled automatically if no USB devices are connected. ■ XHCI Hand-off [Enabled] This item allows users to enable or disable XHCI (USB3.2) hand-off function. ■...

  • Page 94: Nvme Configuration

    This item allows users to enable or disable UEFI Compatibility Support Module (CSM) to support a legacy PC boot process. 4.3.11 NVMe Configuration The screen allows users to select options for the NVMe configuration, and change the value of the selected option. The options will show as the NVME Device is found. 4.3.12 Network Stack Configuration ■...

  • Page 95: Chipset Setup

    4.4 Chipset Setup This section allows you to configure chipset related settings according to user’s preference. 4.4.1 System Agent (SA) Configuration ■ Memory Configuration This item displays detailed memory information in the system. ■ Graphics Configuration P2100 Series | User Manual CS-100-...

  • Page 96: Pch-Io Configuration

    ❑ Primary Display [Auto] Allows users to select which graphics device should be primary display or select SG for switchable graphics. Configuration options: [Auto] [IGFX] [PEG] [PCIe] [SG] ❑ Internal Graphics [Auto] This item allows users to enable or disable Internal Graphics. When set to [Auto], it will detect by BIOS.
  • Page 97 ■ PCI Express Configuration ❑ PCI Express Root Port (CN1 mPCIe) ◼ PCI Express Root Port [Enabled] Allows you to enable or disable the PCI Express Port. ◼ PCIe Speed [Auto] Allows you to select PCI Express interface speed. Configuration options: [Auto] [Gen1] [Gen2] [Gen3]. ❑...
  • Page 98 ■ SATA Configuration ❑ SATA Controller(s) [Enabled] Enables or disables Serial ATA controller. ❑ SATA Mode [AHCI] This item allows users to choose [AHCI] or [RAID] mode. ❑ Serial ATA Port 0 Port 0 [Enabled] Enables or disables SATA Port 0. ❑...
  • Page 99 ❑ HD Audio [Enabled] Allows you to select HD Audio options. [Enabled]: HD Audio device is unconditionally enabled. [Disabled]: HD Audio device is unconditionally disabled. ■ LAN i219LM Controller [Enabled] Enables or disables i219LM LAN Controller. ■ Wake On LAN (i219) [Enabled] Enables or disables integrated LAN I219LM Wake On LAN function.

  • Page 100: Security Setup

    4.5 Security Setup This section allows users to configure BIOS security settings. 4.5.1 Administrator Password Administrator Password controls access to the BIOS Setup utility. 4.5.2 User Password User Password controls access to the system at boot and to the BIOS Setup utility. 4.5.3 Security Boot ❑...

  • Page 101: Boot Setup

    4.6 Boot Setup This section allows you to configure Boot settings. 4.6.1 Setup Prompt Timeout [1] Use this item to set number of seconds (1..65535) to wait for setup activation key. 4.6.2 Bootup NumLock State [Off] Allows you to select the power-on state for keyboard NumLock. 4.6.3 Quiet Boot [Disabled] Allows you to enable or disable Quiet Boot function.

  • Page 102: Save & Exit

    4.7 Save & Exit 4.7.1 Save Changes and Exit This item allows you to exit system setup after saving changes. 4.7.2 Discard Changes and Exit This item allows you to exit system setup without saving changes. 4.7.3 Save Changes and Reset This item allows you to reset the system after saving changes.

  • Page 103: Chapter 5 Product Application

    Chapter 5 Product Application P2100 Series | User Manual CS-100-...

  • Page 104: Digital I/O (Dio) Application

    5.1 Digital I/O (DIO) application This section describes DIO application of the product. The content and application development are better understood and implemented by well experienced professionals or developers. 5.1.1 Digital I/O Programming Guide 5.1.1.1 Pins for Digital I/O Item Standard GPIO70 (Pin103) GPIO71 (Pin104)
  • Page 105 5.1.1.2 Programming Guide To program the Super I/O chip F81866A configuration registers, the following configuration procedures must be followed in sequence: (1) Enter the Extended Function Mode (2) Configure the configuration registers (3) Exit the Extended Function Mode The configuration register is used to control the behavior of the corresponding devices. To configure the register, use the index port to select the index and then write data port to alter the parameters.
  • Page 106 P2100 Series | User Manual CS-100-...
  • Page 107 5.1.1.4 Sample Code in C Language 5.1.1.4.1 Control of GP70 to GP77 #define AddrPort 0x4E #define DataPort 0x4F <Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) // Must write twice to enter Extended mode <Select Logic Device> WriteByte(AddrPort, 0x07) WriteByte(dataPort, 0x06) // Select logic device 06h <Output/Input Mode Selection>...
  • Page 108 5.1.1.4.2 Control of GP80 to GP87 #define AddrPort 0x4E #define DataPort 0x4F <Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) // Must write twice to enter Extended mode <Select Logic Device> WriteByte(AddrPort, 0x07) WriteByte(DataPort, 0x06) // Select logic device 06h <Output/Input Mode Selection>...
  • Page 109 // Select configuration register 60h WriteByte(DataPort, (ReadByte(DataPort) ǀ 0x03)) WriteByte(AddrPort, 0x61) // Select configuration register 61h WriteByte(DataPort, (ReadByte(DataPort) ǀ 0x20)) <Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA) Cincoze default GPIO Port base address is 0xA00h P2100 Series | User Manual CS-100-...
  • Page 110 5.1.1.6 DATA Bit Table (DIO) = DI1 = DO1 = DI2 = DO2 = DI3 = DO3 = DI4 = DO4 = DI5 = DO5 = DI6 = DO6 = DI7 = DO7 = DI8 = DO8 DIO I/O Port Address 5.1.1.7 P2100 Series | User Manual CS-100-...

  • Page 111: P2100 Digital I/O (Dio) Hardware Specification

    5.2 P2100 Digital I/O (DIO) Hardware Specification • XCOM+ / 2XCOM+ : Isolated power in V+ • XCOM- / 2XCOM- : Isolated power in V- • Isolated power in DC voltage : 9~30V • 8x / 16x Digital Input (Source Type) •...

  • Page 112: P2100 Dio Connector Definition

    5.2.1 P2100 DIO Connector Definition DIO-1/DIO-2: Digital Input / Output Connector Connector Type: Terminal Block 2X10 10-pin, 3.5mm pitch Location Definition Location Definition DC INPUT DC INPUT DIO-1 DIO-2 P2100 Series | User Manual CS-100-...
  • Page 113 Reference Input Circuit Reference Output Circuit P2100 Series | User Manual CS-100-...

  • Page 114: Chapter 6 Optional Modules & Accessories

    Chapter 6 Optional Modules & Accessories Pin Definitions and Settings P2100 Series | User Manual CS-100-...

  • Page 115: Pin Definition And Settings Of Ign Module

    6.1 Pin Definition and Settings of IGN Module SW2 on CFM-IGN101: IGN Module Timing Setting Switch Set shutdown delay timer when ACC is turned off Pin 1 Pin 2 Pin 3 Pin 4 Definition 0 second 1 minute 5 minutes ON (IGN enabled) 10 minutes 30 minutes...

  • Page 116: Installing An Ign Module

    6.2 Installing an IGN Module Locate the power Ignition connector on system motherboard as indicated. Insert the female connector of power ignition board to the male connector on system motherboard. Fasten two screws to secure the power ignition board. P2100 Series | User Manual CS-100-...

  • Page 117: Installing A Poe Module

    6.3 Installing a PoE Module 1. Place a thermal pad on the top of the heatsink, and locate the two regions as marked. 2. Turn over the heatsink and paste the thermal pad at the marked region. Before putting on the thermal block, please make sure the protective film on the Thermal Pad has been removed! 3.
  • Page 118 Insert the female connector of PoE daughter board to the male connector on system motherboard. Put on the PoE thermal block and fasten two screws to secure the PoE board. Before assembling the system’s chassis cover, please make sure the protective films on the Thermal Pads have been removed! P2100 Series | User Manual CS-100-...

  • Page 119: Vesa Mount

    6.4 VESA Mount The following picture indicates VESA mounting hole pattern on P2100, which is compliant with VESA mounting standard. 1. The following picture uses a panel PC (P2100+CV/CS display module) as a demonstration. To attach the panel PC to a VESA stand, please fasten eight screws as indicated to fix it on the stand.
  • Page 120 © 2019 Cincoze Co., Ltd. All rights reserved. The Cincoze logo is a registered trademark of Cincoze Co., Ltd. All other logos appearing in this catalog are the intellectual property of the respective company, product, or organization associated with the logo.

This manual is also suitable for:

Cs-p2100 series

Table of Contents
