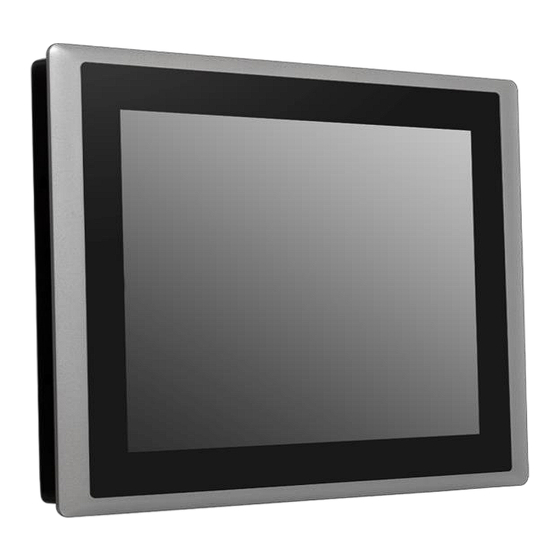

Cincoze CS-112HC/P1101 Series User Manual

Hide thumbs Also See for CS-112HC/P1101 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
CS-100/P1001 Series
User Manual
Industrial Panel PC
Power Efficient Sunlight Readable Panel PC
Version: V1.41

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS-112HC/P1101 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cincoze CS-112HC/P1101 Series

Summary of Contents for Cincoze CS-112HC/P1101 Series

  • Page 1 CS-100/P1001 Series User Manual Industrial Panel PC Power Efficient Sunlight Readable Panel PC Version: V1.41...

  • Page 2: Table Of Contents

    Contents Preface ..................................5 Revision ................................5 Copyright Notice ...............................5 Acknowledgement ............................5 Disclaimer .................................5 Declaration of Conformity ..........................6 Product Warranty Statement ...........................6 Technical Support and Assistance ........................7 Conventions Used in this Manual ........................8 Safety Precautions ............................8 Package Contents .............................9 Ordering Information ............................ 10 Chapter 1 Product Introductions ........................
  • Page 3 1.6.1 Front ..............................53 1.6.2 Rear ..............................54 1.6.3 Left ..............................55 1.6.4 Right ..............................56 Chapter 2 Jumpers, Switches & Connectors ...................... 57 2.1 Jumpers Settings ............................58 2.2 Location of the Jumpers/Switches/Connectors ..................58 2.2.1 Top View ............................58 2.2.2 Bottom View .............................
  • Page 4 4.2 Main Setup .............................. 90 4.3 Advanced Setup ............................91 4.3.1 ACPI Settings ............................. 91 4.3.2 Super IO Configuration ........................92 4.3.3 Hardware Monitor ..........................93 4.3.4 Serial Port Console Redirection ......................94 4.3.5 CPU Configuration ..........................94 4.3.6 Thermal Configuration........................95 4.3.7 SATA Configuration ...........................

  • Page 5: Preface

    2024/02/07 Copyright Notice © 2018 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Cincoze Co., Ltd. All information and specification provided in this manual are for reference only and remain subject to change without prior notice.

  • Page 6: Declaration Of Conformity

    (such as a fuse, battery, etc.), are not warranted. Before sending your product in, you will need to fill in Cincoze RMA Request Form and obtain an RMA number from us. Our staff is available at any time to provide you with the most friendly and immediate service.

  • Page 7: Technical Support And Assistance

    Limitation of Liability Cincoze’ liability arising out of the manufacture, sale, or supplying of the product and its use, whether based on warranty, contract, negligence, product liability, or otherwise, shall not exceed the original selling price of the product. The remedies provided herein are the customer’s sole and exclusive remedies.

  • Page 8: Conventions Used In This Manual

    ⚫ A complete description of the problem ⚫ The exact wording of any error messages Conventions Used in this Manual This indication alerts operators to an operation that, if not strictly observed, may result in severe injury. (Cette indication avertit les opérateurs d'une opération qui, si elle n'est pas strictement observée, peut entraîner des blessures graves.) This indication alerts operators to an operation that, if not strictly observed, may result in safety hazards to personnel or damage to equipment.

  • Page 9: Package Contents

    10. All cautions and warnings on the equipment should be noted. 11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage. 12. Never pour any liquid into an opening. This may cause fire or electrical shock. 13.

  • Page 10: Ordering Information

    Ordering Information Model No. Product Description 8.4" TFT-LCD 1600 nits Sunlight Readable Touch Panel PC CS-108C/P1001 with Intel® Atom™ E3845 Quad Core Processor and P-Cap. Touch 8.4" TFT-LCD 1600 nits Sunlight Readable Touch Panel PC CS-108C/P1001E with Intel® Atom™ E3845 Quad Core Processor, P-Cap. Touch and 2x Universal I/O Bracket 10.4"...
  • Page 11 21.5" TFT-LCD Full HD 16:9 Panel PC with Projected CS-W121C/P1001 Capacitive Touch and Intel® Atom™ E3845 Quad Core PC Module, 4x USB, 2x COM, 1x VGA, 1x DisplayPort 21.5" TFT-LCD Full HD 16:9 Panel PC with Projected Capacitive Touch and Intel® Atom™ E3845 Quad Core PC CS-W121C/P1001E Module, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 2x Universal Brackets...

  • Page 12: Chapter 1 Product Introductions

    Chapter 1 Product Introductions CS-100/P1001 Series | User Manual...

  • Page 13: Overview

    1.1 Overview CS-100/P1001 Series is a TFT-LCD sunlight readable touch panel PC offering ultra-high brightness and high resolution. The system is equipped with Intel® Atom® E3845 processor and provides extensive I/O including 2x GbE, 4x USB, 2x RS232/422/485, 4x DI/4x DO, 1x VGA and 1x DisplayPort. It also supports 1x Mini-PCIe slot and 1x SIM socket for a variety of wireless connections, such as BT/WiFi and 3G/LTE.

  • Page 14: Product Pictures

    1.3 Product Pictures 1.4 Key Features ⚫ 8.4” ~ 24” TFT LCD with Ultra High Brightness up to 1,600nits ⚫ Onboard Intel® Atom™ E3845 Processor Quad Core, 1.91GHz ⚫ Supports 1x DDR3L SO-DIMM Socket, up to 8 GB ⚫ 1x 2.5” SATA Drive Bay, 1x CFast Card and 1x SIM Card Socket ⚫...

  • Page 15: Hardware Specification

    1.5 Hardware Specification 1.5.1 CS-108C/P1001 Series Model Name CS-108C Display • 8.4" (4:3) LCD Size • 800 x 600 Max. Resolution • 1600 Brightness (cd/m2) • 600 : 1 Contract Ratio • 16.2M LCD Color • 0.213 (H) x 0.213 (V) Pixel Pitch •...
  • Page 16 • 1x Mic-in, Phone Jack 3.5mm Mic-in • 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I210 - GbE2: Intel® I210 • 1x USB 3.2 Gen1 (Type A), 3x USB 2.0 (Type A) • 2x DB9 for COM1~2, Support RS232/422/485 with Auto Flow Control •...
  • Page 17 • Operating, 1 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) Vibration * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CS-100/P1001 Series | User Manual...
  • Page 18 Dimension CS-108C/P1001 Unit: mm CS-100/P1001 Series | User Manual...
  • Page 19 CS-108C/P1001E Unit: mm CS-100/P1001 Series | User Manual...

  • Page 20: Cs-110Hc/P1001 Series

    1.5.2 CS-110HC/P1001 Series Model Name CS-110HC Display • 10.4" (4:3) LCD Size • 1024 x 768 Max. Resolution • 1500 Brightness (cd/m2) • 1400 : 1 Contract Ratio • 16.2M LCD Color • 0.206 (H) x 0.206 (V) Pixel Pitch •...
  • Page 21 • 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I210 - GbE2: Intel® I210 • 1x USB 3.2 Gen1 (Type A), 3x USB 2.0 (Type A) • 2x DB9 for COM1~2, Support RS232/422/485 with Auto Flow Control •...
  • Page 22 • Operating, 1 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) Vibration * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CS-100/P1001 Series | User Manual...
  • Page 23 Dimension CS-110HC/P1001 Unit: mm CS-100/P1001 Series | User Manual...
  • Page 24 CS-110HC/P1001E Unit: mm CS-100/P1001 Series | User Manual...

  • Page 25: Cs-112Hc/P1001 Series

    1.5.3 CS-112HC/P1001 Series Model Name CS-112HC Display • 12.1" (4:3) LCD Size • 1024 x 768 Max. Resolution • 1500 Brightness (cd/m2) • 700 : 1 Contract Ratio • 16.7M LCD Color • 0.24 (H) x 0.24 (V) Pixel Pitch •...
  • Page 26 • 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I210 - GbE2: Intel® I210 • 1x USB 3.2 Gen1 (Type A), 3x USB 2.0 (Type A) • 2x DB9 for COM1~2, Support RS232/422/485 with Auto Flow Control •...
  • Page 27 • Operating, 1 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) Vibration * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CS-100/P1001 Series | User Manual...
  • Page 28 Dimension CS-112HC/P1001 Unit: mm CS-100/P1001 Series | User Manual...
  • Page 29 CS-112HC/P1001E Unit: mm CS-100/P1001 Series | User Manual...

  • Page 30: Cs-115C/P1001 Series

    1.5.4 CS-115C/P1001 Series Model Name CS-115C Display • 15" (4:3) LCD Size • 1024 x 768 Max. Resolution • 1800 Brightness (cd/m2) • 800 : 1 Contract Ratio • 16.2M LCD Color • 0.297 (H) x 0.297(V) Pixel Pitch • 160 / 150 Viewing Angle •...
  • Page 31 • 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I210 - GbE2: Intel® I210 • 1x USB 3.2 Gen1 (Type A), 3x USB 2.0 (Type A) • 2x DB9 for COM1~2, Support RS232/422/485 with Auto Flow Control •...
  • Page 32 • Operating, 1 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) Vibration * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CS-100/P1001 Series | User Manual...
  • Page 33 Dimension CS-115C/P1001 Unit: mm CS-100/P1001 Series | User Manual...
  • Page 34 CS-115C/P1001E Unit: mm CS-100/P1001 Series | User Manual...

  • Page 35: Cs-117C/P1001 Series

    1.5.5 CS-117C/P1001 Series Model Name CS-117C Display • 17" (5:4) LCD Size • 1280 x 1024 Max. Resolution • 1500 Brightness (cd/m2) • 800 : 1 Contract Ratio • 16.7M LCD Color • 0.264 (H) x 0.264 (V) Pixel Pitch •...
  • Page 36 • 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I210 - GbE2: Intel® I210 • 1x USB 3.2 Gen1 (Type A), 3x USB 2.0 (Type A) • 2x DB9 for COM1~2, Support RS232/422/485 with Auto Flow Control •...
  • Page 37 • Operating, 1 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) Vibration * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CS-100/P1001 Series | User Manual...
  • Page 38 Dimension CS-117C/P1001 Unit: mm CS-100/P1001 Series | User Manual...
  • Page 39 CS-117C/P1001E Unit: mm CS-100/P1001 Series | User Manual...

  • Page 40: Cs-119C/P1001 Series

    1.5.6 CS-119C/P1001 Series Model Name CS-119C Display • 19" (5:4) LCD Size • 1280 x 1024 Max. Resolution • 1600 Brightness (cd/m2) • 1000 : 1 Contract Ratio • 16.7M LCD Color • 0.294 (H) x 0.294 (V) Pixel Pitch •...
  • Page 41 • 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I210 - GbE2: Intel® I210 • 1x USB 3.2 Gen1 (Type A), 3x USB 2.0 (Type A) • 2x DB9 for COM1~2, Support RS232/422/485 with Auto Flow Control •...
  • Page 42 • Operating, 1 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) Vibration * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CS-100/P1001 Series | User Manual...
  • Page 43 Dimension CS-119C/P1001 Unit: mm CS-100/P1001 Series | User Manual...
  • Page 44 CS-119C/P1001E Unit: mm CS-100/P1001 Series | User Manual...

  • Page 45: Cs-W121C/P1001 Series

    1.5.7 CS-W121C/P1001 Series Model Name CS-W121C Display • 21.5” (16:9) LCD Size • 1920x1080 (Full HD) Max. Resolution • 1000 Brightness (cd/m2) • 5000 : 1 Contract Ratio • 16.7M LCD Color • 0.24825 (H) x 0.24825 (V) Pixel Pitch •...
  • Page 46 • 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I210 - GbE2: Intel® I210 • 1x USB 3.2 Gen1 (Type A), 3x USB 2.0 (Type A) • 2x DB9 for COM1~2, Support RS232/422/485 with Auto Flow Control •...
  • Page 47 • Operating, 1 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) Vibration * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CS-100/P1001 Series | User Manual...
  • Page 48 Dimension CS-W121C/P1001 Unit: mm CS-W121C/P1001E Unit: mm CS-100/P1001 Series | User Manual...

  • Page 49: Cs-W124C/P1001 Series

    1.5.8 CS-W124C/P1001 Series Model Name CS-W124C Display • 24” (16:9) LCD Size • 1920x1080 Max. Resolution • 1500 Brightness (cd/m2) • 5000 : 1 Contract Ratio • 16.7M LCD Color • 0.27675 (H) x 0.27675 (V) Pixel Pitch • 178/178 Viewing Angle •...
  • Page 50 • 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I210 - GbE2: Intel® I210 • 1x USB 3.2 Gen1 (Type A), 3x USB 2.0 (Type A) • 2x DB9 for COM1~2, Support RS232/422/485 with Auto Flow Control •...
  • Page 51 • Operating, 1 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) Vibration * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CS-100/P1001 Series | User Manual...
  • Page 52 Dimension CS-W124C/P1001 Unit: mm CS-W124C/P1001E Unit: mm CS-100/P1001 Series | User Manual...

  • Page 53: System I/O

    1.6 System I/O 1.6.1 Front ATX Power On/Off CFast and SIM card Slot Used to power-on or power-off the system Used to insert a CFast card and SIM card Antenna Hole Removable HDD Bay Used to connect an antenna for optional wireless Used to insert a 2.5”...

  • Page 54: Rear

    1.6.2 Rear DC IN USB 2.0 port Used to plug a DC power input with terminal block Used to connect USB 2.0/1.1 device Reset Button LAN port Used to reset the system Used to connect the system to a local area network Mic-in Used to connect a microphone Used to connect an analog VGA monitor...

  • Page 55: Left

    1.6.3 Left USB 3.2 GEN1 port Digital I/O Terminal Block Used to connect USB 3.2 GEN1/2.0/1.1 device The Digital I/O terminal block supports 4 digital input USB 2.0 port and 4 digital output Used to connect USB 2.0/1.1 device AT/ATX mode select switch Used to select AT or ATX power mode CS-100/P1001 Series | User Manual...

  • Page 56: Right

    1.6.4 Right COM port OSD Function: COM 2 supports RS232/422/485 serial device LCD On/Off DisplayPort Press to turn-on or turn-off the display Used to connect a DisplayPort devices Increase Brightness Power LED Press to increase brightness of the screen Indicates the power status of the system Decrease Brightness HDD LED Press to decrease brightness of the screen...

  • Page 57: Chapter 2 Jumpers, Switches & Connectors

    Chapter 2 Jumpers, Switches & Connectors CS-100/P1001 Series | User Manual...

  • Page 58: Jumpers Settings

    2.1 Jumpers Settings When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

  • Page 59: Bottom View

    2.2.2 Bottom View CS-100/P1001 Series | User Manual...

  • Page 60: Definition Of Jumpers/Switches/Connectors

    2.3 Definition of Jumpers/Switches/Connectors List of Jumpers/Switches/Connectors Location Definition AT_ATX1 AT / ATX Power Mode Switch BL_PWR1 Backlight Power on / off switching BL_UP1 Backlight Increase BL_DN1 Backlight Decrease CFAST1 CFast Connector CLR_CMOS1 Clear BIOS Switch COM1_1, COM2_1 RS232 / RS422 / RS485 Connector COM12_SEL1 COM1 / COM2 with Power Select DC_IN1...

  • Page 61: Definition Of Jumpers

    2.4 Definition of Jumpers COM12_SEL1: COM1 / COM2 with Power Select Connector Type: 2X5 10-pin Header, 2.0mm pitch COM1 COM2 Definition Definition 1-3 On 2-4 On 3-5 On +12V 4-6 On +12V 7-9 On 8-10 On Reserved Reserved (Default) (Default) 2.5 Definition of Switches AT_ATX1: AT / ATX Power Mode Switch Definition...

  • Page 62: Definition Of Connectors

    RESET1: Reset Switch Switch Definition Push Reset System 2.6 Definition of Connectors CFAST1: CFast Connector Definition Definition Definition PC10 SATA_TX2+ PC11 SATA_TX2- PC12 PC13 +3.3V SATA_RX2- PC14 +3.3V SATA_RX2+ PC15 PC16 PC17 COM1~COM2: RS232 / RS422 / RS485 Connector Connector Type: 9-pin D-Sub RS422 / 485 RS485 RS232 Definition...
  • Page 63 DC_IN1: DC Power Input Connector (+9~48V) Connector Type: Terminal Block 1X3 3-pin, 5.0mm pitch Definition +9~48VIN Chassis GND Please disconnect the power source before mounting the DC power cables or connecting the DC power connector to system. DP1: DisplayPort Connector Definition Definition DP_LANE0_P...
  • Page 64 LED1: Power / HDD Access LED Status Definition HDD LED+ HDD LED- POWER LED+ POWER LED- LED Status LED Color Yellow POWER Green LINE_OUT1: Line-out Jack (Green) Connector Type: 5-pin Phone Jack Definition OUT_R OUT_L MIC1: Microphone Jack (Pink) Connector Type: 5-pin Phone Jack Definition MIC_R MIC_L...
  • Page 65 POWER1: Power Connector Connector Type: 1X4-pin Wafer, 2.0mm pitch Definition +12V SATA1: SATA with Power Connector Definition Definition SATA_TX1+ SATA_TX1- SATA_RX1- SATA_RX1+ +3.3V +3.3V +12V +3.3V +12V +12V SIM1：SIM Card Socket Definition UIM_PWR UIM_RESET UIM_CLK UIM_VPP UIM_DATA CS-100/P1001 Series | User Manual...
  • Page 66 SPK_L1: Left Internal Speaker Connector Definition OUT_L SPK_R1: Right Internal Speaker Connector Definition OUT_R USB1_2_1：USB2.0 Connector, Type A Definition Definition USB_DATA0- USB_DATA_1- USB_DATA0+ USB_DATA_1+ USB2_1: USB2.0 Connector, Type A Definition USB2_DATA1- USB2_DATA1+ USB3_1: USB 3.0 Connector, Type A Definition Definition USB3_RX0+ USB2_D0- USB2_D0+...
  • Page 67 MINIPCIE1: Mini PCI-Express Socket Pin Definition Pin Definition Pin Definition WAKE# +3.3V +3.3V USB2_3P +3.3V MINIPCIE RST# MINIPCIE_RXN +3.3V +1.5V +3.3V CLKREQ# MINIPCIE_RXP UIM_PWR UIM_DATA +1.5V MINIPCIE_CLKN UIM_CLK SMB_CLK +1.5V MINIPCIE_CLKP MINIPCIE_TXN UIM_RESET SMB_DATA MINIPCIE_TXP UIM_VPP +3.3V USB2_3N CS-100/P1001 Series | User Manual...

  • Page 68: Chapter 3 System Setup

    Chapter 3 System Setup CS-100/P1001 Series | User Manual...

  • Page 69: Removing Top Cover

    This chapter takes P1001 as an example to demonstrate the installation of hardware components. 3.1 Removing Top Cover In order to prevent electric shock or system damage, must turn off power and disconnect the unit from power source before removing the chassis cover. (Afin d'éviter tout risque d'électrocution ou d'endommagement du système, vous devez couper l'alimentation et débrancher l'appareil de la source d'alimentation avant de retirer le couvercle du châssis.)

  • Page 70: Installing Half Size Mini Pcie Card

    3.2 Installing Half Size Mini PCIe Card Locate the Mini PCIe slot. Use provided two screws on bracket to fasten the module and bracket together. Tilt the Mini PCIe module at 45-degree angle and insert it to the slot until the gold-pated connector of module contacted firmly with the slot.

  • Page 71: Installing Full Size Mini Pcie Card

    Press down the module and use the two screws to fix the module. 3.3 Installing Full Size Mini PCIe Card 1. Locate the Mini PCIe slot. 2. Tilt the Mini PCIe module at 45-degree angle and insert it to the slot until the gold-pated connector of module contacted firmly with the slot.

  • Page 72: Installing Antenna(S)

    3. Press down the module and use the two screws to fix the module. 3.4 Installing Antenna(s) Remove the antenna hole covers at front panel. Have antenna jack penetrate through the hole. CS-100/P1001 Series | User Manual...
  • Page 73 Put on washer and fasten the nut with antenna jack. Assemble the antenna and antenna jack together. Attach the RF connector at another end of cable onto the module. CS-100/P1001 Series | User Manual...

  • Page 74: Installing So-Dimm Memory

    3.5 Installing SO-DIMM Memory 1. Locate SO-DIMM socket. 2. Tilt the SODIMM module at a 45-degree angle and insert it to SODIMM socket until the gold-pated connector of module contacted firmly with the socket. 3. Press the module down until its fixed firmly by the two locking latches on each side. CS-100/P1001 Series | User Manual...

  • Page 75: Installing Top Cover

    3.6 Installing Top Cover 1. Put on the cover. 2. Fasten the 8 screws to fix the cover. CS-100/P1001 Series | User Manual...

  • Page 76: Installing Sata Hard Drive

    3.7 Installing SATA Hard Drive 1. Locate the removable HDD bay and loosen the 3 screws. 2. Pull out the HDD bracket. 3. Make the PCB side of the HDD face up, place the HDD bracket on it. Ensure the direction of bracket is correct and use 4 provided screws to assemble HDD and HDD bracket together.

  • Page 77: Installing Sim Card

    4. Align the HDD bracket with the entrance of HDD bay. And insert the HDD bracket until the connector of HDD contact the SATA connector firmly. 3.8 Installing SIM Card 1. SIM card slot is at the front panel of the system. 2.

  • Page 78: Installing Cfast Card

    3.9 Installing CFast Card 1. Locate the CFast card slot. 2. Remove the mounting cover by unscrewing the two screws. 3. Insert the CFast card until it clicks. CS-100/P1001 Series | User Manual...

  • Page 79: Connecting With Cs Display Module

    3.10 Connecting with CS Display Module 1. Locate the module connector slot and loosen the 1 screw. 2. Turn over the unit to have the bottom side face up, loosen the 2 screws of the module connector bracket. The photos show the male connector (on display module) and female connector (on PC module) CS-100/P1001 Series | User Manual...
  • Page 80 3. Connect the modules. 4. Fasten the 6 screws to fix the PC module on the display module. CS-100/P1001 Series | User Manual...

  • Page 81: Installing Vesa Mount Bracket

    3.11 Installing VESA Mount Bracket The following picture indicates VESA mounting hole pattern on P1001, which is compliant with VESA mounting standard. 1. The following picture uses a panel PC (P1001+CS display module) as a demonstration. To attach the panel PC to a VESA stand, please fasten eight screws as indicated to fix it on the stand. CS-100/P1001 Series | User Manual...

  • Page 82: Installing Panel Mount

    3.12 Installing Panel Mount 1. Accessories provided by Cincoze are as follows. (Please note that the quantity of mounting kits varies with the size of the display module, please refer to the datasheet for the actual quantity) CS-100/P1001 Series | User Manual...
  • Page 83 2. All mounting kits displayed are to be inserted into holes. 3. Installation preparation and steps. CS-100/P1001 Series | User Manual...
  • Page 84 CS-100/P1001 Series | User Manual...
  • Page 85 4. Apply all mount kits to the rest of holes. And you have completed the panel mount installation, as shown below. CS-100/P1001 Series | User Manual...

  • Page 86: Installing Rack Mount

    3.13 Installing Rack Mount 1. Locate the screw holes on the PC or monitor module. Then fasten 8 screws (M4x6) as indicated to fix it on the rack mount base. 2. Assemble two rack mount brackets by fastening 4 screws (M5x6) at each side. For 8.4”...
  • Page 87 For 19” ~ 24” Panel PC For P2002E For P2002 / P1001E For M1101/ P1001 / P1101 / P2102 / P2102E/P2202/P2202E Left Side Right Side Bottom Side 3. Assemble two rack mount brackets by fastening 4 screws (M5x12), flat washers and hex nuts at each side.

  • Page 88: Chapter 4 Bios Setup

    Chapter 4 BIOS Setup CS-100/P1001 Series | User Manual...

  • Page 89: Bios Introduction

    4.1 BIOS Introduction The BIOS (Basic Input/ Output System) is a program located on a Flash Memory on the motherboard. When you start the computer, the BIOS program will gain control. The BIOS first operates an auto-diagnostic test called POST (power on self-test) for all the necessary hardware, it detects the entire hardware device and configures the parameters of the hardware synchronization.

  • Page 90: Main Setup

    4.2 Main Setup Press <Del> to enter BIOS CMOS Setup Utility, the Main Menu (as shown below) will appears on the screen. Use arrow keys to move among the items and press <Enter> to accept or enter a sub-menu. 4.2.1 System Date Set the date.

  • Page 91: Advanced Setup

    4.3 Advanced Setup 4.3.1 ACPI Settings Enable or disable ACPI Auto Configuration. CS-100/P1001 Series | User Manual...

  • Page 92: Super Io Configuration

    4.3.2 Super IO Configuration You can use this screen to select options for the Super IO Configuration, and change the value of the selected option. ■ Serial Port 1 Configuration ❑ Serial Port This item will allow users to enable or disable serial port. ❑...

  • Page 93: Hardware Monitor

    ■ Watch Dog Function You can setup the system watch-dog timer, a hardware timer that generates a reset when the software that it monitors does not respond as expected each time the watch dog polls it. ❑ Watch Dog Mode Change the Watch dog mode.

  • Page 94: Serial Port Console Redirection

    4.3.4 Serial Port Console Redirection ■ Console Redirection This item allows users to enable or disable console redirection. 4.3.5 CPU Configuration ■ Socket 0 CPU Information This section provides information on your CPU, frequency, and cache memory. ■ Active Processor Cores Change the active processor cores.

  • Page 95: Thermal Configuration

    This option is only useful if you are using an operating system that does not recognize all of the features of your processor. Allows user to determine whether to limit CPUID maximum value. Set this item to Disabled: For Windows XP operating system. Enabled: For legacy operating system such as Windows NT4.0.

  • Page 96: Sata Configuration

    ■ Passive Trip Point Allows user to set the CPU temperature threshold. If the CPU temperature reaches this value, the CPU frequency will be automatically reduced. This item is configurable only when DTS is enabled. ■ DTS Enables or disables the CPU overheating protection function. (Default: Disabled) 4.3.7 SATA Configuration ■...

  • Page 97: Os Selection

    4.3.8 OS Selection This allows you to configure Windows OS version to install. The purpose of this is to enable USB 3.0 controller interface. If you set Windows 7 and install the OS, you will need to install USB 3.0 driver at the OS level to fully support USB 3.0 interfaces.

  • Page 98: Usb Configuration

    ■ CSM Support Enables or disables UEFI CSM (Compatibility Support Module) to support a legacy PC boot process. ■ Boot option filter Allows user to select which type of operating system to boot. UEFI and Legacy: Allows booting from operating systems that support legacy option ROM or UEFI option ROM.
  • Page 99 Allows USB keyboard/ mouse to be used in MS-DOS. ■ XHCI Hand-off Determines whether to enable XHCI (USB3.0) Hand-off feature for an operating system without XHCI (USB3.0) Hand-off support. ■ EHCI Hand-off Determines whether to enable EHCI Hand-off feature for an operating system without EHCI Hand-off support.

  • Page 100: Chipset Setup

    4.4 Chipset Setup This section allows you to configure chipset related settings according to user’s preference. 4.4.1 North Bridge This section provides information on the installed memory size and memory/onboard graphics-related configuration options. ■ Intel IGD Configuration This section provides onboard graphics-related configuration options. CS-100/P1001 Series | User Manual...
  • Page 101 ❑ GOP Driver This item will allow users to enable or disable GOP Driver. ❑ Integrated Graphics Device This item will allow users to enable or disable Integrated Graphics Device. ❑ IGD Turbo Enable This item will allow users to enable or disable IGD Turbo. ❑...

  • Page 102: South Bridge

    4.4.2 South Bridge ■ Azalia HD Audio Control detection of the Azalia device. ❑ Audio Controller Enabled: Azalia will be unconditionally enabled. Disabled: Azalia will be unconditionally disabled. ■ USB Configuration ❑ XHCI Mode This setting disables/enables the USB XHCI controller. The eXtensible Host Controller Interface (XHCI) is a computer interface specification that defines a register-level description of a Host Controller for Universal Serial Bus (USB), which is capable of interfacing to USB 1.0, 2.0, and 3.0 compatible devices.
  • Page 103 ❑ USB Port 3 This item will allow users to enable or disable USB Port 3. ■ Wake On LAN Enable This item enables or disables Wake On LAN (WOL) function. ■ PCI Express Configuration ❑ PCI Express Port 0 This item will allow users to enable or disable PCI Express Port 0.

  • Page 104: Security Setup

    This setting specifies whether your system will reboot after a power failure or interrupt occurs. Available settings are: Power Off: Leave the computer in the power off state. Power On: Leave the computer in the power on state. Last State: Restore the system to the previous status before power failure or interrupt occurred. 4.5 Security Setup This section allows users to configure BIOS security settings.

  • Page 105: Boot Setup

    4.6 Boot Setup This section allows you to configure Boot settings. 4.6.1 Setup Prompt Timeout Use this item to set number of seconds to wait for setup activation key. 4.6.2 Bootup NumLock State Allows users to select the power-on state for keyboard NumLock. 4.6.3 Full Screen Logo Show This item allows user to enable or disable full screen logo show.

  • Page 106: Save & Exit

    4.7 Save & Exit 4.7.1 Save Changes and Reset This item allows user to reset system setup after saving changes. 4.7.2 Discard Changes and Reset This item allows users to reset system setup without saving any changes. 4.7.3 Restore Defaults This item allows user to restore/ load default values for all the options.

  • Page 107: Chapter 5 Product Application

    Chapter 5 Product Application CS-100/P1001 Series | User Manual...

  • Page 108: Digital I/O (Dio) Application

    This section describes DIO application of the product. The content and application development are better understood and implemented by well experienced professionals or developers. 5.1.1 Digital I/O Programming Guide 5.1.1.1 Pins for Digital I/O of Cincoze P1001 series product Item Standard...
  • Page 109 -o 4e 87 (enable configuration) -o 4e aa (disable configuration) 5.1.1.3 Relative Registers To program the F81866A configuration registers, see the following configuration procedures. CS-100/P1001 Series | User Manual...
  • Page 110 5.1.1.4 Sample Code in C Language 5.1.1.4.1 Control of GP74 to GP77 (DI1 ~ DI4) #define AddrPort 0x4E #define DataPort 0x4F <Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) // Must write twice to enter Extended mode <Select Logic Device> WriteByte(AddrPort, 0x07) WriteByte(dataPort, 0x06) // Select logic device 06h...
  • Page 111 <Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA) 5.1.1.4.2 Control of GP80 to GP83 (DO1 ~ DO4) #define AddrPort 0x4E #define DataPort 0x4F <Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) // Must write twice to enter Extended mode <Select Logic Device> WriteByte(AddrPort, 0x07) WriteByte(DataPort, 0x06) // Select logic device 06h...
  • Page 112 5.1.1.5 Change base address - DIO base address (Cincoze default 0xA00) <Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) // Must write twice to enter Extended mode <Select Logic Device> WriteByte(AddrPort, 0x07) WriteByte(dataPort, 0x06) // Select logic device 06h...
  • Page 113 5.1.1.6 DATA Bit Table (DIO) = DI1 = DO1 = DI2 = DO2 = DI3 = DO3 = DI4 = DO4 5.1.1.7 DIO I/O Port Address CS-100/P1001 Series | User Manual...

  • Page 114: Digital I/O (Dio) Hardware Specification

    5.2 Digital I/O (DIO) Hardware Specification ⚫ XCOM+: Isolated power in V+ ⚫ XCOM-: Isolated power in V- ⚫ Isolated power in DC voltage: 9~30V ⚫ 4x Digital Input (Source Type) ⚫ Input Signal Voltage Level Signal Logic 0: XCOM+ = 9V, Signal Low <...
  • Page 115 CS-100/P1001 Series | User Manual...
  • Page 116 © 2020 Cincoze Co., Ltd. All rights reserved. The Cincoze logo is a registered trademark of Cincoze Co., Ltd. All other logos appearing in this catalog are the intellectual property of the respective company, product, or organization associated with the logo.

This manual is also suitable for:
