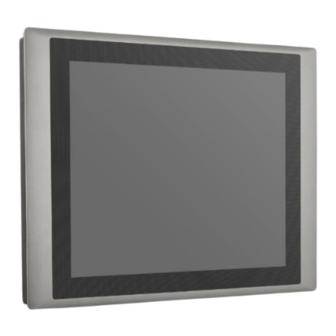

Cincoze CS-112HC-R10/P2002E -i3-E4-R10 User Manual

Industrial monitor & modular panel pc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

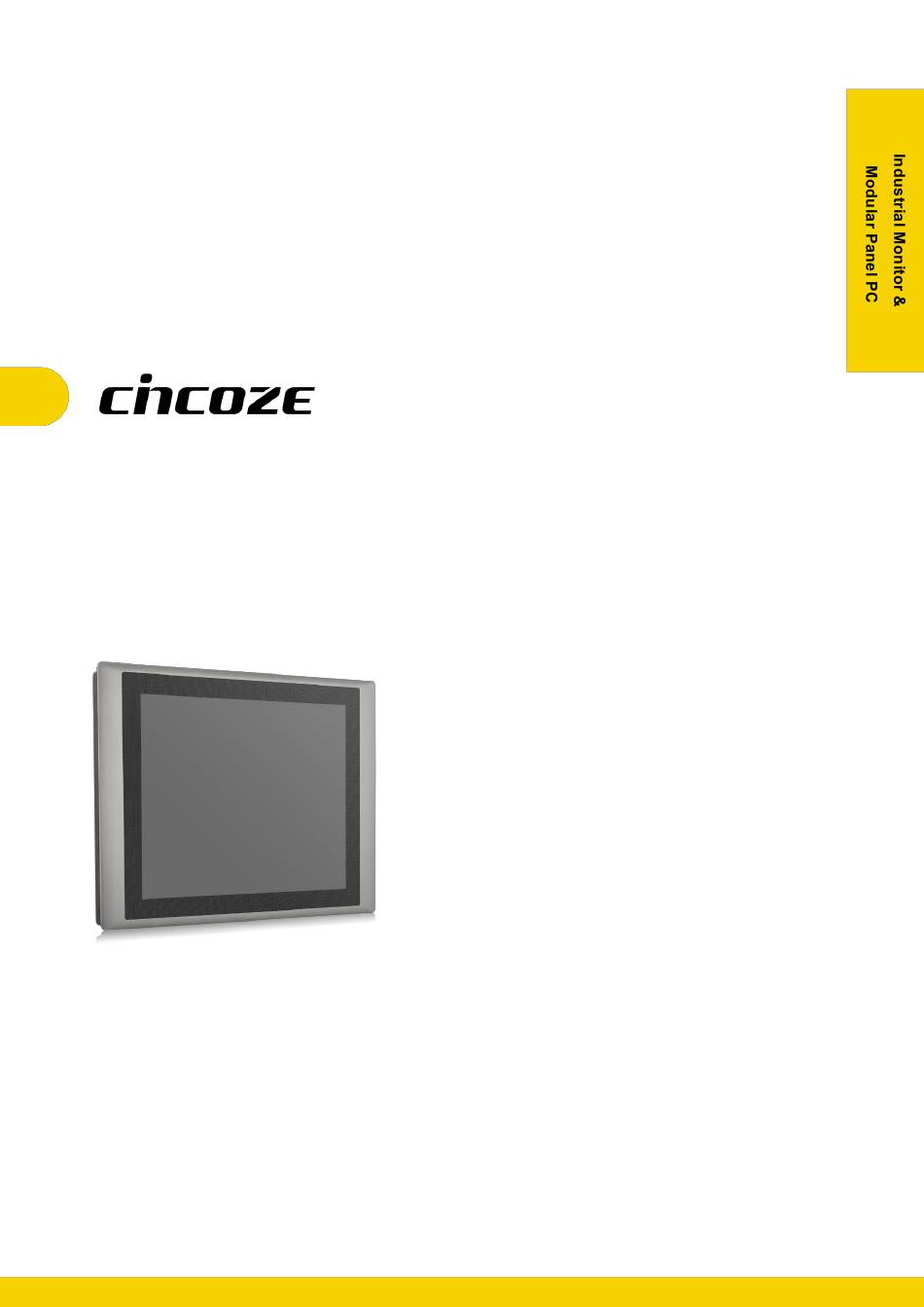

CS-100/P2000 Series
User Manual
Version: V1.38
Industrial Panel PC
High Performance Sunlight Readable Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS-112HC-R10/P2002E -i3-E4-R10 and is the answer not in the manual?

Questions and answers

Related Manuals for Cincoze CS-112HC-R10/P2002E -i3-E4-R10

Summary of Contents for Cincoze CS-112HC-R10/P2002E -i3-E4-R10

  • Page 1 CS-100/P2000 Series User Manual Industrial Panel PC High Performance Sunlight Readable Series Version: V1.38...

  • Page 2: Table Of Contents

    Contents Preface Revision……………………………………………..……………….……………...……………...05 Copyright Notice.…………………………………………………………………………………...05 Acknowledgement.………………………………………………………………......05 Disclaimer.………………………………………………………………….………………...05 Declaration of Conformity.………………………………………………….……………………05 Product Warranty Statement …………………………………………………………….....06 Technical Support and Assistance.…………………………………………….…………………07 Conventions Used in this Manual …………………………………………….…………....08 Safety Precaution …...……………………………………………….………….………....08 Package Contents ………………………………………………………….…….………...……10 Ordering Information …………………………………...…………………….…….……...……...10 Chapter 1 Product Introductions 1.1 Overview …………………………………………………….……..……………....16 1.2 Highlights……...……………………………………….……………………………....16 1.3 Product Pictures……...……………………………………….……………………....17 1.4 Key Features …………………....………………….…………………….…..17...
  • Page 3 2.2 Definition of Switches/Connectors.........……....44 2.3 Definition of Switches……...….……...……….....………………......45 2.4 Definition of Connectors…...….……...……….....………………......48 Chapter 3 System Setup 3.1 Removing the Top Cover ……...……………………………….….…………………..55 3.2 Installing a Half Size Mini PCIe Card………………………………………….……………56 3.3 Installing a Full Size Mini PCIe Card…………………………..…………….……………57 3.4 Installing a mSATA Card…………………….…………………..…………….……………58 3.5 Installing Antennas…………………………….…………….……...……………….....59 3.6 Installing a SO-DIMM………………………………………..….…………………..61 3.7 Installing a PCI(e) Card………………………..….………………………………..62...
  • Page 4 4.3.10 CSM Configuration………………………….……………………………………..94 4.3.11 Asmedia SATA Controller Configuration……………………………………………96 4.3.12 USB Configuration……………….…………………………………….……..…..97 4.4 Chipset Setup …...……….…………………..…..….…..…………………………………...98 4.4.1 System Agent (SA) Configuration…..………..……………………………………..98 4.4.2 PCH-IO Configuration..……………….……………………………………………..99 4.5 Security Setup …...……….………………….…..…. …………..……………………...101 4.5.1 Administrator Password …….…...…………………………………………………101 4.5.2 User Password …….…………………………………………………..……………101 4.6 Boot Setup …...……….….……………………………...…..….…..………..…………..102 4.7 Save &...

  • Page 5: Revision

    2022/02/25 Copyright Notice © 2018 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Cincoze Co., Ltd. All information and specification provided in this manual are for reference only and remain subject to change without prior notice.

  • Page 6: Product Warranty Statement

    Product Warranty Statement Warranty Cincoze products are warranted by Cincoze Co., Ltd. to be free from defect in materials and workmanship for 2 years from the date of purchase by the original purchaser. During the warranty period, we shall, at our option, either repair or replace any product that proves to be defective under normal operation.

  • Page 7: Technical Support And Assistance

    Limitation of Liability Cincoze’ liability arising out of the manufacture, sale, or supplying of the product and its use, whether based on warranty, contract, negligence, product liability, or otherwise, shall not exceed the original selling price of the product. The remedies provided herein are the customer’s sole and exclusive remedies.

  • Page 8: Conventions Used In This Manual

    Conventions Used in this Manual Safety Precautions Before installing and using this device, please note the following precautions. Read these safety instructions carefully. Keep this User’s Manual for future reference. Disconnected this equipment from any AC outlet before cleaning. For plug-in equipment, the power outlet socket must be located near the equipment and must be easily accessible.
  • Page 9 damage by transient overvoltage. 12. Never pour any liquid into an opening. This may cause fire or electrical shock. 13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel. If one of the following situations arises, get the equipment checked by service personnel: ⚫...

  • Page 10: Package Contents

    Package Contents Before installation, please ensure all the items listed in the following table are included in the package. Item Description Q’ty Panel PC Utility DVD Driver Screw Pack Power Terminal Block Connector Fan Terminal Block Connector DIO Terminal Block Connector Power On/Off Terminal Block Connector Panel Mounting Kit Note: Notify your sales representative if any of the above items are missing or damaged.
  • Page 11 with Intel® Core™ i3-6100U Processor, P-Cap. Touch and 1x -i3-PI-R10 PCI Expansion Slot CS-115C-R10/P2002-i5- 15" TFT-LCD 1600 nits Sunlight Readable Touch Panel PC with Intel® Core™ i5-6300U Processor and P-Cap. Touch 15" TFT-LCD 1600 nits Sunlight Readable Touch Panel PC with CS-115C-R10/P2002E-i Intel®...
  • Page 12 CFM Interface, CDS Interface 15.6" TFT WXGA 16:9 Panel PC with Projected Capacitive CS-W115FHC-R10/P20 Touch and Intel 6th Gen. Core i3-6100U Expandable Fanless 02E-i3-R10 Computer, CFM Interface, CDS Interface 15.6" TFT WXGA 16:9 Panel PC with Projected Capacitive CS-W115FHC-R10/P20 Touch and Intel 6th Gen. Core i3-6100U Expandable Fanless 02E-i3-E4-R10 Computer, CFM Interface, CDS Interface, 1x PCIex4 Expansion 15.6"...
  • Page 13 5-E4-R10 Intel® Core™ i5-6300U Processor, P-Cap. Touch and 1x PCIe x4 Expansion Slot 19" TFT-LCD 1600 nits Sunlight Readable Touch Panel PC with CS-119C-R10/P2002E-i Intel® Core™ i5-6300U Processor, P-Cap. Touch and 1x PCI 5-PI-R10 Expansion Slot CS-119C-R10/P2002-i3- 19" TFT-LCD 1600 nits Sunlight Readable Touch Panel PC with Intel®...
  • Page 14 Fanless Computer, CFM Interface, CDS Interface, 1x PCIex4 Expansion 21.5" TFT-LCD Full HD 16:9 Panel PC with Projected CS-W121C-R10/P2002 Capacitive Touch and Intel 6th Gen. Core i3-6100U Expandable E-i3-PI-R10 Fanless Computer, CFM Interface, CDS Interface, 1x PCI Expansion 24” TFT-LCD Full HD 16:9 Panel PC with Projected Capacitive CS-W124C-R10/P2002- Touch and Intel 6th Gen.

  • Page 15: Chapter 1 Product Introductions

    Chapter 1 Product Introductions P2000 Series | User Manual CS-100/...

  • Page 16: Overview

    1.1 Overview CS-100/P2000 Series is a TFT-LCD sunlight readable touch panel PC offering ultra-high brightness and high resolution. The system is equipped with high-performance Intel® 6th generation Core™ U series processor and provides extensive I/O including 2x GbE, 5x USB, 6x RS232/422/485, 8x DI/8x DO, 1x VGA and 1x DVI-D.

  • Page 17: Product Pictures

    1.3 Product pictures 1.4 Key Features ⚫ 12.1” ~ 24” TFT LCD with Ultra High Brightness up to 1,600nits ⚫ Onboard Intel® 6th Generation Core™ Processor U Series (15W) ⚫ Supports 2x DDR4 SO-DIMM Socket, up to 32 GB ⚫ Integrated Intel®...

  • Page 18: Hardware Specification

    1.5 Hardware Specification 1.5.1 CS-112HC-R10/P2000 Display • LCD Size: 12.1" (4:3) • Max. Resolution: 1024 x 768 • Brightness (cd/m2):1500 • Contrast Ratio: 700 : 1 • LCD Color: 16.2M • Pixel Pitch (mm): 0.24 (H) x 0.24 (V) • Viewing Angle (H-V): 160 / 160 •...
  • Page 19 Processor Other Function • Onboard 6th Intel® Core™ U processors (Skylake) • Support CDS Technology - Intel® Core™ i5-6300U processor • Support CFM Technology (3M Cache, up to 3.00 GHz) • Support Instant Reboot Technology (0.2 sec) - Intel® Core™ i3-6100U processor •...
  • Page 20 Dimensions CS-112HC/P2002 CS-112HC/P2002E P2000 Series | User Manual CS-100/...

  • Page 21: Cs-115C-R10/P2000

    1.5.2 CS-115C-R10/P2000 Display • LCD Size: 15" (4:3) • Max. Resolution: 1024 x 768 • Brightness (cd/m2): 1600 • Contrast Ratio: 800 : 1 • LCD Color: 16.2M • Pixel Pitch (mm): 0.297 (H) x 0.297 (V) • Viewing Angle (H-V): 160 / 150 •...
  • Page 22 Processor Other Function • Onboard 6th Intel® Core™ U processors (Skylake) • Support CDS Technology - Intel® Core™ i5-6300U processor • Support CFM Technology (3M Cache, up to 3.00 GHz) • Support Instant Reboot Technology (0.2 sec) - Intel® Core™ i3-6100U processor •...
  • Page 23 Dimensions CS-115C/P2002 CS-115C/P2002E P2000 Series | User Manual CS-100/...

  • Page 24: Cs-W115Fhc-R10/P2000

    1.5.3 CS-W115FHC-R10/P2000 Display • LCD Size: 15.6" (16:9) • Max. Resolution: 1920 x 1080 (Full HD) • Brightness (cd/m2): 1500 • Contrast Ratio: 700 : 1 • LCD Color: 16.7M • Pixel Pitch (mm): 0.17925 (H) x 0.17925 (V) • Viewing Angle (H-V): 160 / 140 •...
  • Page 25 Processor Other Function • Onboard 6th Intel® Core™ U processors (Skylake) • Support CDS Technology - Intel® Core™ i5-6300U processor • Support CFM Technology (3M Cache, up to 3.00 GHz) • Support Instant Reboot Technology (0.2 sec) - Intel® Core™ i3-6100U processor •...
  • Page 26 Dimensions CS-W115FHC/P2002 CS-W115FHC/P2002E P2000 Series | User Manual CS-100/...

  • Page 27: Cs-117C-R10/P2000

    1.5.4 CS-117C-R10/P2000 Display • LCD Size: 17" (5:4) • Max. Resolution: 1280 x 1024 • Brightness (cd/m2): 1500 • Contrast Ratio: 800 : 1 • LCD Color: 16.7M • Pixel Pitch (mm): 0.264 (H) x 0.264 (V) • Viewing Angle (H-V): 160 / 140 •...
  • Page 28 Processor Other Function • Onboard 6th Intel® Core™ U processors (Skylake) • Support CDS Technology - Intel® Core™ i5-6300U processor • Support CFM Technology (3M Cache, up to 3.00 GHz) • Support Instant Reboot Technology (0.2 sec) - Intel® Core™ i3-6100U processor •...
  • Page 29 Dimensions CS-117C/P2002 CS-117C/P2002E P2000 Series | User Manual CS-100/...

  • Page 30: Cs-119C-R10/P2000

    1.5.5 CS-119C-R10/P2000 Display • LCD Size: 19" (5:4) • Max. Resolution: 1280 x 1024 • Brightness (cd/m2): 1600 • Contrast Ratio: 1000 : 1 • LCD Color: 16.7M • Pixel Pitch (mm): 0.294 (H) x 0.294 (V) • Viewing Angle (H-V): 170 / 160 •...
  • Page 31 Processor Other Function • Onboard 6th Intel® Core™ U processors (Skylake) • Support CDS Technology - Intel® Core™ i5-6300U processor • Support CFM Technology (3M Cache, up to 3.00 GHz) • Support Instant Reboot Technology (0.2 sec) - Intel® Core™ i3-6100U processor •...
  • Page 32 Dimensions CS-119C/P2002 CS-119C/P2002E P2000 Series | User Manual CS-100/...

  • Page 33: Cs-W121C-R10/P2000

    1.5.6 CS-W121C-R10/P2000 Display • LCD Size: 21.5" (16:9) • Max. Resolution: 1920 x 1080 (Full HD) • Brightness (cd/m2): 1000 • Contrast Ratio: 5000 : 1 • LCD Color: 16.7M • Pixel Pitch (mm): 0.24825 (H) x 0.24825 (V) • Viewing Angle (H-V): 178 / 178 •...
  • Page 34 Processor Other Function • Onboard 6th Intel® Core™ U processors (Skylake) • Support CDS Technology - Intel® Core™ i5-6300U processor • Support CFM Technology (3M Cache, up to 3.00 GHz) • Support Instant Reboot Technology (0.2 sec) - Intel® Core™ i3-6100U processor •...
  • Page 35 Dimensions CS-W121C/P2002 CS-W121C/P2002E P2000 Series | User Manual CS-100/...

  • Page 36: Cs-W124C-R10/P2000

    1.5.7 CS-W124C-R10/P2000 Display • LCD Size: 24" (16:9) • Max. Resolution: 1920 x 1080 (Full HD) • Brightness (cd/m2): 1500 • Contrast Ratio: 5000 : 1 • LCD Color: 16.7M • Pixel Pitch (mm): 0.27675 (H) x 0.27675 (V) • Viewing Angle (H-V): 178 / 178 •...
  • Page 37 Processor Other Function • Onboard 6th Intel® Core™ U processors (Skylake) • Support CDS Technology - Intel® Core™ i5-6300U processor • Support CFM Technology (3M Cache, up to 3.00 GHz) • Support Instant Reboot Technology (0.2 sec) - Intel® Core™ i3-6100U processor •...
  • Page 38 Dimensions CS-W124C/P2002 CS-W124C/P2002E P2000 Series | User Manual CS-100/...

  • Page 39: System I/O

    1.6 System I/O 1.6.1 Front DC IN USB 3.2 GEN1 Used to plug a DC power input with terminal Used to connect to USB 3.2 GEN1/2.0/1.1 block compatible devices DVI-D USB 2.0 Used to connect to a monitor with digital signal Used to connect to USB 2.0/1.1 compatible interface devices...

  • Page 40: Rear

    1.6.2 Rear CFast and SIM Card Power On/Off Switch CFast card and SIM card slot Power-on or power-off the system HDD/SSD 2.5” SATA HDD/SSD Bay, Support RAID 0/1 1.6.3 Side (Left) Antenna Hole Power LED Used to connect an antenna for optional Indicates the power status of the system Mini-PCIe WiFi module HDD LED...

  • Page 41: Side (Right)

    1.6.4 Side (Right) Antenna Hole Used to connect an antenna for optional Used to connect to RS-232/422/485 serial Mini-PCIe WiFi module devices 1.6.5 Top VESA Mounting Hole These are mounting holes for VESA mount (75x75mm and 100x100mm) P2000 Series | User Manual CS-100/...
  • Page 42 Chapter 2 Switches & Connectors P2000 Series | User Manual CS-100/...

  • Page 43: Location Of The Switches/Connectors

    2.1 Location of the Switches/Connectors 2.1.1 Top View P2000 Series | User Manual CS-100/...

  • Page 44: Bottom View

    2.1.2 Bottom View P2000 Series | User Manual CS-100/...

  • Page 45: Definition Of Switches/Connectors

    2.2 Definition of Switches/Connectors List of Jumpers/Switches/Connectors Location Definition AT_ATX1 AT / ATX Power Mode Switch BL_PWR1 Backlight Power on / off switching BL_UP1 Backlight Increase BL_DN1 Backlight Decrease CFAST1 CFast Connector COM3~6 with Power Select COM1_1, COM2_1, COM3_1 RS232 / RS422 / RS485 Connector COM4_1, COM5_1, COM6_1 Function setting DC_IN1...

  • Page 46: Definition Of Switches

    2.3 Definition of Switches Super CAP Function Setting: Pin Define SW2 Switch Switch mode Function Enable Super CAP Disable (Default) Clear CMOS Function Setting : Pin Define SW2 Switch Switch mode Function Normal CMOS Clear CMOS (Default) COM1/2 Voltage Function Setting : Pin Define SW2 Switch Switch Function mode...
  • Page 47 COM3/4/5/6 Voltage Function Setting : Pin Define SW1 Switch Switch Function mode ON/ON (Default) COM3 ON/OFF OFF/OFF ON/ON (Default) COM4 ON/OFF OFF/OFF ON/ON (Default) COM5 ON/OFF OFF/OFF ON/ON (Default) COM6 ON/OFF OFF/OFF AT_ATX1: AT / ATX Power Mode Switch Definition 1-2 (Left) AT Power Mode 2-3 (Right)
  • Page 48 BL_PWR1: Backlight Power on / off Switch Definition Push Backlight Power on / off switching BL_UP1: Backlight Increase Switch Definition Push Backlight Increase BL_DN1: Backlight Decrease Switch Definition Push Backlight Decrease RESET1: Reset Switch Switch Definition Push Reset System P2000 Series | User Manual CS-100/...

  • Page 49: Definition Of Connectors

    2.4 Definition of Connectors COM1_1/COM2_1/(COM3_1/COM4_1/COM5_1/COM6_1 on the BTB Board): RS232 / RS422 / RS485 Connector Connector Type: 9-pin D-Sub RS422 / 485 RS485 RS232 Full Duplex Half Duplex Definition Definition Definition DATA - DATA + DC_IN1: DC Power Input Connector (+9~48V) Connector Type: Terminal Block 1X3 3-pin, 5.0mm pitch Definition +9~48VIN...
  • Page 50 LED1: Power / HDD Access LED Status LED Status LED Color Yellow POWER Green POWER3: Power Connector Connector Type: 1X4-pin Wafer, 2.0mm pitch Definition +12V POWER4: Power Connector Connector Type: 1X4-pin Wafer, 2.0mm pitch Definition +12V FAN1: External PWM Fan Connector Connector Type: Terminal Block 1X3 3-pin, 3.5mm pitch Definition +12V...
  • Page 51 CN1: Mini PCI-Express Socket (SIM Card to Link) Pin Definition Pin Definition Pin Definition WAKE# RESERVED +3.3V +3.3V USB_D+ RESERVED PERST# PERN0 +3.3V +1.5V +3.3V CLKREQ# PERN0 RESERVED SIM_DATA +1.5V REFCLK+ SIM_CLK SMB_CLK +1.5V REFCLK+ PETN0 SIM_RESET SMB_DATA PETP0 SIM_VPP +3.3V USB_D- P2000 Series | User Manual...
  • Page 52 CN2: Mini PCI-Express Socket / mSATA Socket Pin Definition Pin Definition Pin Definition WAKE# +3.3V +3.3V USB_D+ +3.3V PERST# PERN0/SATAPR0 41 +3.3V +1.5V +3.3VAUX CLKREQ# PERN0/SATARN0 43 +1.5V REFCLK+ SMB_CLK +1.5V REFCLK+ PETN0 SMB_DATA PETP0 +3.3V USB_D- P2000 Series | User Manual CS-100/...
  • Page 53 CN3: mSATA Socket Pin Definition Pin Definition Pin Definition WAKE# +3.3V +3.3V USB_D+ +3.3V PERST# SATARXP +3.3V +1.5V +3.3V SATARXN +1.5V SMB_CLK +1.5V SATATXN SMB_DATA SATATXP +3.3V USB_D- P2000 Series | User Manual CS-100/...
  • Page 54 Power Ignition Setting (CFM-IGN100 Only) Connector Location Definition Ignition Function Setting 24V_12V_1 24V/ 12V Power Switching for Ignition Board IGN Board Pin define (CFM-IGN100 Only) SW2: Set shutdown delay timer when ACC is turned off Pin 1 Pin 2 Pin 3 Pin 4 Definition 0 second...

  • Page 55: Chapter 3 System Setup

    Chapter 3 System Setup P2000 Series | User Manual CS-100/...

  • Page 56: Removing The Top Cover

    3.1 Removing the Top Cover Loosen the 6 screws at front and rear panel, then place them aside. Raise the left edge of top cover (1), and raise the other side (2) subsequently to remove it from the chassis. Place the top cover aside gently. P2000 Series | User Manual CS-100/...

  • Page 57: Installing A Half Size Mini Pcie Card

    3.2 Installing a Half Size Mini PCIe Card Locate the Mini PCIe slot. Use provided two screws on bracket to fasten the module and bracket together. Tilt the Mini PCIe card at a 45-degree angle and insert it into the socket until the golden finger connector of the card seated firmly.

  • Page 58: Installing A Full Size Mini Pcie Card

    Press down the module and use the two screws to fix the module. 3.3 Installing a Full Size Mini PCIe Card 1. Locate the Mini PCIe slot. 2. Tilt the Mini PCIe card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly.

  • Page 59: Installing A Msata Card

    3. Press down the module and use the two screws to fix the module. 3.4 Installing a mSATA Card Locate the mSATA slot on the system board. Tilt the mSATA card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly.

  • Page 60: Installing Antennas

    Fasten the card with two screws. 3.5 Installing Antennas Remove the antenna rubber covers on left and right panel. Penetrate the antenna jack through the hole. P2000 Series | User Manual CS-100/...
  • Page 61 Put on the washer and fasten the nut with antenna jack. Assemble the antenna and antenna jack together. Attach the RF connector at another end of the cable onto the card. P2000 Series | User Manual CS-100/...

  • Page 62: Installing A So-Dimm

    3.6 Installing a SO-DIMM 1. Locate SO-DIMM socket. 2. Tilt the SODIMM module at a 45-degree angle and insert it to SODIMM socket until the gold-pated connector of module contacted firmly with the socket. 3. Press the module down until its fixed firmly by the two locking latches on each side. P2000 Series | User Manual CS-100/...

  • Page 63: Installing A Pci(E) Card

    3.7 Installing a PCI(e) Card 1. Locate the retention module of PCI(e) expansion card. 2. Loosen one screw halfway as indicated to have the clamp arm slidable. clamp arm 3. Loosen one screw to remove the PCI bracket. P2000 Series | User Manual CS-100/...
  • Page 64 4. Align the notch of golden fingers of PCI(e) card with the expansion slot. Insert the card horizontally, and press the card straight down into the slot until it’s seated firmly. 5. Fasten one screw to secure the PCI(e) expansion card. 6.

  • Page 65: Installing Thermal Pad Of Thermal Block

    7. Finally, fasten the screw that were previously loosen halfway to fix the retention module. 3.8 Installing Thermal Pad of Thermal Block Place thermal pad on the top of CPU thermal block in order to provide a seamless contact with the body of chassis to create an efficient heat dissipation. Before assembling the system’s chassis cover, please make sure the protective film on the Thermal Pad has been removed! P2000 Series | User Manual...

  • Page 66: Installing A Power Ignition Daughter Board (Optional)

    3.9 Installing a Power Ignition Daughter Board (Optional) Locate the power Ignition connector on system motherboard as indicated. Insert the female connector of power ignition board to the male connector on system motherboard. Fasten two screws to secure the power ignition board. P2000 Series | User Manual CS-100/...

  • Page 67: Installing A Poe Daughter Board (Optional)

    3.10 Installing a PoE Daughter Board (Optional) Locate the PoE connector on system motherboard as indicated. Insert the female connector of PoE daughter board to the male connector on system motherboard. Fasten two screws to secure the PoE board. P2000 Series | User Manual CS-100/...

  • Page 68: Installing The Top Cover

    3.11 Installing the Top Cover 1. Put on the left edge of top cover onto system, and the other side subsequently. 2. Fasten the six screws at front and rear panel to secure the top cover. P2000 Series | User Manual CS-100/...

  • Page 69: Installing A Sata Hard Drive At Front Panel

    3.12 Installing a SATA Hard Drive at Front Panel 1. Turn over the system to bottom side, and remove one screw. 2. Loosen the two screws to remove the HDD bay cover bracket. 3. Pull the rotating arm of HDD bracket outward as indicated. P2000 Series | User Manual CS-100/...
  • Page 70 4. Hold the rotating arm to pull out the HDD bracket. 5. Place the HDD bracket on screw-hole side of HDD. Use four screws provided to assemble HDD on the bracket. 6. Align the HDD bracket with the entrance of HDD bay. And insert the HDD bracket and push it until the edge connector of HDD fully inserted into SATA slot.

  • Page 71: Installing A Sata Hard Drive On Bottom Side

    7. Put back HDD bay cover at front panel, and fasten it with two screws. 8. Fasten one screw to secure the HDD bracket on the system chassis. 3.13 Installing a SATA Hard Drive on Bottom Side Turn over the system to bottom side. Locate the cover of HDD compartment. P2000 Series | User Manual CS-100/...
  • Page 72 Loosen the two screws, then pull the cover to remove it. Loosen three screws and take the HDD bracket out of HDD compartment. Place the HDD bracket on screw-hole side of HDD. Use four screws provided to assemble HDD on the bracket. P2000 Series | User Manual CS-100/...
  • Page 73 Seat the HDD bracket into HDD compartment, and line up the connector of HDD with SATA slot, then push it until HDD is fully connected into slot. Secure the HDD bracket with three screws. Put back the cover and fasten the two screws. P2000 Series | User Manual CS-100/...

  • Page 74: Installing A Sim Card

    3.14 Installing a SIM Card 1. Locate the SIM card slot at front panel. 2. Loosen two screws to remove the cover plate. 3. Insert the SIM card. P2000 Series | User Manual CS-100/...

  • Page 75: Installing A Cfast Card

    3.15 Installing a CFast Card 1. Locate the CFast card slot at front panel. 2. Loosen the two screws to remove the cover plate. 3. Insert a CFast card until it clicks. 4. Fasten two screws to secure the cover plate. P2000 Series | User Manual CS-100/...

  • Page 76: Connecting With Cs Display Module

    3.16 Connecting with CS Display Module 1. Prepare the mounting kit that accompanied with P2000 as shown. (including two mounting brackets and one screw pack) 2. Remove six screws at left and right panel of PC2000. 3. Assemble two mounting brackets to left and right panel of PC2000 by fastening three screws at each side.
  • Page 77 4. Turn over the system to bottom side. Locate the connector cover of display module. 5. Loosen two screws to remove the cover. The following photos indicates the male connector (on display module) and female connector (on P2000). P2000 Series | User Manual CS-100/...
  • Page 78 6. Place the P2000 on the display module through its display connector hole as indicated. 7. Align the mounting holes of P2000 with the screw holes of display module underneath. Then slide the PC2000 carefully as indicated to have P2000 and display module connected together.

  • Page 79: Vesa Mount

    3.17 VESA Mount The following picture indicates VESA mounting hole pattern on P2000, which is compliant with VESA mounting standard. 1. The following picture uses a panel PC (P2000+CS display module) as a demonstration. To attach the panel PC to a VESA stand, please fasten eight screws as indicated to fix it on the stand.

  • Page 80: Panel Mount

    3.18 Panel Mount 1. Accessories provided by Cincoze are as follows. P2000 Series | User Manual CS-100/...
  • Page 81 2. All mounting kits displayed are to be inserted into holes. 3. Installation preparation and steps. P2000 Series | User Manual CS-100/...
  • Page 82 P2000 Series | User Manual CS-100/...
  • Page 83 4. Apply all mount kits to the rest of holes. And you have completed the panel mount installation, as shown below. P2000 Series | User Manual CS-100/...

  • Page 84: Chapter 4 Bios Setup

    Chapter 4 BIOS Setup P2000 Series | User Manual CS-100/...

  • Page 85: Bios Introduction

    4.1 BIOS Introduction The BIOS (Basic Input/ Output System) is a program located on a Flash Memory on the motherboard. When you start the computer, the BIOS program will gain control. The BIOS first operates an auto-diagnostic test called POST (power on self-test) for all the necessary hardware, it detects the entire hardware device and configures the parameters of the hardware synchronization.

  • Page 86: Main Setup

    4.2 Main Setup Press <Del> to enter BIOS CMOS Setup Utility, the Main Menu (as shown below) will appears on the screen. Use arrow keys to move among the items and press <Enter> to accept or enter a sub-menu. 4.2.1 System Date Set the date.

  • Page 87: Advanced Setup

    4.3 Advanced Setup 4.3.1 ACPI Settings Enable or disable ACPI Auto Configuration. ■ Enable ACPI Auto Configuration [Enabled] Enables or disables BIOS ACPI Auto Configuration. P2000 Series | User Manual CS-100/...

  • Page 88: Amt Configuration

    4.3.2 AMT Configuration This screen allows users to configure related settings of Intel® Active Management Technology. ■ Intel AMT [Enabled] Allows you to enable or disable Intel® Active Management Technology BIOS execution. ■ Un-Configure ME [Disabled] Sets this item to [Disabled] to unconfigure AMT/ME without using a password or set it to [Enabled] to use a password.

  • Page 89: F81866 Super Io Configuration

    ■ Firmware Update Configuration ❑ ME FW Image Re-Flash [Disabled] Allows you to enable or disable ME firmware image re-flash function. 4.3.4 F81866 Super IO Configuration You can use this screen to select options for the Super IO Configuration, and change the value of the selected option.

  • Page 90: Hardware Monitor

    ❑ Change Settings [Auto] Used to change the address & IRQ settings of the specified serial port. ❑ Onboard Serial Port 1 Mode [RS232] Change the Serial interface. Select <RS232>, <RS422> or <RS485> interface. ■ Watch Dog [Disabled] You can setup the system watch-dog timer, a hardware timer that generates a reset when the software that it monitors does not respond as expected each time the watch dog polls it.

  • Page 91: S5 Rtc Wake Settings

    4.3.6 S5 RTC Wake Settings ■ Wake System from S5 [Disabled] This item allows users to change the way to wake system from S5 state. [Fixed Time]: Set the specified time (HH:MM:SS) to wake system. [Dynamic Time]: Set the increase time from current time to wake system. 4.3.7 Serial Port Console Redirection ■...

  • Page 92: Cpu Configuration

    4.3.8 CPU Configuration ■ Hyper-Threading [Enabled] Allows you to enable or disable Intel® Hyper-Threading function of processor. ■ Active Process Cores [All] Allows you to choose the number of active processor cores. Configuration options: [All] [1]. ■ Intel® Virtualization Technology [Enabled] Enables or disables Intel®...

  • Page 93: Sata Configuration

    4.3.9 SATA Configuration ■ Serial Controller(s) [Enabled] Allows you to enable or disable Serial ATA controller. ■ SATA Mode [AHCI] This item allows users to choose [AHCI] or [RAID] mode. ■ Software Feature Mask Configuration RAID option ROM (OROM) / Intel® Rapid Storage Technology (RST) driver will refer to the software feature configuration to enable or disable the storage features.

  • Page 94: Csm Configuration

    ❑ RST Force Form [Disabled] Enables or disables Intel® Storage Technology (RST) Force Form. ■ Serial ATA Port (Stationary) ❑ Port 0 [Enabled] Enables or disables SATA Port 0. ■ Serial ATA Port (Swappable) ❑ Port 1 [Enabled] Enables or disables SATA Port 1. ❑...
  • Page 95 ■ CSM Support [Enabled] Enables or disables UEFI CSM (Compatibility Support Module) to support a legacy PC boot process. ■ Boot option filter [Legacy only] This item allows users to select which type of operating system to boot. [UEFI and Legacy]: Allows booting from operating systems that support legacy option ROM or UEFI option ROM.

  • Page 96: Asmedia Sata Controller Configuration

    4.3.11 Asmedia SATA Controller Configuration ■ SATA Controller 0 Configuration Settings Displays configuration information on SATA Controller 0. P2000 Series | User Manual CS-100/...

  • Page 97: Usb Configuration

    4.3.12 USB Configuration ■ Legacy USB Support [Enabled] This item allows users to enable or disable legacy USB support. When set to [Auto], legacy USB support will be disabled automatically if no USB devices are connected. ■ XHCI Hand-off [Enabled] This item allows users to enable or disable XHCI (USB3.0) hand-off function.

  • Page 98: Chipset Setup

    4.4 Chipset Setup This section allows you to configure chipset related settings according to user’s preference. 4.4.1 System Agent (SA) Configuration ■ VT-d [Enabled] This item allows users o enable or disable Intel® Virtualization Technology for Directed I/O (VT-d) function. ■...

  • Page 99: Pch-Io Configuration

    ■ Graphics Configuration ❑ Primary Display [Auto] This item allows users to select which graphics device is used as primary display. [Auto]: auto-detection by BIOS. [IGFX]: Integrated graphics as primary display. [PCIE]: Graphics device on PCIe interface as primary display. ❑...
  • Page 100 Configuration options: [Auto] [Gen1] [Gen2] [Gen3]. PCI Express Root Port (Mini PCIe) ❑ PCI Express Port 6 [Enabled] Allows you to enable or disable PCI Express Port 6. ❑ PCIe Speed [Auto] Allows you to select PCI Express interface speed. Configuration options: [Auto] [Gen1] [Gen2] [Gen3].

  • Page 101: Security Setup

    4.5 Security Setup This section allows users to configure BIOS security settings. 4.5.1 Administrator Password Administrator Password controls access to the BIOS Setup utility. 4.5.2 User Password User Password controls access to the system at boot and to the BIOS Setup utility. P2000 Series | User Manual CS-100/...

  • Page 102: Boot Setup

    4.6 Boot Setup This section allows you to configure Boot settings. ■ Setup Prompt Timeout [1] Use this item to set number of seconds (1..65535) to wait for setup activation key. ■ Bootup NumLock State [On] Allows you to select the power-on state for keyboard NumLock. ■...

  • Page 103: Save & Exit

    4.7 Save & Exit ■ Save Changes and Exit This item allows you to exit system setup after saving changes. ■ Discard Changes and Exit This item allows you to exit system setup without saving changes. ■ Save Changes and Reset This item allows you to reset the system after saving changes.

  • Page 104: Chapter 5 Product Application

    Chapter 5 Product Application P2000 Series | User Manual CS-100/...

  • Page 105: Digital I/O (Dio) Application

    This section describes DIO application of the product. The content and application development are better understood and implemented by well experienced professionals or developers. 5.1.1 Digital I/O Programming Guide 5.1.1.1 Pins for Digital I/O of Cincoze P1001 series product Item Standard GPIO70 (Pin103)
  • Page 106 5.1.1.2 Programming Guide To program the Super I/O chip F81866A configuration registers, the following configuration procedures must be followed in sequence: (1) Enter the Extended Function Mode (2) Configure the configuration registers (3) Exit the Extended Function Mode The configuration register is used to control the behavior of the corresponding devices. To configure the register, use the index port to select the index and then write data port to alter the parameters.
  • Page 107 P2000 Series | User Manual CS-100/...
  • Page 108 5.1.1.4 Sample Code in C Language 5.1.1.4.1 Control of GP70 to GP77 #define AddrPort 0x4E #define DataPort 0x4F <Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) // Must write twice to enter Extended mode <Select Logic Device> WriteByte(AddrPort, 0x07) WriteByte(dataPort, 0x06) // Select logic device 06h <Input Mode Selection>...
  • Page 109 WriteByte(DataPort, (ReadByte(DataPort) ǀ 0x00)) // Set (bit 0~7) = 0 to select GP 70~77 as Input mode. <Input Value> WriteByte(AddrPort, 0x82) // Select configuration register 82h ReadByte(DataPort, Value) // Read bit 0~7 (0xFF)= GP70 ~77 as High. <Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA) 5.1.1.4.2 Control of GP80 to GP87 #define AddrPort 0x4E...
  • Page 110 // Select configuration register 60h WriteByte(DataPort, (ReadByte(DataPort) ǀ 0x03)) WriteByte(AddrPort, 0x61) // Select configuration register 61h WriteByte(DataPort, (ReadByte(DataPort) ǀ 0x20)) <Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA) Note: Cincoze DIO Port base address is 0x0A00h. P2000 Series | User Manual CS-100/...
  • Page 111 5.1.1.6 DATA Bit Table (DIO) P2000 Series | User Manual CS-100/...
  • Page 112 5.1.1.7 DIO I/O Port Address DI8 DI7 DI6 DI5 DI4 DI3 DI2 DI1 DO8 DO7 DO6 DO5 DO4 DO3 DO2 DO1 Pin Definition Data Bits 0xA03 0xA02 I/O Port address P2000 Series | User Manual CS-100/...

  • Page 113: Digital I/O (Dio) Hardware Specification

    5.2 Digital I/O (DIO) Hardware Specification XCOM+/ 2XCOM+: Isolated power in V+ ⚫ XCOM-/ 2XCOM-: Isolated power in V- ⚫ Isolated power in DC voltage: 9~30V ⚫ 8x/ 16x Digital Input (Source Type) ⚫ Input Signal Voltage Level ⚫ Signal Logic 0: XCOM+ = 9V, Signal Low <...

  • Page 114: P2000 Dio Connector Definition

    5.2.1 P2000 DIO Connector Definition DIO1/DIO2 : Digital Input / Output Connector Connector Type: Terminal Block 2X10 10-pin, 3.5mm pitch Definition Definition DC INPUT DC INPUT P2000 Series | User Manual CS-100/...
  • Page 115 P2000 Series | User Manual CS-100/...
  • Page 116 © 2020 Cincoze Co., Ltd. All rights reserved. The Cincoze logo is a registered trademark of Cincoze Co., Ltd. All other logos appearing in this catalog are the intellectual property of the respective company, product, or organization associated with the logo.
