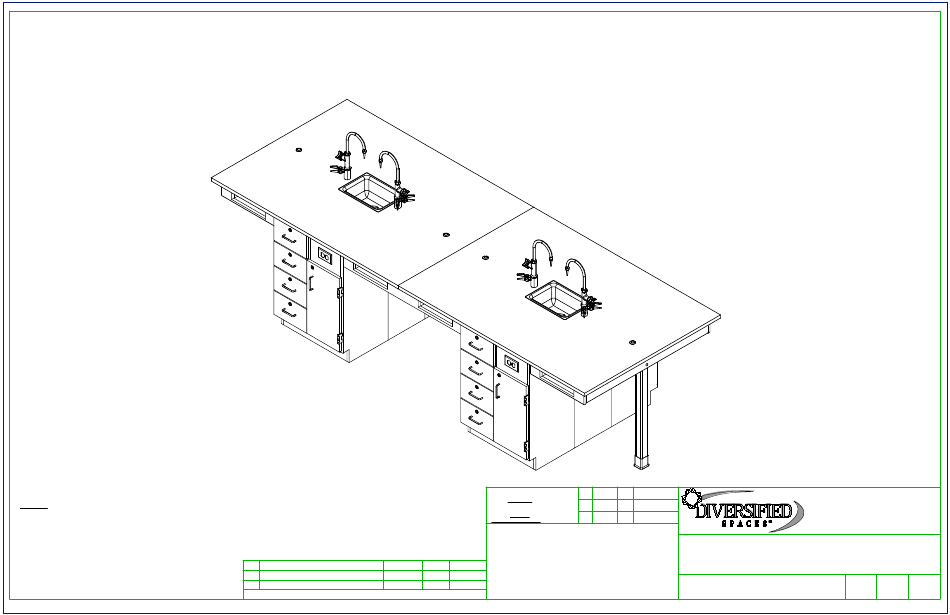

ASSEMBLY TEMPLATE
STUDENT SERVICE ISLAND-DOUBLE
C2420, C2420F, C2430, C2430F, C2440, C2440F, C2620, C2620F, C2630, C2630F, C2640, & C2640F SERIES
NOTE:
1.
MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED
ASSEMBLY INSTRUCTIONS
C
UPDATED SILICONE PROCEDURE
8/25/23
A
CREATED DRAWING
11/1/16
REV.
DESCRIPTION
DATE
REVISION LEVEL
ALL DIMENSIONS ARE IN INCHES UNLESS
DWN
EMR
NOTED OTHERWISE
BY:
DECIMALS: .X = ± .030
APR
.XX = ± .020
BY:
.XXX = ± .010
ANGLES: = ± 1°0'
APR
CABINET SQUARENESS = ± .0625
BY:
CONFIDENTIAL:
ALL DESIGN RIGHTS RESERVED
THE INFORMATION, DATA, DESIGN, AND DRAWINGS EMBODIED
IN THIS DOCUMENT AND ALL REPRODUCTIONS THEREOF ARE
THE EXCLUSIVE PROPERTY OF DIVERSIFIED WOODCRAFTS, INC.
RJM
-
THESE DOCUMENTS ARE SUPPLIED WITH THE UNDERSTANDING
THAT THEY WILL NOT BE DISCLOSED TO THIRD PARTIES WITHOUT
EMR
-
WRITTEN CONSENT OF DIVERSIFIED WOODCRAFTS, INC. ANY
NAME
ECN NO.
REPRODUCTION IN PART OR WHOLE WITHOUT WRITTEN
CONSENT IS SUBJECT TO LEGAL ACTION.
DATE
11/1/16
DWN:
DATE
APR:
DATE
APR:
TITLE:
STUDENT SERVICE ISLAND-DOUBLE
ASSEMBLY INSTRUCTIONS
DRAWING NUMBER:
STUDENT SERVICE ISLAND
300 South Krueger Street
Suring, WI 54174
diversifiedwoodcrafts.com
SCALE:
SHEET:
REVISION:
REV C
NTS
1 OF 15
Advertisement
Related Manuals for DIVERSIFIED SPACES STUDENT SERVICE ISLAND-DOUBLE C2420 Series
Summary of Contents for DIVERSIFIED SPACES STUDENT SERVICE ISLAND-DOUBLE C2420 Series
- Page 1 ASSEMBLY TEMPLATE STUDENT SERVICE ISLAND-DOUBLE C2420, C2420F, C2430, C2430F, C2440, C2440F, C2620, C2620F, C2630, C2630F, C2640, & C2640F SERIES ASSEMBLY INSTRUCTIONS DATE ALL DIMENSIONS ARE IN INCHES UNLESS 11/1/16 NOTED OTHERWISE DWN: 300 South Krueger Street DECIMALS: .X = ± .030 NOTE: DATE .XX = ±...
-
Page 2: Tools Required
ASSEMBLY TEMPLATE ASSEMBLY COMPONENTS TOOLS REQUIRED ITEMS INCLUDED PART # PART DESCRIPTION " WRENCH TOP (STYLE VARIES), 1.00 X 48 X 66 VARIES VARIES " SOCKET AND TORQUE WRENCH - OPTIONAL CABINET W/ REMOVABLE PANEL CABINET - 24"W X 35"H X 16"D VARIES DRILL CLEATS ATTACHED... - Page 3 ASSEMBLY TEMPLATE ASSEMBLY COMPONENTS ITEMS INCLUDED PART # PART DESCRIPTION FIXTURE,L65-WSA-DIV(MULTI-SERVICE) **FIXTURE - FAUCETS** 100074-BKR VARIES SINK,EPOXY L3,BLK **FIXTURE - SINK** 100691 VARIES SINK TRAP,PLATIC ADJUSTABLE **FIXTURE - SINK TRAP** 100056 VARIES **FIXTURE - SINK SINK OUTLET TAIL PIECE/INTEGRAL 254047 VARIES OUTLET/STRAINER** STRAINER,BLK...
- Page 4 ASSEMBLY TEMPLATE HARDWARE REQUIRED FOR STEP DESCRIPTION PART NUMBER CLEAT - TYPICAL VARIES CABINET VARIES REMOVABLE PANELS VARIES SCREWS - REMOVABLE PANELS 100495 STEP 1: a. PLACE CABINETS BACK TO BACK IN DESIRED LOCATION. b. IF YOU HAVE A UNIT WITH A SINK/FIXTURES, PLACE CABINETS OVER UTILITY HOOK-UPS.
- Page 5 ASSEMBLY TEMPLATE HARDWARE REQUIRED FOR STEP STEP 2: WITH HELP FROM ANOTHER PERSON, POSITION INTERNAL APRON ASSEMBLY UP TO RIGHT SIDE OF LEFT CABINET SO IT IS DESCRIPTION PART NUMBER CENTERED CORRECTLY AND FLUSH WITH TOP OF BASE CABINET. VARIES APRON ASSEMBLY - INTERNAL PLACE L-BRACKETS IN CORRECT POSITION ON APRON ASSEMBLY AND RIGHT SIDE OF LEFT CABINET (SHOULD BE FLUSH WITH TOP EDGE OF FRONT AND BACK APRONS).
- Page 6 ASSEMBLY TEMPLATE HARDWARE REQUIRED FOR STEP DESCRIPTION PART NUMBER VARIES L BRACKET 100355 VARIES SCREWS - L BRACKET 100649 STEP 3: ATTACH L-BRACKETS TO RIGHT SIDE OF LEFT CABINET USING PROVIDED HARDWARE LISTED ABOVE. REPEAT ON OTHER SIDE OF INTERNAL APRON ASSEMBLY. L-BRACKET - TYPICAL RIGHT SIDE OF LEFT CABINET DATE...
- Page 7 ASSEMBLY TEMPLATE HARDWARE REQUIRED FOR STEP STEP 4: DESCRIPTION PART NUMBER WITH HELP FROM ANOTHER PERSON, PLACE INTERNAL APRON ASSEMBLY IN BETWEEN CABINETS AND ATTACH TO L-BRACKETS USING PROVIDED HARDWARE LISTED. VARIES APRON ASSEMBLY - INTERNAL CONTINUE STEP IF YOU HAVE MULTIPLE INTERNAL APRON ASSEMBLIES (EX. C2430, C2630, C2440, C2640 SERIES). VARIES L BRACKET 100355...
- Page 8 ASSEMBLY TEMPLATE HARDWARE REQUIRED FOR STEP STEP 5: DESCRIPTION PART NUMBER REPEAT STEPS 2-4 FOR EXTERNAL APRON ASSEMBLIES (BOTH LEFT AND RIGHT). SUPPORT BOTH ASSEMBLIES UNTIL LEGS HAVE BEEN ATTACHED, THEY ARE NOT APRON ASSEMBLY - EXTERNAL STRONG ENOUGH TO WITHSTAND WEIGHT UNTIL LEGS AND TOP ARE ATTACHED. VARIES L BRACKET 100355...
- Page 9 ASSEMBLY TEMPLATE HARDWARE REQUIRED FOR STEP LEG LEVELER DESCRIPTION PART NUMBER LEGS 500101 LEG BOOT LEG LEVELER 100079 LEG BOOT 100076 STEP 6: SLIDE LEG BOOT ONTO LEGS WITH FLARED END TOWARDS BOTTOM OF LEGS. SCREW LEG LEVELER INTO T-NUT ON BOTTOM OF LEGS. CLOSE UP OF LEG LEVELER AND LEG BOOT ASSEMBLY DATE ALL DIMENSIONS ARE IN INCHES UNLESS...
- Page 10 ASSEMBLY TEMPLATE HARDWARE REQUIRED FOR STEP STEP 7: LINE UP HOLES IN APRON WITH HOLES ON LEG AND INSERT CARRIAGE BOLTS, WASHERS, AND HEX NUTS. DESCRIPTION PART NUMBER TIGHTEN NUTS USING A " WRENCH OR " SOCKET AND TORQUE WRENCH, TO A MINIMUM OF 12FT LBS BUT NOT TO LEGS 500101 EXCEED 17FT LBS.
- Page 11 ASSEMBLY TEMPLATE STEP 8: HARDWARE REQUIRED FOR STEP ADJUST LEG LEVELERS TO LEVEL LEGS WITH CABINETS. DESCRIPTION PART NUMBER APPLY SILICONE ADHESIVE TO TOP EDGES OF CABINET AND APRONS. APPLY SILICONE ADHESIVE IN DOT PATTERN LIKE SHOWN BELOW FOR BEST RESULTS VARIES VARIES PLACE TOP ON UNIT WITH PROPER OVERHANG (2"...
- Page 12 ASSEMBLY TEMPLATE HARDWARE REQUIRED FOR STEP STEP 9: DESCRIPTION PART NUMBER IF YOU DON'T HAVE A UNIT WITH A SINK OR FXITURES, SKIP TO STEP 11. VARIES FIXTURE - SINK 100691 APPLY SILICONE ADHESIVE TO SINK OPENINGS ON TOPS. SILICONE 100711 LOWER SINKS INTO OPENINGS.
- Page 13 ASSEMBLY TEMPLATE HARDWARE REQUIRED FOR STEP DESCRIPTION PART NUMBER VARIES FIXTURE - FAUCETS 100691 VARIES FIXTURE - SINK TRAP 100711 FIXTURE - SINK OUTLET/STRAINER VARIES 254047 VARIES ROD SOCKETS 206505 STEP 10: INSTALL MULTI-SERVICE FIXTURES IN HOLES PROVIDED ON TOP. SOCKET - TYPICAL INSERT ROD SOCKETS INTO PRE-DRILLED HOLES IN TOP.
- Page 14 ASSEMBLY TEMPLATE HARDWARE REQUIRED FOR STEP DESCRIPTION PART NUMBER VARIES RUBBER BASE MOLDING 100283 VARIES STAINLESS STEEL CORNERS 100057 VARIES SCREWS - BASE 100064 STEP 11: ATTACH RUBBER MOLDING TO BASE OF CABINETS USING CONTACT CEMENT. SCREW STAINLESS STEEL CORNER BRACKETS ON EACH CORNER OVER BASE MOLDING USING HARDWARE LISTED ABOVE.
- Page 15 TROUBLESHOOTING YOUR GFCI ELECTRICAL RECEPTACLE: PLEASE NOTE: THROUGHOUT ANY OF THE FOLLOWING STEPS (PROCEDURES); IF YOU ARE NOT SURE YOU CAN DO THIS JOB SAFELY, AND COMPETENTLY, REFER THIS WORK TO QUALIFIED PROFESSIONAL! If your unit comes equipped with a GFCI (Ground Fault Circuit Interrupter) electrical receptacle, and there is no power in the receptacle please consider/check the following: •...
