IN HOUSE ASSEMBLY TEMPLATE

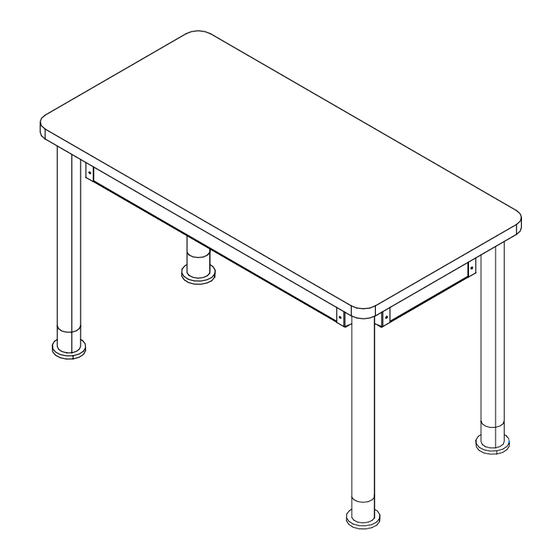

UPLIFT! HYBRID TABLE W/ ADJUSTABLE LEGS
NOTE:
1.
MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED
K:\AutoCAD\Assembly Instructions\P8 SERIES TABLES.dwg, 12/8/2021 8:15:45 AM, DWG To PDF.pc3
P8 SERIES TABLES
ASSEMBLY INSTRUCTIONS
CREATED ASSEMBLY INSTRUCTIONS
A
2/10/21
EMR
REV.
DESCRIPTION
DESCRIPTION
DATE
DATE
NAME
NAME
REVISION LEVEL
DATE
ALL DIMENSIONS ARE IN INCHES UNLESS
DWN
2/10/21
EMR
NOTED OTHERWISE
DWN:
BY:
DECIMALS: .X = ± .030
APR
DATE
.XX = ± .020
BY:
APR:
.XXX = ± .010
APR
DATE
ANGLES: = ± 1°0'
CABINET SQUARENESS = ± .0625
BY:
APR:
CONFIDENTIAL:
ALL DESIGN RIGHTS RESERVED
THE INFORMATION, DATA, DESIGN, AND DRAWINGS EMBODIED
IN THIS DOCUMENT AND ALL REPRODUCTIONS THEREOF ARE
THE EXCLUSIVE PROPERTY OF DIVERSIFIED WOODCRAFTS, INC.
THESE DOCUMENTS ARE SUPPLIED WITH THE UNDERSTANDING
THAT THEY WILL NOT BE DISCLOSED TO THIRD PARTIES WITHOUT
-
WRITTEN CONSENT OF DIVERSIFIED WOODCRAFTS, INC. ANY
ECN NO.
REPRODUCTION IN PART OR WHOLE WITHOUT WRITTEN
CONSENT IS SUBJECT TO LEGAL ACTION.
300 South Krueger Street
Suring, WI 54174
diversifiedwoodcrafts.com
TITLE:
UPLIFT! HYBRID TABLE W/ ADJUSTABLE LEGS
ASSEMBLY INSTRUCTIONS
SCALE:
DRAWING NUMBER:
P8 SERIES TABLES
NTS
SHEET:
REVISION:
REV A
1 OF 6
Advertisement
Related Manuals for DIVERSIFIED SPACES UPLIFT! P8 Series
Summary of Contents for DIVERSIFIED SPACES UPLIFT! P8 Series
- Page 1 IN HOUSE ASSEMBLY TEMPLATE UPLIFT! HYBRID TABLE W/ ADJUSTABLE LEGS P8 SERIES TABLES ASSEMBLY INSTRUCTIONS DATE ALL DIMENSIONS ARE IN INCHES UNLESS 2/10/21 NOTED OTHERWISE DWN: 300 South Krueger Street NOTE: DECIMALS: .X = ± .030 DATE .XX = ± .020 Suring, WI 54174 APR: .XXX = ±...
-
Page 2: Tools Required
IN HOUSE ASSEMBLY TEMPLATE ASSEMBLY COMPONENTS TOOLS REQUIRED ITEMS INCLUDED PART DESCRIPTION PART # #3 PHILLIPS SCREW DRIVER TOP ASSEMBLY (FACTORY ASSEMBLED) TOP ASSEMBLY #3 SQUARE HEAD - OPTIONAL KOYO ADJ. LEG SET,SILVER 100677 LEG SPACER 100678 KOYO ADJ. LEG SPACER LEG LEVELER 100679 KOYO ADJ. - Page 3 IN HOUSE ASSEMBLY TEMPLATE STEP 1: APRON SIDE FACING UP • INSPECT ALL COMPONENTS FOR SHIPPING DAMAGE. • LAY TOP ASSEMBLY ON FLOOR WITH APRON SIDE FACING UP. **NOTE** BE SURE TOP IS ON A CLEAN SURFACE TO PREVENT DAMAGE NOTE: DATE ALL DIMENSIONS ARE IN INCHES UNLESS...
- Page 4 IN HOUSE ASSEMBLY TEMPLATE STEP 2: • SCREW LEG SPACERS INTO BOTTOM OF ADJUSTABLE LEGS. • SCREW LEG LEVELERS INTO BOTTOM OF LEG SPACERS. SPACER NOTE: DATE ALL DIMENSIONS ARE IN INCHES UNLESS 2/10/21 NOTED OTHERWISE DWN: 300 South Krueger Street LEVELER DECIMALS: .X = ±...
- Page 5 IN HOUSE ASSEMBLY TEMPLATE STEP 3: • SCREW LEGS TO BOTTOM OF TOP THROUGH PRE-DRILLED HOLES WITH HARDWARE PROVIDED. • MAKE SURE EACH LEG IS SCREWED ON TIGHT USING A MAXIMUM OF 45IN - LBS OF TORQUE. LEG - TYPICAL NOTE: DATE ALL DIMENSIONS ARE IN INCHES UNLESS...
- Page 6 IN HOUSE ASSEMBLY TEMPLATE STEP 4: • SET TABLE IN PLACE. • ADJUST LEGS TO DESIRED HEIGHT - SEE NOTE ON HOW TO ADJUST HEIGHT OF TABLE. **NOTE** WHEN MOVING TABLE, CARRY IT. DO NOT DRAG OR PUSH THE TABLE ACROSS THE FLOOR ON LEG LEVELERS.
