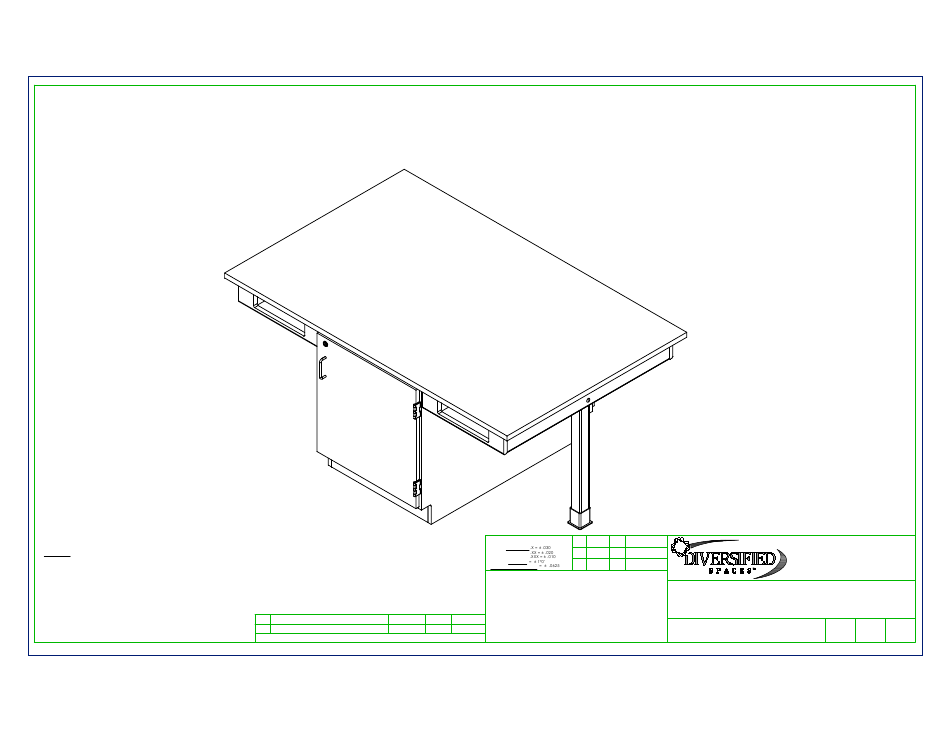

ASSEMBLY TEMPLATE
STORAGE CABINET TABLES-DOUBLE
NOTE:
1.
MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED
K:\AutoCAD\Assembly Instructions\2300K, C2300K, 2400K & C2400K SERIES.dwg,
1/3/2022 11:19:48 AM, DWG To PDF.pc3
2300K, C2300K, 2400K, & C2400K SERIES
ASSEMBLY INSTRUCTIONS
A
CREATED DRAWING
3/15/16
EMR
REV.
DESCRIPTION
DATE
NAME
REVISION LEVEL
DATE
ALL DIMENSIONS ARE IN INCHES UNLESS
DWN
3/15/16
EMR
NOTED OTHERWISE
DWN:
BY:
DECIMALS:
APR
DATE
BY:
APR:
DATE
ANGLES:
APR
CABINET SQUARENESS
BY:
APR:
CONFIDENTIAL:
ALL DESIGN RIGHTS RESERVED
THE INFORMATION, DATA, DESIGN, AND DRAWINGS EMBODIED
IN THIS DOCUMENT AND ALL REPRODUCTIONS THEREOF ARE
THE EXCLUSIVE PROPERTY OF DIVERSIFIED WOODCRAFTS, INC.
THESE DOCUMENTS ARE SUPPLIED WITH THE UNDERSTANDING
THAT THEY WILL NOT BE DISCLOSED TO THIRD PARTIES WITHOUT
-
WRITTEN CONSENT OF DIVERSIFIED WOODCRAFTS, INC. ANY
ECN NO.
REPRODUCTION IN PART OR WHOLE WITHOUT WRITTEN
CONSENT IS SUBJECT TO LEGAL ACTION.
300 South Krueger Street
Suring, WI 54174
diversifiedwoodcrafts.com
TITLE:
STORAGE CABINET TABLES-DOUBLE
ASSEMBLY INSTRUCTIONS
DRAWING NUMBER:
SCALE:
2300 & 2400 SERIES
NTS
SHEET:
REVISION:
REV A
1 OF 11
Advertisement
Related Manuals for DIVERSIFIED SPACES 2300K Series
Summary of Contents for DIVERSIFIED SPACES 2300K Series
- Page 1 ASSEMBLY TEMPLATE STORAGE CABINET TABLES-DOUBLE 2300K, C2300K, 2400K, & C2400K SERIES ASSEMBLY INSTRUCTIONS DATE ALL DIMENSIONS ARE IN INCHES UNLESS 3/15/16 NOTED OTHERWISE DWN: 300 South Krueger Street DECIMALS: NOTE: DATE APR: Suring, WI 54174 DATE ANGLES: CABINET SQUARENESS APR: diversifiedwoodcrafts.com MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED CONFIDENTIAL:...
- Page 2 ASSEMBLY TEMPLATE ASSEMBLY COMPONENTS TOOLS REQUIRED ITEMS INCLUDED PART # PART DESCRIPTION " WRENCH CABINET STYLES VARY WITH CHOICE OF " SOCKET AND TORQUE WRENCH - OPTIONAL CABINET ASSEMBLY VARIES TABLE STYLE CONTACT CEMENT APRON ASSEMBLY (FACTORY APRON ASSEMBLY ASSEMBLED) SCREW DRIVER TOP (STYLE VARIES) VARIES...
- Page 3 ASSEMBLY TEMPLATE STEP 1: POSITION UNIT IN DESIRED LOCATION. LEVEL CABINET. ATTACH TO FLOOR. **NOTE** CABINET MUST BE LEVELED OR DOORS AND DRAWERS MAY NOT OPEN OR CLOSE CORRECTLY DATE ALL DIMENSIONS ARE IN INCHES UNLESS 3/15/16 NOTED OTHERWISE DWN: 300 South Krueger Street DECIMALS: NOTE:...
- Page 4 ASSEMBLY TEMPLATE STEP 2: WITH HELP FROM ANOTHER PERSON, POSITION RIGHT APRON ASSEMBLY UP TO RIGHT SIDE OF CABINET SO IT IS CENTERED CORRECTLY AND FLUSH WITH TOP OF BASE CABINET. PLACE L-BRACKETS IN CORRECT POSITION ON APRON ASSEMBLY AND RIGHT SIDE (SHOULD BE FLUSH WITH TOP EDGE OF CABINET AND FRONT AND BACK EDGES OF APRONS).
- Page 5 ASSEMBLY TEMPLATE BASE CABINET STEP 3: ATTACH L-BRACKETS TO RIGHT SIDE OF CABINET WITH HARDWARE PROVIDED. REPEAT FOR LEFT SIDE. L-BRACKET - TYPICAL DATE ALL DIMENSIONS ARE IN INCHES UNLESS 3/15/16 NOTED OTHERWISE DWN: 300 South Krueger Street DECIMALS: NOTE: DATE APR: Suring, WI 54174...
- Page 6 ASSEMBLY TEMPLATE ATTACH APRON ASSEMBLY TO L-BRACKETS - TYPICAL STEP 4: WITH HELP FROM ANOTHER PERSON, PLACE RIGHT APRON ASSEMBLY UP TO SIDE AND ATTACH TO L-BRACKETS WITH REMAINING SCREWS PROVIDED. SUPPORT APRON ASSEMBLY UNTIL LEGS AND TOP ARE SECURE. IT IS NOT STRONG ENOUGH TO WITHSTAND WEIGHT UNTIL TOP AND LEGS ARE ATTACHED! REPEAT ON LEFT SIDE.
- Page 7 ASSEMBLY TEMPLATE LEG LEVELER LEG BOOT STEP 5: SLIDE LEG BOOTS ONTO LEGS WITH FLARED END TOWARD BOTTOM OF LEGS. SCREW LEG LEVELERS INTO T-NUT ON BOTTOM OF LEGS. CLOSE UP OF LEG LEVELER AND LEG BOOT ASSEMBLY DATE ALL DIMENSIONS ARE IN INCHES UNLESS 3/15/16 NOTED OTHERWISE DWN:...
- Page 8 ASSEMBLY TEMPLATE STEP 6: LINE UP HOLES ON THE WING WITH HOLES ON THE LEG AND INSERT THE CARRIAGE BOLTS, WASHER, AND NUT. TIGHTEN NUT USING " WRENCH OR " SOCKET AND TORQUE WRENCH, TO A MINIMUM OF 12FT LBS BUT NOT TO EXCEED 17FT LBS.
- Page 9 ASSEMBLY TEMPLATE STEP 7: ADJUST LEG LEVELERS TO LEVEL TABLE IF YOU HAVE A PHENOLIC OR EPOXY TOP, SKIP TO STEP 8. SET TOP ON UNIT AND ADJUST FOR PROPER OVERHANG (CENTERED ON WORKSTATION). ATTACH TOP WITH HARDWARE PROVIDED BY GOING INSIDE CABINET AND SCREWING UP THROUGH INSET TOP AND POCKET HOLES LOCATED ON APRON ASSEMBLY.
- Page 10 ASSEMBLY TEMPLATE APPLY SILICONE ADHESIVE TO TOP EDGES OF WINGS AND CABINET STEP 8: IF YOU DO NOT HAVE A PHENOLIC OR EPOXY TOP, SKIP TO STEP 9. APPLY SILICONE ADHESIVE TO TOP EDGES OF CABINET AND WINGS. PLACE TOP ON UNIT WITH PROPER OVERHANG (2" ON SIDES AND 1 "...
- Page 11 ASSEMBLY TEMPLATE STEP 9: ATTACH RUBBER MOLDING TO BASE OF CABINET USING CONTACT CEMENT. SCREW STAINLESS STEEL CORNER BRACKETS ON EACH CORNER OVER BASE MOLDING WITH HARDWARE PROVIDED. ATTACH RUBBER MOLDING TO BASE DATE ALL DIMENSIONS ARE IN INCHES UNLESS 3/15/16 NOTED OTHERWISE DWN:...
- Page 12 TROUBLESHOOTING YOUR GFCI ELECTRICAL RECEPTACLE: PLEASE NOTE: THROUGHOUT ANY OF THE FOLLOWING STEPS (PROCEDURES); IF YOU ARE NOT SURE YOU CAN DO THIS JOB SAFELY, AND COMPETENTLY, REFER THIS WORK TO QUALIFIED PROFESSIONAL! If your unit comes equipped with a GFCI (Ground Fault Circuit Interrupter) electrical receptacle, and there is no power in the receptacle please consider/check the following: •...
