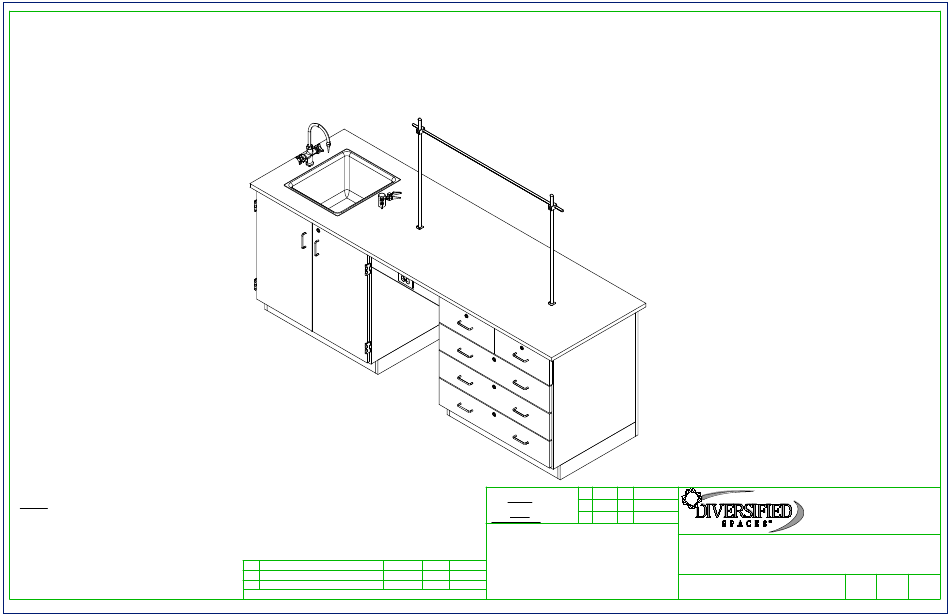

ASSEMBLY TEMPLATE

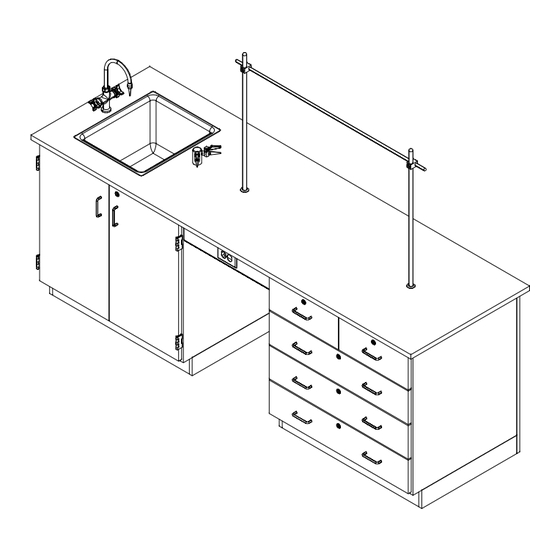

8' INSTRUCTOR DESK
NOTE:
1.
MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED
1114, 1114F, 1116, & 1116F SERIES
ASSEMBLY INSTRUCTIONS
C
UPDATED SILICONE PROCEDURE
8/15/23
A
CREATED DRAWING
11/8/16
REV.
DESCRIPTION
DATE
REVISION LEVEL
ALL DIMENSIONS ARE IN INCHES UNLESS
DWN
EMR
NOTED OTHERWISE
BY:
DECIMALS: .X = ± .030
APR
.XX = ± .020
BY:
.XXX = ± .010
ANGLES: = ± 1°0'
APR
CABINET SQUARENESS = ± .0625
BY:
CONFIDENTIAL:
ALL DESIGN RIGHTS RESERVED
THE INFORMATION, DATA, DESIGN, AND DRAWINGS EMBODIED
IN THIS DOCUMENT AND ALL REPRODUCTIONS THEREOF ARE
THE EXCLUSIVE PROPERTY OF DIVERSIFIED WOODCRAFTS, INC.
RJM
-
THESE DOCUMENTS ARE SUPPLIED WITH THE UNDERSTANDING
THAT THEY WILL NOT BE DISCLOSED TO THIRD PARTIES WITHOUT
EMR
-
WRITTEN CONSENT OF DIVERSIFIED WOODCRAFTS, INC. ANY
NAME
ECN NO.
REPRODUCTION IN PART OR WHOLE WITHOUT WRITTEN
CONSENT IS SUBJECT TO LEGAL ACTION.
DATE
11/8/16
DWN:
DATE
APR:
DATE
APR:
TITLE:
8' INSTRUCTOR DESK
ASSEMBLY INSTRUCTIONS
DRAWING NUMBER:
1114 & 1114F, 1116 & 1116F
300 South Krueger Street
Suring, WI 54174
diversifiedwoodcrafts.com
SCALE:
SHEET:
REVISION:
REV C
NTS
1 OF 14
Advertisement
Related Manuals for DIVERSIFIED SPACES 1114 Series
Summary of Contents for DIVERSIFIED SPACES 1114 Series
- Page 1 ASSEMBLY TEMPLATE 8' INSTRUCTOR DESK 1114, 1114F, 1116, & 1116F SERIES ASSEMBLY INSTRUCTIONS DATE ALL DIMENSIONS ARE IN INCHES UNLESS 11/8/16 NOTED OTHERWISE DWN: 300 South Krueger Street DECIMALS: .X = ± .030 NOTE: DATE .XX = ± .020 APR: Suring, WI 54174 .XXX = ±...
- Page 2 ASSEMBLY TEMPLATE ASSEMBLY COMPONENTS TOOLS REQUIRED ITEMS INCLUDED PART # PART DESCRIPTION CONTACT CEMENT TOP, (STYLE VARIES), 1.00X30X96,BLK, VARIES SCREW DRIVER (EITHER FIXTURE OR FLAT) C-CLAMPS CABINET B86 - 36"W X 35"H X 26.25"D SHIM STOCK (IF NEEDED) CABINET B23 - 36"W X 35"H X 26.25"D BACK PANEL 94"W X 35"H X 0.75"D APRON...
- Page 3 ASSEMBLY TEMPLATE ASSEMBLY COMPONENTS ITEMS INCLUDED PART # PART DESCRIPTION ROD SOCKET ASSY,SOCKET,WASHER,NUT **ROD SOCKET** 206505 **CROSSBAR** 100006 ROD,CROSSBAR DIA.X48 L **UPRIGHT** 100004 ROD,UPRIGHT DIA.X36 L **CLAMP** 100002 ROD CLAMP ASSY NOTE: DATE ALL DIMENSIONS ARE IN INCHES UNLESS 11/8/16 NOTED OTHERWISE DWN: 300 South Krueger Street...
- Page 4 ASSEMBLY TEMPLATE HARDWARE REQUIRED FOR STEP B86 CABINET DESCRIPTION PART NUMBER CABINET CABINET STEP 1: POSITION THE TWO CABINETS IN DESIRED LOCATION. IF YOU HAVE A UNIT WITH A SINK OR FIXTURES, PLACE UNIT OVER UTILITY HOOKUPS. B23 CABINET LEAVE ENOUGH ROOM IN BETWEEN CABINETS FOR APRON. LEVEL CABINETS.
- Page 5 ASSEMBLY TEMPLATE HARDWARE REQUIRED FOR STEP TOP MOUNTING CLEAT - TYPICAL ATTACH BACK TO TOP AND BOTTOM MOUNTING DESCRIPTION PART NUMBER CLEATS LOCATED INSIDE BOTH CABINETS (BOTTOM MOUNTING CLEAT NOT SHOWN) BACK PANEL SCREWS - BACK PANEL 100478 STEP 2: BACK PANEL ATTACH BACK PANEL TO BACK OF CABINETS USING PROVIDED HARDWARE LISTED ABOVE.
- Page 6 ASSEMBLY TEMPLATE HARDWARE REQUIRED FOR STEP DESCRIPTION PART NUMBER APRON ATTACH L BRACKETS TO APRON L BRACKET 100355 FIRST THEN ATTACH TO SIDES OF CABINET IN DESIRED LOCATION SCREWS - L BRACKET 100649 STEP 3: ATTACH L BRACKETS TO APRON WITH PROVIDED HARDWARE LISTED ABOVE.
- Page 7 ASSEMBLY TEMPLATE HARDWARE REQUIRED FOR STEP STEP 4: DESCRIPTION PART NUMBER SILICONE 100711 APPLY SILICONE ADHESIVE TO TOP EDGES OF CABINETS AND APRON. APPLY SILICONE ADHESIVE IN DOT PATTERN LIKE SHOWN BELOW FOR BEST RESULTS. VARIES PLACE TOP ON UNIT WITH PROPER OVERHANG (1" OVERHANG ON SIDES AND 1.50" ON FRONT AND BACK).
- Page 8 ASSEMBLY TEMPLATE HARDWARE REQUIRED FOR STEP STEP 5: DESCRIPTION PART NUMBER IF YOU DON'T HAVE A UNIT WITH A SINK, SKIP TO STEP 6. SILICONE 100711 APPLY SILICONE ADHESIVE TO SINK OPENING ON TOP. LOWER SINK INTO OPENING. FIXTURE - SINK 100699 WIPE OFF ANY EXCESS CAULK AND ALLOW TO SET.
- Page 9 ASSEMBLY TEMPLATE HARDWARE REQUIRED FOR STEP FIXTURE - TYPICAL DESCRIPTION PART NUMBER FIXTURE - FAUCET 100048 FIXTURE - FAUCET 100467 FIXTURE - SINK TRAP 100056 FIXTURE - SINK OUTLET/STRAINER 254047 ROD SOCKET 206505 STEP 6: ROD SOCKET - TYPICAL IF YOU DON'T HAVE A UNIT WITH FIXTURES, SKIP TO STEP 10.
- Page 10 ASSEMBLY TEMPLATE HARDWARE REQUIRED FOR STEP DESCRIPTION PART NUMBER UPRIGHTS - TYPICAL UPRIGHT 100004 STEP 7: INSERT TAPERED END ON UPRIGHTS INTO ROD SOCKETS ON THE TOP. ROD SOCKETS - TYPICAL NOTE: DATE ALL DIMENSIONS ARE IN INCHES UNLESS 11/8/16 NOTED OTHERWISE DWN: 300 South Krueger Street...
- Page 11 ASSEMBLY TEMPLATE HARDWARE REQUIRED FOR STEP DESCRIPTION PART NUMBER CLAMP 100002 STEP 8: THUMB SCREW SLIDE ROD CLAMPS OVER UPRIGHT AND TIGHTEN IN DESIRED LOCATION USING THUMB SCREWS PROVIDED ON CLAMPS. REPEAT ON OTHER UPRIGHT. CLAMP NOTE: DATE ALL DIMENSIONS ARE IN INCHES UNLESS CLOSE UP OF UPRIGHT 11/8/16 NOTED OTHERWISE...
- Page 12 ASSEMBLY TEMPLATE HARDWARE REQUIRED FOR STEP DESCRIPTION PART NUMBER CROSSBAR 100006 STEP 9: SLIDE CROSSBAR THROUGH ONE CLAMP. CROSSBAR POSITION OTHER END THROUGH OTHER CLAMP. **NOTE** SOME ROD CLAMP ADJUSTMENTS MAY BE REQUIRED NOTE: DATE ALL DIMENSIONS ARE IN INCHES UNLESS 11/8/16 NOTED OTHERWISE DWN:...
- Page 13 ASSEMBLY TEMPLATE HARDWARE REQUIRED FOR STEP DESCRIPTION PART NUMBER RUBBER BASE MOLDING 100283 STAINLESS STEEL CORNERS 100057 SCREWS - BASE 100649 STEP 10: ATTACH RUBBER MOLDING TO BASE OF INSTRUCTOR'S DESK USING CONTACT CEMENT. SCREW STAINLESS STEEL CORNER BRACKETS ON EACH CORNER OVER BASE MOLDING USING PROVIDED HARDWARE LISTED ABOVE.
- Page 14 TROUBLESHOOTING YOUR GFCI ELECTRICAL RECEPTACLE: PLEASE NOTE: THROUGHOUT ANY OF THE FOLLOWING STEPS (PROCEDURES); IF YOU ARE NOT SURE YOU CAN DO THIS JOB SAFELY, AND COMPETENTLY, REFER THIS WORK TO QUALIFIED PROFESSIONAL! If your unit comes equipped with a GFCI (Ground Fault Circuit Interrupter) electrical receptacle, and there is no power in the receptacle please consider/check the following: •...
