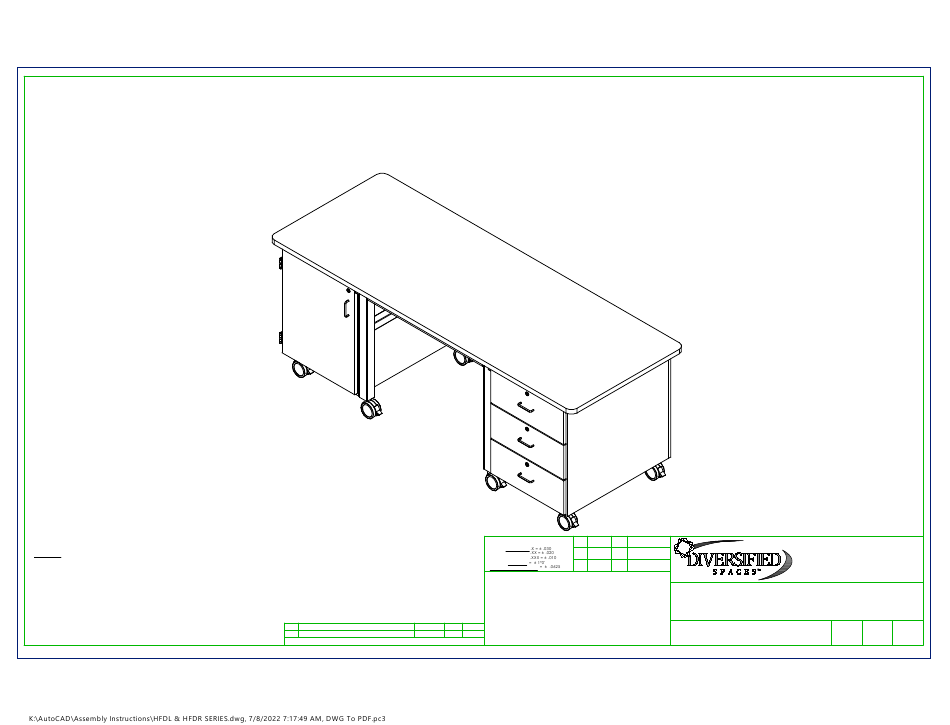

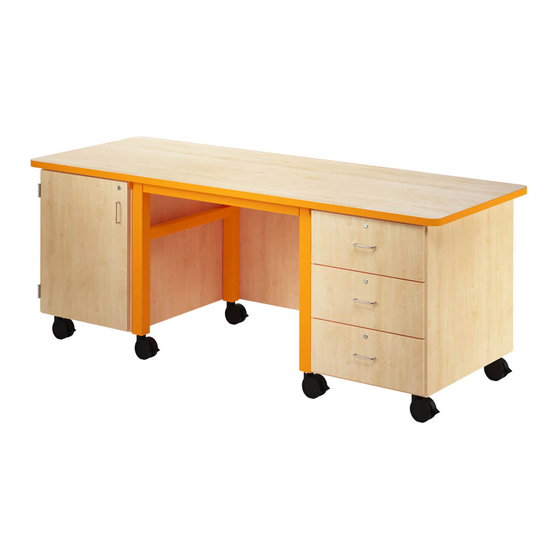

ASSEMBLY TEMPLATE
MOBILE DEMO WORKSTATION
NOTE:
1.
MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED
HFDL & HFDR SERIES (OAK OR MAPLE)
ASSEMBLY INSTRUCTIONS
A
CREATED DRAWING
11/4/21
EMR
REV.
DESCRIPTION
DATE
NAME
ECN No.
REVISION LEVEL
ALL DIMENSIONS ARE IN INCHES UNLESS
DATE
DWN
11/4/21
EMR
NOTED OTHERWISE
BY:
DWN:
DECIMALS:
APR
DATE
BY:
APR:
ANGLES:
APR
DATE
CABINET SQUARENESS
BY:
APR:
CONFIDENTIAL:
ALL DESIGN RIGHTS RESERVED
THE INFORMATION, DATA, DESIGN, AND DRAWINGS EMBODIED
IN THIS DOCUMENT AND ALL REPRODUCTIONS THEREOF ARE
THE EXCLUSIVE PROPERTY OF DIVERSIFIED WOODCRAFTS, INC.
THESE DOCUMENTS ARE SUPPLIED WITH THE UNDERSTANDING
THAT THEY WILL NOT BE DISCLOSED TO THIRD PARTIES WITHOUT
N/A
WRITTEN CONSENT OF DIVERSIFIED WOODCRAFTS, INC. ANY
REPRODUCTION IN PART OR WHOLE WITHOUT WRITTEN
CONSENT IS SUBJECT TO LEGAL ACTION.
300 South Krueger Street
Suring, WI 54174
diversifiedwoodcrafts.com
TITLE:
MOBILE DEMO WORKSTATION
ASSEMBLY INSTRUCTIONS
DRAWING NUMBER:
SCALE:
HFDL & HFDR SERIES
NTS
SHEET:
REVISION:
REV A
1 OF 13
Advertisement
Related Manuals for DIVERSIFIED SPACES HFDL Series
Summary of Contents for DIVERSIFIED SPACES HFDL Series
- Page 1 ASSEMBLY TEMPLATE MOBILE DEMO WORKSTATION HFDL & HFDR SERIES (OAK OR MAPLE) ASSEMBLY INSTRUCTIONS ALL DIMENSIONS ARE IN INCHES UNLESS DATE 11/4/21 NOTED OTHERWISE DWN: 300 South Krueger Street DECIMALS: NOTE: DATE APR: Suring, WI 54174 ANGLES: DATE CABINET SQUARENESS APR: diversifiedwoodcrafts.com MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED...
- Page 2 ASSEMBLY TEMPLATE ASSEMBLY COMPONENTS TOOLS REQUIRED ITEMS INCLUDED PART # PART DESCRIPTION " WRENCH B95 OR B96 - (SIZE VARIES) CABINET " SOCKET AND TORQUE WRENCH - OPTIONAL DRILL B33 - (SIZE VARIES) CABINET **C-CLAMPS** APPLIED BACK - 0.75"THK x (SIZE VARIES) BACK **SHIM STOCK (IF NEEDED)** SCREW,#8X1 1/4 SQ.
- Page 3 ASSEMBLY TEMPLATE B33 CABINET STEP 1: WITH HELP FROM ANOTHER PERSON, FLIP THE TWO BASE CABINETS OVER. LEAVE ENOUGH ROOM IN BETWEEN CABINETS FOR METAL FRAME. MAKE SURE CABINETS ARE PLACED IN PROPER LOCATIONS ! HINGE SIDE OF DOOR CABINET SHOULD ALWAYS BE FACING OUTWARD. B96 CABINET (HL) **NOTE** BE SURE CABINETS ARE...
- Page 4 ASSEMBLY TEMPLATE STEP 2: METAL LEG ASSEMBLY - TYPICAL PLACE THE TWO LEG FRAMES IN BETWEEN THE TWO CABINETS. ALIGN HOLES ON LEG FRAME TO THE HOLES ON EACH SIDE OF CABINETS. HOLES ON BOTH LEG FRAMES NEED TO ALIGN WITH HOLES ON BOTH CABINET SIDES **NOTE**...
- Page 5 ASSEMBLY TEMPLATE STEP 3: LOWER STRINGERS DOWN INTO POSITION. HOLES ON STRINGERS NEED TO ALIGN WITH HOLES ON LEG ASSEMBLIES. STRINGER HOLES NEED TO ALIGN WITH HOLES ON BOTH LEG ASSEMBLIES AND CABINETS STRINGER - TYPICAL ALL DIMENSIONS ARE IN INCHES UNLESS DATE 11/4/21 NOTED OTHERWISE...
- Page 6 ASSEMBLY TEMPLATE STEP 4: ATTACH METAL FRAME TO CABINETS WITH HARDWARE PROVIDED. BOLTS SHOULD BE INSERTED THROUGH CABINETS AND NUTS SHOULD BE PLACED ON OUTSIDE OF CABINETS INTO STRINGERS. MAKE SURE ALL NUTS ARE ON TIGHT! DETAIL-A CLOSE OF UP METAL FRAME ASSEMBLY BOLT -TYPICAL NUT - TYPICAL SEE DETAIL - A...
- Page 7 ASSEMBLY TEMPLATE STEP 5: ATTACH BACK PANEL TO CABINETS WITH HARDWARE PROVIDED. SCREW THROUGH HOLES IN MOUNTING CLEATS LOCATED INSIDE OF BOTH CABINETS. PRE-DRILL HOLES IN BACK TO PREVENT CRACKING . NOTE: YOU WILL NEED TO REMOVE DRAWERS FROM DRAWER CABINET BACK TO REACH MOUNTING CLEATS.
- Page 8 ASSEMBLY TEMPLATE METAL FRAME ASSEMBLY CASTER STEP 6: (NO PLATE ATTACHED) - TYPICAL ATTACH CASTERS TO BOTTOM OF WORKSTATION. PLATE CASTERS TO BE INSTALLED ON CABINETS AND STEM CASTERS TO BE INSTALLED ON LEG ASSEMBLIES. MAKE SURE STEM CASTERS AND PLATE CASTER HARDWARE ARE THREADED ALL THE WAY AND FULLY TIGHTENED.
- Page 9 ASSEMBLY TEMPLATE STEP 7: IF YOUR UNIT HAS AN EPOXY OR PHENOLIC TOP, SKIP TO STEP 8. WITH HELP FROM MULTIPLE PEOPLE, FLIP WORKSTATION UP SO IT IS UPRIGHT ON THE CASTERS. PLACE TOP ONTO WORKSTATION WITH PROPER OVERHANG (CENTERED ON TABLE). ATTACH TOP TO CABINETS AND METAL FRAME ASSEMBLY WITH HARDWARE PROVIDED.
- Page 10 ASSEMBLY TEMPLATE STEP 8: IF YOUR UNIT DOES NOT HAVE AN EPOXY OR PHENOLIC TOP, SKIP TO STEP 9. WITH HELP FROM MULTIPLE PEOPLE, FLIP WORKSTATION UP SO IT IS UPRIGHT ON THE CASTERS. APPLY SILICONE ADHESIVE TO TOP EDGES OF CABINET AND METAL FRAME. PLACE TOP ON WORKSTATION WITH PROPER OVERHANG (CENTERED ON WORKSTATION).
- Page 11 ASSEMBLY TEMPLATE STEP 9: INSERT SHELF CLIPS IN DESIRED LOCATION. PLACE SHELF ON CLIPS, MAKING SURE IT IS LEVEL. PLACE DRAWERS BACK INTO CABINET. ADJUSTABLE SHELF DRAWER - TYPICAL ALL DIMENSIONS ARE IN INCHES UNLESS DATE 11/4/21 NOTED OTHERWISE DWN: 300 South Krueger Street DECIMALS: NOTE:...
- Page 12 ASSEMBLY TEMPLATE STEP 10: SET WORKSTATION IN DESIRED LOCATION. ALL DIMENSIONS ARE IN INCHES UNLESS DATE 11/4/21 NOTED OTHERWISE DWN: 300 South Krueger Street DECIMALS: NOTE: DATE APR: Suring, WI 54174 ANGLES: DATE CABINET SQUARENESS APR: diversifiedwoodcrafts.com CONFIDENTIAL: ALL DESIGN RIGHTS RESERVED TITLE: THE INFORMATION, DATA, DESIGN, AND DRAWINGS EMBODIED MOBILE DEMO WORKSTATION...
- Page 13 Butcher Block (Varnished Tops) Maintenance & Repair PRODUCT SPILLS • Be sure any spills are cleaned up immediately. Excessive moisture and certain chemicals allowed to stand on a finished surface can cause damage. •. Clean spills or soiled areas with a damp cloth and dry thoroughly. • Periodically, apply a coat of spray wax, paste wax, or lemon oil to finished surface. This will enhance and protect the finish and insure a moisture barrier is intact in the event the finish becomes scratched or worn. SCRATCHES & DENTS • Minor scratches and dents can be easily repaired by rubbing the affected area with steel wool or fine grit (#220) sandpaper. Remember, when rubbing or sanding always sand with the grain of the wood. Feather edges of repair in to the surrounding area. Remove all dust and residue and apply a coat of clear lacquer type finish or paint. Clear lacquer type finish can be purchased at most paint or hardware stores. Small cans of touch-up paint are available form your dealer or representative. Paint colors can easily be matched at most paint stores. Confine touch-up only to the area that was sanded. Remember, follow manufacturing directions on product label when refinishing. • Major scratches and gouges where large portions of wood have been removed or damaged should be handled by a professional experienced in furniture repair with the proper tools and equipment. MINERAL STREAKS • Mineral Streaks – Natural Coloring of wood due to mineral deposits in the tree. Repair is not required and will add to the individuality of your table. Sizes can range up to a 1/4" wide and up to 3" in length.
