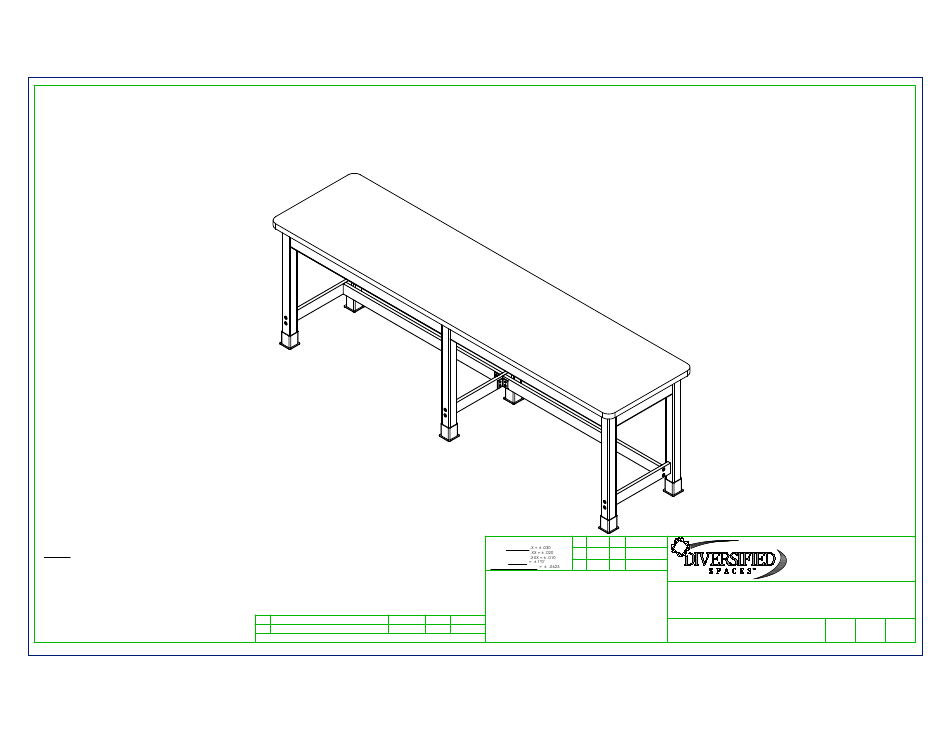

IN HOUSE ASSEMBLY TEMPLATE
NOTE:
1.
MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED
K:\AutoCAD\Assembly Instructions\P770, P771, & P772 SERIES TABLES.dwg,
11/3/2021 10:00:50 AM, DWG To PDF.pc3

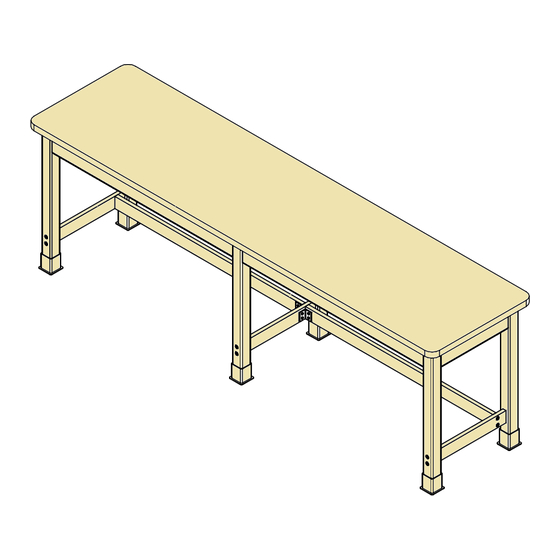

SIX LEGGED TABLE
P770, P771, & P772 SERIES TABLES (OAK OR MAPLE)
ASSEMBLY INSTRUCTIONS
A
CREATED ASSEMBLY INSTRUCTIONS
8/29/14
REV.
DESCRIPTION
DESCRIPTION
DATE
DATE
REVISION LEVEL
ALL DIMENSIONS ARE IN INCHES UNLESS
DWN
EMR
NOTED OTHERWISE
BY:
DWN:
DECIMALS:
APR
BY:
ANGLES:
APR
CABINET SQUARENESS
BY:
CONFIDENTIAL:
ALL DESIGN RIGHTS RESERVED
THE INFORMATION, DATA, DESIGN, AND DRAWINGS EMBODIED
IN THIS DOCUMENT AND ALL REPRODUCTIONS THEREOF ARE
THE EXCLUSIVE PROPERTY OF DIVERSIFIED WOODCRAFTS, INC.
THESE DOCUMENTS ARE SUPPLIED WITH THE UNDERSTANDING
THAT THEY WILL NOT BE DISCLOSED TO THIRD PARTIES WITHOUT
EMR
-
WRITTEN CONSENT OF DIVERSIFIED WOODCRAFTS, INC. ANY
NAME
NAME
ECN NO.
REPRODUCTION IN PART OR WHOLE WITHOUT WRITTEN
CONSENT IS SUBJECT TO LEGAL ACTION.
DATE
8/29/14
DATE
APR:
DATE
APR:
diversifiedwoodcrafts.com
TITLE:
6 LEGGED TABLE
ASSEMBLY INSTRUCTIONS
DRAWING NUMBER:
P770, P771, & P772 SERIES
300 South Krueger Street
Suring, WI 54174
SCALE:
SHEET:
REVISION:
REV A
NTS
1 OF 11
Advertisement
Related Manuals for DIVERSIFIED SPACES P770 Series
Summary of Contents for DIVERSIFIED SPACES P770 Series
- Page 1 IN HOUSE ASSEMBLY TEMPLATE SIX LEGGED TABLE P770, P771, & P772 SERIES TABLES (OAK OR MAPLE) ASSEMBLY INSTRUCTIONS ALL DIMENSIONS ARE IN INCHES UNLESS DATE 8/29/14 NOTED OTHERWISE DWN: 300 South Krueger Street DECIMALS: NOTE: DATE APR: Suring, WI 54174 ANGLES: DATE CABINET SQUARENESS...
-
Page 2: Tools Required
IN HOUSE ASSEMBLY TEMPLATE ASSEMBLY COMPONENTS TOOLS REQUIRED ITEMS INCLUDED PART # PART DESCRIPTION " WRENCH TOP ASSEMBLY (FACTORY ASSEMBLY) TOP AND APRON ASSEMBLY " SOCKET AND TORQUE WRENCH - OPTIONAL LEG,(OAK OR MPL) 2.25X2.25X28.25 LEGS VARIES 4MM ALLEN WRENCH LEG HARDWARE KIT, 1 LEG LEG HARDWARE 520001... - Page 3 IN HOUSE ASSEMBLY TEMPLATE STEP 1: LAY TOP ASSEMBLY ON FLOOR WITH APRON SIDE FACING UP. APRON SIDE FACING UP **NOTE** BE SURE TOP ASSEMBLY IS ON A CLEAN SURFACE TO PREVENT DAMAGE ALL DIMENSIONS ARE IN INCHES UNLESS DATE 8/29/14 NOTED OTHERWISE DWN:...
- Page 4 IN HOUSE ASSEMBLY TEMPLATE INSERT HANGER BOLT STEP 2: THROUGH HERE WITH LOCK WASHER AND HEX NUT INSERT HANGER BOLT ON ONE CORNER LEG THROUGH THE CORNER BRACKET AND INSERT LOCK WASHER AND HEX NUT. SCREW ON NUT USING A "...
- Page 5 IN HOUSE ASSEMBLY TEMPLATE CENTER LEG STEP 3: PLACE CENTER LEGS IN BETWEEN CENTER LEG BRACKETS. INSERT BOLT THROUGH BRACKET AND LEG. INSERT LOCK WASHERS AND HEX NUTS. SCREW ON NUTS USING A " WRENCH OR " SOCKET AND TORQUE WRENCH. DO NOT TIGHTEN ALL THE WAY.
- Page 6 IN HOUSE ASSEMBLY TEMPLATE LEG LEVELER LEG BOOT STEP 4: SLIDE LEG BOOTS ONTO LEGS WITH FLARED END TOWARD BOTTOM OF LEGS. SCREW LEG LEVELER INTO T-NUT ON BOTTOM OF LEGS. CLOSE UP OF LEG BOOT AND LEVELER ASSEMBLY ALL DIMENSIONS ARE IN INCHES UNLESS DATE 8/29/14 NOTED OTHERWISE...
- Page 7 IN HOUSE ASSEMBLY TEMPLATE LEG BRACE - TYPICAL STEP 5: ATTACH BRACES TO LEGS. BRACES WITH STRETCHER HOLES GO ON OUTSIDE. BRACES WITHOUT HOLES GO IN THE MIDDLE. INSERT CONFIRMATS INTO ONE LEG AND SCREW INTO BRACE USING A 4MM ALLEN WRENCH. REPEAT ON ALL LEGS.
- Page 8 IN HOUSE ASSEMBLY TEMPLATE STRETCHER - TYPICAL STEP 6: STRETCHER INSERT BOTH STRETCHERS IN BETWEEN BRACES. BRACKET - TYPICAL ATTACH STRETCHERS TO BRACES WITH THE HARDWARE PROVIDED. CONFIRMATS ON OUTSIDE, BRACKETS ON INSIDE. OFFSET BRACKETS ON EACH SIDE OF CENTER BRACE SO SCREWS DON'T HIT EACH OTHER (SEE NEXT STEP FOR CLARIFICATION).
- Page 9 IN HOUSE ASSEMBLY TEMPLATE BOTTOM EDGE OF STRETCHER STEP 7: IF YOU HAVE A DOUBLE SIDED TABLE, SKIP TO STEP 8. ATTACH ONE BRACKET 0.50" FROM THE BOTTOM EDGE OF STRETCHER AND ONE BRACKET 0.50" FROM TOP EDGE OF STRETCHER. PRE-DRILL HOLES IN STRETCHERS WITH A "...
- Page 10 IN HOUSE ASSEMBLY TEMPLATE STEP 8: IF YOU HAVE A DOUBLE SIDED TABLE, ATTACH ONE BRACKET CENTERED IN BETWEEN STRETCHER AND MIDDLE BRACE. ATTACH OTHER BRACKET DIAGONALLY SO IT AVOIDS CLASHING OF SCREWS. PRE-DRILL HOLES IN STRETCHERS WITH A " BIT AND ATTACH WITH #8 X "...
- Page 11 IN HOUSE ASSEMBLY TEMPLATE STEP 9: WITH HELP FROM MULTIPLE PEOPLE, TURN TABLE OVER SO TOP IS UP. SET THE TABLE IN PLACE. ADJUST LEG LEVELERS TO LEVEL TABLE. SLIDE LEG BOOTS DOWN TO FLOOR. ALL DIMENSIONS ARE IN INCHES UNLESS DATE 8/29/14 NOTED OTHERWISE...
