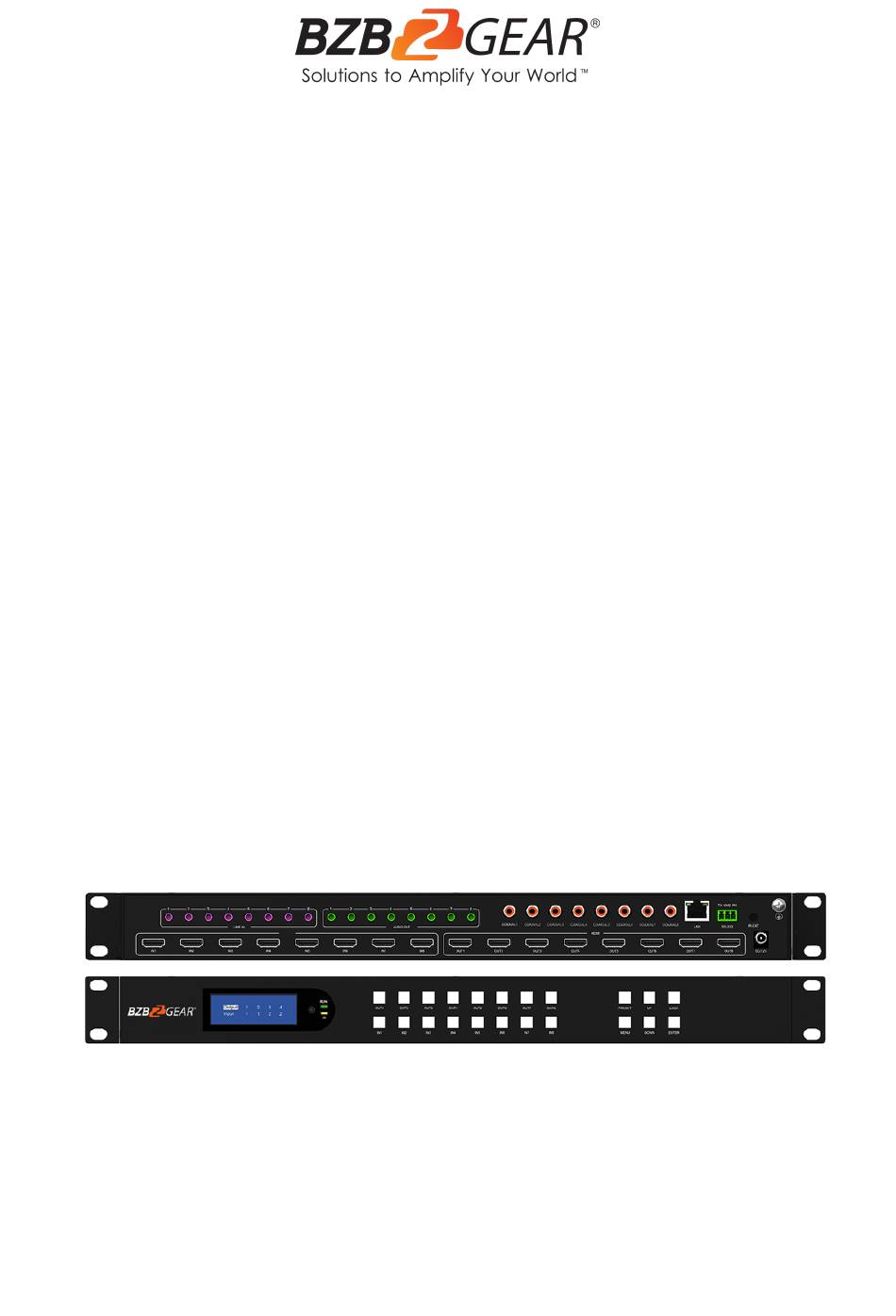

BG-4K-VP88
4K60Hz HDMI 8X8 Seamless Matrix
Video Wall / Multi-Viewer
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BG-4K-VP88 and is the answer not in the manual?

Questions and answers

Related Manuals for BZB Gear BG-4K-VP88

Summary of Contents for BZB Gear BG-4K-VP88

  • Page 1 BG-4K-VP88 4K60Hz HDMI 8X8 Seamless Matrix Video Wall / Multi-Viewer User Manual...
  • Page 2 BZBGEAR BG-4K-VP88 PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 3: Table Of Contents

    BZBGEAR BG-4K-VP88 PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions OSD Information Video Wall Mode Multi-Viewer Mode Audio Description WEB GUI Remote Control HDCP Factory Default Setting Tech Support Warranty Mission Statement Copyright ·...

  • Page 4: Statement

    BZBGEAR BG-4K-VP88 PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation.

  • Page 5: Introduction

    BZBGEAR BG-4K-VP88 PRODUCT MANUAL Introduction BG-4K-VP88 is a 4k60hz HDMI 2.0 Seamless Matrix with 8 hdmi inputs and 8 hdmi outputs supports Multi-viewer & Video wall Control way: TCP / IP, RS232, Remote controller or Panel buttons Application: The matrix has the ability to equalize and amplify to ensure that HDMI signal transmitted without loss of quality.

  • Page 6: Specifications

    BZBGEAR BG-4K-VP88 PRODUCT MANUAL Specifications HDMI Ports 16x HDMI Type A 19 pin, HDMI 2.0b Standard HDMI Audio LPCM 5.1, DTS 5.1, Dolby 5.1 4K60/50/30/25/24hz HDMI Resolution 1080P60/50/30/25/24hz 720P60/50/30hz HDMI Version HDMI 2.0b/HDCP1.4/2.2 Max Resolution 4K60Hz (4:4:4) Data Speed 18Gbps (6Gbps per color)

  • Page 7: Osd Information

    BZBGEAR BG-4K-VP88 PRODUCT MANUAL Rear Panel Name Function Description Audio Embedded 1~8 3.5MM ports, Sampling Rate: 32K~192Khz Audio Extraction 1~8 3.5MM ports, Sampling Rate: 32K~192Khz SPDIF Extraction 1~8 Coaxial Port, Sampling Rate: 32K~192Khz RS232 Port 3PIN Phoenix port：TX - GND - RX IR EXT 3.5mm ports, supports 38~52Khz frequency...
  • Page 8 BZBGEAR BG-4K-VP88 PRODUCT MANUAL Output including 9 sub-menu：output1~8 & all, each channel with video, audio, power options Video with 10 options：source, onoff, pattern, formart, genlock, mirror, coord, PIP, wall, image Audio with 4 options：HDMI onoff, HDMI SRC, DEC onoff, DEC SRC to control the audio switching, turn on or off...
  • Page 9 BZBGEAR BG-4K-VP88 PRODUCT MANUAL Power for turn on or off the HDMI Output 5V Input with video, audio, EDID options · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
  • Page 10 BZBGEAR BG-4K-VP88 PRODUCT MANUAL Video with On off and Pattern option, Pattern is using to replace the picture of the signal Audio delay range（0~50, auto）, Default setting: auto EDID Including Build-in EDID, User EDID, Copy EDID, Temp, Default setting is using:...
  • Page 11 BZBGEAR BG-4K-VP88 PRODUCT MANUAL Preset can save the current video, audio, EDID and system settings, supports 8 different scenes. Preset can be modified and called using WEB, commands and panel. The default preset is consistent with its factory settings. There are 4 options as follow: ●...
  • Page 12 BZBGEAR BG-4K-VP88 PRODUCT MANUAL Demo： Timer can set the demo’s switching time Select function for selecting the demo modes · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
  • Page 13 BZBGEAR BG-4K-VP88 PRODUCT MANUAL Network, RS-232, LCD, OSD, MENU, user EDID, system setting page DHCP, IP, mask, gateway, port, Mac page. Default IP：192.168.1.168 TCP/UDP default Port：TCP 5000, UDP 5001 · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
  • Page 14 BZBGEAR BG-4K-VP88 PRODUCT MANUAL LCD setting with Bright level and off timing setting · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
  • Page 15 BZBGEAR BG-4K-VP88 PRODUCT MANUAL There are 4 options in OSD: User, Time, Menu, Info. User indicates the output coordinate time of OSD. Time indicates the running time after the device is powered on. Menu indicates that the LCD is mapped to the TV.
  • Page 16 BZBGEAR BG-4K-VP88 PRODUCT MANUAL Timer means back to menu page time, default for 30s Select Run indicates whether the confirm button of the last sub-menu is enabled. If it is set to disable, you need to press “ENTER”. If it is set to enable, you do not need to press “ENTER”...
  • Page 17 BZBGEAR BG-4K-VP88 PRODUCT MANUAL User EDID can store the EDID of the output display device of the connection matrix to user1~4, which can be stored in default, output, and temp1, and then used in the EDID list. System Setting includes reboot, Power, and Factory. Reboot indicates device restart, power indicates device sleep, and factory indicates factory data reset.
  • Page 18 BZBGEAR BG-4K-VP88 PRODUCT MANUAL Timed Off indicates timed standby, Timed On indicates timed wake up, and Auto Sleep Simple: Partially restores factory settings User: Restores all factory settings Query device information, including input, output, system, and log. The information can only be queried and cannot be set or changed.

  • Page 19: Video Wall Mode

    BZBGEAR BG-4K-VP88 PRODUCT MANUAL Video Wall Mode 1. Supports margin adjustment 2. Supports seamless switching the video wall 3. Support mirror the video wall 4. Supports multiple video wall setting W-2x4 W-2x2 W-1x2 · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
  • Page 20 BZBGEAR BG-4K-VP88 PRODUCT MANUAL W-1x3 W-1x4 · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
  • Page 21 BZBGEAR BG-4K-VP88 PRODUCT MANUAL W-2x1 W-2x1 W-3x1 · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 22: Multi-Viewer Mode

    BZBGEAR BG-4K-VP88 PRODUCT MANUAL W-4x1 Multi-Viewer Mode Mode 1 · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
  • Page 23 BZBGEAR BG-4K-VP88 PRODUCT MANUAL Mode 2 Mode 3 · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
  • Page 24 BZBGEAR BG-4K-VP88 PRODUCT MANUAL Mode 4 Mode 5 · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
  • Page 25 BZBGEAR BG-4K-VP88 PRODUCT MANUAL Mode 6 Image cropping and TV coordinate change ● Input starting point：CROP X0(0), CROP Y (0), ● Input ending point：CROP X1(3000), CROP Y0(3000) ● Input scaling starting point：ZOOM X0(0), ZOOM Y0(0), ● Input scaling ending point：ZOOM X1(6000), ZOOM Y0(6000) ·...

  • Page 26: Audio Description

    BZBGEAR BG-4K-VP88 PRODUCT MANUAL Audio Description Default HDMI audio output support uncompressed audio PCM, LPCM2.0. SPDIF: 5.1 The maximum sampling rate support 192KHZ COPY EDID audio format are forced into LCPM2.0. HDMI Source: 1. ENC1~8 indicates that HDMI outputs select the embedding audio 2.
  • Page 27 BZBGEAR BG-4K-VP88 PRODUCT MANUAL Status Page · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
  • Page 28 BZBGEAR BG-4K-VP88 PRODUCT MANUAL Input Page Output Page · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
  • Page 29 BZBGEAR BG-4K-VP88 PRODUCT MANUAL Matrix Page Preset Page · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
  • Page 30 BZBGEAR BG-4K-VP88 PRODUCT MANUAL Button color Advance Page · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
  • Page 31 BZBGEAR BG-4K-VP88 PRODUCT MANUAL System Page · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 32: Remote Control

    BZBGEAR BG-4K-VP88 PRODUCT MANUAL Remote Control ：Standby or power on ：Mute button ：Return to upper level ：Move to next level ：Picture off ：Page turn by 100 of the last sub-menu ：Page turn by 10 of the last sub-menu ：Menu ：All output ：Up...

  • Page 33: Hdcp

    BZBGEAR BG-4K-VP88 PRODUCT MANUAL HDCP HDMI Device1 Device2 Device3 Output HDCP2.2/1.4 HDCP1.4 NO HDCP HDCP2.2 HDCP2.2 No signal HDCP1.4 HDCP1.4 HDCP1.4 No signal Off HDCP NO HDCP NO HDCP NO HDCP Factory Default Setting 1）Video：P-to P, 1x1, 2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8 2）Audio：Audio Embedded turn off, HDMI Output audio on, Extraction on...

  • Page 34: Tech Support

    BZBGEAR BG-4K-VP88 PRODUCT MANUAL Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions.

  • Page 35: Mission Statement

    BZBGEAR BG-4K-VP88 PRODUCT MANUAL Mission Statement BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment ranging from AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog.

  • Page 36: Copyright

    BZBGEAR BG-4K-VP88 PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
