Schematics, PCB Layout, and Bill of Materials

4.2 Layout

Figure 4-2 through Figure 4-5

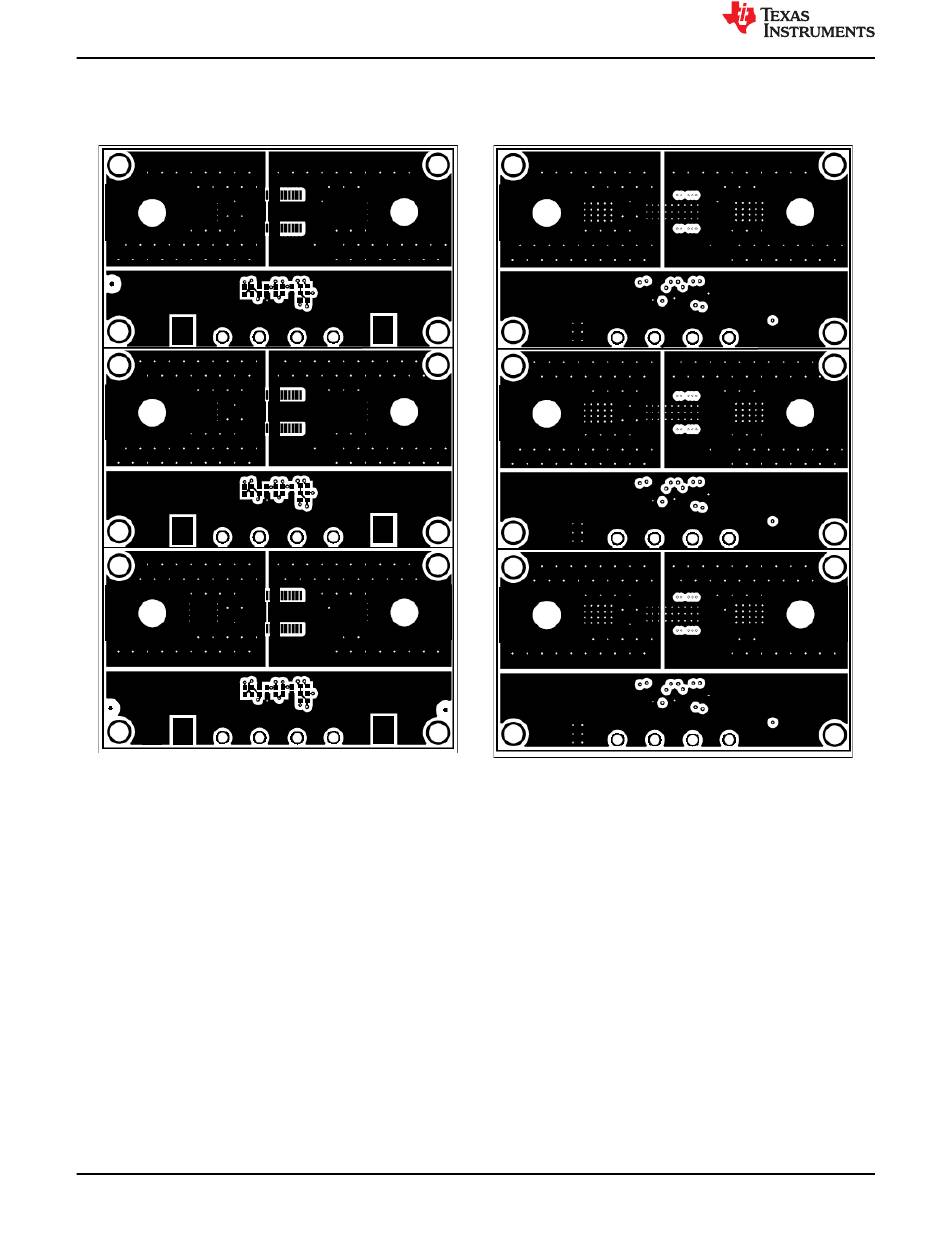

Figure 4-2. Top Layer

8 INA254 EVM User's Guide
illustrate the PCB layers of the EVM.
Copyright © 2021 Texas Instruments Incorporated

Figure 4-3. Bottom Layer
