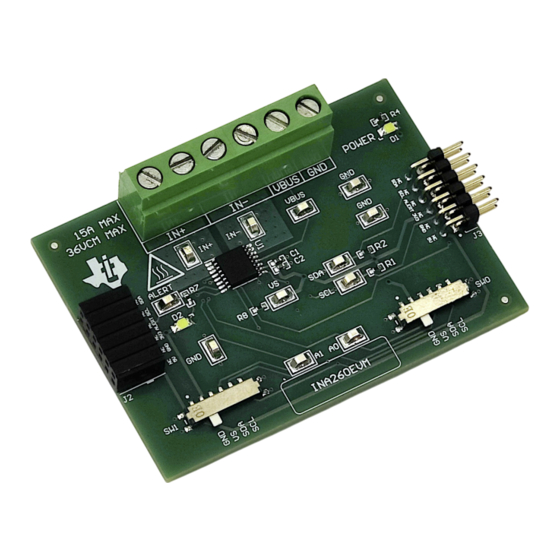

Texas Instruments INA260EVM User Manual
Texas Instruments INA260EVM User Manual

Texas Instruments INA260EVM User Manual

Evaluation module

Advertisement

Quick Links

www.ti.com
EVM User's Guide: INA260EVM

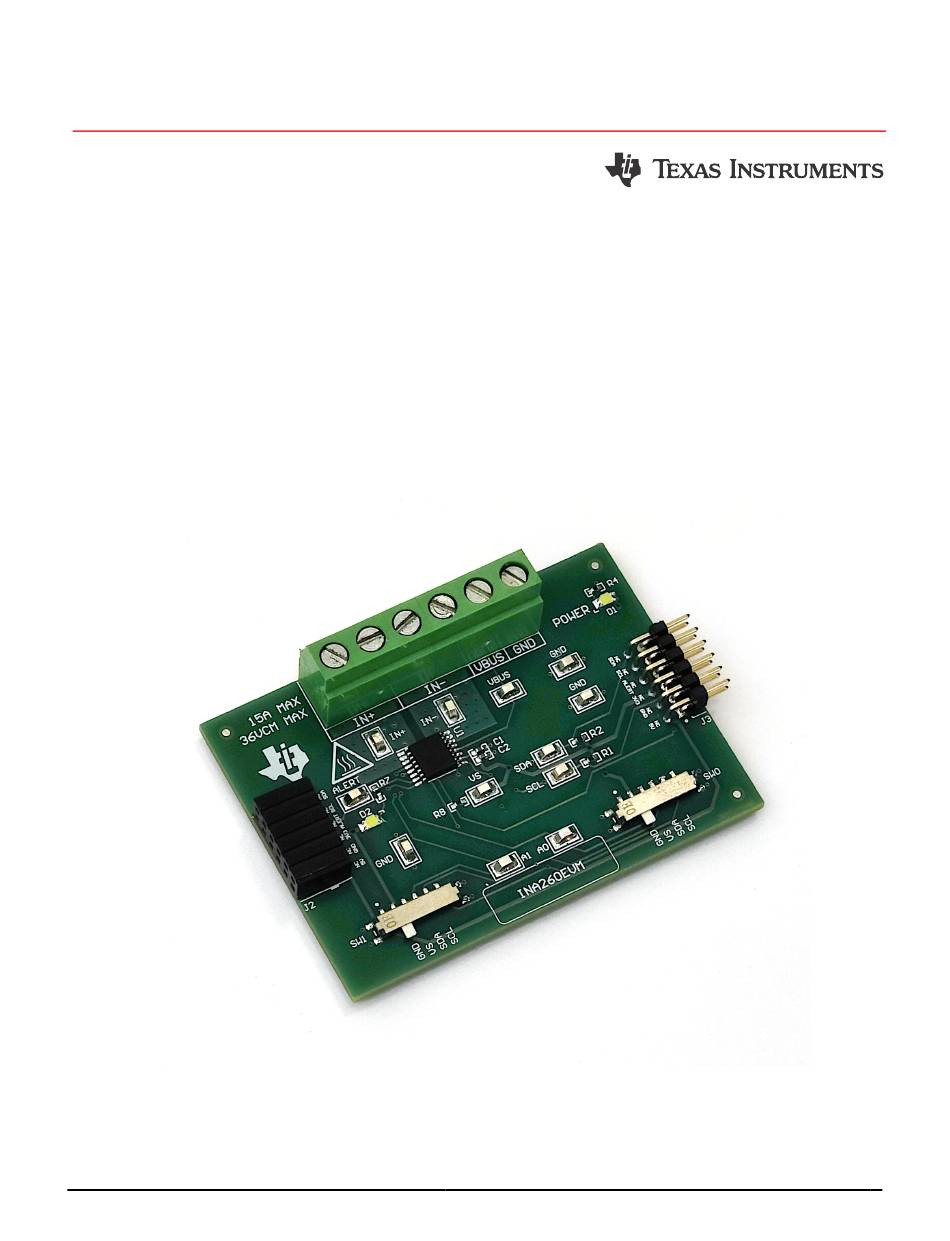

INA260EVM Evaluation Module
Description
The INA260 evaluation module (EVM) is a platform
to evaluate the main features and performance of the
INA260. The EVM supports current measurements up
to 10-A and comes with graphical user interface (GUI)
support to read and write to device registers.
Get Started
1. Buy the INA260EVM evaluation board.
2. Buy the
TI-SCB sensor control
3. Download and install the
Drivers.
SBOU307 – OCTOBER 2024
Submit Document Feedback
board.
PAMB Windows USB
Copyright © 2024 Texas Instruments Incorporated
4. Read this User's Guide to set up the hardware.
5. Run the INA260EVM-GUI.
Features
GUI support to read and write device registers as
well as view and save results data
EVM detached from SCB for custom use cases
Multiple EVM support with single SCB/GUI
Conveniently powered from a common micro-USB
connector through the SCB
Description
INA260EVM Evaluation Module
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the INA260EVM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texas Instruments INA260EVM

  • Page 1 Multiple EVM support with single SCB/GUI Get Started • Conveniently powered from a common micro-USB connector through the SCB 1. Buy the INA260EVM evaluation board. 2. Buy the TI-SCB sensor control board. 3. Download and install the PAMB Windows USB Drivers.
  • Page 2: Kit Contents

    This EVM is designed to evaluate the performance of the INA260. Throughout this document, the terms evaluation board, evaluation module, and EVM are synonymous with the INA260EVM. This document includes a schematic, reference printed circuit board (PCB) layouts, and a complete bill of materials (BOM).
  • Page 3: Evm Operation

    2-2. Make sure to use a different I2C address for each device. The GUI only supports up to 4 EVMs total. Figure 2-2. Multiple EVMs Connected to SCB Controller SBOU307 – OCTOBER 2024 INA260EVM Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 4 3. Connect the system ground to the GND terminal (J1 pin 1). 4. Power on the system, and observe the device states and outputs through the GUI. INA260EVM Evaluation Module SBOU307 – OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 5: Digital Circuitry

    Note not to add too much resistance in the jumper wire connection setup or the signal can degrade and cause communication errors. Figure 2-4. EVM to PAMB Connection SBOU307 – OCTOBER 2024 INA260EVM Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 6: Driver Installation

    While shorting the two test points labeled DFU (shown in Figure 3-1) with a pair of tweezers (or wire), press and release the RESET button. INA260EVM Evaluation Module SBOU307 – OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 7 Verify that the EVM is connected to the SCB before plugging the SCB into a USB port. 3. Open the GUI Composer application to launch the GUI from the web browser (see Figure 3-2). SBOU307 – OCTOBER 2024 INA260EVM Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 8 Figure 3-4. Hardware Connected a. A green indicator with the device type and the text DEVICE CONNECTED is also visible near the top left of the GUI. INA260EVM Evaluation Module SBOU307 – OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 9: Gui Operation

    To view and edit the device registers, click the (Registers) icon on the menu to the left. The Registers tab looks like the one shown in Figure 3-8. SBOU307 – OCTOBER 2024 INA260EVM Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 10 For convenience, register settings can be saved and loaded back later to any device with the same register map. To do this, go to File > Register Data, as shown in Figure 3-9. INA260EVM Evaluation Module SBOU307 – OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 11 – Press the Read All Registers button after loading data to update the Registers page with the actual device values in case the loaded registers were not compatible with the connected device. SBOU307 – OCTOBER 2024 INA260EVM Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 12 If more than one device is being used, then an asterisk symbol (*) appears next to the selected EVM that is being used on the Registers and Configuration tabs. INA260EVM Evaluation Module SBOU307 – OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 13 – The minimum Y-axis value to use for all EVMs in this plot. – If this field is empty when Manual Scale is selected, then the plot auto-populates with the minimum value currently in the plot. SBOU307 – OCTOBER 2024 INA260EVM Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 14 – For this example, the EVM returns the results and state ("idle" or "collecting") in JSON format: {"acknowledge":"wreg 0x00 0x436f"} {"console":"Writing 0x436f to CONFIGURATION register"} {"evm_state":"idle"} INA260EVM Evaluation Module SBOU307 – OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 15 Stop collecting data format: stop – Where stop is always lower case. – The EVM returns the acknowledgment and state in JSON format: {"acknowledge":"stop"} {"evm_state":"idle"} SBOU307 – OCTOBER 2024 INA260EVM Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 16 Hardware Design Files www.ti.com 4 Hardware Design Files 4.1 Schematics Figure 4-1 Figure 4-2 show the schematic of the INA260EVM. Figure 4-1 shows the circuitry for the EVM. Figure 4-2 shows the mechanical components included with the EVM. +3V3 TP12...
  • Page 17 These assemblies must comply with workmanship standards IPC-A-610 Class 2, unless otherwise speci e d. ¤ Assembly Note Trim the leads under J1 (back of PCB) to give clearance from surface Figure 4-2. Hardware Schematic SBOU307 – OCTOBER 2024 INA260EVM Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 18: Pcb Layout

    Board layouts are not to scale. These figures are intended to show how the board is laid out. The figures are not intended to be used for manufacturing EVM PCBs. Figure 4-3 through Figure 4-6 illustrate the PCB layers of the INA260EVM. Figure 4-3. Top View Figure 4-4. Top Layer Figure 4-6. Bottom Layer Figure 4-5. Bottom View INA260EVM Evaluation Module SBOU307 –...
  • Page 19 Hardware Design Files 4.3 Bill of Materials Table 4-1 provides the parts list for the INA260EVM. Table 4-1. Bill of Materials Designator Quantity Value Description Package Reference Part Number Manufacturer !PCB1 Printed Circuit Board INA260EVM CAP, CERM, 1 µF, 16 V,+/- 20%, X5R, 0402...
  • Page 20: Additional Information

    Newer revisions are available from www.ti.com or the Texas Instruments' Literature Response Center at (800) 477-8924 or the Product Information Center at (972) 644-5580. When ordering, identify the document by both title and literature number.
