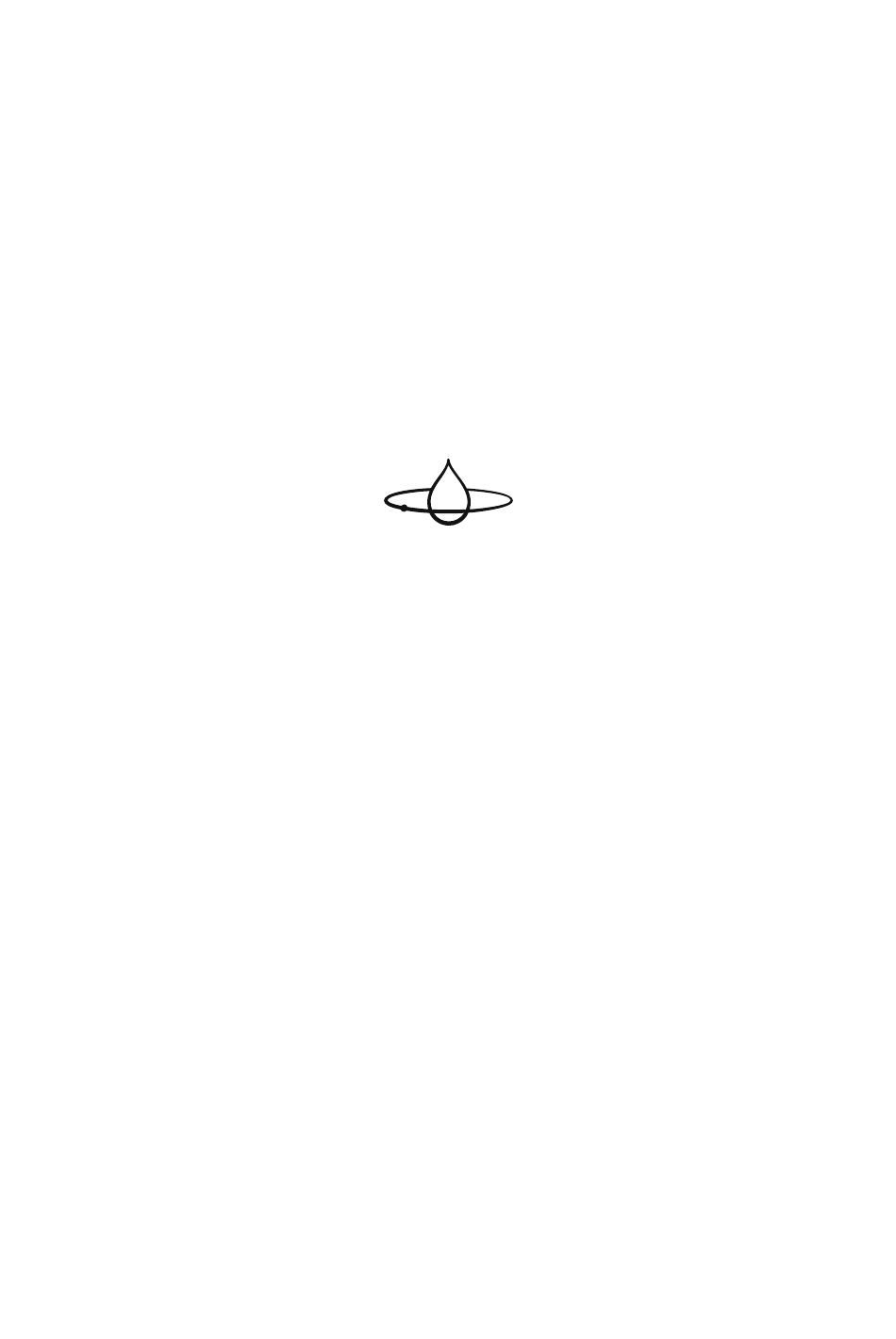

- Page 1 User Guide Orbital Shower (OS8732-Ei2, OS8733-E) 5-06-0006 Publication date 2024-11-14...
- Page 2 All rights reserved. No part of this document may be reproduced or copied in any form or by any means without written permission from Orbital Systems. The English language version of this document contains the original instructions. All other language versions are translations of the original instructions.
-
Page 3: Table Of Contents
Table of Contents Thank you for your purchase ..................... 4 Connect your shower ........................ 5 Operating the Orbital Shower ....................6 Shower Menu ..........................7 Shower Menu Features ......................8 Pair your device with Orbital Audio ..................10 Automated cleaning ......................... 12 Maintenance .......................... -
Page 4: Thank You For Your Purchase
Read the Safety Guide before starting the installation or before operating the shower. Thank you for purchasing the Orbital Shower from Orbital Systems. To enjoy the full potential of the shower please read and follow the procedures in this manual. Make sure that you fully understand how to operate this shower and make sure that it is properly maintained in accord- ance with the instructions given in this manual. -
Page 5: Connect Your Shower
Connect your shower Use the My Water by Orbital Systems app to access all shower settings and connect your shower to your Wi-Fi. This enables you to receive the latest software releases and get remote trouble- shooting support from our Orbital Support team. Follow the steps below to connect your shower. -
Page 6: Operating The Orbital Shower
Operating the Orbital Shower Tap to start and stop the shower The Orbital Shower performs a short startup sequence to fill up the system and adjust the water temperature before water starts pouring. After the shower session, it also performs an Express cleaning sequence to empty and prepare the system for the next user. -
Page 7: Shower Menu
Shower Menu Long press to access the shower menu. Turn to navigate. Tap to select feature. Page 7 of 30... -
Page 8: Shower Menu Features
Shower Menu Features The shower menu will contain a slightly varying set of features depending on which shower profile your shower is set to ('home' or 'business' profile). To read more and manage your shower profile, go to Settings in the My Water app. Descale Activates the Descaling procedure. - Page 9 Add Wi-Fi Tap to initiate the shower Wi-Fi setup, then continue the procedure through the My Water app. This feature can only be accessed while the shower is not running. Dark theme / Light theme The Control Dial has two visual themes: Dark theme and Light theme. This setting can be changed in the Control Dial or in My Water.
-
Page 10: Pair Your Device With Orbital Audio
Pair your device with Orbital Audio Orbital Audio is an optional add-on product, and the following instructions are valid if your shower is installed with Audio. You will find the name and PIN of your Orbital Audio on the amplifier. The placement of the amplifier depends on your installation model. - Page 11 Check the name and PIN on the amplifier. Orbital Audio 01 PIN 1234 Go to the Bluetooth settings in your device, and select your Orbital Audio in the list. Enter the PIN. This is only needed the first time you pair your device. 4.
-
Page 12: Automated Cleaning
Automated cleaning Procedure Description Duration Express cleaning Express cleaning is performed directly after a ~ 4 min. shower session has finished, to prepare for the next one. During the Express cleaning the shower heats water internally and circulates it inside the Core - similar to the Deep cleaning but faster and without the shower head cleaning. -
Page 13: Maintenance
However, it should also be inspected and cleaned whenever the Sensor Tank is cleaned. Failing to maintain the Recirculation Mesh may lead to clogging which will affect the ability to recirculate water. Please contact Orbital Systems if Recirculation Mesh needs to be replaced. -
Page 14: Maintenance Overview & Notifications
Maintenance Overview & Notifications Maintenance procedure When to perform Estimated Consumables time to needed perform On average the Filter needs to ~15 s Filter Capsule: be changed every three months Replace when (assuming one shower session depleted. This per day). The maximum time consumable is until it needs to be replaced is included in the Care... -
Page 15: Change The Filter Capsule
Needed consumable: Filter Capsule • Filter Capsule Model No: OS C1050085A10 • Use only Orbital Systems Filter Capsule OS C1050085A10 in the shower system • Spare Part Reference: 1-05-0496 Filter Capsule Icon shown on Control Dial screen when Filter Capsule change is needed:... - Page 16 Page 16 of 30...
- Page 17 4. Insert the new Filter Capsule and close the hatch. RISK OF LEAKAGE Make sure the Filter Capsule is inserted all the way in, or leakage may occur. "Click!" Page 17 of 30...
-
Page 18: Descale
Descale Needed consumable: Descaling tablet CAUTION Please exit the shower area while the descaling is active. Once the descaling has started, water will start to pour out of the shower heads. Icon shown on Control Dial screen when descaling is needed: Turn the diverter to a position between the hand shower and shower head so that water pours out of both during the descaling. - Page 19 Descaling is completed. Ending Page 19 of 30...
-
Page 20: Clean The Drain
Clean the drain Needed tools: Cleaning agents CAUTION Do not use any corrosive detergents or abrasive pads/cloths as it might damage the Sensor Tank. Page 20 of 30... - Page 21 4. Use non-abrasive cleaning agents only. Make sure to clean all surfaces of each component, including the drain unit. Rinse thoroughly with water. Use water from an other source than the shower. Page 21 of 30...
- Page 22 NOTICE Make sure the O-ring is correctly mounted before reassembly of the Sensor Tank. Insert Sensor Tank. Lock the Sensor Tank in position with the Sensor Tank lock by turning it 90 degrees. CAUTION Make sure the Sensor Tank is inserted correctly. Its edge should be fully pushed towards the drain unit's edge.
-
Page 23: Low Uv Level
Low UV level Icon shown on Control Dial screen when the UV level is low: A low UV level may be caused by several factors. When the UV level is low, the shower will not be able to save water. Please contact Orbital Support for assistance with troubleshooting. Page 23 of 30... -
Page 24: Clean Shower Heads, Control Dial And External Surfaces
Clean shower heads, Control Dial and external surfaces Use a soft cloth with mild cleaning detergent to clean the shower heads and external surfaces of your Orbital shower, such as the Control Dial and Hatch Panel door. Rinse thoroughly with water after cleaning. -
Page 25: Detergent Cleaning
Detergent cleaning Needed consumable: Orbital Shower detergent Detergent cleaning is a program that thoroughly cleans the inside of the Shower Core using the Orbital Shower detergent. It is a part of the preparation for Hibernation mode [25], but can also be started manually to clean the system as a complement to the automated cleaning procedures. - Page 26 Detergent cleaning is completed. Page 26 of 30...
-
Page 27: Hibernation Mode
My Water app, or via the Control Dial in the shower. Orbital Systems recommends not keeping your shower in Hibernation mode longer than 9 months at a time. For longer time periods, Orbital Systems can’t guarantee full product function- ality. -
Page 28: Prerequisites And Approvals
Service Orbital Systems and our team of expert staff are available to assist you if you require product ad- vice, experience any problems, need to purchase spare parts or to set up a service appointment. Repairs should only be carried out by Orbital Systems. -
Page 29: Eu Declaration Of Conformity
4 MS Material Safety The product has undergone mandatory or voluntary certification procedures in order to receive the following certificates: RiSE C900373 KIWA 0753 TGA Nr. TGA.2023/005 RiSE C900374 Signed for and on behalf of Orbital Systems AB Place Date Name Position Malmö... - Page 30 C E R T I F I E D S P A C E T E C H N O L O G Y...
