Nidec PT-130 Operation Manual

PT-130 Non-Contact Tachometer
Operation Manual
z
To Avoid Injury, do not point the light beam of the in-
strument or have it reflected into the eyes of people
or animals.
Do not leave the device close to water or any other
liquid to avoid damage.
If not using this instrument for extended periods of
time, remove the batteries to prevent potential battery
leakage from causing product damage.
Do not attempt to open housing or do maintenance.
Damage to laser may occur.
The Nidec Model PT-130 Non-Contact Laser Tachometer is a
simple to use, ergonomic, rugged test instrument that operates
with optical laser technology. This velocity analyzing and mea-
suring device is ideal for rotational machine inspection and pro-
cess speed analysis. The PT-130 possesses a large, bright LED
screen that provides clear viewing in any environment. Users can
obtain results in either Hertz or RPM, as well as Total counts with
the simple selection switch. During testing, the unit automatical-
ly saves maximum, minimum, last recorded values and up to 96
logged data readings. The compact, lightweight PT-130 Tachom-
eter comes standard with reflective tape, 3 AAA batteries and pro-
tective carrying case.

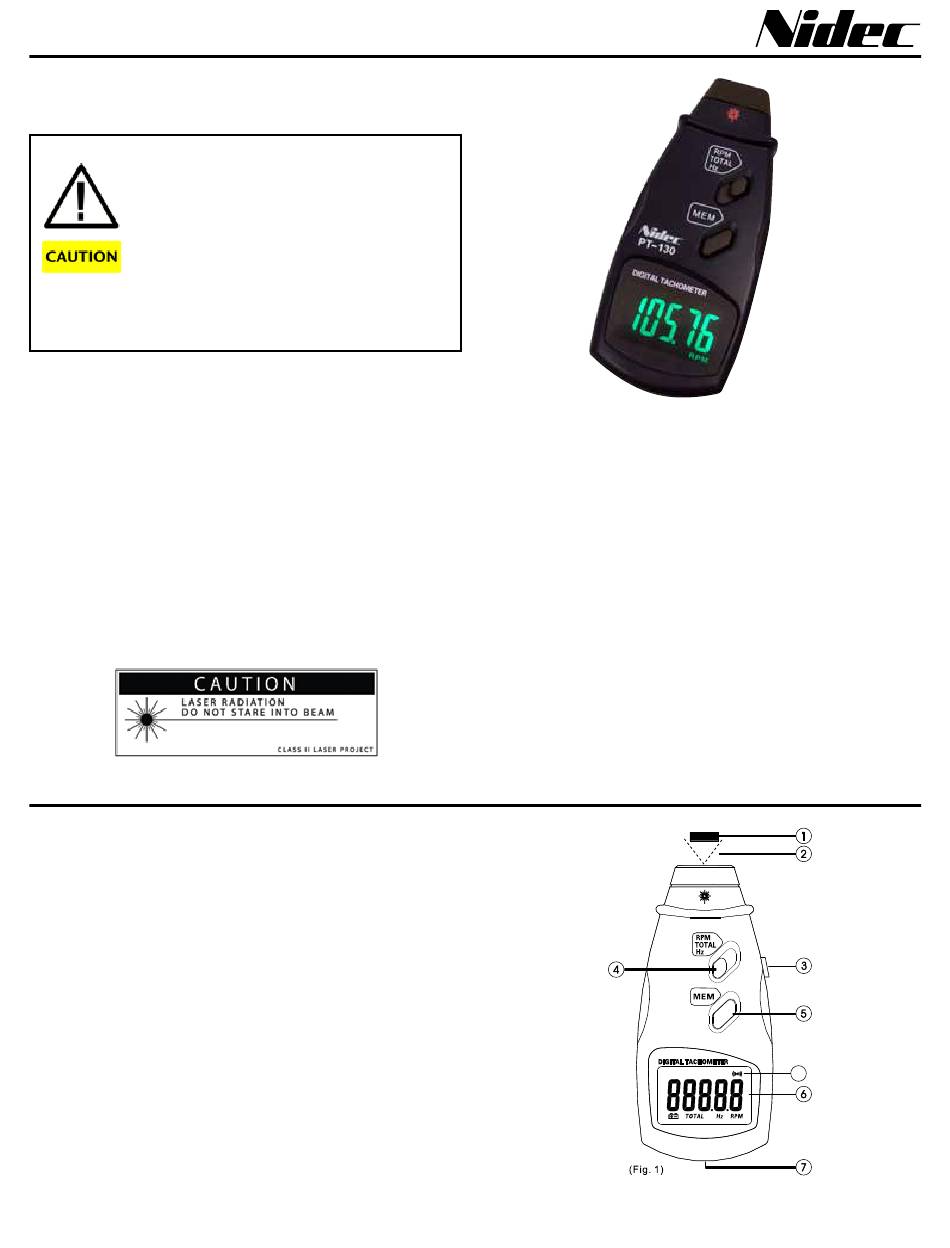

PRODUCT DIAGRAM
1. Reflective Tape (Included)
2. Light Beam
3. Measurement Button - When pressed Class II Laser is active.
4. Function Select Switch
5. Memory Button
6. LED Display
7. Battery Cover (On Back)
8. Laser Symbol Indicates Active Laser
SPECIFICATIONS
Range: 2.50-99,9999 RPM; 0.05-999.99 Hz; 1-10,000 Count
Resolution: 0.01(2.50-999.99 RPM), 0.1 RPM (1000.0-9999.9
RPM), 1 RPM (10,000 RPM and up);0.01 Hz (0.05-999.99 Hz)
Display: 5 digit, 0.7" (18 mm) green LED
Accuracy: +/-0.05% + 1 digit
Sampling Time: 0.8 second (over 120 RPM)
Detection: Laser
Measuring Distance: 2-20" (50-500 mm)
Memory: Automatically stores Maximum (UP), Minimum (dn), last
value (LA) and up to 96 readings for review. Maximum speed for
reading storage is every 0.8 seconds.
Dimensions: 6.1 x 2.8 x 1.4 (155 x 70 x 35 mm)
Power: 3 x 1.5V AAA battery
Enclosure: ABS plastic housing
Product Weight: 0.4 lb (181 g)
Package Weight: 0.9 lb (408 g)
Certifications: CE, RoHS
Warranty: 1 Year
Included Accessories: 3 AAA batteries, protective carrying case,
reflective tape.
