- Page 1 COLOR WEATHER STATION WITH 5-IN-1 SENSOR Model: YC9465 USER MANUAL...
-
Page 2: Table Of Contents
CONTENTS PRECAUTIONS...............................2 INTRODUCTION………………………………………………………………………………………………………….3 OVERVIEW…………………………………………………………………………………………………………..3 LCD DISPLAY...........................4 INSTALLATION..........................5 WEATHER FORECAST........................10 BAROMETRIC / ATMOSPHERIC PRESSURE................10 RAINFALL............................10 WIND SPEED / WIND DIRECTION....................11 WEATHER INDEX......................12 HISTORY DATA (ALL RECORDS IN THE PAST 24 HOURS)............13 MAX/MIN MEMORY FUNCTION....................13 HI / LO ALERT........................13 WIRELESS SIGNAL RECEPTION....................14 TEMPERATURE &... -
Page 3: Introduction

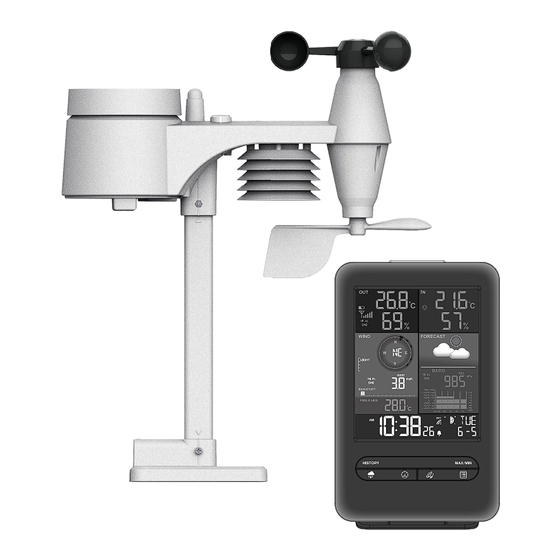

INTRODUCTION Thank you for your purchase of this delicate color weather station with 5-IN-1 sensor. The wireless 5-IN-1 sensor contains a self-emptying rain collector for measuring rainfall, anemometer, and wind vane, temperature and humidity sensors. It is fully assembled and calibrated for your easy installation. It sends data by a low power radio frequency to the console up to 150m away (line of sight). -
Page 4: Lcd Display
WIRELESS 5-IN-1 SENSOR 1. Rain collector 2. Balance indicator 3. Antenna 4. Wind cups 5. Mounting pole 6. Radiation shield 7. Wind vane 8. Mounting base 9. Mounting clamp 10. Red LED indicator 11. [ RESET ] key 12. Battery door 13. -
Page 5: Installation
INDOOR TEMPERATURE AND HUMIDITY 1. Indoor indicator 2. Comfort indication 3. Indoor temperature 4. Indoor humidity OUTDOOR TEMPERATURE AND HUMIDITY 1. Outdoor indicator 2. Outdoor sensor low battery indicator 3. Outdoor signal strength indicator 4. Outdoor temperature 5. Outdoor humidity WEATHER FORECAST Weather forecast icon BAROMETER... - Page 6 BATTERY AND INSTALLATION Unscrew the battery door at bottom of unit and insert the batteries according to the +/- polarity indicated. Screw the battery door compartment on tightly. NOTE: 1. Ensure the water tight O-ring is properly aligned in place to ensure water resistant.
- Page 7 Step 4 Place the nut in the hexagon hole of the stand, then insert the screw in other side and then tighten it by the screw driver. Install the wireless 5-IN-1 sensor in Add rubber an open location with no obstructions pads before Point to above and around the sensor for...
- Page 8 POWER UP THE CONSOLE 1. Plug the power adapter USB plug to power up the main unit. 2. Once the main unit power up, all the segments of the LCD will be shown briefly before entering the radio- controlled time reception mode. 3.
- Page 9 TIME SETTING The unit automatically set itself accordingly to the Radio Controlled Clock signal it received. To set the clock/ calendar manually, first disable the reception by holding the RCC key for 8 seconds. TO MANUALLY SET THE CLOCK / TIME ZONE SELECTION 1.
-
Page 10: Weather Forecast
WEATHER FORECAST The device contains sensitive pressure sensor built-in with sophisticated and proven software that predicts weather for the next 12 ~ 24 hours within a 30 to 50 km (19-31 miles) radius. Sunny / Clear Slightly Cloudy Cloudy Rainy Rainy / Stormy Snowy NOTE:... -
Page 11: Wind Speed / Wind Direction
NOTE: Rain rate is updated every 6 minutes, at every hour on the hour, and at 6, 12, 18, 24, 30, 36, 42, 48, 54 minute past the hour. TO SELECT THE MEASUREMENT UNIT FOR THE RAINFALL 1. Press and hold the [ RAIN ] key 2 seconds to enter unit setting mode. 2. -
Page 12: Weather Index
20 ~ 28 km/h 13 ~ 17 mph Dust and loose paper raised. Small branches Moderate breeze begin to move. 11 ~ 16 knot 5.5 ~ 7.9 m/s 29 ~ 38 km/h 18 ~ 24 mph Branches of a moderate size move. Fresh breeze Small trees in leaf begin to sway. -
Page 13: History Data (All Records In The Past 24 Hours)
DEW POINT - The dew point is the temperature below which the water vapor in air at constant barometric pressure condenses into liquid water at the same rate at which it evaporates. The condensed water is called dew when it forms on a solid surface. - The dew point temperature is determined by the temperature &... -
Page 14: Wireless Signal Reception
WIRELESS SIGNAL RECEPTION The 5-IN-1 sensor is capable of transmitting data wirelessly over an approximate operating of 150m range (line of sight). Occasionally, due to intermittent physical obstructions or other environmental interference, the signal may be weaken or lost. In case that the sensor signal is lost completely, you will need to relocate the Console or the wireless 5-IN-1 sensor. -
Page 15: Moon Phase
MOON PHASE In the Northern hemisphere, the moon Northern Southern Moon Phase waxes (the part of the moon we see hemisphere hemisphere that glows after the New Moon) from the New Moon right. Hence the sun-lit area of the moon moves from right to left in the Northern Hemisphere, while in the Southern Waxing Crescent... -
Page 16: Specifications
SPECIFICATIONS CONSOLE Dimensions (W x H xD) 118 x 192.5 x 21mm (without attach table stand) Weight 260g Operating temperature range -5°C to 50°C (14°F to 122°F) Main power DC 5V, 600mA input adapter Backup battery CR2032 Support sensor Wireless 5-in-1 sensor (Wind speed, Wind direction, Rain gauge, thermo-hygro) RF frequency 868Mhz (UK version) RADIO-CONTROLLED / ATOMIC CLOCK... - Page 17 1% to 99% RH Battery 3 x AA size 1.5V battery (Lithium battery recommended for low temperature usage) RF Frequency 868 MHz (UK version) RF transmission range Up to 150 meters Transmission Every 12 seconds All enquiries: service@youshiko.co.uk Made for Youshiko in PRC...
