Youshiko YC9440 Manual

Colour changing weather station
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

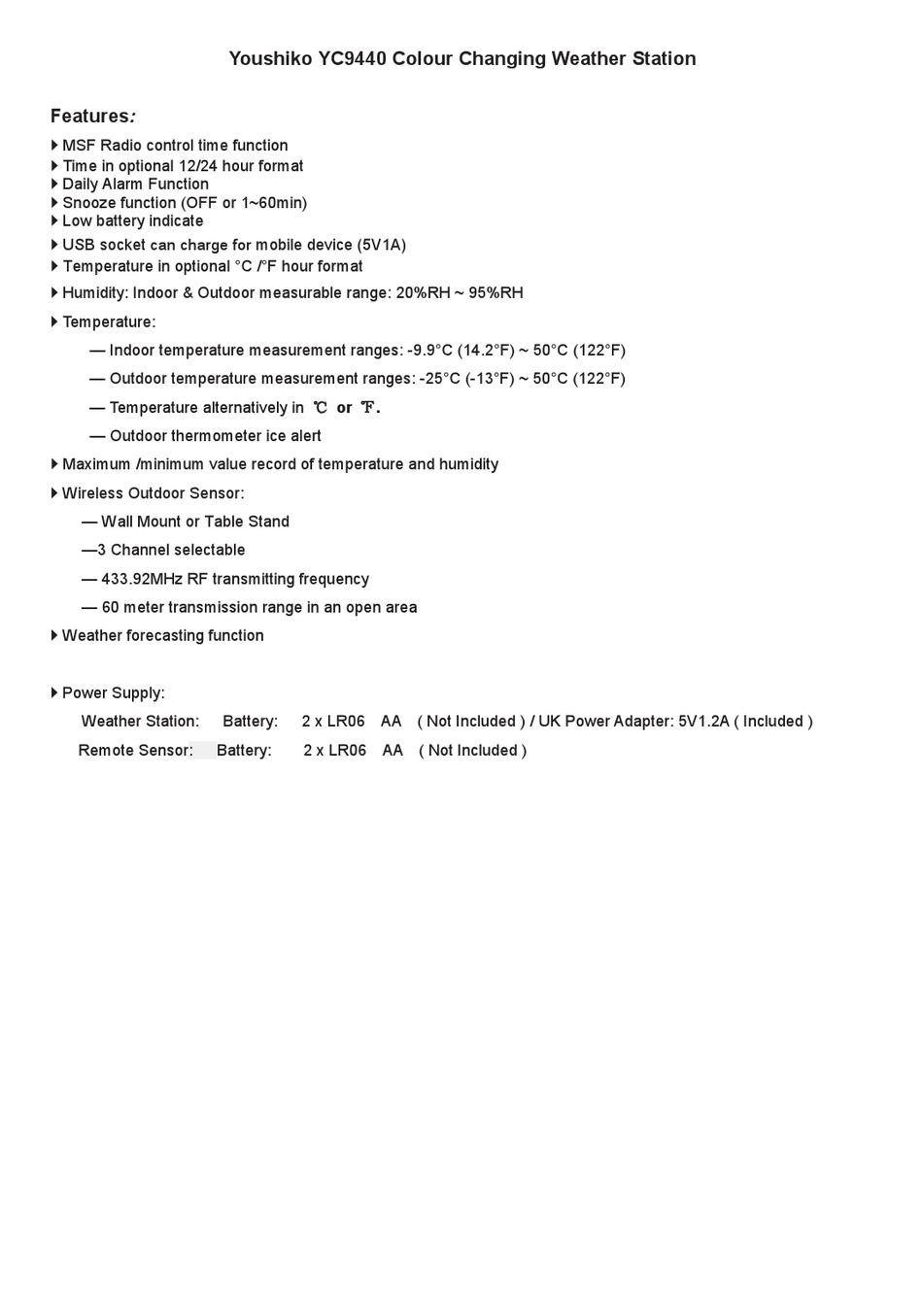

Features:
 MSF Radio control time function
 Time in optional 12/24 hour format
 Daily Alarm Function
 Snooze function (OFF or 1~60min)
 Low battery indicate
 USB socket can charge for mobile device (5V1A)
 Temperature in optional °C /°F hour format
 Humidity: Indoor & Outdoor measurable range: 20%RH ~ 95%RH
 Temperature:
— Indoor temperature measurement ranges: -9.9°C (14.2°F) ~ 50°C (122°F)
— Outdoor temperature measurement ranges: -25°C (-13°F) ~ 50°C (122°F)
— Temperature alternatively in ℃ or ℉.
— Outdoor thermometer ice alert
 Maximum /minimum value record of temperature and humidity
 Wireless Outdoor Sensor:
— Wall Mount or Table Stand
—3 Channel selectable
— 433.92MHz RF transmitting frequency
— 60 meter transmission range in an open area
 Weather forecasting function
 Power Supply:
Weather Station:
Remote Sensor:
Youshiko YC9440 Colour Changing Weather Station
Battery:
2 x LR06 AA ( Not Included ) / UK Power Adapter: 5V1.2A ( Included )
Battery:
2 x LR06 AA ( Not Included )

Advertisement

Table of Contents
loading

Related Manuals for Youshiko YC9440

Summary of Contents for Youshiko YC9440

  • Page 1 Youshiko YC9440 Colour Changing Weather Station Features:  MSF Radio control time function  Time in optional 12/24 hour format  Daily Alarm Function  Snooze function (OFF or 1~60min)  Low battery indicate  USB socket can charge for mobile device (5V1A) ...

  • Page 2: Appearance Description

    Appearance description:...
  • Page 3 Part A-Positive LCD A1： Radio Controlled Icon A2：Time DST icon A3： time A4： Weather Forecast A5： Indoor humidity A6： Indoor temperature A7： Outdoor temperature A8： Outdoor humidity A9： Remote wireless channel A10：Alarm icon Part B – Back button and power B1: “...
  • Page 4 One Step Automatic Set Up: Connect Main colour display indoor unit with power supply and insert required batteries in the sensor and wait for Weather Station to self set automatically by MSF Radio control system, with in few minutes to few hours or maximum by 05:00 am, depending on the signal or location in UK.

  • Page 5: Reception Of The Radio Signal

     After receiver has created a connection to the outdoor remote sensor ( After 3 minutes ) it will enter the Radio control time receive mode. Reception of the Radio signal:  The clock will automatically search the MSF signal after 3 minutes of any restart or changing of new fresh batteries.

  • Page 6: Snooze Function

     If there is no valid operation within 20 seconds, it will automatically return to normal time mode from the set mode. Setting the daily alarms:  Push the “AL” switch to the "on" position, The LCD display the “ ”...

  • Page 7: Ice Alert

    and hold “ ” button for 3 seconds to receive transmission manually. RF icon flashes on the LCD，The Weather Station to receive the remote sensor.  If the weather station is received with 2 or 3 transmitters signals, Press “CH” button to query CH2, CH3 data or cyclic display.

  • Page 8: Background Lighting

     Please do not dispose of old electronic devices and empty batteries in household waste. To protect the environment, take them to your retail store or to appropriate collection sites according to national or local recycling centre. All enquires: service@youshiko.co.uk...
