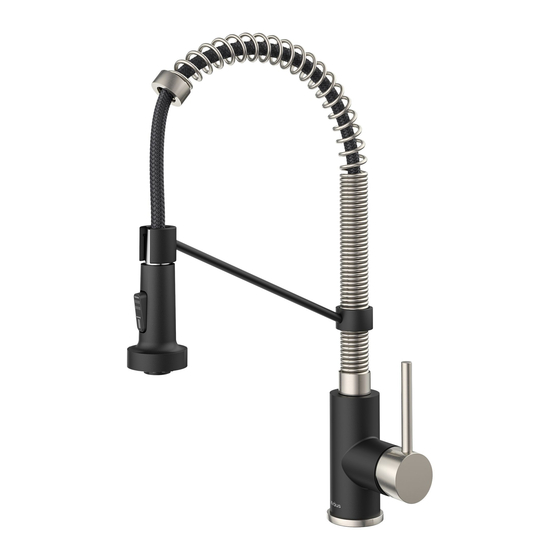

Single handle commercial kitchen faucet
Hide thumbs Also See for Bolden Series:

Advertisement

R
INSTALLATION MANUAL
Bolden
Single Handle
TM
Commercial Kitchen Faucet
KPF-1610
www.kraususa.com
I
Toll Free: 1.800.775.0703
I
© 2018 Kraus USA Inc.
I
REV. February 8, 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bolden Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Kraus Bolden Series

  • Page 1 INSTALLATION MANUAL Bolden Single Handle Commercial Kitchen Faucet KPF-1610 www.kraususa.com Toll Free: 1.800.775.0703 © 2018 Kraus USA Inc. REV. February 8, 2021...
  • Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
  • Page 3: Prior To Installation

    Prior to Installation: · Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement. · Turn off the hot and cold water supply at the angle stops and turn on the old faucet to release any built up pressure.
  • Page 4 Diagram and Parts List A. Spray Head B. Faucet Body C. Mounting Hardware C1. Rubber & Metal Washer C2. Mounting Nut C3. Mounting Screws D. Supply Hose Hot & Cold Waterlines E1. Hot E2. Cold Hose G. Weight H. Hex Wrench...
  • Page 5 Faucet Dimension 10 3/4" (274mm) 3 1/2" (88mm) 25° Ø 1 7/8" 8 3/4" (48mm) (221mm) 90° Ø 2 1/8" (54mm) 3/8" Compression Installer Tip: Shut off main water supply before installing new faucet.
  • Page 6 Step 1. Remove mounting hardware Remove mounting hardware (C1, C2 & C3) from faucet body (B). Step 2. Install the faucet and mounting hardware Insert faucet body through the hole in the sink or countertop. Install the rubber washer and metal washer (C1), mounting nut (C2) and mounting screws (C3) onto the threaded mounting shank.
  • Page 7 Step 4. Attach the spray hose and counterweight Connect the spray hose (F) to the supply hose (D). Tighten with wrench until snug. Install the weight (E) on the indicated mark on the spray hose (F). Step 5. Making the waterline connections Thread the nut (1) on the supply line onto the outlet of the water supply valve and tighten with a wrench.
  • Page 8: Replacement Parts

    Replacement Parts Replacement Finish/Color Part # Parts List CH,SS,MB,SFS** 1. Spray Head KP12002 2. Check Valve KP12003 3. Washer KP12022 4. Hose GRCH, GRSS, KP12023 GRSFS, BLSFS BLSS, BLMB* CH,SS,MB,SFS** 5. Top Spring KP12189 6. Sprayer Support Assembly CH,SS,SFS,MB, KP12168 SFSCH, SFSMB SSCH, SSMB** 7.
  • Page 9: Troubleshooting

    Trouble-Shooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: PROBLEM CAUSE ACTION Locking nut has come loose or Loosen the set screw located at the base of Leakage under faucet handle cartridge needs to be reseated the handle with a hex wrench.
  • Page 10 Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.
  • Page 11 This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. KRAUS USA has the right to change, modify, and/or update the warranty policy at any time. For the latest, most up to date comprehensive warranty, go to www.kraususa.com/warranty...
  • Page 12 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
