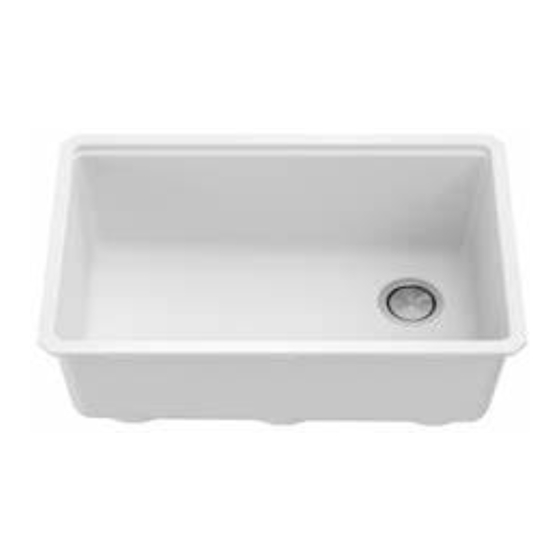

- Page 1 INSTALLATION MANUAL Ripiano Series Undermount Kitchen Sinks KGUW1-30 / KGUW1-33 KGUW2-30 / KGUW2-33 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2020 Kraus USA Inc. I REV. October 26, 2020...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
- Page 3 Toll-Free: 800-775-0703 or customerservice@kraususa.com The step-by-step guidelines in the installation instructions are a general reference for installing a Kraus sink. Should there be any discrepancies, Kraus cannot be held liable. It is recommended to install all Kraus products by hiring a licensed professional.
-
Page 4: Tools You Will Need
Silicone Adhesive Jig Saw Tape Measure Phillips Screwdriver Pencil Masking Tape Hole Saw NOTE: Specialized tools may be necessary to install Kraus Granite Kitchen sinks with countertop materials other than wood, marble or granite. Parts List KGUW1-30 KGUW2-30 · Cut-Out Template ·... -
Page 5: Hardware Included
Hardware (Included) Kit for Undermount Installation Important Instructions may vary depending on countertop material. Read all instructions · carefully, and ensure that counters are compatible with sink installation before proceeding. · Follow the plumber’s code and builder’s code effective in your area. ·... - Page 6 R1" R1" 3 5/8" 3 5/8" (24mm) (24mm) (93.7mm) (93.7mm) Model #: KGUW1-30 Model #: KGUW1-33 Sink Dimensions: 29” x 19” x 10” Sink Dimensions: 32” x 19” x 10” Min Cabinet Size: 33” Min Cabinet Size: 36” R5/8" R5/8"...
- Page 7 Step 1. Determine Reveal Type · Use scissors to cut along the line of the paper template for your desired reveal type (Negative, Positive, or Flushed Reveal) KRAUS Recommended Installation Type 3/8” Positive Reveal Flushed/Zero Reveal 3/8” POSITIVE FLUSHED/ZERO Centerline...
- Page 8 Step 2. Position Template Check the cut-out template against the actual sink to ensure a proper sized cut-out. · · Place the cut-out template in the desired location on the countertop. NOTE: Make sure clearance is suitable for backsplash, faucet and plumbing for the sink.
- Page 9 Step 3. Trace Template · Trace template on countertop with a pencil.
- Page 10 Step 4. Cut Countertop · Cut the opening in the countertop by carefully following the traced line. NOTE: Please use the appropriate saw that best fits your countertop material.
- Page 11 Step 5. Set up Mounting Brackets • Turn countertop over and align sink with countertop. Decide location for mounting brackets around the frame at a distance of about 1/4” (6.4mm) from the edge. • Mounting holes should be 1/4" from the edge of the sink. 1/4"...
- Page 12 Step 7. Install Anchors • Add adhesive (optional) in the holes and then insert anchors into drilled holes and lightly tap with a hammer until flush. Step 8. Secure Sink to Countertop · Use a bead of silicone (or preferred adhesive) around the rim of the sink. Check the alignment of the sink to the cutout in the countertop.
-
Page 13: Step 9. Attach Mounting Hardware
Step 9. Attach Mounting Hardware • Attach mounting hardware to secure bowl. Remove excess sealant from inside lip. • Allow sealant to set for 30 - 60 minutes. NOTE: Use rubbing alcohol to remove any excess sealant. SEALANT BRASS INSERT SUPPORT METAL SCREW Step 10. - Page 14 Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.
- Page 15 Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050 Toll-free 800-775-0703 Customerservice@kraususa.com If you are a plumbing contractor or trade professional please contact a Kraus Pro Representative at: Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050 516-801-8955 Proservice@kraususa.com...
- Page 16 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
-
Page 17: Installation Instructions
Installation Instructions Kraus Kitchen Sink Strainer ST-4 Pull knob & basket assembly Step 1: Remove the pull knob and basket assembly Main connecting screw Step 2: Disassemble the outlet by removing the main connecting screw (screw will be reinstalled in Step 5)
