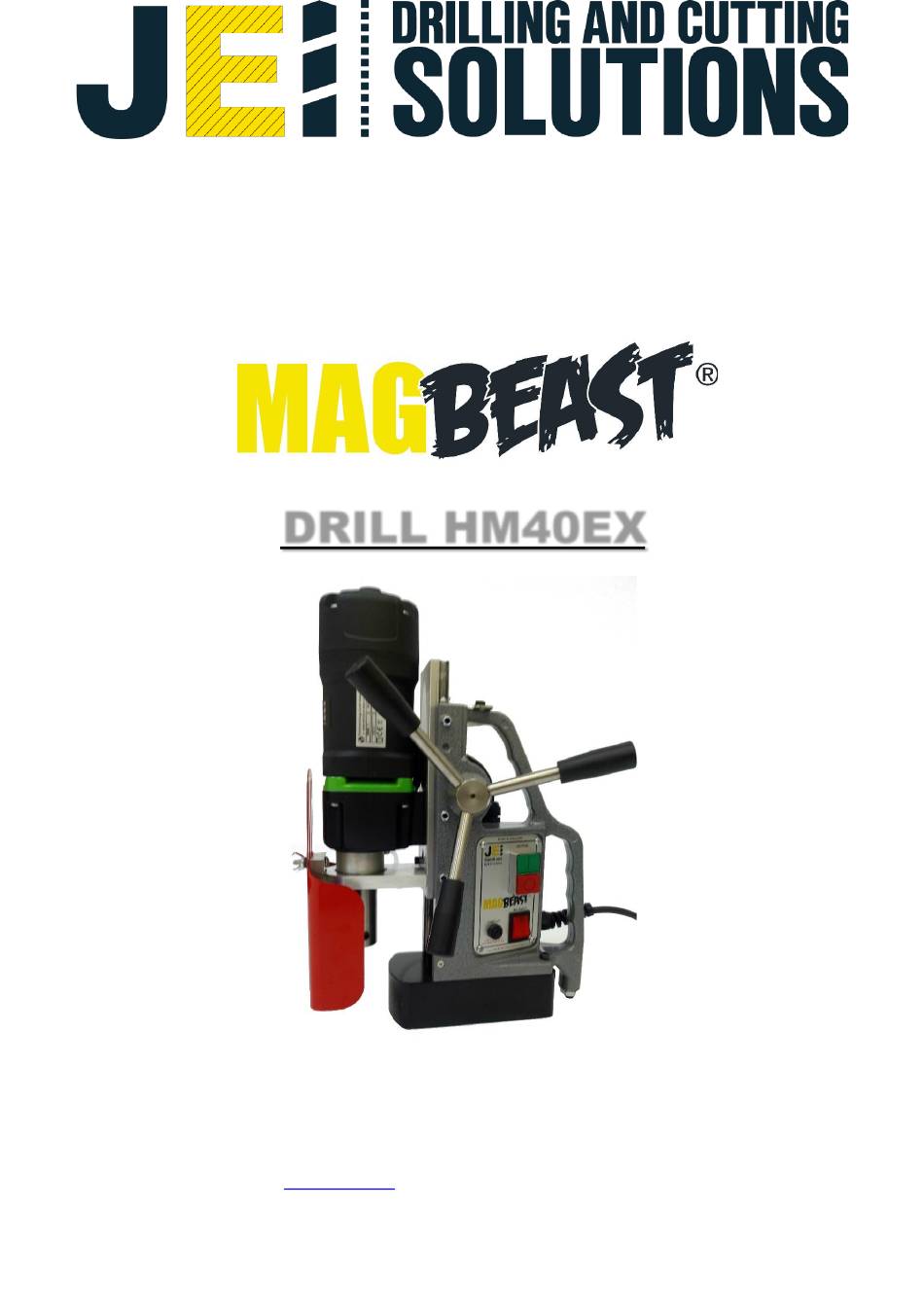

- Page 1 SAFETY INSTRUCTIONS AND OPERATORS MANUAL FOR DRILLING MACHINE DRILL HM40EX JEI Drilling & Cutting Solutions Ltd Unit 21 Empire Business Park, Enterprise Way, Burnley, Lancashire England BB12 6LT U.K. Tel. +44 (0)1706 229490 Fax. +44 (0)1706 507347 www.jeiuk.com e-mail: sales@jeisolutions.co.uk...
-
Page 2: Electrical Connection
• Safety Chain • Allen key and jib strip adjustment • Allen key for Arbor • Chuck & Key (Optional extra JEI PART # JEICA-13MM/19 ELECTRICAL CONNECTION Before starting the machine, please check the correspondence between voltage and frequency against the data mentioned on the identification plate. Voltage differences of + 6% and –... - Page 3 6. Remove rings, watches, ties etc that could tangle in the moving machine parts 7. Keep the unit and the workplace as clear of dirt and swarf as possible – check out JEI Magbrushes for quick and effective collection of swarf.
- Page 4 8. DRESS PROPERLY: Do not use wear loose clothing. They can be caught in moving parts. Rubber gloves and non-skid footwear are recommended when working outdoors. Wear protective hair covering to contain long hair. 9. USE SAFETY GLASES: All persons in the area where power tools are being operated should also wear safety eye protectors and face or dust masks.
-
Page 5: Enviromental Protection
22. CONFIRM THAT NO ITEMS SUCH AS AN ELECTRIC CABLE OR CONDUIT ARE BURIED INSIDE: In places where live wiring may be hidden behind a wall, floor, ceiling, etc. Do not hold or contact any metal parts of the tool. In such cases metal parts could become electrically live and present a serious shock hazard. - Page 6 The tools plastic components are marked accordingly to their material, which makes it possible to remove environmental friendly and differentiated because of available collection facilities. ONLY FOR EU COUNTRIES Do not dispose of household tools together with household waste material, In observance of European directive 2012/19/EU on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to...
-
Page 7: Operating The Machine
Certain kinds of dust are classified as carcinogenic such as oak and beech dust especially in conjunction with additives for wood conditioning (chromate, wood preservative). Material containing asbestos must only be treated by specialists. OPERATING THE MACHINE a) Fitting the cutter or drills, always unplug the power source to the machine before fitting or removing cutters or drills into the arbour. -
Page 8: Mounting The Tool
Stop motor, switch off magnet. WARNING: Under no circumstances try to remove turnings or swarf from the cutter when machine is in operation. NEVER introduce and body parts to moving parts of the machine when it is switched on. This document is issued for general information and instruction and as such does not constitute a specification of the equipment. - Page 9 Magbeast HM40 Spare Parts List MAGNET BASE - HM40EX-01 STABILIZER BOLT - HM50-02 M4 RAIL FIXING BOLT - HM50-03A M6 CASTING/MAGNET FIXING BOLT - HM50-04 MAINS CABLE - 0012180 MAGNET/POWER SWITCH - 35708 FUSE HOLDER - HM50-07 CABLE GLAND FOR MAINS CABLE SWITCH PLATE - HM50SP MOTOR STOP/START SWITCH - 22709.3-110V OR 220V M5 RAIL ADJUSTMENT SCREWS/...
-
Page 10: Motor Diagram
www.jeiuk.com MOTOR DIAGRAM. - Page 11 www.jeiuk.com MOTOR DIAGRAM PARTS LIST. No DESCRIPTION PART NUMBER PIECES Cap Screws HC 4, 8x50 HM40.EX-01 Motor Top Cap HM40.EX-02 Brusholder Assembly HM56 Carbon Brush 6,3,10x18 HM57 Brusholder Mount Screw ZM4x12 HM111 Washer HM109 Motor Housing HM40.EX-07 Field Coil HM40.EX08 (220V) / HM40.EX08/1 (110V) Screw HM543 Fan Ring...
- Page 12 RevNo Revision note Date Signature Checked 110V 110v AC MOTOR MAINS MOTOR START POWER / STOP CORD SWITCH CHASSIS 20 AMP DPDT © ROCKER SWITCH MAGNET 2A FUSE ANTISURGE BRIDGE RECTIFIER�-----<) <:t' MAGNET ..POWER ..SWITCH § � � E �...
- Page 13 220V...
- Page 14 MagBeast DECLARATION OF CONFORMITY EC Declaration of Conformity JEI Drilling & Cutting Solutions Ltd Unit 21, Empire Business Park, Enterprise Way, Burnley, Lancashire, UK, BB12 6LT Declare with full responsibility that product: MAGBEAST HM40EX DRILLING MACHINE WITH ELECTROMAGNETIC BASE which the declaration applies to is in accordance with the following standards:...
- Page 15 International representative for our international customers for examination and verification of the claimed defects. If defect is verified, JEI Group Ltd will replace, free of charge, any defective parts. If inspection of the machine does not disclose any defect in workmanship or materials, the original purchaser will be notified by JEI Group Ltd, or its representative, of the costs of necessary repairs.
