Summary of Contents for JEI MAGBEAST HM100

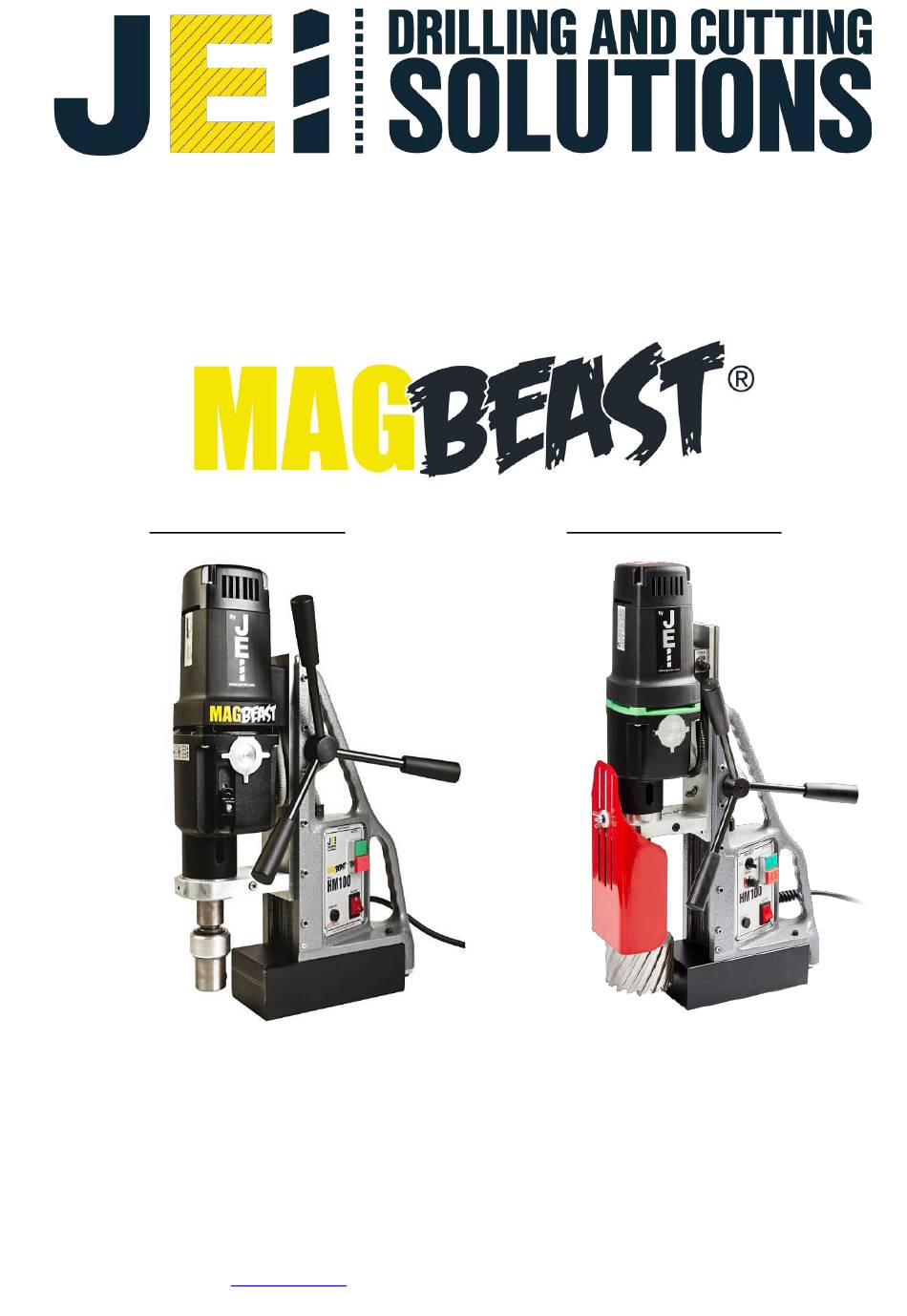

- Page 1 SAFETY INSTRUCTIONS AND OPERATORS’ MANUAL FOR DRILLING MACHINE DRILL HM100 DRILL HM100T JEI DRILLING & CUTTING SOLUTIONS LTD Unit 21 Empire Business Park, Enterprise Way, Burnley, Lancashire England BB12 6LT U.K. Tel. +44 (0)1706 229490 P a g e www.jeiuk.com...
- Page 2 6. Remove rings, watches, ties etc. that could tangle in the moving machine parts 7. Keep the unit and the workplace as clear of dirt and swarf as possible – check out JEI Magbrushes for quick and effective collection of swarf.
- Page 3 IMPORTANT SAFETY INFORMATION: SAFETY RULES FOR POWER TOOLS WARNING: When using electric tools, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury. READ ALL THE INSTRUCTIONS 1. KEEP WORK AREA CLEAN: Cluttered areas and benches invite injures 2.
- Page 4 Keep handles dry, clean, and free from oil and grease. 14. DISCONNECT TOOLS: When not in use, before servicing and when changing accessories, such as blades, bits and cutters. 15. REMOVE ADJUSTING KEYS AND WRENCHES: Form habit of checking to see that keys and adjusting wrenches are removed from tool before turning it on.
-
Page 5: Enviromental Protection
26. ALWAYS KEEP THE MOTOR AIR VENT FULLY OPENED: A constantly open motor vent is necessary to allow air to come in and out for cooling the motor. Do not allow it to become clogged up, even if the dust is blown through it. 27. -
Page 6: Safety Clutch
The indication of noise emission is measured according to DIN 45 635, part 21. Level of acoustic pressure on the work place could exceed 85 dB (A) in this case protection measures must be taken. WEAR EAR PROTECTORS! The typical hand arm vibration is now below 2.5m/s 2 Measured values determined according to EN 50 144 The declared vibration emission level represents the main applications of the tool. -
Page 7: Mounting The Tool
Plug the power cable in to a suitable power supply (using extension lead of the correct rating if necessary) The use of an RCD is also highly recommended. b) Drilling – Broaching Energise the magnet by switching on the magnet switch Check the magnet is holding to the work piece. -
Page 8: Removing The Tool
Twist Drills: Drills with MT3 connection can be directly fitted in the drill spindle. For twist drills with MT2 connection use a reducing sleeve MT3 – MT2 For twist drills with parallel shank use a drill chuck B18 with appropriate taper mandrel MT3 – B18 Core Drills: For working with core drills you need a mount MT3 –... - Page 9 HM100/HM100T...
- Page 10 HM100/HM100T/S PARTS LIST MAGNET BASE HM100-1 MAIN BODY CASTING HM100-03 MOTOR STOP/START SWITCH HM100-34 MAGNET/POWER SWITCH 35708 FUSE HOLDER HM100-32 BARE SWITCH PANEL HM100-30 HM100 COMPLETE SWITCH PANEL HM100-7 HM100T COMPLETE SWITCH PANEL HM100T-PA/2 SWITCH PLATE FIXING SCREWS (4) HM100-38 CABLE GLAND FOR MAINS CABLE 0151064 MAINS CABLE...
- Page 11 HM100 Motor Diagram 13 | P a g e...
- Page 12 MOTOR SPARE PARTS No. Description Part No Description Part No rotor complete 220V HM101 grooved ball bearing 6006 2RS HM135 grooved ball bearing 6000 2Z HM102 grooved ball bearing 6000 HM136 bearing cap HM103 needle sleeve HK 0810 HM137 air guiding ring HM104 coupling complete HM138...
- Page 13 14 | P a g e...
- Page 14 MagBeast DECLARATION OF CONFORMITY EC Declaration of Conformity JEI Drilling & Cutting Solutions Ltd Unit 21, Empire Business Park, Enterprise Way, Burnley, Lancashire, UK, BB12 6LT Declare with full responsibility that product: MAGBEAST HM100 / HM100T DRILLING MACHINE WITH ELECTROMAGNETIC BASE...
- Page 15 Burnley, Lancs. Or our International representative for our international customers for examination and verification of the claimed defects. If defect is verified, JEI Group Ltd will replace, free of charge, any defective parts. If inspection of the machine does not disclose any defect in workmanship or materials, the original purchaser will be notified by JEI Group Ltd, or its representative, of the costs of necessary repairs.
