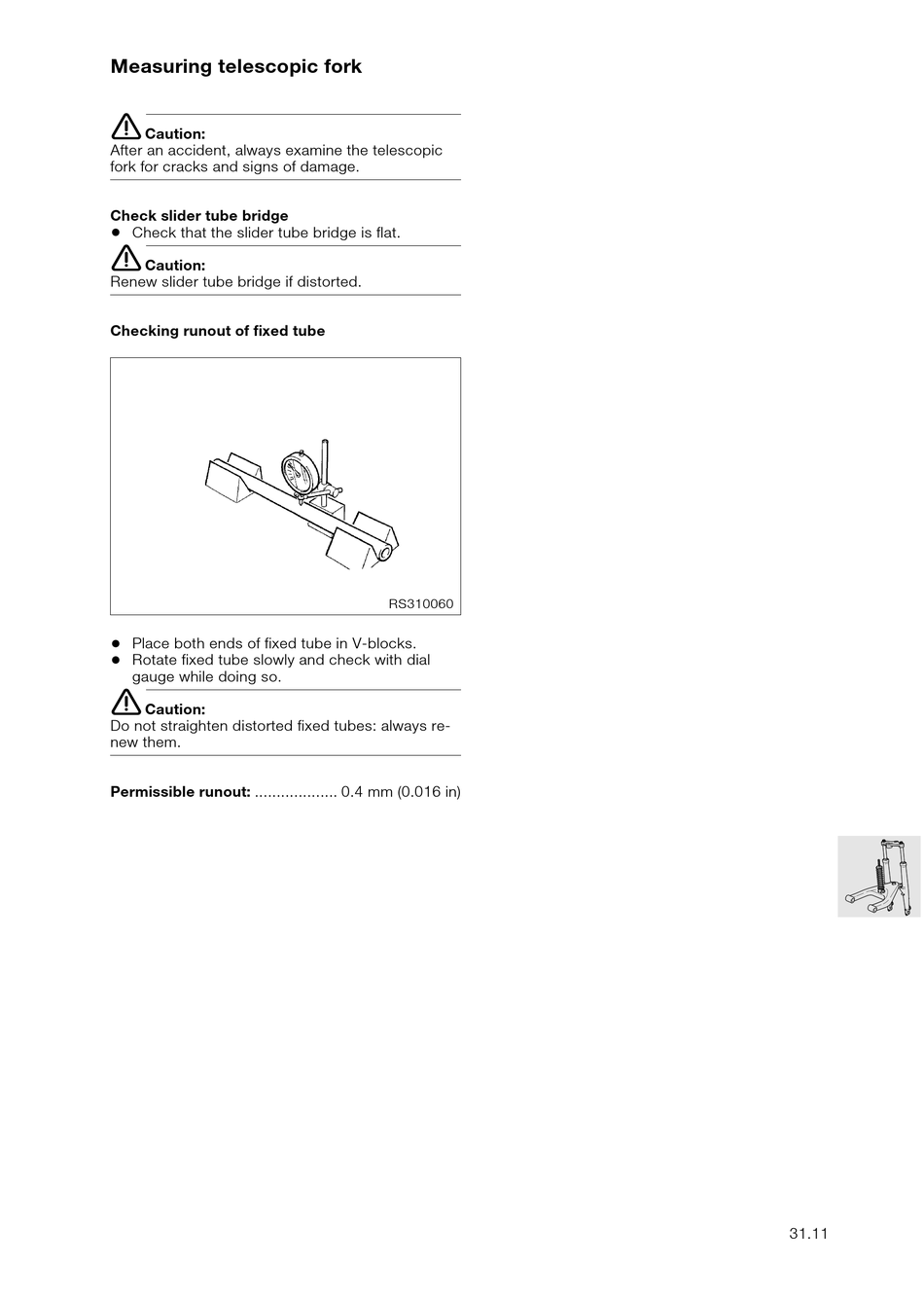

Measuring telescopic fork

e
Caution:
After an accident, always examine the telescopic
fork for cracks and signs of damage.

Check slider tube bridge

•
Check that the slider tube bridge is flat.
e
Caution:
Renew slider tube bridge if distorted.

Checking runout of fixed tube

•
Place both ends of fixed tube in V-blocks.
•
Rotate fixed tube slowly and check with dial
gauge while doing so.
e
Caution:
Do not straighten distorted fixed tubes: always re-
new them.
Permissible runout: ................... 0.4 mm (0.016 in)
RS310060
