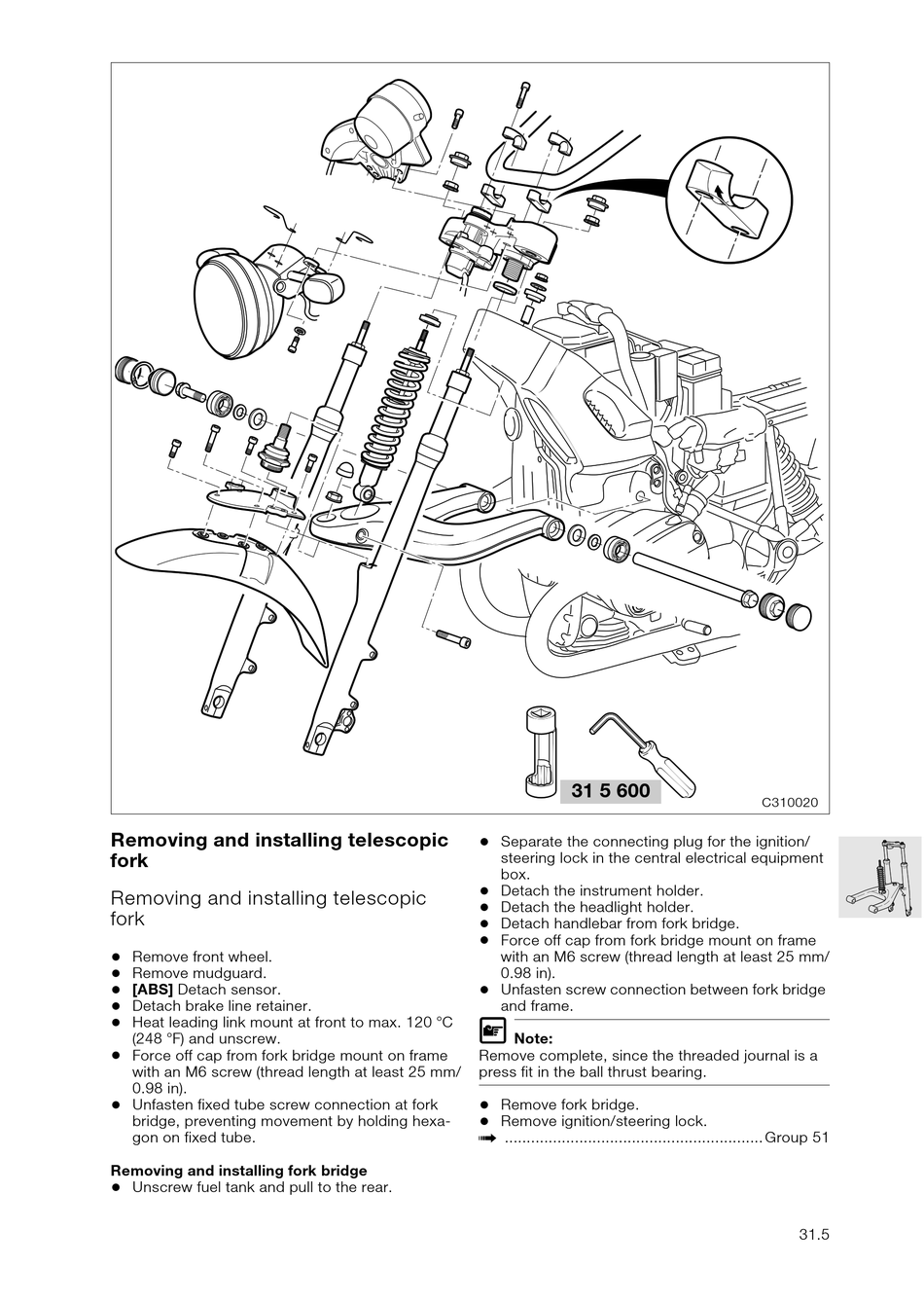

Removing and installing telescopic
fork
Removing and installing telescopic
fork
•
Remove front wheel.
•
Remove mudguard.
•
[ABS] Detach sensor.
•
Detach brake line retainer.
•
Heat leading link mount at front to max. 120 °C
(248 °F) and unscrew.
•
Force off cap from fork bridge mount on frame
with an M6 screw (thread length at least 25 mm/
0.98 in).
•
Unfasten fixed tube screw connection at fork
bridge, preventing movement by holding hexa-
gon on fixed tube.

Removing and installing fork bridge

•
Unscrew fuel tank and pull to the rear.
31 5 600
•
Separate the connecting plug for the ignition/
steering lock in the central electrical equipment
box.
•
Detach the instrument holder.
•
Detach the headlight holder.
•
Detach handlebar from fork bridge.
•
Force off cap from fork bridge mount on frame
with an M6 screw (thread length at least 25 mm/
0.98 in).
•
Unfasten screw connection between fork bridge
and frame.
L
Note:
Remove complete, since the threaded journal is a
press fit in the ball thrust bearing.
•
Remove fork bridge.
•
Remove ignition/steering lock.
........................................................... Group 51
a
C310020
31.5
