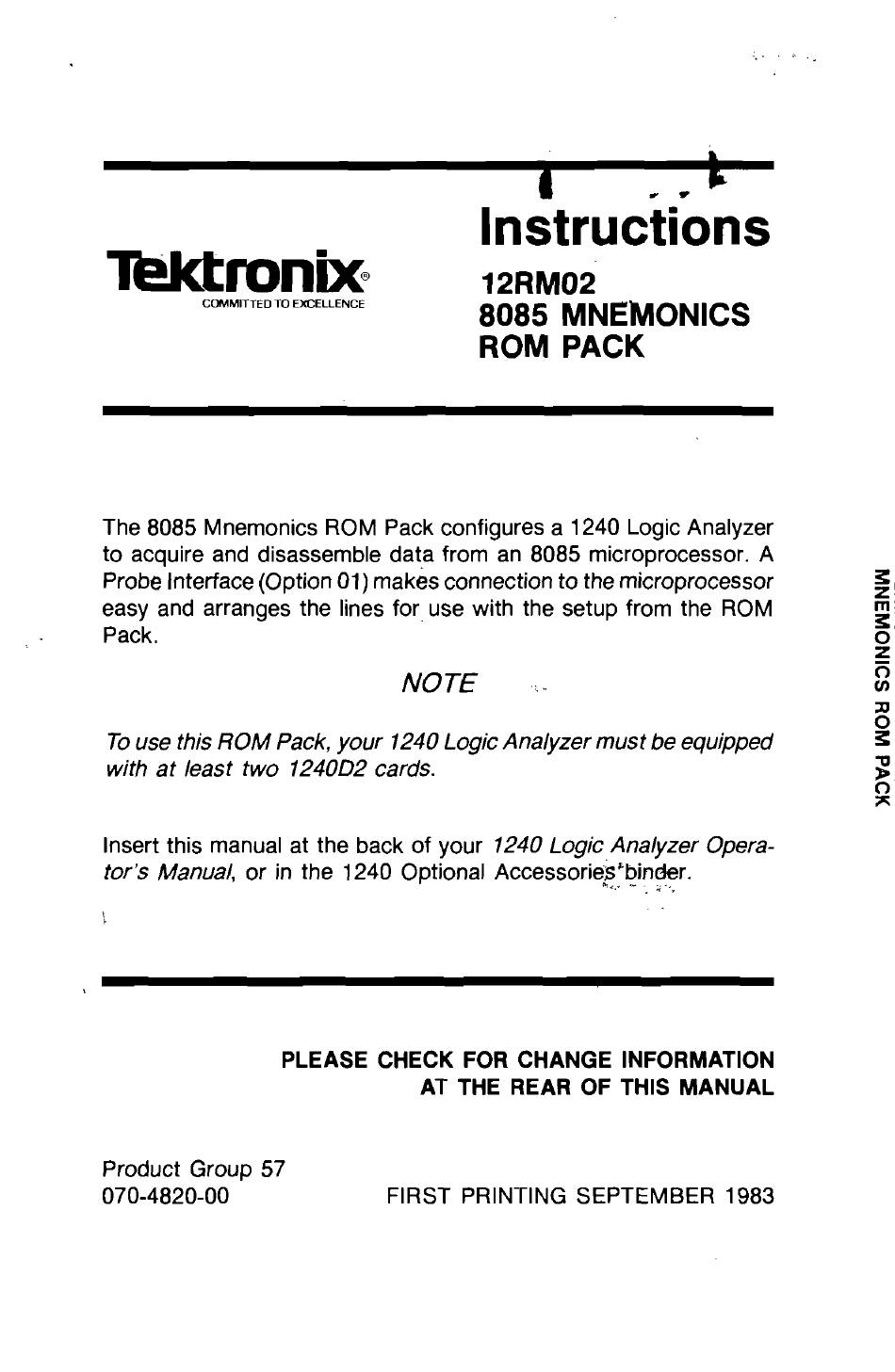

Tektronix 12RM02 Instructions Manual

| |
ROM PACK
The 8085 Mnemonics ROM Pack configures a 1240 Logic Analyzer
to acquire and disassemble data from an 8085 microprocessor. A
Probe Interface (Option 01) makes connection to the microprocessor
easy and arranges the lines for use with the setup from the ROM
To use this ROM Pack, your 1240 Logic Analyzer must be equipped
with at least two 1240D2 cards.
Insert this manual at the back of your 1240 Logic Analyzer Opera-
tor's Manual, or in the 1240 Optional Accessories "binder.
PLEASE CHECK FOR CHANGE INFORMATION
AT THE REAR OF THIS MANUAL
Product Group 57
070-4820-00 FIRST PRINTING SEPTEMBER 1983
