3.5 ghz 50 ohm rf module
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Keithley Instruments
28775 Aurora Road
Cleveland, Ohio 44139
1-800-935-5595
tek.com/keithley

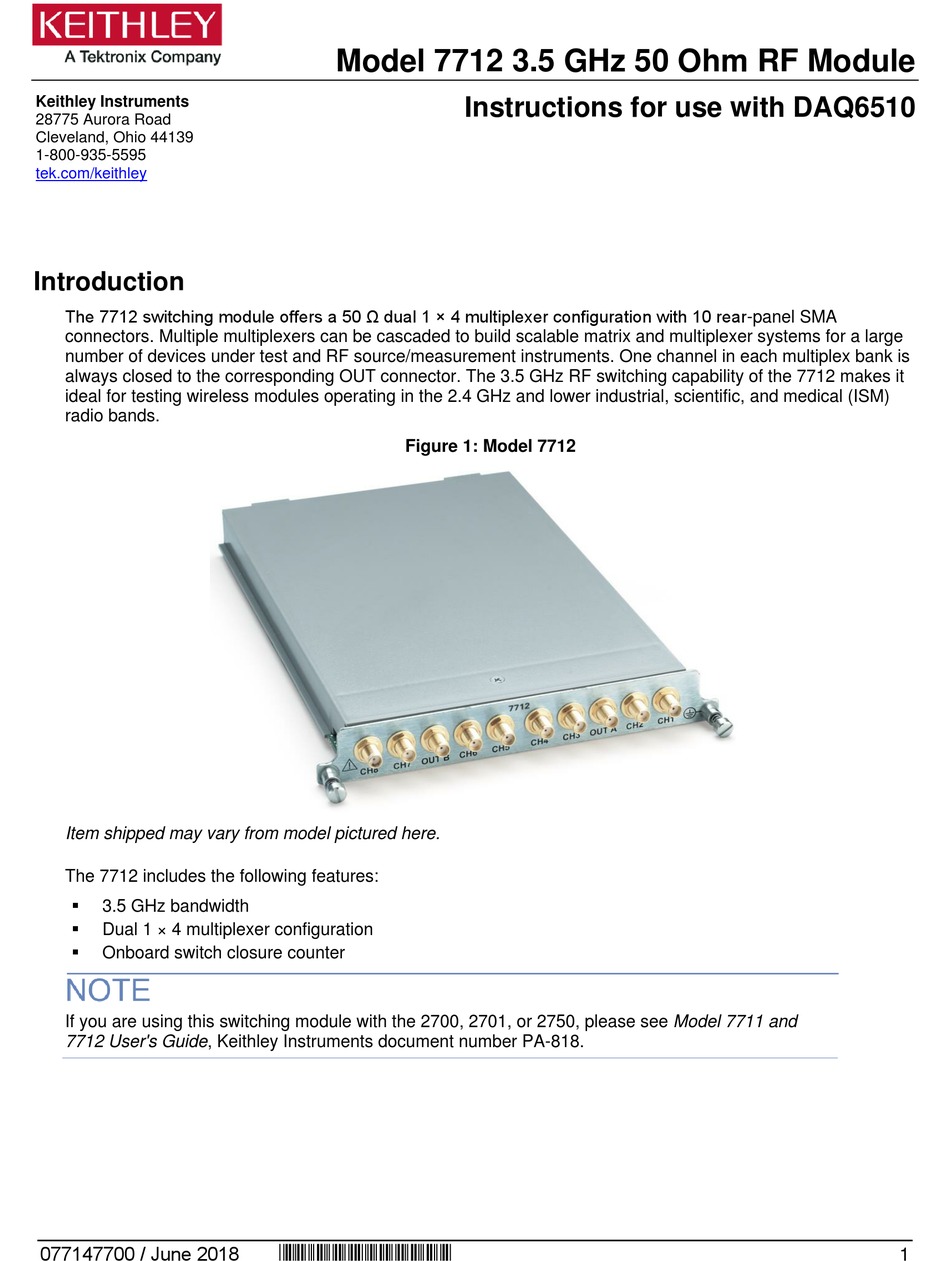

Introduction
The 7712 switching module offers a 50 Ω dual 1 × 4 multiplexer configuration with 10 rear-panel SMA
connectors. Multiple multiplexers can be cascaded to build scalable matrix and multiplexer systems for a large
number of devices under test and RF source/measurement instruments. One channel in each multiplex bank is
always closed to the corresponding OUT connector. The 3.5 GHz RF switching capability of the 7712 makes it
ideal for testing wireless modules operating in the 2.4 GHz and lower industrial, scientific, and medical (ISM)
radio bands.
Item shipped may vary from model pictured here.
The 7712 includes the following features:
▪
3.5 GHz bandwidth
▪
Dual 1 × 4 multiplexer configuration
▪
Onboard switch closure counter
If you are using this switching module with the 2700, 2701, or 2750, please see Model 7711 and
7712 User's Guide, Keithley Instruments document number PA-818.
077147700 / June 2018
Model 7712 3.5 GHz 50 Ohm RF Module

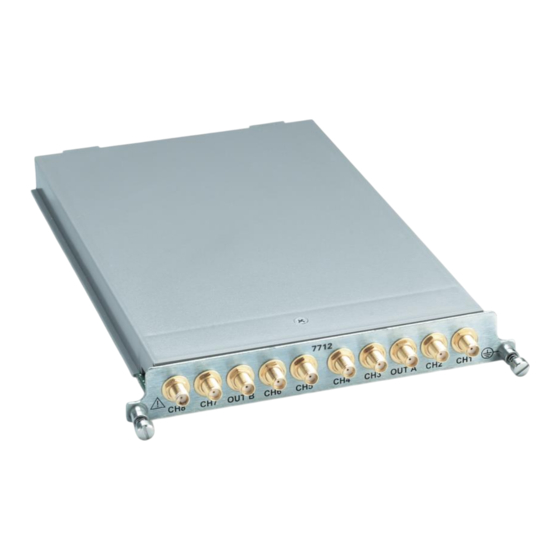

Figure 1: Model 7712
*P07714700*
Instructions for use with DAQ6510
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KEITHLEY 7712 and is the answer not in the manual?

Questions and answers

Related Manuals for Tektronix KEITHLEY 7712

Summary of Contents for Tektronix KEITHLEY 7712

  • Page 1 Model 7712 3.5 GHz 50 Ohm RF Module Keithley Instruments Instructions for use with DAQ6510 28775 Aurora Road Cleveland, Ohio 44139 1-800-935-5595 tek.com/keithley Introduction The 7712 switching module offers a 50 Ω dual 1 × 4 multiplexer configuration with 10 rear-panel SMA connectors.

  • Page 2: Installation

    Model 7712 3.5 GHz 50 Ohm RF Module Instructions for use with DAQ6510 Installation Before operating an instrument with a switching module, verify that the switching module is properly installed and the mounting screws are tightly fastened. If the mounting screws are not properly connected, an electrical shock hazard may be present.
  • Page 3 Model 7712 3.5 GHz 50 Ohm RF Module Instructions for use with DAQ6510 To install a switching module into the DAQ6510: 1. Turn off the DAQ6510. 2. Disconnect the power cord from the power source. 3. Disconnect the power cord and any other cables that are connected to the rear panel. 4.

  • Page 4: Wiring Procedure

    Model 7712 3.5 GHz 50 Ohm RF Module Instructions for use with DAQ6510 To remove a switching module from the DAQ6510: 1. Turn off the DAQ6510. 2. Disconnect the power cord from the power source. 3. Disconnect the power cord and any other cables that are connected to the rear panel. 4.
  • Page 5 Model 7712 3.5 GHz 50 Ohm RF Module Instructions for use with DAQ6510 Make connections with the correct wire size. If BNC connections are required, use the SMA to BNC adapter cables available as accessories. All wiring must be rated for the maximum voltage in the system. For example, if 1000 V is applied to the front terminals of the instrument, the switching module wiring must be rated for 1000 V.
  • Page 6 Model 7712 3.5 GHz 50 Ohm RF Module Instructions for use with DAQ6510 Multiplexer examples SP8T MUX This example creates a 1 × 8 SP8T MUX (single-pole eight-throw multiplexer) using two switching modules. Channels 1 and 2 are connected to OUT A and OUT B of the second switching module in slot two. Terminate unused channels with a 50 Ω...
  • Page 7 Model 7712 3.5 GHz 50 Ohm RF Module Instructions for use with DAQ6510 SP12T MUX To create a 1 × 12 SP12T MUX (single-pole 12-throw multiplexer) using two switching modules, channels 1 and 2 are connected to OUT A and OUT B of the second switching module in slot 2. Terminate unused channels with a 50 Ω...

  • Page 8: Measurement Considerations

    Model 7712 3.5 GHz 50 Ohm RF Module Instructions for use with DAQ6510 Single switching module 4 × 4 blocking matrix This configuration provides a convenient way to connect four DUTs to four different test instruments. In this configuration, channels 1 to 4 may be routed to channels 5 to 8. Use a short coaxial cable to connect OUT A to OUT B.

  • Page 9: Power Handling

    Model 7712 3.5 GHz 50 Ohm RF Module Instructions for use with DAQ6510 Power handling The graph shows the maximum amount of power per channel that can be routed using the switching module while maintaining proper digital multimeter accuracy. Power levels of up to 10 watts at frequencies greater than 200 MHz can be used, but this may cause measurement errors.

  • Page 10: Performance Verification

    ▪ Tektronix test port cables, Type-N(m) to Type-SMA(m), 1 m (012-1770-00) ▪ Tektronix 3.5 mm SOLT mechanical calibration kit 0 to 32 GHz, Spinner BN 53 38 54 (CALMECH-35MM) Prepare for verification To prepare for verification: 1. Turn on the network analyzer and the DAQ6510 with the switching module installed.
  • Page 11 Model 7712 3.5 GHz 50 Ohm RF Module Instructions for use with DAQ6510 VSWR To verify VSWR: 1. Connect network analyzer Port 1 to channel 1 and Port 2 to OUT A. 2. On the DAQ6510, close channel 1. 3. On the network analyzer, display the VSWR graph. 4.

  • Page 12: Insertion Loss

    Model 7712 3.5 GHz 50 Ohm RF Module Instructions for use with DAQ6510 Insertion loss To verify insertion loss: 1. Connect network analyzer Port 1 to channel 1 and Port 2 to OUT A. 2. On the DAQ6510, close channel 1. 3.

  • Page 13: Factory Service

    Factory service To return the switching module to Keithley Instruments for repair: ▪ Call the Repair Department at 1-800-833-9200 or send an email to RMAREQUEST@tektronix.com for a Return Material Authorization (RMA) number. ▪ Carefully pack the instrument in the original packing carton.

  • Page 14: Safety Precautions

    Safety precautions The following safety precautions should be observed before using this product and any associated instrumentation. Although some instruments and accessories would normally be used with nonhazardous voltages, there are situations where hazardous conditions may be present. This product is intended for use by personnel who recognize shock hazards and are familiar with the safety precautions required to avoid possible injury.
  • Page 15 For safety, instruments and accessories must be used in accordance with the operating instructions. If the instruments or accessories are used in a manner not specified in the operating instructions, the protection provided by the equipment may be impaired. Do not exceed the maximum signal levels of the instruments and accessories. Maximum signal levels are defined in the specifications and operating information and shown on the instrument panels, test fixture panels, and switching cards.
