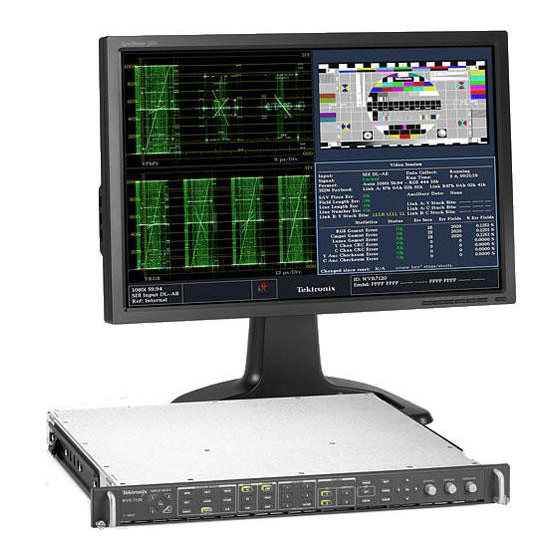

Tektronix WVR6020 Quick Start Manual

Waveform rasterizers
Hide thumbs Also See for WVR6020:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual
WVR6020, WVR7020, WVR7120,
xx
WVR6100 Opt. MB, WVR7000 Opt. MB,
and WVR7100 Opt. MB
Waveform Rasterizers
ZZZ
Quick Start User Manual
www.tektronix.com
071-2231-02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WVR6020 and is the answer not in the manual?

Questions and answers

Related Manuals for Tektronix WVR6020

Summary of Contents for Tektronix WVR6020

  • Page 1 WVR6020, WVR7020, WVR7120, WVR6100 Opt. MB, WVR7000 Opt. MB, and WVR7100 Opt. MB Waveform Rasterizers Quick Start User Manual www.tektronix.com 071-2231-02...
  • Page 2 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
  • Page 3 Warranty 2 Tektronix warrants that this product will be free from defects in materials and workmanship for a period of one (1) year from the date of shipment. If any such product proves defective during this warranty period, Tektronix, at its option, either will repair the defective product without charge for parts and labor, or will provide a replacement in exchange for the defective product.
  • Page 5 Table of Contents Table of Contents General Safety Summary ......................Environmental Considerations .
  • Page 6 Table of Contents Monitoring the SDI Physical Layer ....................Display Types .
  • Page 7 General Safety Summary General Safety Summary Review the following safety precautions to avoid injury and prevent damage to this product or any products connected to it. To avoid potential hazards, use this product only as specified. Only qualified personnel should perform service procedures. While using this product, you may need to access other parts of a larger system.
  • Page 8 General Safety Summary Terms in this Manual These terms may appear in this manual: WARNING. Warning statements identify conditions or practices that could result in injury or loss of life. CAUTION. Caution statements identify conditions or practices that could result in damage to this product or other property. Symbols and Terms on the Product These terms may appear on the product: DANGER indicates an injury hazard immediately accessible as you read the marking.

  • Page 9: Environmental Considerations

    The symbol shown below indicates that this product complies with the European Union’s requirements according to Directive 2002/96/EC on waste electrical and electronic equipment (WEEE). For information about recycling options, check the Support/Service section of the Tektronix Web site (www.tektronix.com). Perchlorate Materials.
  • Page 10 EN 61000-3-2:2000. AC power line harmonic emissions EN 61000-3-3:1995. Voltage changes, fluctuations, and flicker European Contact. Tektronix UK, Ltd. Western Peninsula Western Road Bracknell, RG12 1RF United Kingdom To ensure compliance with the EMC standards listed here, high quality shielded interface cables should be used.
  • Page 11 Environmental Considerations EC Declaration of Conformity – Low Voltage Compliance was demonstrated to the following specification as listed in the Official Journal of the European Communities: Low Voltage Directive2006/96/EC. EN 61010-1: 2001. Safety requirements for electrical equipment for measurement control and laboratory use. U.S.
  • Page 12 Environmental Considerations Pollution Degree Pollution Degree 2 (as defined in IEC 61010-1). Note: Rated for indoor use only. viii Waveform Rasterizers Quick Start User Manual...

  • Page 13: Key Features

    WVR7100 with Option MB Key Features Tektronix waveform rasterizers can help you monitor and measure SD SDI, HD SDI, and/or composite analog signals. All instrument models come standard with SD SDI input monitoring capabilities. The following table includes key features available on standard equipped instruments.
  • Page 14 Support and options for viewing and monitoring both levels of normal channel pairs for AES, analog, embedded audio, and Dolby signals (Dolby support available with the WVR6020 and WVR7120, only). Loudness measurement, audio control packet coding, and many popular audio scales, including BBC scales, are also supported.
  • Page 15 Preface Instrument Options The WVR6020, WVR7020, and WVR7120 ship with support for monitoring standard definition (SD) serial digital signals. The following options are available for purchase with the indicated instrument models. You can verify which options are installed on your instrument after power-up by pressing the CONFIG button and looking under the View HW/SW Options submenu.

  • Page 16: Where To Find More Information

    Preface Where to Find More Information Item Purpose Location Quick Start User Manual Installation and (this manual) high-level overview of instrument operation Technical Reference In-depth descriptions of instrument operation Online Help In-depth instrument operation and UI help Specifications and Specifications and Performance Verification procedure for checking Technical Reference...

  • Page 17: Installation

    (including the anti-static bag) in case you need to ship the instrument. Accessories The table below shows which items are standard accessories and which items are optional accessories. Check the Tektronix Web site (www.tektronix.com) for the most current information on accessories.

  • Page 18: Operating Considerations

    Installation International Power Plugs. Your instrument was shipped with one of the following power cord options. Power cords for use in North America are UL listed and CSA certified. Cords for use in areas other than North America are approved by at least one authority acceptable in the country to which the product is shipped.

  • Page 19: Rackmount Installation

    Installation Rackmount Installation Install your instrument into a standard instrumentation rack. The following procedure will help you do this for both the standard instrument configuration and for instruments configured with the remote front panel option. Your instrument ships with hardware for rackmounting and fits in a standard 19-inch rack.
  • Page 20 Installation 2. Screw-mount to the front rail as shown. 3. Install bar nut if the front rail mounting hole is not tapped. 4. For a deep configuration, rear mount as shown. Make sure that the stationary sections are horizontally aligned, level, and parallel.
  • Page 21 Installation To Install the Instrument 1. Pull the slide-out track section to the fully extended position. 2. Insert the instrument chassis sections into the slide-out sections. 3. Press the stop latches, and push the instrument toward the rack until the latches snap into their holes.

  • Page 22: Connecting A Display

    Installation To Remove the Instrument 1. Before removing the instrument, be sure to disconnect all cabling. 2. Loosen retaining screw and pull instrument outward until the stop latches snap into the holes. 3. Press stop latches (visible in the stop-latch holes) and carefully slide the instrument free from the tracks.

  • Page 23: Connecting Power And Powering On/Off

    Installation 1. Loosen the front-panel knurled retaining screw. 2. Grasp the front handles and pull the instrument out until all three slide sections latch. The instrument is firmly held in this position and you are now ready to connect power and signal cables to the instrument.

  • Page 24: Installing In A Video System

    Installation Installing in a Video System This instrument can operate almost anywhere in the distribution system due to its high impedance, bridging, and loop-through inputs. This section describes two types of connections and presents information on line termination. The following diagrams are for serial digital systems, but similar connections are common for the analog composite inputs on this instrument.
  • Page 25 Installation For monitoring serial digital signals around a routing switcher 1. Connect your serial sources through a patch panel to a serial router. 2. Connect the output of the serial router to a SDI loop-through input for comparison. 3. Connect the other SDI loop-through input to the patch panel to jumper the signal that you want to compare to signal connected in step 2.
  • Page 26 Installation The loop-through capability is especially useful with the EYE and PHY options because it allows inspection of the actual signal on the cable. However, the signal received by the instrument is also dependent on the quality of the downstream cabling and termination.

  • Page 27: Getting Acquainted With Your Instrument

    Getting Acquainted With Your Instrument Getting Acquainted With Your Instrument Instrument Display This instrument uses FlexVu™, which is a flexible, four-tiled display that can show four tiles at one time or a single, full-screen sized tile. Each tile can display a different measurement, effectively creating four independent instruments. In order to allow the tiles to function independently, most of the controls affect only one tile at a time.
  • Page 28 Getting Acquainted With Your Instrument 3. To display the selected tile full screen, toggle the FULL button until it is lit and the selected tile fills the screen. In a full display, the displayed tile is always selected. 4. To select another tile, just push its button.
  • Page 29 Getting Acquainted With Your Instrument To Determine Status At-a-Glance The Status Bar, located at the bottom of the instrument display, shows instrument status and monitored signal information. In Figure 1, the various elements detailed describe the conditions that you can see at a glance. Figure 2 shows how the status bar is configured when in simultaneous input monitoring mode (requires Option SIM).

  • Page 30: Front-Panel Controls

    Getting Acquainted With Your Instrument Display element Description Timecode Readout A readout showing the selected time-code value. Reference Source Text indicating the source of the current reference. Possible references are: Ext., Internal. Also indicates format and whether the reference is missing or unlocked. Current Input Text indicating the selected input.
  • Page 31 Getting Acquainted With Your Instrument Tile-specific settings. Pop-up menus control parameters that are specific to the tile in which they are displayed. The pop-up menus control less frequently changed parameters such as the waveform display mode (for example, changing the waveform display mode from RGB to YPbPr). To display a pop-up menu, press and hold the desired MEASURE SELECT or DISPLAY SELECT button for about a second.

  • Page 32: Rear-Panel Controls

    Getting Acquainted With Your Instrument Index Control Element or Group Usage Procedures Freeze button Freezing the Display (See page 35.) Help button Using Online Help (See page 40.) Cursors button Measuring Waveforms with Cursors (See page 33.) Configuration menu button Configuring Your Instrument (See page 39.) Up/Down/Left/Right Arrow keys and Sel Button Demonstrated in Setting Measurement Parameters...
  • Page 33 Getting Acquainted With Your Instrument Index Connector Description Ref Loop-through A synchronization input. The input signal can be analog black burst, analog composite video, or tri-level sync Composite A Loop-through The A composite analog input Composite B Loop-through The B composite analog input Option HD equipped instruments only: Instruments accept and automatically detect both HD and SD signals.
  • Page 34 Getting Acquainted With Your Instrument Analog Input/Output Connector The Analog I/O connector is used to input and output analog signals. The Analog I/O connector is a 62-pin, D-subminiature connector. Pin out and pin names follow. CAUTION. Use care when connecting the Analog Audio Output.
  • Page 35 Getting Acquainted With Your Instrument Pin Name Pin Name ANALOG_INPUT_B3_N ANALOG_INPUT_A4_N ANALOG_INPUT_B4_N ANALOG_INPUT_A5_N ANALOG_INPUT_B5_N ANALOG_INPUT_A6_N ANALOG_INPUT_B6_N GND (Ground) ANALOG_OUTPUT_1_N ANALOG_OUTPUT_2_N ANALOG_OUTPUT_3_N ANALOG_OUTPUT_4_N ANALOG_OUTPUT_5_N ANALOG_OUTPUT_6_N ANALOG_OUTPUT_7_N ANALOG_OUTPUT_8_N Connecting Signals. When connecting audio signals to the Analog Input connectors, you can use either balanced or unbalanced signals.
  • Page 36 Getting Acquainted With Your Instrument XGA Connector and Pin Out This is the display output. The display resolution is 1024 x 768, in 16–bit colors. The output is compatible with standard analog PC monitors, either CRT or LCD-based. The Remote connector is a 15-pin D-type connector with socket contacts. Pin Name Red Video Green Video...
  • Page 37 Getting Acquainted With Your Instrument Remote Connector and Pin Out The Remote connector interface uses ground closures for remote control and to indicate to external equipment when alarms have occurred. The Remote connector is a 15-pin D-type connector with socket contacts. NOTE.

  • Page 38: Ethernet Connector

    Getting Acquainted With Your Instrument LTC Input Through Ground Closure and Pin Out An LTC is input through the 15-pin Remote connector. Pins Function Reserved GND (Out) Reserved Reserved Preset 1 (In) GND (Out) LTC IN + LTC IN – GND Closure Out Reserved Reserved...

  • Page 39: Operating Your Instrument

    WFM - display of video waveform PICT - display of the picture generated by the video signal GAMUT - display selectable for three proprietary Tektronix views for checking the gamut of an SDI signal VECT - display of Vector or Lightning plots of color signals...

  • Page 40: Setting Measurement Parameters

    Operating Your Instrument 4. To display the same measurements in more than one tile, select each tile in sequence, and then choose the same measurement for each one. The display at right shows the display with WFM selected for three tiles. NOTE.
  • Page 41 Operating Your Instrument 4. Use the right and left keys to traverse between menu panels. The instrument surrounds the panel selected with a blue border. 5. Use the up and down arrow keys to select parameters in a menu. 6. Press SEL to set the selected parameter. The WFM pop-up menu with display mode set to YPbPr is shown to the right.

  • Page 42: Selecting Among Inputs

    Operating Your Instrument Selecting Among Inputs You can connect SDI (Serial Digital Interface) signals and select them for display. Depending on your instrument model and the options installed on it, you can also connect high definition component signals, standard definition component signals, and analog composite signals.
  • Page 43 Operating Your Instrument NOTE. See the timing measurement display for dual link to link timing information. See the video session display for detected sample structure and other dual link information. To Set Up Dual Link Inputs 1. Connect a Dual Link SDI video signal to the A and B SDI inputs at the rear panel.
  • Page 44 Operating Your Instrument To Display a Dual Link Signal 1. Select a tile by pressing a numbered Display Select button. 2. Press a Measure Select button, such as WFM, to view the display you want. 3. Select each tile in turn and choose the desired display.

  • Page 45: Simultaneous Input Monitoring

    Operating Your Instrument Simultaneous Input Monitoring With Option SIM installed, this instrument can monitor two separate signals simultaneously. In this mode, the instrument display is divided into two sides, each with two tiles per input. This allows you to conveniently view measurement and status displays from two signals at the same time.
  • Page 46 Operating Your Instrument 5. Select a tile for a specific channel and press the appropriate Measure Select button to view the display you want. Do this for each tile. The images to the right are examples configurations. NOTE. The status bar at the bottom of the screen shows the inputs associated with each channel.

  • Page 47: Measuring Audio/Video Delay

    Option AVD lets you take audio/visual delay (AVD) measurements and display them in both numeric and graphical formats. AVD delay measurements require an appropriate AVD sequence signal source, such as from a Tektronix TG700 signal generator. This capability is useful for facility maintenance and setup applications because it allows for out-of-service testing to quickly ensure synchronization across a facility.

  • Page 48: Setting Gain And/Or Sweep

    Operating Your Instrument Setting Gain and/or Sweep Each tile maintains its own settings independent of the other tiles. These settings include Gain and Sweep, and Display Type (among others). For instance, when you switch a tile to a different measurement, the Gain and Sweep settings will be changed to what they were the last time the selected measurement was displayed in the tile.

  • Page 49: Using Presets

    Operating Your Instrument Using Presets Presets let you save up to five custom setups for later recall. You can also recall a factory predefined setup. To Recall the Factory Preset 1. Push the FACTORY button. The front panel setup will revert to default factory settings.
  • Page 50 Operating Your Instrument To display and adjust cursors 1. Choose a tile that is currently displaying a waveform. 2. Press and hold the CURSOR button to display the cursor menu and then select the cursor style you want: Voltage, Time, or Voltage + Time. (Once the cursors are activated and the pop-up menu is closed, pushing CURSOR again turns the cursors off.)

  • Page 51: Freezing The Display

    Operating Your Instrument To Switch Among Cursor Styles 1. Press and hold CURSOR to display the Cursor pop-up menu. 2. Select Cursor Style, and press SEL to change the focus to the submenu. 3. Select the desired cursor style using the up/down arrow keys.
  • Page 52 Operating Your Instrument NOTE. For waveform displays, the frozen image is shown in a different color to distinguish it from the live image. For all displays, the instrument continues to log error status in the background while the display is frozen. To Select the Freeze Display Mode 1.
  • Page 53 Operating Your Instrument To Delete the FREEZE Display 1. Select the display tile for the frozen display that you want to delete. 2. Push and hold FREEZE to display the pop-up menu. Delete Frozen Image will already be selected. 3. Press SEL to delete the frozen image. The pop-up menu is automatically removed from the display when the frozen image is deleted.

  • Page 54: Setting Line Select Mode

    Operating Your Instrument Setting Line Select Mode To Toggle Line Select Mode 1. Select the tile containing the display for which you want to set Line Select Mode. NOTE. Line Select Mode can only be active on one tile at a time, but the line select brightup cursor does appear in other tiles and moves as you select lines in the active tile.

  • Page 55: Configuring Your Instrument

    Operating Your Instrument Configuring Your Instrument The Configuration menu is used to change instrument settings that are changed only occasionally or settings that are not specific to a tile, such as printer settings. To change a setting, you must highlight it. The following procedures will introduce you to navigation of the configuration menu.

  • Page 56: Using Online Help

    Operating Your Instrument Selecting/Adjusting a Parameter 3. Use the up/down arrow keys (or the General knob) to move the selection up and down the menu entries in the selected pane. The selected, active menu item is highlighted by a white menu bar; the selected item in unselected menus is highlighted by a blue menu bar.
  • Page 57 Operating Your Instrument To Display and Navigate Online Help 1. Press HELP. 2. Use the GENERAL knob or the up/down arrow keys to highlight an entry in the Contents (entries never change). 3. Press SEL to select the highlighted category. 4.
  • Page 58 You can also access online help on a computer networked to the instrument. See Remote Communication in the WVR6020, WVR7020, and WVR7120 User Technical Reference (located on the User Documentation CD) for more information on using the Web Browser from the remote Java Applet or Application.

  • Page 59: Checking Chroma/Luma Delay (Lightning Display)

    Checking Chroma/Luma Delay (Lightning Display) Checking Chroma/Luma Delay (Lightning Display) The Lightning display can be used for interchannel timing measurements. If the color-difference signal is not coincident with luma, the transitions between the color dots will deviate from the center mark of a delay scale. The amount deviated represents the relative signal delay between luma and the color-difference signal.
  • Page 60 Checking Chroma/Luma Delay (Lightning Display) 10. Determine where transitions intersect the delay scales and derive the timing error in nanoseconds, as deflected from the center mark: The center mark of the nine marks spanning each green-magenta transition is the zero error point. Alignment to a mark towards black means the color-difference signal lags with respect to luma.

  • Page 61: Checking Gamut

    Checking Gamut Checking Gamut Signals that are legal and valid in one signal representation may not be legal in another representation. Specifically, signals which are legal in the Digital YCbCr representation may not be legal if transcoded to RGB or encoded to NTSC / PAL. Any signal that fails this test is considered out of gamut.

  • Page 62: Setup For Gamut Checks

    Checking Gamut Setup for Gamut Checks 1. Connect a video signal and terminate it properly. 2. Select the input corresponding to the signal connected. 3. Select a tile. 4. Press and hold the GAMUT button to display the signal in a tile and pop up the GAMUT menu.

  • Page 63: Checking Rgb Gamut

    Checking Gamut 5. Use the arrow keys and SEL button to set the menu to one of these three gamut displays: Diamond. Use to detect, isolate, and correct RGB component gamut errors. Split Diamond. Use to reveal hard-to-find black gamut errors. Arrowhead.
  • Page 64 Checking Gamut 1. Perform the Setup for Gamut Checks procedure. Select Diamond in step 5. (See page 46.) 2. Compare the signal to the display to determine out of gamut components, noting the following: The intensity of a vector indicates its duration.

  • Page 65: Checking Composite Gamut

    Checking Gamut Use the Arrowhead % setting (found in the Gamut Thresholds submenu of the Configuration menu) to specify a percentage of the screen to ignore for gamut violations. Checking Composite Gamut The Arrowhead gamut display plots luminance (Y) against chrominance (C) to check if the composite signal adheres to standard gamut.

  • Page 66: Checking Luma Gamut

    Checking Gamut Usage Notes To adjust the IRE level limits, do the procedure Adjusting Gamut Limits. (See page 53.) To automate this check, do the procedure Automating Gamut Checks. (See page 51.) Checking Luma Gamut Luma limit thresholds can be configured for identifying luma exceeding threshold limits. They apply to both the incoming SDI and to the arrowhead representation of the SDI input as a composite signal.

  • Page 67: Automating Gamut Checks

    Checking Gamut Automating Gamut Checks You can use alarms to automatically monitor for out of gamut conditions: 1. Press the CONFIG button to display the Configuration menu. 2. Use the left/right arrow keys and SEL button to select Alarms and then Video Content.
  • Page 68 Checking Gamut 5. Check that Enable Alarms is set to On in the Alarms menu before leaving the Alarms menu. NOTE. For information on Alarms, press the HELP button while Alarms is selected in the configuration menu. 6. Press CONFIG to exit the menu. Waveform Rasterizers Quick Start User Manual...

  • Page 69: Adjusting Gamut Limits

    Checking Gamut Adjusting Gamut Limits 1. Press the CONFIG button to display the Configuration menu. 2. Use the left/right arrow keys and SEL button to select Gamut Thresholds. 3. Press the SEL button to enter the submenu, and then use the arrow keys and SEL button (and General knob, when indicated) to select and set the various thresholds.

  • Page 70: Monitoring The Sdi Physical Layer

    Monitoring the SDI Physical Layer Monitoring the SDI Physical Layer With Options EYE and PHY installed, your instrument can use an eye pattern display, eye measurements, a jitter display, jitter detection and measurement, and an SDI status display to monitor and measure the SDI physical layer. Display Types Eye Display.
  • Page 71 Monitoring the SDI Physical Layer 1. Press the CONFIG button to display the configuration menu. 2. Use the selection (arrow) keys, the SEL button, and the General knob to make the menu selections in the steps that follow. 3. Select Readouts. 4.
  • Page 72 Monitoring the SDI Physical Layer 7. Select Jitter1 HP Filter. 8. Select a high-pass filter value for the Jitter1 engine controlling the top two tiles of the instrument display. 9. Select Jitter2 HP Filter. 10. Repeat step 8 for the Jitter2 engine controlling the bottom two tiles.
  • Page 73 Monitoring the SDI Physical Layer 15. Select Equalizer Bypass. 16. Select one of the following settings: On. Bypass the equalizer when the instrument is connected to a signal with a short length of cable. This setting minimizes the jitter contributed by the internal equalizer and is generally used only with signals containing very low jitter.
  • Page 74 Monitoring the SDI Physical Layer 20. To set custom threshold levels, select SMPTE 259 (SD) Thresholds or SMPTE 292 (HD) Thresholds, depending on which type of video signal you are monitoring. 21. Select Jitter1 Level. Use the General knob to increase or decrease the threshold level for the Jitter1 engine controlling the top two tiles of the waveform rasterizer display.
  • Page 75 Monitoring the SDI Physical Layer 27. Option PHY Only. Select Eye Amplitude Max. Use the General knob to increase or decrease the setting. The maximum amplitude you can enter is 1010 mV ; the minimum amplitude is 700 mV. 28. Option PHY Only. Select Eye Amplitude Min.
  • Page 76 Monitoring the SDI Physical Layer To Configure Physical Layer Alarms 35. Press the CONFIG button to display the Configuration menu. 36. Use the selection (arrow) keys, the SEL button, and the General knob to make the menu selections in the steps that follow.

  • Page 77: Taking Eye Measurements

    Monitoring the SDI Physical Layer Taking Eye Measurements After you have configured the instrument for Eye measurements, you can have the instrument perform automatic eye measurements (Option PHY only) or you can use the cursors to perform manual waveform measurements. The following procedures explain how to conduct both measurement types.
  • Page 78 Monitoring the SDI Physical Layer To Manually Measure Eye Amplitude 1. Perform the initial setup for Eye measurements. (See page 61, Taking Eye Measurements.) 2. Press the CURSOR button to display the measurement cursors. 3. Position one voltage cursor at the top part of the waveform, ignoring any overshoot or undershoot on the rising or falling edges.
  • Page 79 Monitoring the SDI Physical Layer To Manually Measure Aberrations 1. Perform the initial setup for Eye measurements. (See page 61, Taking Eye Measurements.) 2. Press the CURSOR button to display the measurement cursors. 3. Position one voltage cursor at the peak of the overshoot at the top horizontal part of the waveform.
  • Page 80 Monitoring the SDI Physical Layer To Manually Measure Risetime Using Variable Gain 1. Perform the initial setup for Eye measurements. (See page 61, Taking Eye Measurements.) 2. Press the VAR button to turn on variable gain. 3. Use the General knob to resize the waveform to 10 major divisions.
  • Page 81 Monitoring the SDI Physical Layer 1. Perform the initial setup for Eye measurements. (See page 61, Taking Eye Measurements.) 2. Press the STATUS button to select the Status display mode. 3. Press and hold the STATUS button to display the pop-up menu. 4.

  • Page 82: Taking Jitter Measurements

    Monitoring the SDI Physical Layer Taking Jitter Measurements This section explains the procedures for taking jitter measurements. After you have configured the instrument for Eye measurements, the instrument is also ready to take jitter measurements using one of the following displays: Measurement cursors on the Eye display SDI Status display Jitter display (Option PHY only)
  • Page 83 Monitoring the SDI Physical Layer Figure 3: Measuring jitter Waveform Rasterizers Quick Start User Manual...
  • Page 84 Monitoring the SDI Physical Layer To Manually Measure Jitter Using the Eye Display NOTE. If you use the measurement cursors to measure jitter, you may get a different result than that shown in the jitter thermometer for the following reasons: The internal peak detector does a better job of measuring jitter excursions than manually positioning the cursors.
  • Page 85 Monitoring the SDI Physical Layer 4. Press the CURSOR button to display the measurement cursors. 5. Position the first timing cursor at the left edge of the zero-crossing point of the Eye waveform. NOTE. If necessary, use the Gain and Sweep controls for better vertical and horizontal resolution.

  • Page 86: Taking Cable Loss Measurements

    Monitoring the SDI Physical Layer Taking Cable Loss Measurements After you have configured the instrument for Eye measurements, you can take cable loss measurements using the SDI Status display. NOTE. The accuracy of the Approx Cable (length) and Source Level readouts depends strongly on correctly setting the Cable Type and on the quality of the cable and connections in the signal path.
  • Page 87 Monitoring the SDI Physical Layer 5. Use the Cable Loss thermometer and readouts to monitor the cable loss. Waveform Rasterizers Quick Start User Manual...

  • Page 88: Using The Arib Displays

    Using the ARIB Displays Using the ARIB Displays Your instrument supports conformance to ARIB data standards contained in the signal source. This information is contained in the following screen displays: ARIB Status ARIB STD-B.39 Display ARIB STD-B.37 Display ARIB STD-B.35 Display ARIB TR-B.23 (1) Display ARIB TR-B.23 (2) Display ARIB TR-B.22 Display...
  • Page 89 Using the ARIB Displays To Enable the ARIB Content Displays 1. Press the CONFIG button to display the Configuration menu. 2. Use the Arrow keys and the SEL button in the steps that follow to make selections. 3. Select Aux Data Settings. 4.

  • Page 90: Arib Status

    Using the ARIB Displays ARIB Status The ARIB Status display is a status summary screen for the signal. (See Figure 4.) Figure 4: ARIB Status display, showing no data present Use the ARIB Status display in conjunction with the other specific ARIB Display screens to quickly determine if the data you are interested in is present in the signal.

  • Page 91: Arib Std-B.39 Display

    Using the ARIB Displays ARIB STD-B.39 Display The ARIB STD-B.39 display shows the decoded data for video signals using ancillary data compliant with ARIB STD-B.39. (See Figure 5.) When this display is selected, the instrument searches the signal for ARIB STD-B.39 packets using the DID/SDID combinations defined by either the ITU or ARIB standards organizations.
  • Page 92 Using the ARIB Displays Stream - For HD (SMPTE 292M), indicates whether the ancillary packet was acquired from the Y or C data streams. For SD, N/A is displayed. Status - Indicates whether packet(s) of the desired type are present in the video; also indicates Checksum or CRC errors. Checksum - Indicates the checksum word that was recovered from the acquired packet.

  • Page 93: Arib Std-B.37 Display And Status Screens

    Using the ARIB Displays ARIB STD-B.37 Display and Status Screens The ARIB STD-B.37 display shows the decoded data for video signals using ancillary data compliant with ARIB STD-B.37. (See Figure 6.) When this display is selected, the instrument searches the signal for ARIB STD-B.37 packets using the DID/SDID combinations defined by ARIB.
  • Page 94 Using the ARIB Displays SDID - Secondary Data Identifier of the requested packet; can be any of the following: Analog signal - 0xDD SD Signal - 0xDE HD Signal - 0xDF Mobile signal - 0xDC Field/Line - The field or line of the video from which the packet was acquired. For progressive formats, 1 is displayed. NOTE.

  • Page 95: Arib Std-B.35 Display And Status Screens

    Using the ARIB Displays ARIB STD-B.35 Display and Status Screens The ARIB STD-B.35 display shows the decoded data for video signals using ancillary data compliant with ARIB STD-B.35. (See Figure 7.) When this display is selected, the instrument searches the signal for ARIB STD-B.35 packets using the DID/SDID combinations defined by ARIB.

  • Page 96: Arib Tr-B.23 (1) Display And Status Screens

    Using the ARIB Displays Line - The line of the video (within the field) from which the packet was acquired. Stream - For HD (SMPTE 292M), indicates whether the ancillary packet was acquired from the Y or C data streams. For SD, N/A is displayed.

  • Page 97: Arib Tr-B.23 (2) Display And Status Screens

    Using the ARIB Displays The decoded ancillary data includes the following: DID - Data Identifier of the requested packet; permissible values range from 1 to 0xFF (255) inclusive. Type - Type of the ANC Data packet. For ARIB TR-B.23-1, this is always a Type 2 packet (DID less than 0x80), as defined by SMPTE 291M.
  • Page 98 Using the ARIB Displays Figure 9: ARIB TR-B.23 (2) display (with the associated ARIB Status display) The decoded ancillary data includes the following: DID - Data Identifier of the requested packet; permissible values range from 1 to 0xFF (255) inclusive. Type - Type of the ANC Data packet.

  • Page 99: Arib Tr-B.22 Display And Status Screens

    Using the ARIB Displays Checksum - Indicates the checksum word that was recovered from the acquired packet. Should be - Indicates the checksum work computed by the instrument, based on the packet’s data. Format - Indicates the name of the ancillary data type or standard. User Data Words - Contains the payload of the ancillary packet, displayed in hexadecimal.
  • Page 100 Using the ARIB Displays SDID - Secondary Data Identifier of the requested packet; permissible values range from 0 through 0xFF (255) inclusive. This field only appears when a Type 2 packet is selected (see above). The actual value (with parity bits added) is displayed in parentheses.

  • Page 101: Monitoring Audio

    Monitoring Audio Monitoring Audio Your instrument provides several methods for monitoring audio signals. It can measure levels, monitor phase, display phase correlation, and monitor surround-sound audio. You can specify meter ballistics and scales, set test and peak program indicator levels, and specify how phase is displayed. NOTE.
  • Page 102 Monitoring Audio 6. Select Bar to Input Map and specify which input pair should be displayed in each bar pair. 7. Specify which inputs will be allowed to generate alarms. 8. Select the box to return to the configuration menu. 9.

  • Page 103: Selecting Audio Input

    Monitoring Audio Selecting Audio Input You select the audio input to be monitored from the front-panel AUDIO button pop-up menu. The Audio display can appear in only one tile at a time. NOTE. For instruments with Option DL or SIM, select audio input from the Audio Inputs/Outputs submenu of the Configuration menu.

  • Page 104: Checking Audio Level & Phase

    Monitoring Audio Checking Audio Level & Phase Level meters are vertical bar graphs on which the height of the bar indicates the amplitude of the audio program in the corresponding input channel. You can change the input and turn on and off the Phase display from the Audio pop-up menu.
  • Page 105 Monitoring Audio 6. Check for Phase correlation of the signals, noting the following: Phase correlation meters are located under the appropriate bars and one is duplicated under the phase display. For correlated signals, the indicator will be green and will move to the right side.
  • Page 106 Monitoring Audio Usage Notes The Lissajous or phase display is a plot of one channel against another on an orthogonal pair of axes. Soundstage plots the two channels at 45 degree angles, with the mono combination appearing on the vertical axis—like a left-right image in a studio.

  • Page 107: Checking Surround Sound

    Monitoring Audio Checking Surround Sound Your instrument can also display the surround sound listening environment. The following procedures you will help you get started. To Check Surround Sound 1. Open the audio display in one tile and select the input containing the surround audio.
  • Page 108 Monitoring Audio 7. Use the surround display to monitor relative loudness of the individual elements rendered in a surround-sound listening environment. Check the surround sound display for performance parameters and the indicators shown at right. (See page 93, Usage Notes.) NOTE.
  • Page 109 Monitoring Audio angle for negative signal correlations. The bar to the right of the white tic mark behaves in the same way, depending on the C-R correlation. This PSI indicator uses the same color coding as the other PSI indicators. Usage Notes The displays shown here are examples of how the surround sound waveform appears...

  • Page 110: Monitor Dolby-Based Surround Sound

    Monitor Dolby-Based Surround Sound Monitor Dolby-Based Surround Sound If your instrument has Dolby monitoring capabilities (Option DDE), it can decode and monitor audio signals that are based on Dolby digital surround sound formats. These formats are Dolby D (AC-3 ) compression (designed for distribution) and/or Dolby E compression (designed for production).
  • Page 111 Monitor Dolby-Based Surround Sound 8. Select Analog Output Map and specify which inputs (if any) are routed to the analog outputs in the map that appears. (Map shown right.) 9. Select the AES B Output Map and assign specific bar pairs to the AES B outputs in the map that appears.
  • Page 112 Monitor Dolby-Based Surround Sound 17. Select Dolby E Input, and select the program from which the downmix is derived. NOTE. Although 8 programs are listed, the number active depends on the Dolby E Program Configuration detected in the metadata of the Dolby input. (See page 105, Audio Bar Mapping vs.
  • Page 113 Monitor Dolby-Based Surround Sound 5. Select the Dolby D Listening Mode, which controls how the Dolby sound channels map to the level bars and surround-sound elements in the Audio Display and outputs. 6. Choose Full or a mode to which you want to downmix.
  • Page 114 Monitor Dolby-Based Surround Sound 11. Select Dolby E Setup. The settings you make will apply to the input when Dolby E content is detected for the Dolby input selected. 12. Select Dialnorm and toggle to On or OFF. When On, the dialog normalization is applied to the audio bars and the analog and digital outputs.
  • Page 115 Monitor Dolby-Based Surround Sound 14. Select Dolby Downmix Mode. Each downmix mode combines multiple separate audio channels into a mix that provides compatibility for users with only mono or stereo systems, or with older analog surround sound systems. 15. Choose one of the following modes to display as two bars in the Audio Display: Select None to get no downmix.

  • Page 116: Displaying Dolby Inputs

    Monitor Dolby-Based Surround Sound Displaying Dolby Inputs After you have configured a Dolby input, you can display its levels and other characteristics in the Audio Display. (See page 94, Configuring Dolby Inputs.) 1. Open the audio monitor in one tile. (See page 87, Selecting Audio Input.) 2.

  • Page 117: Viewing Dolby Metadata

    Monitor Dolby-Based Surround Sound Viewing Dolby Metadata If your instrument has Option DDE installed, it can decode and display selected metadata parameters present in the Dolby D, Dolby E bitstream, or in the vertical ancillary data in a Dolby Audio Status screen. To display the data for the currently selected input, do the following procedure: 1.

  • Page 118: Usage Notes

    Monitor Dolby-Based Surround Sound Usage Notes Your instrument determines the downmix based on several parameters within the Dolby metadata and the Dolby downmix selection. For example, if the Dolby Audio Status screen shows Extended Bitstream information indicating that the preferred downmix is Lt/Rt, the center channel is attenuated by -3dB and the surround channels are attenuated by -6dB before they are combined into the stereo downmix.
  • Page 119 Monitor Dolby-Based Surround Sound Any PCM input will be decoded to provide LCRS channels where the surround channel is reduced 3dB and reproduced in both the Ls and Rs bars. Pro Logic Phantom. Pro Logic Phantom will create a Lt/Rt downmix of any input with three or more channels. This Lt/Rt downmix will then use Pro Logic decoding to produce a surround channel and provide LCS surround channels.
  • Page 120 Monitor Dolby-Based Surround Sound Table 1: Channel Mode vs. Listening Modes (cont.) Channel Mode Listening Mode Main Channel Output Function Default to Full mode Full All 2/1 channels 3 Stereo S mixed into L and R with smix coefficient Phantom Default to Full mode Stereo Lo/Ro downmix...
  • Page 121 Monitor Dolby-Based Surround Sound Audio Bar Mapping vs. Dolby E Metadata Program Configuration If your instrument has Option DDE installed and is decoding Dolby E audio, the bars in the Audio display are mapped as shown in the following table. The mapping derives from the Dolby E Program Configuration detected in the metadata of the Dolby input.

  • Page 122: Monitoring Closed Captioning (Cc), Teletext, And Safe Area Compliance

    Monitoring Closed Captioning (CC), Teletext, and Safe Area Compliance Monitoring Closed Captioning (CC), Teletext, and Safe Area Compliance Your instrument can monitor for any CC data (including V-Chip ratings) present in the selected signal and display that data overlaid on the Picture display. (EIA 608 (VBI), EIA 608 (ANC), EIA (608/708), EIA 708, TeletextB (VBI), TeletextB OP47 SDP (ANC), and TeletexB OP47 Multi (ANC) closed caption transports are supported.

  • Page 123: Monitoring Closed Captioning And Teletext

    Monitoring Closed Captioning (CC), Teletext, and Safe Area Compliance Monitoring Closed Captioning and Teletext To Configure Closed Captioning and Teletext Before using Closed Captions, configure them in the Configuration menu by performing the following steps: 1. Press the CONFIG button to display the Configuration menu.
  • Page 124 Monitoring Closed Captioning (CC), Teletext, and Safe Area Compliance To View Closed Captioning Status and Subtitles 1. Press the STATUS button to select the Status display mode. 2. Press and hold the STATUS button to display the pop-up menu. 3. Select Display Type and then select Aux Data Status.
  • Page 125 Monitoring Closed Captioning (CC), Teletext, and Safe Area Compliance To Display Closed Captioning 1. Select a tile. 2. Press and hold the PICT button to display the Picture pop-up menu. 3. Select Display Closed Captions and toggle it to On. 4.

  • Page 126: Monitoring For Safe Area Compliance

    Monitoring Closed Captioning (CC), Teletext, and Safe Area Compliance Monitoring for Safe Area Compliance To display graticules for monitoring for incorrect placements of nonessential elements relative to essential ones, set global settings in the Configuration menu and turn on up to four Safe Area graticules, each with independent settings, in the Picture menu.
  • Page 127 Monitoring Closed Captioning (CC), Teletext, and Safe Area Compliance 5. If you want, to set the Height, Width, and Offsets of the title and action areas for Custom Safe Graticules 1 and 2, first select the title or action to change. 6.
  • Page 128 Monitoring Closed Captioning (CC), Teletext, and Safe Area Compliance Usage Notes The Safe Action Area denotes the maximum image area within which all significant action should be contained; the Safe Title Area denotes the maximum image area within which all significant titles should be contained.

  • Page 129: Using Alarms

    Using Alarms Using Alarms Alarms can be configured so that your instrument automatically monitors parameters and reports when those parameter limits are exceeded. The procedures that follow describe how to configure response types for individual alarms, how to enable them, and how to monitor them. Configuring Alarms Alarms may need to be configured in the Configuration menu use.
  • Page 130 This option also enables alarm reporting with color on the Status screen. Logging. The instrument makes an entry in the Event Log. Refer to Status Display in the Display Information section of the WVR6020, WVR7020, and WVR7120 Technical Reference manual. Beep. The instrument makes an audible alarm.
  • Page 131 Using Alarms To Enable Alarms The channels for which you enable alarms trigger your previously defined alarm responses. (See page 113, To Set Allowed Alarm Responses.) 1. Press the CONFIG button to display the Configuration menu. 2. Use the arrow keys and SEL button to make selections in the steps that follow.
  • Page 132 Using Alarms 7. Navigate to each box for each alarm that you want to allow. Press the SEL button to enable it (when enabled, there is an X in the box) or disable it (when disabled, the box is blank) for each channel displayed.

  • Page 133: Monitoring Alarms

    Using Alarms 3. For Closed Caption related alarms, select Aux Data Settings. 4. Select EIA608 Required Services and select the CC channels and/or Text channels that you want to trigger the CC Services Missing Alarm. Monitoring Alarms After defining and enabling alarms, you can quickly check if any error condition exists by looking (or listening) for the notification you defined (text, icon, logging, SNMP trap, beep).

  • Page 134: Application Example

    Application Example Application Example Timing a Studio Your instrument supports multiple methods and techniques for timing a studio, all of which require an external reference to your instrument. Timing a studio involves adjusting the references going to different sources so that their output feeds have the same timing when they arrive at a common point, such as a production switcher.
  • Page 135 Using the Timing-Display Method The Tektronix Timing Display provides a quick, easy way to measure the timing of an input relative to the external reference: The rectangular display automatically scales to match the input signal. For progressive signals, the display represents one field;...
  • Page 136 NOTE. See Timing Displays for Simple Versus Complex Timing in the WVR6020, WVR7020, and WVR7120 User Technical Reference on the User Documentation CD that came with your instrument for more information about complex timing displays and their elements.
  • Page 137 Application Example NOTE. As you adjust timing, the circle representing the input timing may jump occasionally. This is because the color frame detection circuit can be temporarily disrupted as the signal shifts. The jump is often a multiple of the field time. The circle will settle back to the correct location in a second or so.
  • Page 138 When timing analog composite signals, adjust the system phase with the Vector display. The Vector display is described in Timing Displays for Simple Versus Complex Timing in the Display Information chapter of the WVR6020, WVR7020, and WVR7120 User Technical Reference manual found on your User Documentation CD.
  • Page 139 Application Example NOTE. If you have an input and reference combination that requires multiple timing indicator circles, then it can be misleading to compare timing offsets between multiple inputs. Because the timing display chooses the smallest of the possible timing offsets, if a large timing difference exists between two inputs, then they may not be matched. This problem will also occur using traditional timing methods unless one uses something similar to the SMPTE318 10 field flag to identify a specific sub-multiple of the reference.
  • Page 140 Application Example Waveform Rasterizers Quick Start User Manual...
