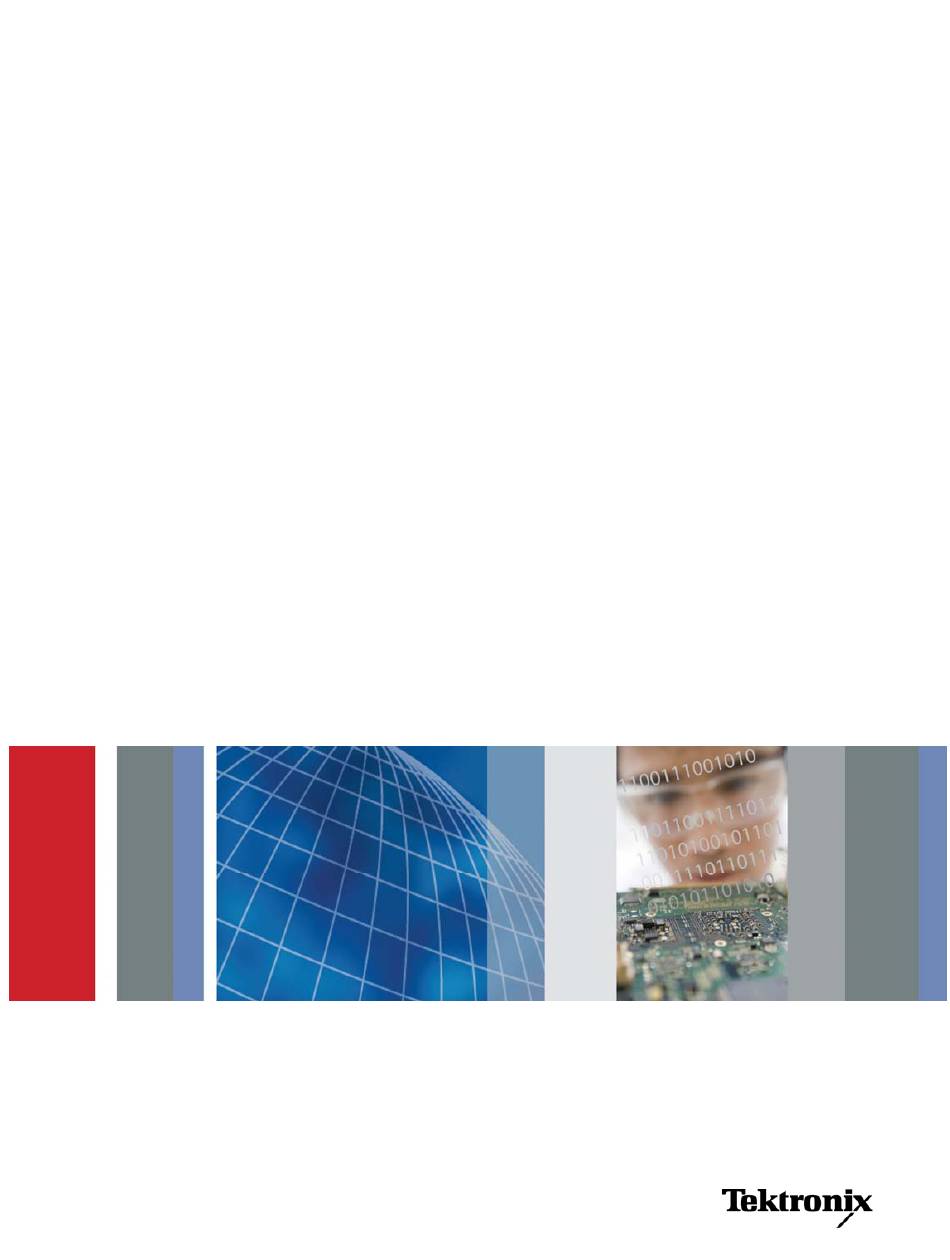

- Page 1 Tektronix BERTScope Digital Pre-Emphasis Processor Quick Start User Manual www.tektronix.com 0140-703-00...
- Page 3 Tektronix BERTScope Digital Pre-Emphasis Processor DPP125 Quick Start User Manual www.tektronix.com 0140-703-00...
- Page 5 Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material. Specifications and price change privileges reserved.
- Page 7 product.
- Page 8 General Safety Summary General Safety Summary Review the following safety precautions to avoid injury and prevent damage to this product or any products connected to it. To avoid potential hazards, use this product only as specified. NOTE: Only qualified personnel should perform service procedures. While using this product, you may need to access other parts of a larger system.
- Page 9 General Safety Summary Terms in this Manual These terms may appear in this manual: WARNING. Warning statements identify conditions or practices that could result in injury or loss of life. CAUTION. Caution statements identify conditions or practices that could result in damage to this product or other property.
- Page 10 IEC61000-4-6:2003. Conducted RF immunity IEC61000-4-11:2004. Voltage dips and interruptions immunity EN61000-3-2:2006. AC power line harmonic emissions EN61000-3-3:1995. Voltage changes, fluctuations, and flicker European Contact Tektronix UK, Ltd. Western Peninsula Western Road Bracknell, RG12 1RF United Kingdom Australia / New Zealand Declaration of Conformity–EMC...
- Page 11 Compliance Information Safety Compliance EC Declaration of Conformity – Low Voltage Compliance was demonstrated to the following specification as listed in the Official Journal of the European Communities: Low Voltage Directive 2006/95/EC EN61010-1: 2001. Safety requirements for electrical equipment for measurement control and laboratory use.
- Page 12 This symbol indicates that this product complies with the applicable European Union requirements according to Directives 2002/96/EC and 2006/66/EC on waste electrical and electronic equipment (WEEE) and batteries. For information about recycling options, check the Support/Service section of the Tektronix Web site (www.tektronix.com). ...
-
Page 13: Table Of Contents
Table of Contents Table of Contents Introduction................................1 Product Description ............................1 Features and Benefits ............................1 Documentation ..............................2 Options................................2 Other Documentation............................2 Installation ................................3 Standard Accessories ............................3 Operating Requirements ..........................3 Preventing ESD..............................3 Configuration ..............................4 Connectors ...............................4 Clock / Data Input Skew ..........................5 Operation ................................7 Power On .................................7 Use with Other Instruments..........................9 Maintenance ..............................10... -
Page 15: Introduction
With the exception of the instrument's power switch, all control is through the software-based graphical user interface. When used with a BERTScope Analyzer, the interface is found in “DPP Control,” listed in the top- level ‘Views’ menu. The DPP125 can also be operated standalone, using the BERTScopePC Standalone software supplied with the product and available at www.bertscope.com. -
Page 16: Documentation
Precise correction control for backplane ISI, optical effects, etc. Adjustable through tap weights or step response Differential output is amplitude and offset adjustable Integrated operation with a BERTScope Bit Error Ratio Analyzer, or in a standalone fashion controlled by a user-supplied PC Features... -
Page 17: Installation
The DPP125 is intended to be operated in a controlled laboratory environment. It is intended to operate on a bench top, or on top of another instrument such as the BERTScope Bit Error Ratio Analyzer. There are four shock-absorbing feet located on the bottom of the instrument. Operate the instrument only when positioned with the feet facing downward. -
Page 18: Configuration
Rear Panel: USB IN : USB 2.0 type B connector used to interface the instrument for control. When used with a BERTScope Analyzer, connect to any available USB connector. The DPP125 can also be operated standalone with an DPP125 Digital Pre-Emphasis Processor Quick Start User Manual... -
Page 19: Clock / Data Input Skew
Subrate Out to the DPP125 should be approximately 1.6 meters (62 inches) longer than the cable connecting the BERTScope Data Out to the DPP125 Data Input. With the additional cable length providing the rough delay match, use the calibration method described below to fine tune the delay match. - Page 20 Configuration 9. Run the Detector to check for error free operation. If not operating error free, advance the Generator delay by another ½ UI. The Detector should be operating error free at this point. Record the Generator Delay. 10. Once error free operation is obtained, find the boundary between error free and errored operation by decreasing the Generator Delay and using a binary search method as shown in Figure 3 below.
-
Page 21: Operation
® The first time the BERTScope Analyzer starts with the DPP125 attached, the standard Microsoft Windows ‘New Hardware Found’ message will appear as the driver automatically loads. Select ‘DPP Control’ in the Analyzer’s ‘View’ menu to open the interface, a single view providing a complete control interface with the instrument. - Page 22 BERTScope. DATA+ DATA– Click the icon to set the output amplitude and offset voltages, similar to the corresponding function in the BERTScope Pattern Generator. DPP125 Digital Pre-Emphasis Processor Quick Start User Manual...
-
Page 23: Use With Other Instruments
. 64-bit versions are not supported. Control communication is through USB 2.0 connection to the host computer rather than to a BERTScope Analyzer. The software should be installed in the host PC prior to connecting the USB cable. BERTScopePC software is distributed on a CD-ROM, which is supplied as a standard accessory with the DPP125. -
Page 24: Maintenance
The DATA IN and DATA OUT connectors use 3.5 mm to APC Planar Crown adapters. These facilitate user replacement of the adapter, should it become damaged. Replacement adapters can be ordered from Tektronix. The adapter is secured to the connector with a captive threaded mounting ring. Remove a damaged connector by grasping the knurled outer portion of the ring with your fingers and turning counter-clockwise. -
Page 25: Specifications
Specifications Specifications Notes System: Data Rate ..................1 – 12.5 Gb/s Filter Function ....................FIR Taps ........................3 Optional 4-tap configuration Tap Spacing ....................1 UI When clocked at data rate Tap Weight Range ..........−100% – +100%, including 0 Tap Weight Resolution..............1% or 0.1 dB Control Interface.................. -
