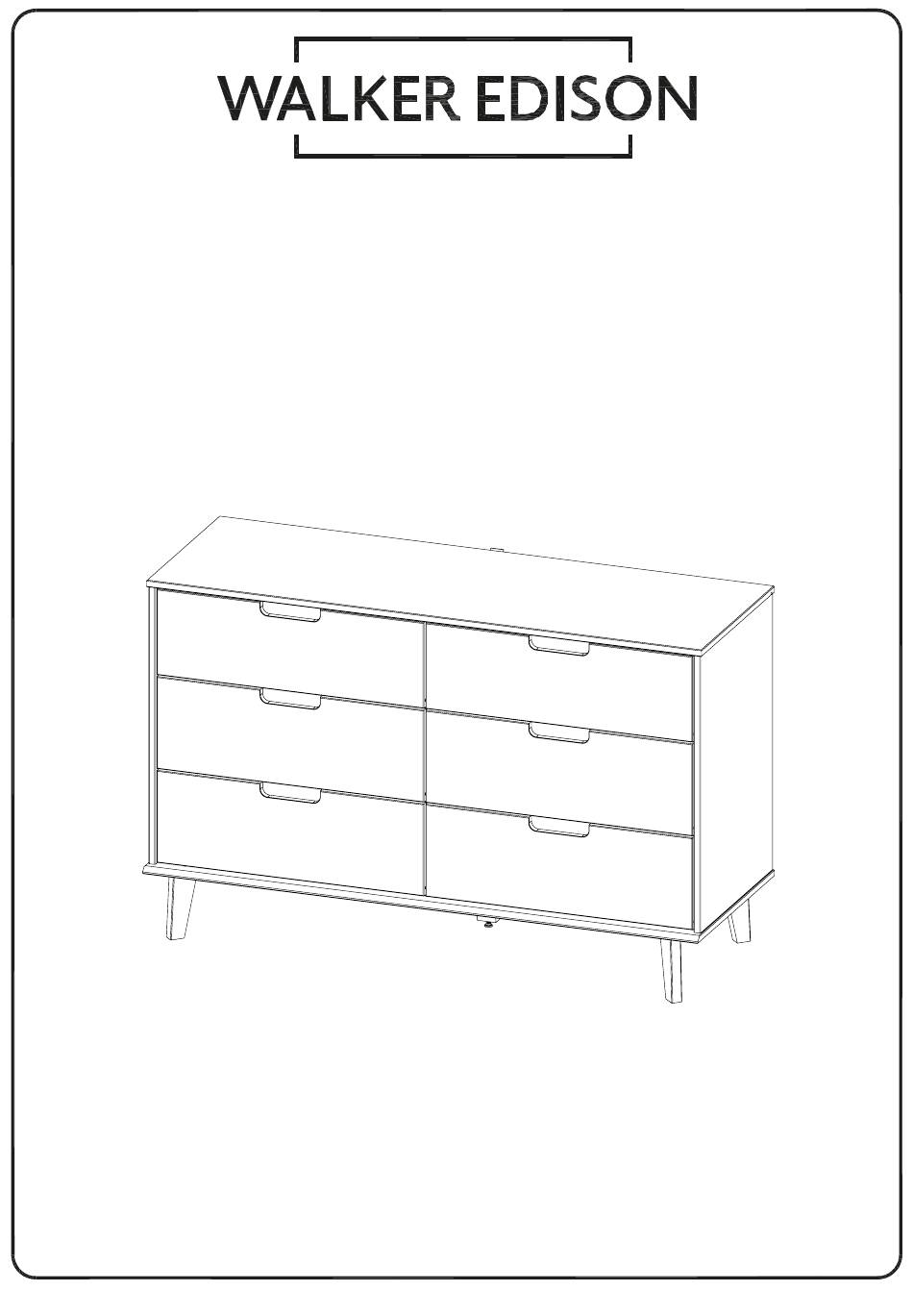

6 Drawer Solid Wood Dresser
with Cut-Out Handles
SKU# WMSLN026D4
For Residential Use Only
Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com
Copyright
2024
by Walker E dison F urniture Co., LLC. All rights reserved .
Revised 06/2024-V1
1
©

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WMSLN026D4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Walker Edison WMSLN026D4

Summary of Contents for Walker Edison WMSLN026D4

  • Page 1 6 Drawer Solid Wood Dresser with Cut-Out Handles SKU# WMSLN026D4 For Residential Use Only Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com Copyright 2024 by Walker E dison F urniture Co., LLC. All rights reserved .
  • Page 2 You can cause cracking or damage to the material and easily strip the hardware. If you choose to use a power tool, your product will no longer be covered under Walker Edison’s warranty. Scan to get assembly tips and help!

  • Page 3: Table Of Contents

    Parts List Part Number Description Quantity Top panel Left side panel Back rail Back panel Right side panel Wood slider Division Bottom panel Foot Center foot Right drawer side Left drawer side Small right drawer side Right drawer side with warning Small left drawer side Drawer front Small wood slider...

  • Page 4: Hardware List

    Hardware List Part Size Name Quantity 10x20mm Wooden dowel 8x30mm Wooden dowel 4x25mm Screw 8x30mm Cam bolt 15x10mm Cam lock 1/4x15mm Plastic bush 17x25mm Leveling foot 7x60mm Screw Hex key 4x40mm Screw 14x14mm Support 4x16mm Screw Dovetail Dovetail lock Plastic screw 8x40mm Wooden dowel Wall anchor...
  • Page 5 Step 1 Let’s get started, shall we? Start by inserting all Wooden dowels (A) 20mm into the Wood sliders (6) and Small wood sliders (17).
  • Page 6 Step 2 Then insert 20 Wooden dowels (B) 30mm into the Left side panel (2), Back rail (3), Right side panel (5), Division (7) and Foots (9).
  • Page 7 Step 3 Now we will fix all Wood sliders (6) on the Left side panel (2) and Right side panel (5) with 18 Screws (C) 25mm and Phillips head screwdriver.
  • Page 8 Step 4 We will also assemble the all Small wood sliders (17) on both sides of the Division (7) with 18 Screws (C) 25mm and Phillips head screwdriver.

  • Page 9: Top Panel

    Step 5 Using a Phillips head screwdriver, screw all Cam bolts (D) into the Top panel (1).
  • Page 10 Step 6 Attach de Left side panel (2) to Top panel (1) and tighten Cam lock (E) x 3 with Phillips head screwdriver. Cam Locks Cam Locks help securely join two pieces together. Follow these easy steps. 1: Insert Cam Bolt 2: Fit the proper holes on the 3: On the back of the Cam Lock into bolt holes on...

  • Page 11: Left Side Panel

    Step 7 Attach the Back rail (3) to Left side panel (2).

  • Page 12: Back Rail

    Step 8 Unfold the Back panel (4) and insert between the grooves of Top panel (1) and Back rail (3).
  • Page 13 Step 9 Attach the Right side panel (5) to Back rail (3) and Top panel (1). Tighten Cam locks (E) x 3 with Phillips head screwdriver.
  • Page 14 Step 10 Attach the Division (7) to Top panel (1) and tighten Cam locks (E) x 3 with Phillips head screwdriver.
  • Page 15 Step 11 Attach the Leveling foot (G) and Plastic bush(F) to Center foot(10). Attach Foots (9) x 4 and Center foot (10) to Bottom panel (8) with all Screws (H) 60mm and Hex key (I).

  • Page 16: Right Side Panel

    Step 12 Now we will fix the Bottom panel (8) to Left side panel (2), Right side panel (5) and Division (7). Use Screws ( J ) 40mm and Phillips head screwdriver.
  • Page 17 Step 13 Fit all Supports (K) with all Screws (L ) 16mm in the grooves on the Top panel (1), Left side panel (2), Back rail (3) and Right side panel (5) to keep Back panel (4) fixed. Use a Phillips head screwdriver.

  • Page 18: Wood Slider

    Step 14 Insert 12 Wood dowels (B) 30mm into the front hole in the Wood sliders (6). This is necessary to stop the drawer from falling.

  • Page 19: Right Drawer Side With Warning

    Step 15 Firstly, detach the all Dovetail locks (N) of the Dovetails (M). Fix the Dovetails (M) to the Right drawer sides (11) x4 and Left drawer sides (12) x 4. We will also fix the smaller ones Small left drawer sides (15), Small right drawer side (13) and Right drawer side with warning(14).
  • Page 20 Step 16 We will assemby the 4 bigger drawers. Slide the dovetails (M) on the grooves in the Drawer fronts (16) x 4.
  • Page 21 Step 17 Slide the dovetails (M) on the grooves in the Drawer fronts (18) x 2. Attention because at this moment we are assembling the Small drawers fronts (18) x 2 with the Small left drawer sides (15) x 2, Small right drawer side (13) and Right drawer side with warning(14).
  • Page 22 Step 18 Insert the Drawer bottoms (19) x 6 into grooves on the drawer sides and drawer fronts. 13 and 14...
  • Page 23 Step 19 Insert the Dovetail lockers (N) x 12 in the Dovetails (M) to lock the Drawer fronts (11) x 6. Use a hammer if necessary. 13 and 14...
  • Page 24 Step 20 Insert Drawer backs (20) x 4 between Right drawer sides (11) and Left drawer sides (12). Insert Drawer backs (21) x 2 between Small left drawer sides (15) and Small right drawer sides (13) (14). 13 and 14...
  • Page 25 Step 21 Secure the Drawer backs (20) and Drawer backs (21) inserting all Plastic screws (O) in the holes on the Right drawer sides and Left drawer sides. Use a hammer if necessary. 13 and 14...
  • Page 26 Step 22 If it is necessary to disassemble, remove the Dovetail lockers (N) with a Slotted head screwdriver.
  • Page 27 Step 23 Insert all Wooden dowels (P) on the inside of all drawers, with the drawer inside the unit, after having passed the wooden dowel that is in the drawer side. The dowel is not aligned with the panel, it is a little inside the drawer to help when you need to remove the lock dowel to remove the drawer.
  • Page 28 Step 24 Let’s secure your dresser to the wall. Attach your Plastic Strip (Q) to your dresser using the 12mm Screw (S) with a washer (R) x1 and Phillis head screwdriver.
  • Page 29 Step 25 Insert the Plastic bush (T) into the wall. Next, secure your Wall anchor (Q) to the wall using the Washer (R) with 40mm Screw ( J ). Way to go! You did it! Warning Serious or fatal injuries can occur from furniture tipping over. To prevent the furniture from tipping over we recommend that it is permanently xed to the wall.

  • Page 30: Final Assembly

    Final Assembly 130 lbs 59 kg 15 lbs 07kg 20 lbs 09kg Congratulations on you new piece of furniture! We would love to hear about it and see it. Please leave us a review or post a picture with #mywalkeredisonhome...
