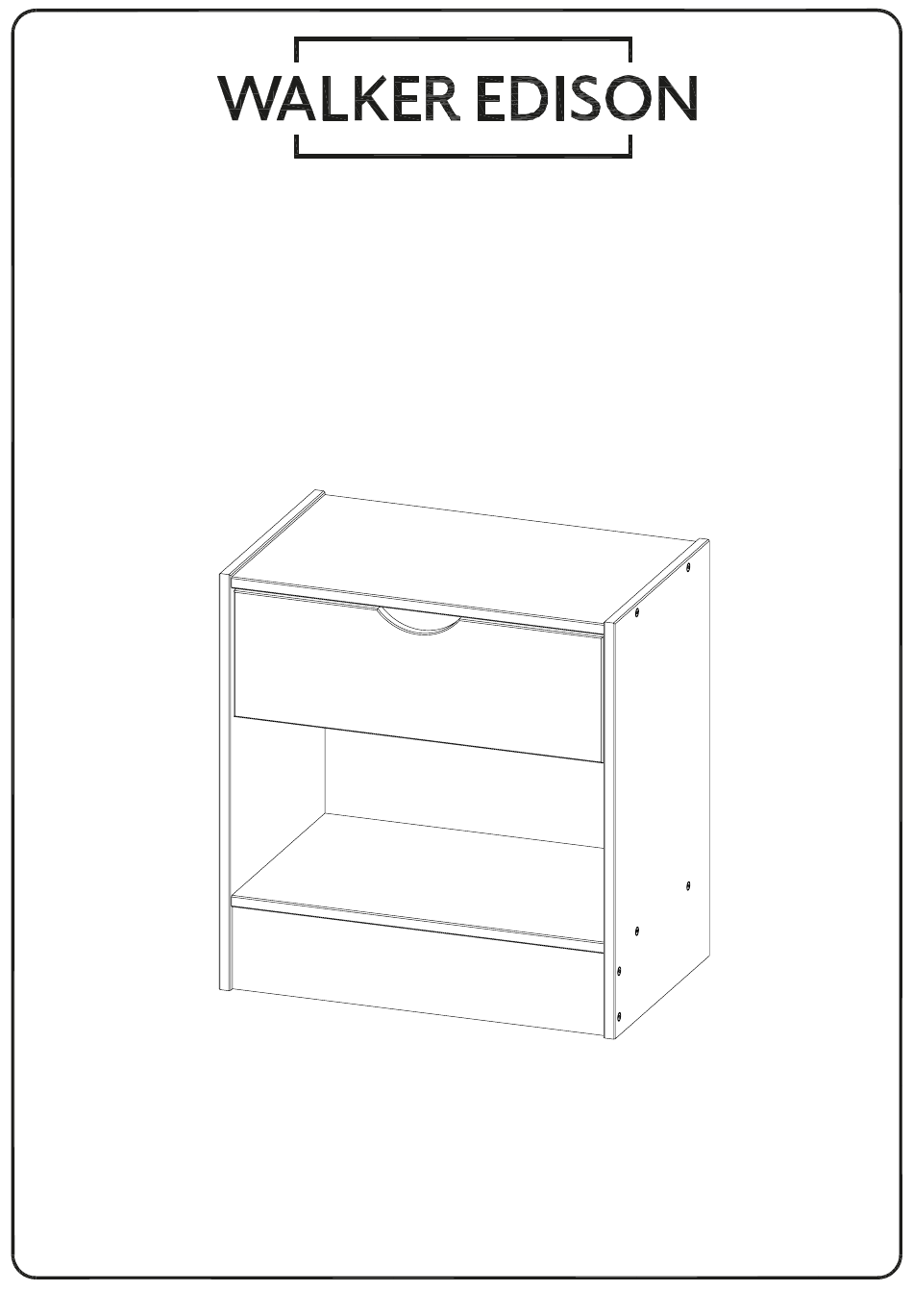

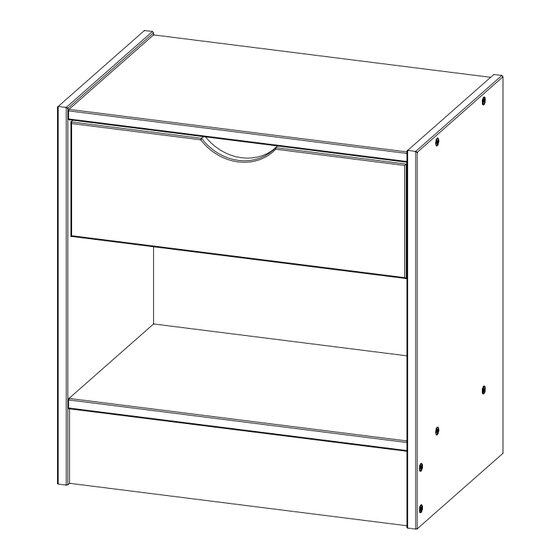

Declan 1-Drawer
Solid Wood Nightstand
SKU# WMDCL011D4
For Residential Use Only
Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com
Copyright
2024
by Walker E dison F urniture Co., LLC. All rights reserved .
Revised 06/2024-V1
1
©

Advertisement

loading
Need help?

Need help?

Do you have a question about the Declan WMDCL011D4 and is the answer not in the manual?

Questions and answers

Related Manuals for Walker Edison Declan WMDCL011D4

Summary of Contents for Walker Edison Declan WMDCL011D4

  • Page 1 Declan 1-Drawer Solid Wood Nightstand SKU# WMDCL011D4 For Residential Use Only Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com Copyright 2024 by Walker E dison F urniture Co., LLC. All rights reserved . Revised 06/2024-V1 ©...
  • Page 2 You can cause cracking or damage to the material and easily strip the hardware. If you choose to use a power tool, your product will no longer be covered under Walker Edison’s warranty. Scan to get assembly tips and help!

  • Page 3: Parts List

    Parts List Part Number Description Quantity Top panel Bottom panel Left side panel Foot front rail Back panel Wood slider Right side panel Drawer front Right drawer side Left drawer side Drawer bottom Drawer back...

  • Page 4: Hardware List

    Hardware List Part Size Name Quantity 10x20mm Wooden dowel 8x30mm Wooden dowel 4x25mm Screw 15mm Plastic foot 7x50mm Screw Hex key 14x14mm Support 3,5x16mm Screw Dovetail Dovetail lock Plastic screw 8x40mm Wooden dowel The hardware quantities listed above are required for proper assembly. Extra hardware pieces may be included.
  • Page 5 Step 1 Let’s get started, shall we? Start by inserting all Wooden dowels (A) 20mm into the Wood sliders (6) x2.
  • Page 6 Step 2 Then also insert 10 Wooden dowels (B) 30mm into the Top panel (1), and Base panel (2).
  • Page 7 Step 3 Now we will fix the Wood sliders (6) x2 on the Left side panel (3) and Right side panel (7) with all Screws (C) 25mm and Phillips head screwdriver.
  • Page 8 Step 4 It is important to secure the all Plastic foot (D) on the Left side panel (3) and Right side panel (7). Use a hammer if necessary.
  • Page 9 Step 5 Fit the Top panel (1) and Base Panel (2) into Left side panel (3).
  • Page 10 Step 6 Now fix Top panel (1) and Base panel (2) into Left side panel (3) with Screws (E) x 4 and Hex key(F).
  • Page 11 Step 7 Fix the Foot front rail (4) to Left side panel (3) using Screws (E) x 2 and Hex key(F).
  • Page 12 Step 8 Insert Back panel (5) into the grooves of Top panel (1) and Left side panel (3).
  • Page 13 Step 9 Fit the Right side panel (7) into Top panel (1), Base panel (2), Foot front rail (4) and Back panel (5).
  • Page 14 Step 10 Fix the Right side panel (7) into Top panel (1), Base panel (2), Foot front rail (4) using Screw (E) x 6 and Hex key (F).
  • Page 15 Step 11 Fit all Supports (G) with all Screws (H) 16mm in the grooves on the Top panel (1), Left side panel (3) and Right side panel (7) to keep Back panel (7) fixed. Use a Phillips head screwdriver.
  • Page 16 Step 12 Insert 2 Wood dowels (B) 30mm into the front hole in the Wood sliders (6). This is necessary to stop the drawer from falling.
  • Page 17 Step 13 Firstly, detach the all Dovetail locks ( J) of the Dovetails (I). Fix the Dovetails (I) to the Right drawer side (9) and Left drawer side (10). Use a hammer if necessary. #9 and #10 #9 and #10...
  • Page 18 Step 14 Slide the dovetails (I) on the grooves in the Drawer front (8).
  • Page 19 Step 15 Insert the Drawer bottom (11) into grooves on the Right drawer side (9), Left drawer side (10) and Drawer front (8).
  • Page 20 Step 16 Insert the Dovetail lockers ( J) in the Dovetail (I) to lock the Drawer front (8). Use a hammer if necessary.
  • Page 21 Step 17 Insert Drawer back (12) between Right drawer side(9) and Left drawer side(10).
  • Page 22 Step 18 Secure the Drawer back (12) inserting Plastic screws (K) x 4 in the holes on the Right drawer side(9) and Left drawer side(10). Use a hammer if necessary.
  • Page 23 Step 19 If it is necessary to disassemble, remove the Dovetail locker( J) with a Slotted head screwdriver.
  • Page 24 Step 20 Insert 2 Wooden dowels (L) 40mm on the inside of all drawers, with the drawer inside the unit, after having passed the wooden dowel that is in the drawer side. The dowel is not aligned with the panel, it is a little inside the drawer to help when you need to remove the lock dowel to remove the drawer.

  • Page 25: Final Assembly

    Final Assembly 40 lbs 18kg 10 lbs 4,5kg Congratulations on you new piece of furniture! We would love to hear about it and see it. Please leave us a review or post a picture with #mywalkeredisonhome...
