Walker Edison W70C25SD Assembly Instructions Manual

Walker Edison W70C25SD Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Copyright © 2012, by Walker Edison Furniture Co., LLC. All rights reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the W70C25SD and is the answer not in the manual?

Questions and answers

Related Manuals for Walker Edison W70C25SD

Summary of Contents for Walker Edison W70C25SD

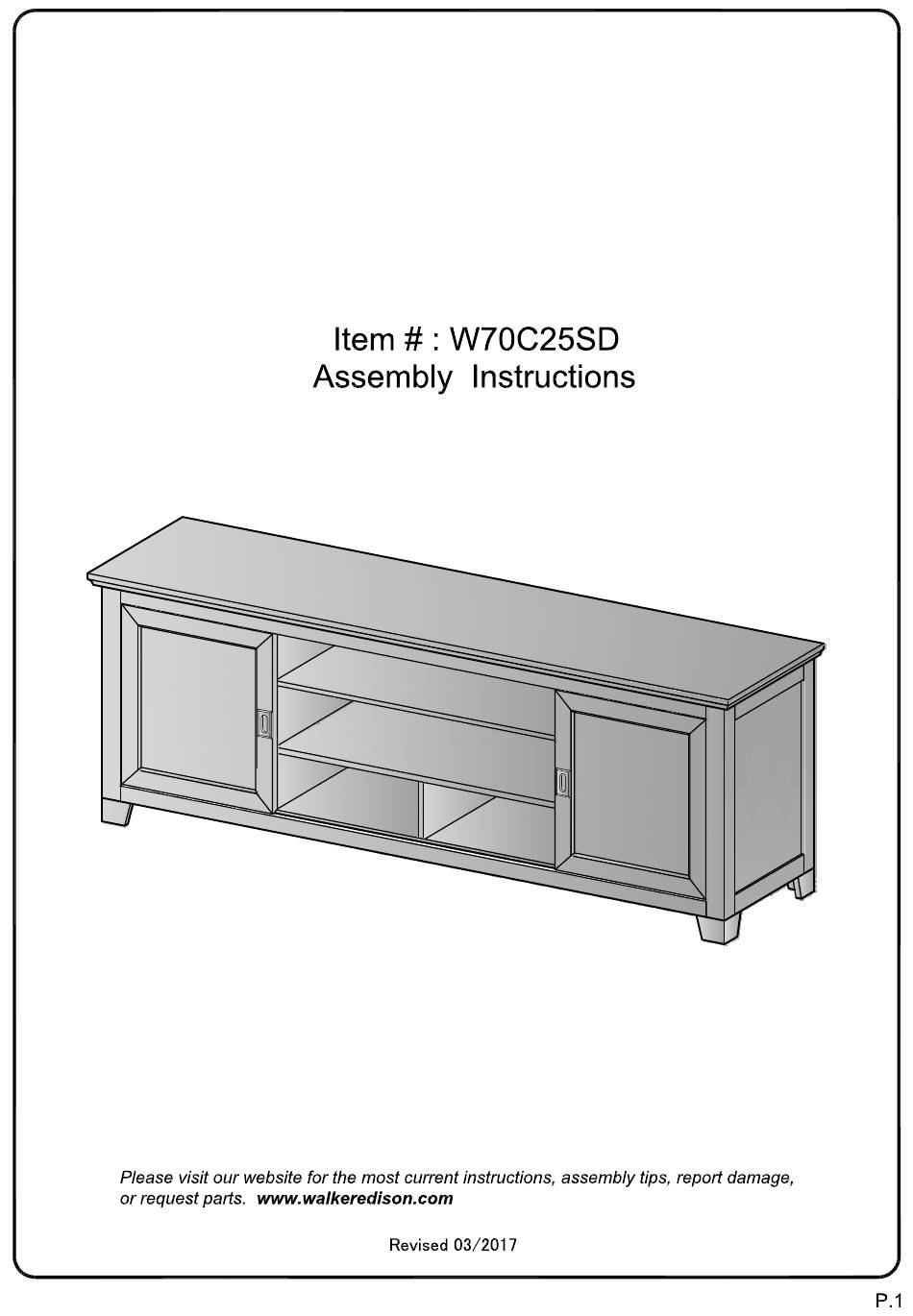

  • Page 1 Copyright © 2012, by Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 2 Copyright © 2012, by Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 3 Copyright © 2012, by Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 4 Handle back plate Copyright © 2012, by Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 5 Inset dowels (A) into slat (2). Screw cam bolts (C) into top panel (1). Insert dowels (A) and screw cam bolts (C) into bottom panel (11). Insert dowels (A) into legs (13). Copyright © 2012, by Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 6 Insert dowels (A) and screw cam bolts (C) into panels (3,4). Insert dowels (B) into panel (9). Insert dowels (A) into panels (5,6,10). Screw cam bolts (C) into panels (5,6,9). Copyright © 2012, by Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 7 Attach panel (10) to panel (9) using cam bolts and dowels as guides. Secure panel (10) to panel (9) using cam locks (D). Tighten cam locks (D) with a screwdriver. Attach panels (5,6) to panel (9) using cam bolts and dowels as guides. Copyright © 2012, by Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 8 Secure panel (5) to panel (9) using cam locks (D). Tighten cam locks (D) with a screwdriver. Secure panel (6) to panel (9) using cam locks (D). Tighten cam locks (D) with a screwdriver. Copyright © 2012, by Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 9 Attach the assembly from the previous step to bottom panel (11) using cam bolts and dowels as guides. Secure panel (5) to bottom panel (11) using cam locks (D). Tighten cam locks (D) with a screwdriver. Copyright © 2012, by Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 10 Secure panels (6,10) to bottom panel (11) using cam locks (D). Tighten cam locks (D) with a screwdriver. Attach panels (3,4) to bottom panel (11) using cam bolts and dowels as guides. Copyright © 2012, by Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 11 Secure panels (3,4) to bottom panel (11) using cam locks (D). Tighten cam locks (D) with a screwdriver. Attach slat (2) to top panel (1) using dowels as guides. Note the direction of slat (2) as shown above. Copyright © 2012, by Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 12 Attach slat (2) to top panel (1) using screws (H). Attach the top panel (1) to the assembly from the previous step using cam bolts and dowels as guides. Copyright © 2012, by Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 13 Secure top panel (1) to panels (3,6) using cam locks (D). Tighten cam locks (D) with a screwdriver. Secure top panel (1) to panels (4,5) using cam locks (D). Tighten cam locks (D) with a screwdriver. Copyright © 2012, by Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 14 (12) into bottom panel (11). Attach panels (14,15) to the back of the console using screws (F). Note the direction of panels (14, 15) as shown above. Copyright © 2012, by Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 15 Attach panel (16) to the back of the console using screws (F). Note the direction of panel (16) as shown above. Attach panel (17) to the back of the console using screws (F). Copyright © 2012, by Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 16 Cover all visible cam locks with stickers (P) as desired. Insert shelf support pins (E) into panels (3,4,5,6). Copyright © 2012, by Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 17 Shelves will rest on the shelf support pins. Place the handle back plate (N) into handle (M). Attach the handles (M,N) to doors (18,19) using handle screws (G) Copyright © 2012, by Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 18 Insert the doors into the console by pulling down the upper door pins and carefully placing the door wheels over the slide in the bottom panel. Secure the doors into place by pressing the upper door pins into the groove in the top panel. Copyright © 2012, by Walker Edison Furniture Co., LLC. All rights reserved.
