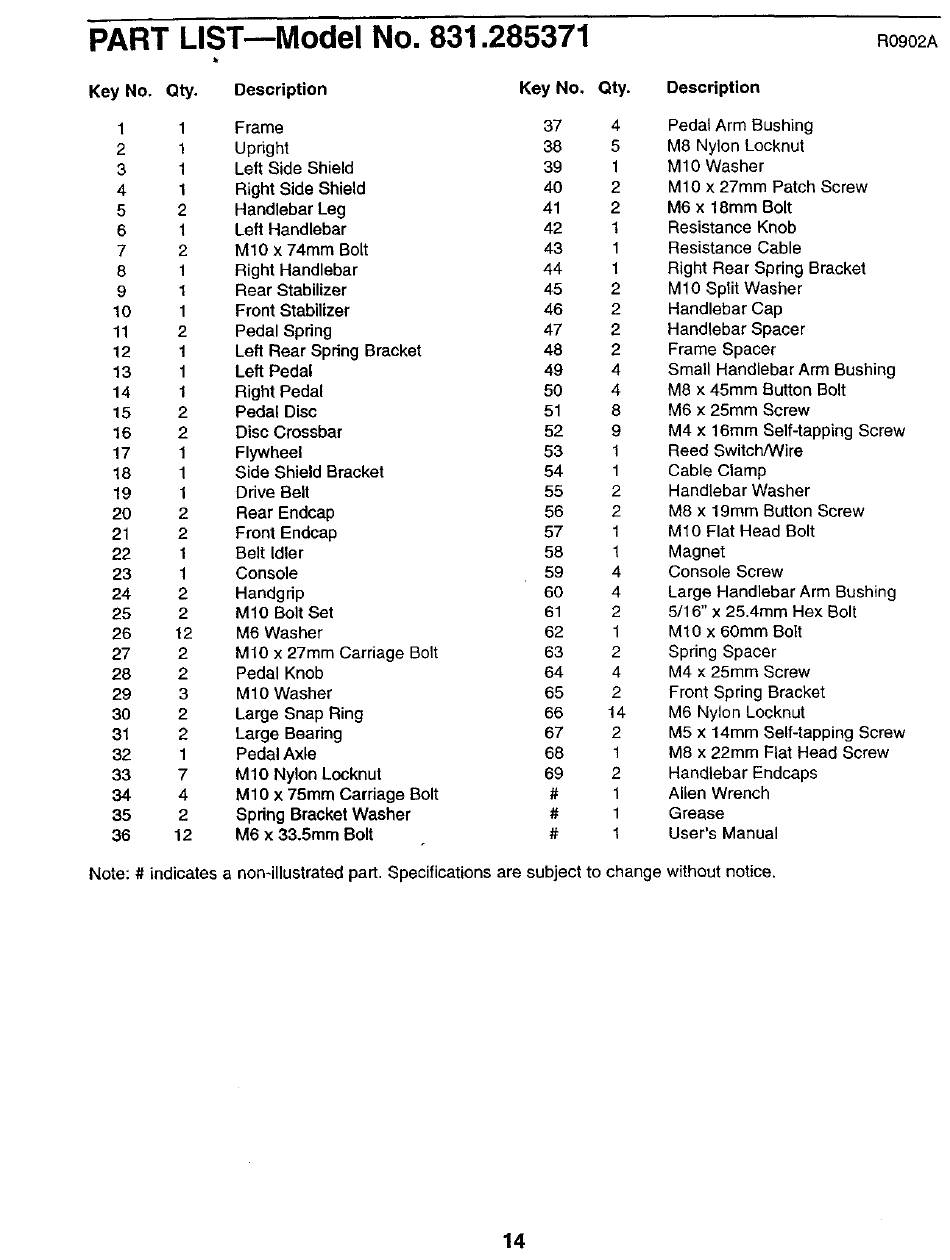

PART LIST--Model No. 831.285371 R0gO2A
Key No. Qty.
Description
Key No. Qty.
1 1 Frame 37 4
2 1 Upnght 38 5
3 1 Left Side Shield 39 1
4 1 Right Side Shield 40 2
5 2 Handlebar Leg 41 2
6 1 Left Handlebar 42 1
7 2 M10 x 74ram Bolt 43 1
8 1 Right Handlebar 44 1
9 1 Rear Stabilizer 45 2
10 1 Front Stabilizer 46 2
11 2 Pedal Spring 47 2
12 1 Left Rear Spring Bracket 48 2
13 1 Left Pedal 49 4
14 1 Right Pedal 50 4
15 2 Pedal Disc 51 8
16 2 Disc Crossbar 52 9
17 1 Flywheel 53 1
18 1 Side Shield Bracket 54 1
19 1 Drive Belt 55 2
20 2 Rear Endcap 56 2
21 2 Front Endcap 57 1
22 1 Belt Idler 58 1
23 1 Console 59 4
24 2 Handgdp 60 4
25 2 MIO Bolt Set 61 2
26 12 M6 Washer 62 1
27 2 M10 x 27mm Carriage Bolt 63 2
28 2 Pedal Knob 64 4
29 3 M10 Washer 65 2
30 2 Large Snap Ring 66 14
31 2 Large Beadng 67 2
32 1 Pedal Axle 68 1
33 7 M10 Nylon Locknut 69 2
34 4 M10 x 75mm Cardage Bolt # 1
35 2 Spdng Bracket Washer # 1
36 12 M6 x 33.5mm Bolt # 1
Note: # indicates a non-illustrated part. Specifications are subject to
Description
Pedal Arm Bushing
M8 Nylon Locknut
M10 Washer
M10 x 27mm Patch Screw
M6 x 18mm Bolt
Resistance Knob
Resistance Cable
Right Rear Spring Bracket
M10 Split Washer
Handlebar Cap
Handlebar Spacer
Frame Spacer
Small Handlebar Arm Bushing
M8 x 45mm Button Bolt
M6 x 25mm Screw
M4 x 16mm Self-tapping Screw
Reed Switch/Wire
Cable Clamp
Handlebar Washer
M8 x 19mm Button Screw
M10 Flat Head Bolt
Magnet
Console Screw
Large Handlebar Arm Bushing
5/16" x 25.4mm Hex Bolt
M10 x 60mm Bolt
Spring Spacer
M4 x 25mm Screw
Front Spring Bracket
M6 Nylon Locknut
M5 x 14ram Self-tapping Screw
M8 x 22mm Flat Head Screw
Handlebar Endcaps
Allen Wrench
Grease
User's Manual
change without notice.
