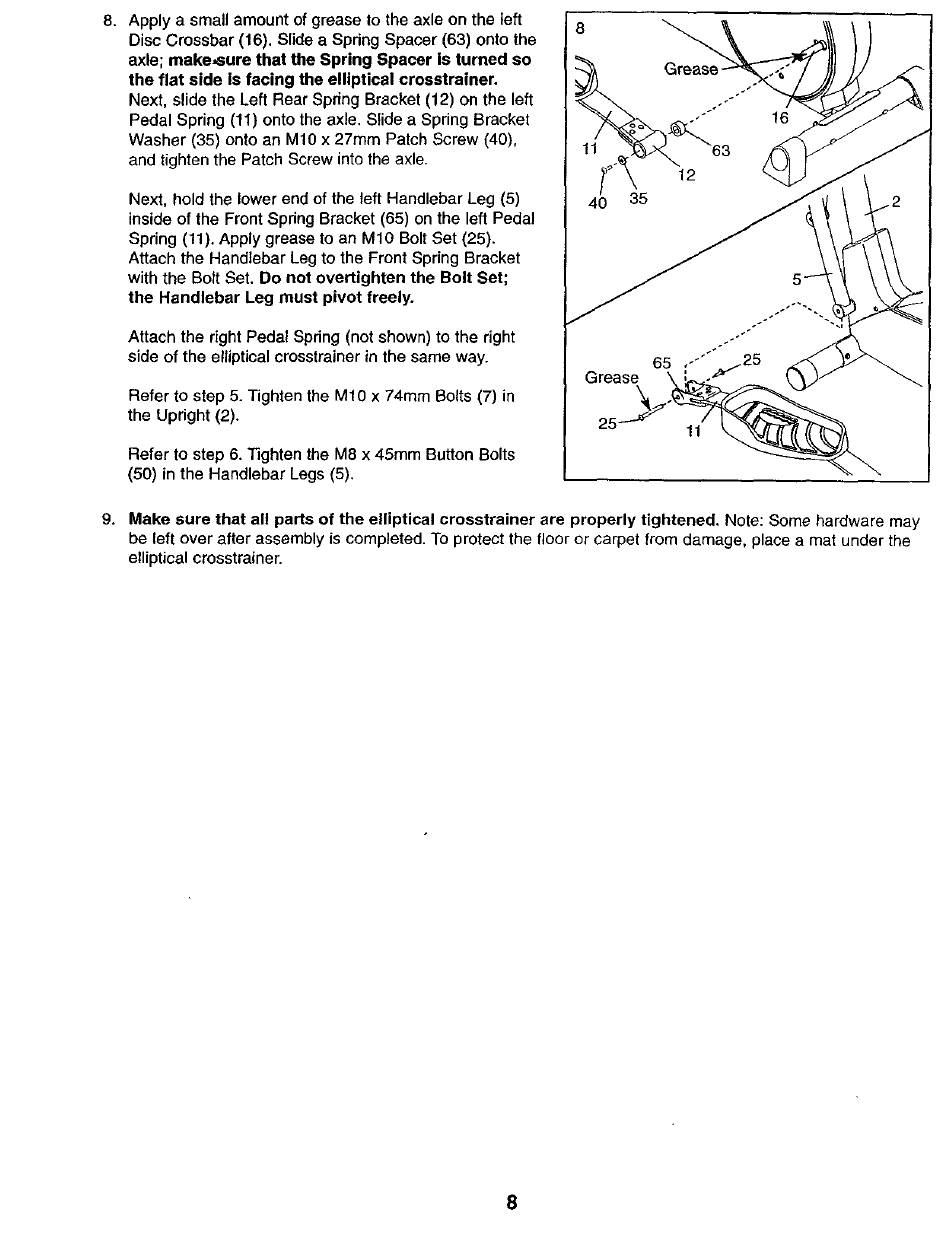

8. Apply a small amount of grease to the axle on the left
Disc Crossbar (16). Slide a Spdng Spacer (63) onto the
axle; make,sure that the Spring Spacer is turned so
the flat side Is facing the elliptical crosstrainer.
Next, slide the Left Rear Spring Bracket (12) on the left
Pedal Spring (11) onto the axle. Slide a Spring Bracket
Washer (35) onto an M10 x 27mm Patch Screw (40),
and tighten the Patch Screw into the axle.
Next, hold the lower end of the left Handlebar Leg (5)
inside of the Front Spring Bracket (65) on the left Pedal
Spring (11). Apply grease to an M10 Bolt Set (25).
Attach the Handlebar Leg to the Front Spring Bracket
with the Bolt Set. Do not overtighten the Bolt Set;
the Handlebar Leg must pivot freely.
Attach the right Pedal Spring (not shown) to the right
side of the elliptical crosstrainer in the same way.
Refer to step 5. Tighten the M10 x 74ram Bolts (7) in
the Upright (2).
Refer to step 6. Tighten the M8 x 45mm Button Bolts
(50) in the Handlebar Legs (5),
8
40 35
Grease
Grease
11
9. Make sure that all parts of the elliptical crosstrainer are properly tightened. Note: Some hardware may
be left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical crosstrainer.
