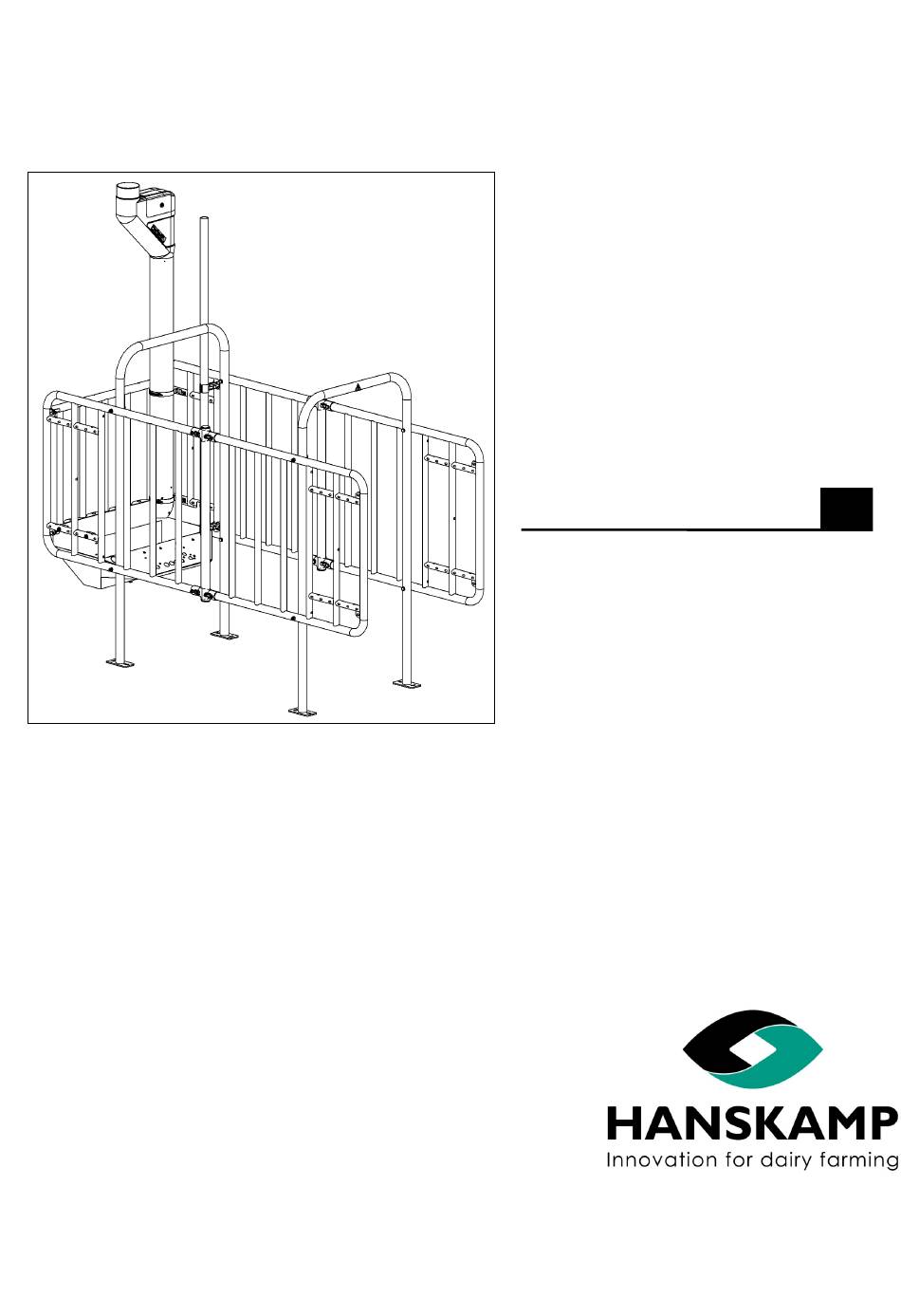

FeedStation 42000
Voerstation
Out of parlour feeder
Futterstation
Distribution alimentation
concentré (DAC)
EN
Installation and Operating Instructions
Article number: 010-084-000
Doetinchem,
The Netherlands
Date: January 2025
Version 3.8 - Translation of original Installation and Operating Instructions
www.hanskamp.com
Advertisement
Related Manuals for Hanskamp FeedStation 42000
Summary of Contents for Hanskamp FeedStation 42000
- Page 1 FeedStation 42000 Voerstation Out of parlour feeder Futterstation Distribution alimentation concentré (DAC) Installation and Operating Instructions Article number: 010-084-000 Doetinchem, The Netherlands Date: January 2025 Version 3.8 - Translation of original Installation and Operating Instructions www.hanskamp.com...
- Page 2 Please contact Hanskamp if the information is not clear to you, or if you need more information. All the information in this manual was compiled with care. Hanskamp is not liable for any errors or shortcomings in this manual. The recommendations are intended as guidelines.
- Page 3 Dairy farmers can use the information to test and calibrate the FeedStation walk- in or to display reports. • Technicians can use the information to install and setup the FeedStation walk-in. 3 - 17 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com...
-
Page 4: Safety Instructions
• Only use original spare parts, and make sure that they are fitted by authorised technicians. 4 - 17 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com... - Page 5 Before connecting the FeedStation walk-in to the power supply, make sure that all parts are properly tightened and that all cables and mountings are in good condi- tion. • If you have any other questions, please contact your milking technology dealer. 5 - 17 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com...
- Page 6 This chapter lists the general safety messages. Specific safety messages, where potential hazards may arise if the procedures or instructions are not followed, are included in the appropriate sections of this manual. 6 - 17 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com...
- Page 7 Installation and operating instructions General description The Hanskamp FeedStation is a universal feed station, with a modular setup, that has been developed to provide cows with their individual portions of concen- trates. The FeedStation is fitted with PipeFeeder concentrate dosators and can be expanded to take up to four different types of feed (one PipeFeeder per feed type).
- Page 8 Do not use solvents or abrasives that could damage safety stickers. • Replace missing or illegible safety stickers. • Safety stickers are available from Hanskamp. Always use the article numbers in correspondence. 001-703-000 8 - 17 Hanskamp AgroTech BV (The Netherlands)
- Page 9 Insert the second frame between the side fences and attach this too using the mounting materials as used in step 3 (fig. 6). Please note! Make sure the side fences and frames are fully levelled (vertically and horizontally). Then fix them into position. 9 - 17 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com...
- Page 10 FeedStation and prevent rotations or shifting of the cable guide. The cable which comes from the Pipe- Feeder can be slided through this tube. 001-769-000 001-508-000 Editing cable guide tube art. no. 004-208-000 10 - 17 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com...
- Page 11 Make sure no water gets into the PipeFeeder as this can impair its function- ing. • Make sure there is sufficient room between the PipeFeeders and the feed trough (>26 cm), as this will stop the cow’s breath from condensing. 11 - 17 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com...
- Page 12 Please note! Calibrate the PipeFeeder feed dosator before use. Repeat this once a month or when changing feed type. Please note! Do not climb onto the feed station because of the danger of falling. 12 - 17 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com...
-
Page 13: Maintenance
No part of this publication may be reproduced or made public without the prior written consent of Hanskamp Ag roTech BV. Although this publication has been compiled with the greatest care, Hanskamp AgroTech BV is not liable for any damage that may arise d ue to any errors or omis- sions it might contain. - Page 14 FeedStation 42000 Appendix 1 Hanskamp can supply the following options for the FeedStation concentrates box: 027-000-000 PipeFeeder concentrate feed dosator 028-000-000 PipeFeeder low capacity dosator 004-030-000 Universal L’port closing gate 036-000-000 MultiDos liquid concentrate dosator 004-221-000 Plastic shielding plates (fig. 15) 004-256-000 Protective tube set 1¼...
- Page 15 Loose components It is possible to reorder loose components from your supplier for maintenance, or for any other reason. When doing so, please use the item numbers shown below in the drawing. 15 - 17 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com...
- Page 16 004-207-000 Kit fasteners FeedStation per additional feeding sort PipeFeeder Article number Description Quantity 001-376-000 Seal bag 150x200 mm 001-741-000 Bolt M8x55 A2 DIN 933 001-774-000 Washer M8 DIN 9021 A2 001-796-000 Screw DIN 985 A2 4.8x16 (for lid) 16 - 17 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com...
- Page 17 FeedStation 42000 Hanskamp AgroTech BV Broekstraat 17 7009 ZB Doetinchem The Netherlands Also take a look at: Tel: +31 (0)314 - 393 797 Fax: +31 (0)314 - 393 826 info@hanskamp.nl www.hanskamp.com 17 - 17 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com...
