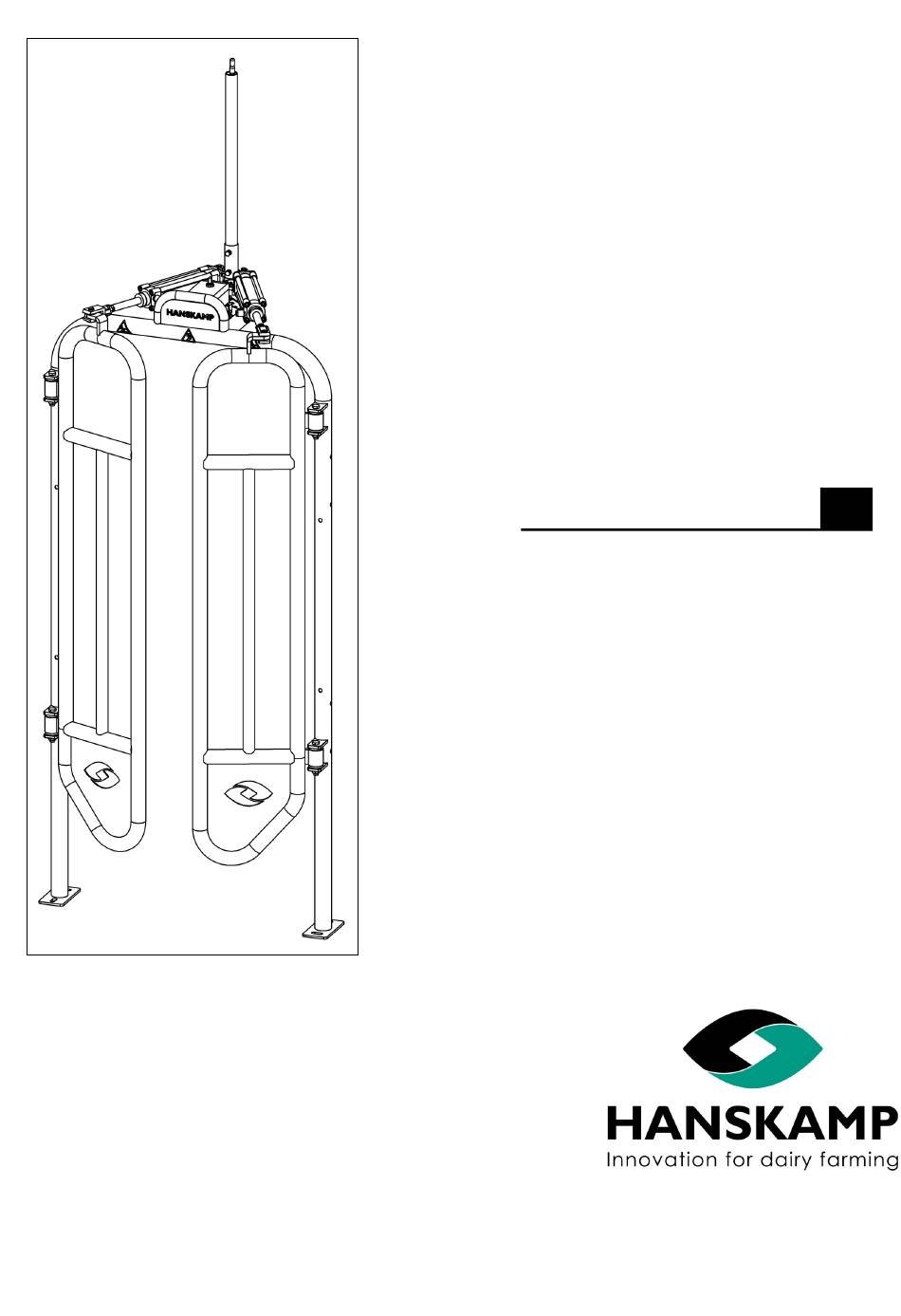

T'port
004-330-001
Toegangspoort
Entrance gate
Zutritt Tor
Porte d'accès automatique
EN
Installation and Operating Instructions
Article number: 010-259-000
Date: June 2024
Doetinchem,
Version 1.3 - Translation of original Installation and Operating Instructions
The Netherlands
According to Annex 1 Section 1.7.4 of the Machinery Directive 2006/42/EC
www.hanskamp.com
Advertisement
Related Manuals for Hanskamp T'port 004-330-001
Summary of Contents for Hanskamp T'port 004-330-001
- Page 1 Zutritt Tor Porte d’accès automatique Installation and Operating Instructions Article number: 010-259-000 Date: June 2024 Doetinchem, Version 1.3 - Translation of original Installation and Operating Instructions The Netherlands According to Annex 1 Section 1.7.4 of the Machinery Directive 2006/42/EC www.hanskamp.com...
- Page 2 All information in this manual has been compiled with care. Hanskamp shall not be liable for errors or faults in this manual. The recommendations are meant to serve as guidelines.
- Page 3 Toegangspoort - Entrance gate - Zutritt Tor - Porte d’accès automatique Introduction Hanskamp’s T’port is a pneumatically driven gate that closes the entrance to the feed sta- tion. Because the station is safely closed off, the feeding cow is protected from other cows bumping into it.
-
Page 4: Safety Instructions
• Only use original spare parts, and make sure that they are fitted by author- ised technicians. 4 - 18 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com... - Page 5 Before connecting the T’port to the power supply, make sure that all parts are properly tightened and that all cables and mountings are in good condi- tion. • If you have any other questions, please contact your milking technology dealer. 5 - 18 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com...
- Page 6 When the speed is too high, the cylinder can break. Correct adjustment can be found in relevant installation and user instruction. Warning! Make sure the cylinder is never mounted under radial forces. The cylin- der can handle only axial forces on the piston rod. 6 - 18 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com...
- Page 7 Installation and Operating Instructions General description Hanskamp’s T’port closing gate is a pneumatic gate developed specifically to close off feed stations in low barns when cows enter the station for their portion of concentrate. The T’port closing gate must be connected in parallel to the feed motors of all feed types.
- Page 8 Do not use solvents or abrasives that could damage safety stickers. • Replace missing or illegible safety stickers. Safety stickers are available from Hanskamp. Always use the product numbers in corre- spondence. 010-260-000 Warning sticker Attach the provided stickers on the cylinder on the piston rod side.
- Page 9 This can be adjusted by rotating the fork. Lock it in place of using the underlying nut (figure 6). Connect the cylinders with the valve using Ø6 PU air tube (art. no. 001-388-000) (figure 7). 9 - 18 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com...
- Page 10 The power supply and inputs are kept separate galvanically on the print. In case of a power breakdown the T’port entrance gate opens automatically. If there is no 24 Volts available, then order art. no. 002-812-000 Hanskamp PowerUnit 10A 24V DC. Please note! Cable to be installed out of cow’s reach.
- Page 11 After installation the T’port can be put in operation, by placing the switch (fig. 12.C) to starts automatically. ‘Auto’. The sound level always equals 70 dB(A) or less. Attention! Risk of impact from the T’port closing gate when walking in. 11 - 18 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com...
- Page 12 These compressed air regulations can be consulted at www.hanskamp.com. The warranty does not apply to consequential damages unrelated to the machine itself. All systems have been tested, However, in the event of defects, Hanskamp AgroTech BV cannot be held responsible for consequential damage. 12 - 18 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com...
- Page 13 No part of this publication may be reproduced or made public without the prior written consent of Hanskamp AgroTech BV. Although this publication has been compiled with the greatest care, Hanskamp AgroTech BV is not liable for any damage that may arise due to any errors or omis- sions it might contain.
- Page 14 If the T’port is not connected and the prescribed safety instructions are not used, this Declaration of Conformity is not applicable and no rights can be derived from this dec- laration. Doetinchem, the Netherlands, 01-07-2016 H.J. Hanskamp 14 - 18 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com...
- Page 15 Toegangspoort - Entrance gate - Zutritt Tor - Porte d’accès automatique Appendix Hanskamp can supply the following types of closing gates: 4030 L’port closing gate universal, fits on all types of out of parlour feeders. 4032 L’port closing gate XL (extended back gate), fits on DeLaval FSC40(0), FP200 &...
- Page 16 Loose components It is possible to reorder loose components from your supplier for maintenance, or for any other reason. Please use the item numbers as shown on the drawings (exploded views). 16 - 18 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com...
- Page 17 004-242-000 Blind rivet nut M4 0.3-3.0 mm 8.8 004-335-000 Nylon spacer 12x16x10 004-343-000 Slide bearing for cylinder T’port rear hinge 004-344-000 Slide bearing for cylinder T’port 011-141-000 Hexagon head setscrew M8x12 17 - 18 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com...
- Page 18 Toegangspoort - Entrance gate - Zutritt Tor - Porte d’accès automatique Hanskamp AgroTech BV Broekstraat 17 Also take a look at: 7009 ZB Doetinchem The Netherlands Tel: +31 (0)314 - 393 797 Fax: +31 (0)314 - 393 826 www.hanskamp.com 18 - 18 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com...
