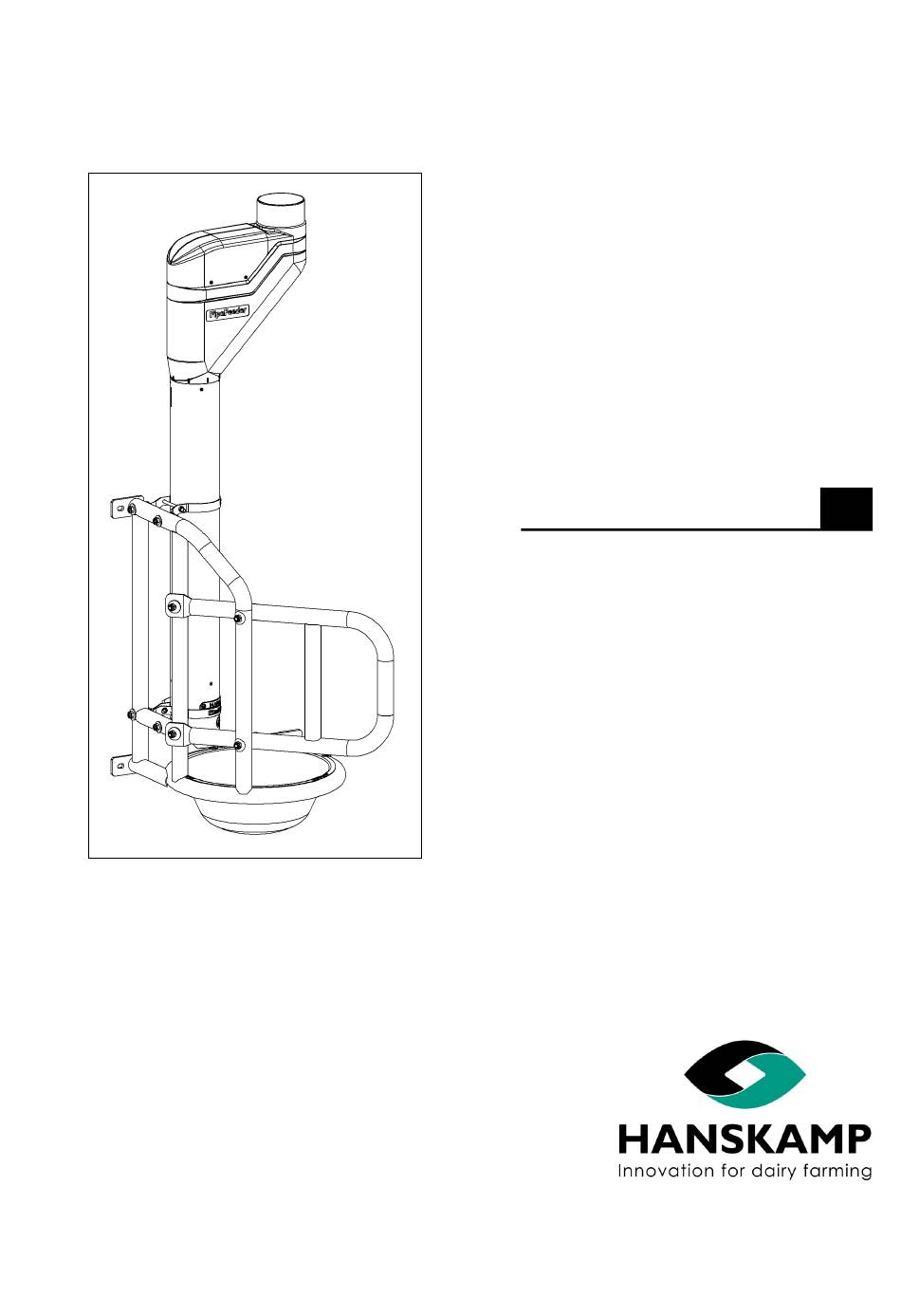

- Page 1 MultiFrame In parlour feeding 075-000-000 Installation instruction Artikelnumber: 010-243-000 Date: March 2020 Doetinchem, The Netherlands Version 1.6 - Translation of original instructions www.hanskamp.nl/en...
- Page 2 = depending on the size of the animal, measure this. Mounting Feedtrough Install the feedtrough in the MultiFrame. The feedtrough is easy to place in the frame by sliding it obliquely below the 2 vertical tubes which are welded to the ring.
- Page 3 PipeFeeder is re-adjusted in order to maintain the anti-spill function. For adjusting the PipeFeeder see manual 001-847-000 Adjust the PipeFeeder not to the MultiFrame by a truss structure or similar. Then the PipeFeeder can also be mounted on the wall. The distance between the wall and the PipeFeeder remains unchanged from mounting on the MultiFrame.
- Page 4 It is recommended to ground all MultiFrames. To ground, there is a tube lug (art.no.: 001-302-000) provided it could be mount bet- ween any bolt and nut of the MultiFrame. Maintenance MultiFrame Clean the feedtrough regurlarly and make sure the feedtrough stays clean.
- Page 5 524-000 is mounted in the same way. To shield the antenna cable, a guide tube can be placed (fig. 12-14). This is available at Hanskamp as a set : Art.nr.: 007-530-000 for neck collar tag read- ers, art.nr.: 007-531-000 for leg tag readers.
- Page 6 Picture PF to low added 01/2018 Antenna mounting Added antenna mounting instructions. 06/2019 Front page, images 1 & 2 Changed to most recent version MultiFrame 03/2020 Pag. 2 and 4 Image added pag. 2, comment added pag. 4 Occurring problem Possible cause...
- Page 7 Antenna mount incl. mounting material Art.no.: Description 007-524-000 Mount for Reader 3mm incl. (DeLaval) 1 007-525-000 Mount for Antenne 3mm AISI304 (Hanskamp, Nedap, Fullwood) 007-530-000 Cable guide tube set (Neck collar antenna) 007-531-000 Cable guide tube set (Leg tag antenna) 7 - 8 Hanskamp AgroTech B.V.
- Page 8 MultiFrame 075-000-000 Hanskamp AgroTech B.V. Broekstraat 17 7009 ZB Doetinchem Visit us on: Nederland Tel: +31 (0)314 - 393 797 Fax: +31 (0)314 - 393 826 8 - 8 Hanskamp AgroTech B.V. (the Netherlands) www.hanskamp.nl/en...
