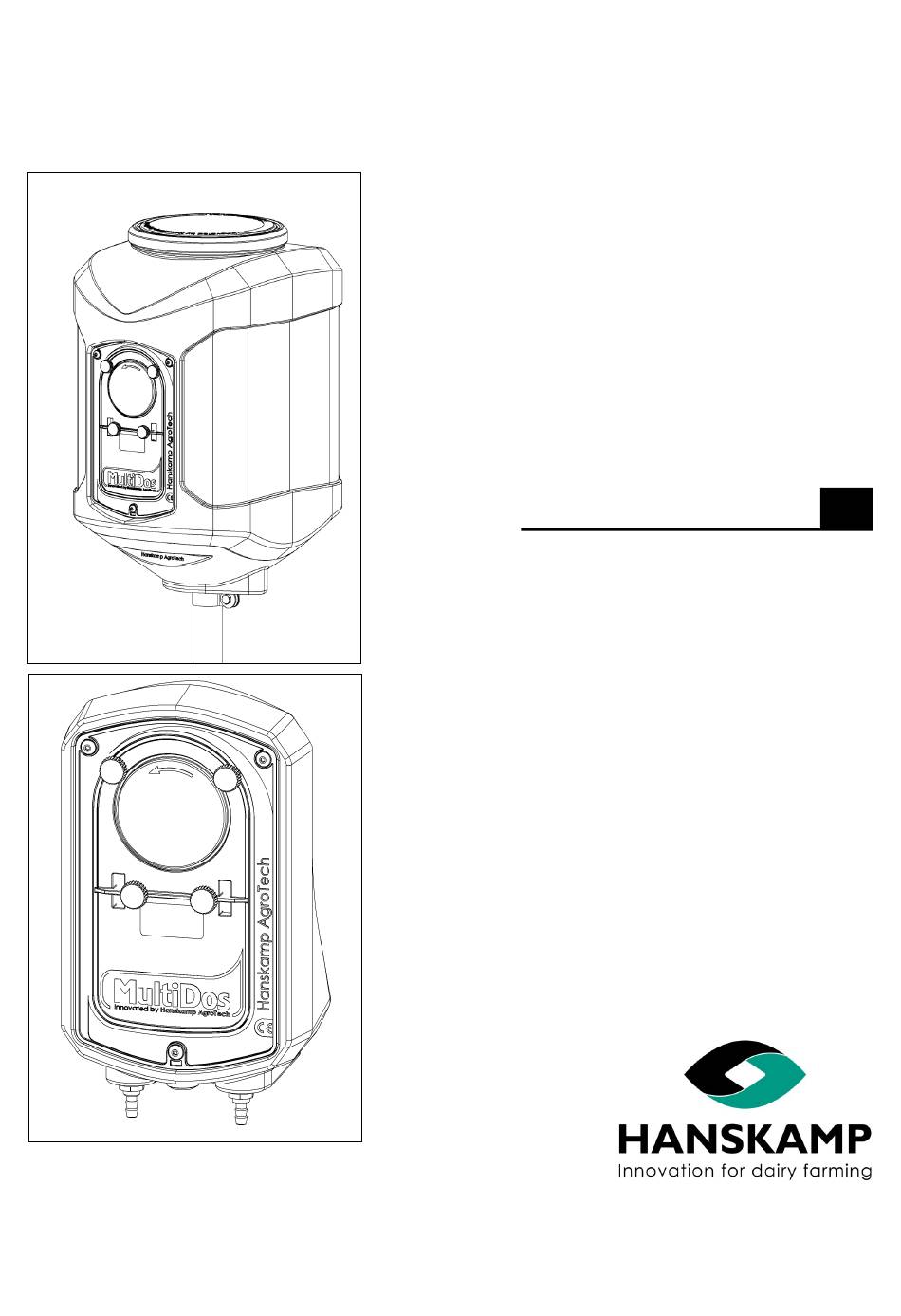

- Page 1 MultiDos 035-000-000 036-000-000 Vloeistofdoseersysteem Liquid dosing system Flüssigkeitsdosiersystem Système de dosage pour liquide Installation and Operating Instructions Item number: 010-100-000 Date: December 2023 Doetinchem, Version: 2.1 - Translation of original instructions for use The Netherlands According to Annex 1 chapter 1.7.4 Machine guideline 2006/42/EC...
- Page 2 Please consult your milking equipment dealer if you do not understand the information in this manual, or if you need additional information. All information in this manual has been compiled with care. Hanskamp shall not be lia- ble for errors or faults in this manual. The recommendations are meant to serve as guidelines.
- Page 3 Dosing system - Dosiersystem - Système de dosage - Doseersysteem Introduction MultiDos by Hanskamp, a proven, sustainable technique enabling you to very easily dose the right quantity of liquids per day and per cow. Smart, fast and affordable. Multi- Dos doses liquid propylene glycol like gravy on top of the feed chunks. And cows love it! The information in this manual is intended for dairy farmers and technicians.
-
Page 4: Safety Instructions
• Only use original spare parts, and make sure that they are fitted by authorised technicians. 4 - 30 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com... - Page 5 Before connecting the MultiDos to the power supply, make sure that all parts are properly tightened and that all cables and mountings are in good condition. • If you have any other questions, please contact your milking technology dealer. 5 - 30 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com...
- Page 6 This chapter lists the general safety messages. Specific safety messages, where potential hazards may arise if the procedures or instructions are not followed, are included in the appropriate sections of this manual. 6 - 30 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com...
-
Page 7: Installation Instruction
Do not use solvents or abrasives that could damage safety stickers. • Replace missing or illegible safety stickers. • Safety stickers are available from Hanskamp. Always use the article numbers in correspondence. 7 - 30 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com... - Page 8 Attention! Make sure that the PVC hose keeps its shape during the mounting of it. Don’t pull the tie-wraps too hard, this can pinch the hose. For nozzle assembly see page 22. 8 - 30 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com...
- Page 9 Install the pump with the corresponding screws (art. no. 003-510-000) evenly by hand. Take care! HanskampQualityTube is not suitable for acids. A hose set suitable for acids is available from Hanskamp. 003-575-000 9 - 30 Hanskamp AgroTech BV (The Netherlands)
- Page 10 Attention! Cut the hose off straight. When the hose is cut crooked, may impair the operation. Turn the rotor of the pump loose by hand (counter-clockwise), and remove it (fig. 12). Attention! By loosening of the rotor by hand, minor injuries can occur. 10 - 30 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com...
- Page 11 With the last turn press the HanskampQualityTube into the recess of the pump housing. The hose is now wedged in-between the rollers and the pump housing. Tighten the rotor by hand on the motor shaft (fig. 19 and 20). 11 - 30 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com...
- Page 12 When the HanskampQualityTube is worn by intensive use (leaking), replace it according described steps. A repair kit is available by Hanskamp. Also check the rollers and bearings for wear. Also these parts are available as a repair kit by Han- skamp.
- Page 13 27. Then secure the mounting material. (Mounting material is not included.) Distance between the tube and the plate: ± 8mm 13 - 30 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com...
- Page 14 Loosen the rotor of the pump by turning anti-clockwise and remove it. Attention! By loosening of the rotor by hand, minor injuries can occur. Attention! Hanskamp only guarantees a correct operation when the suction hose is 2 meters or shorter. Use the 5 meter hose as a pressure hose.
- Page 15 (fig. 35). Take care! Always cut the hose square. If the hose is cut obliquely this can ad- versely affect the operation. Motorcable to the control unit Suction hose Pressure hose 15 - 30 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com...
- Page 16 A repair kit is available by Hanskamp. Also check the rollers and bearings for wear. Also these parts are available as a repair kit by Hanskamp. We recommend to disconnect the rotor when the system is temporarily decommissioned.
- Page 17 Repeat Chapter 3 for all other Feed stations or type 7 [enter]: Entering per batch, to change the settings for a batch of selected feed stations. Press the spacebar and type 16 [enter]: Quit. 17 - 30 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com...
- Page 18 Configuration for propylene glycol is similar to configuring for concentrates. If the calibra- tion has been multiplied by factor 10, the configuration should also be multiplied by factor Example: Feedtype 3 is configured by 1 kg to equal 100 ml. 18 - 30 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com...
- Page 19 Damage to the electrical system caused by pests and the like. The warranty does not apply to consequential damages unrelated to the machine itself. All systems have been tested, However, in the event of defects, Hanskamp AgroTech BV cannot be held responsible for consequential damage.
- Page 20 No part of this publication may be reproduced or made public without the prior written consent of Hanskamp AgroTech BV. Although this publication has been compiled with the greatest care, Hanskamp AgroTech BV is not liable for any damage that may arise due to any errors or omissions it might contain.
- Page 21 If the MultiDos is not connected and the prescribed safety instructions are not used, this Declaration of Conformity is not applicable and no rights can be derived from this decla- ration. Doetinchem, The Netherlands, 04-12-2023 H.J. Hanskamp 21 - 30 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com...
-
Page 22: Appendix 1 Information Nozzle Holders 003-518-000
003-518-000: Dill holes to mount the hose and nozzle, insert the hose trough the center- hole and mount the nozzle to the hose. Then mount the nozzle and tighten the bolts. Attention! Always mount the nozzle vertically. 003-518-000 Nozzle cover 22 - 30 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com... -
Page 23: Appendix 2 Articlenumber Build-Up And Exploded View Multidos Pump
Example: Art. No. 035-321-000 = • A MultiDos system suitable for DC control (portion dosage); • Consists of 2 pumps; • Built in the container (34 l) with blue cover; Cover Torque Remove 23 - 30 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com... -
Page 24: Appendix 3 Exploded View Wall Mount
MultiDos Dosing system - Dosiersystem - Système de dosage - Doseersysteem Appendix 3 Exploded view wall mount Wall mount Torque = Remove! 24 - 30 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com... -
Page 25: Appendix 4 Exploded View Container With 2 Pumps & Pump Multidos
MultiDos Dosing system - Dosiersystem - Système de dosage - Doseersysteem Appendix 4 Exploded view container with 2 pumps & pump MultiDos Cover Remove 003-525-000 25 - 30 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com... -
Page 26: Appendix 5 Exploded View Rotor
Dosing system - Dosiersystem - Système de dosage - Doseersysteem Appendix 5 exploded view Rotor 003-524-000 only in combination with HanskampQualityTube 003-512-000 of 003-512-002 003-524-001 only in combination with HanskampQualityTube 003-512-005 (black rollers) 26 - 30 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com... -
Page 27: Appendix 6 Hazard Warnings An Use Instructions Hanskampqualitytube
Frictional resistance due to deficient maintenance or wear on the rollers and guides; Twisted, kinked or excess length of the HanskampQualityTube installed in the Mul- tiDos; Wall thickness and thickness variation. 27 - 30 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com... - Page 28 Carefully set up and monitor each of the factors mentioned above while using the HanskampQualityTube in the MultiDos; Read and respect the instructions of Hanskamp (manufacturer) or dealer of the equipment and the MultiDos with regard to installation, use, maintenance and disassembly;...
-
Page 29: Appendix 7 Loose Parts
036-*4*-00* 011-095-000 RIM motor 28RPM 24VAC with feed- back 036-*4*-00* 001-652-000 Intelligent motor 28RPM 036-*7*-00* 011-125-000 RIM motor 28RPM 24VAC/DC pulse controlled, with feedback 036-*8*-00* 001-001-000 Silver motor 40RPM 24V DC 29 - 30 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com... - Page 30 Dosing system - Dosiersystem - Système de dosage - Doseersysteem Hanskamp AgroTech BV Broekstraat 17 7009 ZB Doetinchem Also take a look at: The Netherlands Tel: +31 (0)314 - 393 797 Fax: +31 (0)314 - 393 826 www.hanskamp.com 30 - 30 Hanskamp AgroTech BV (The Netherlands) www.hanskamp.com...
