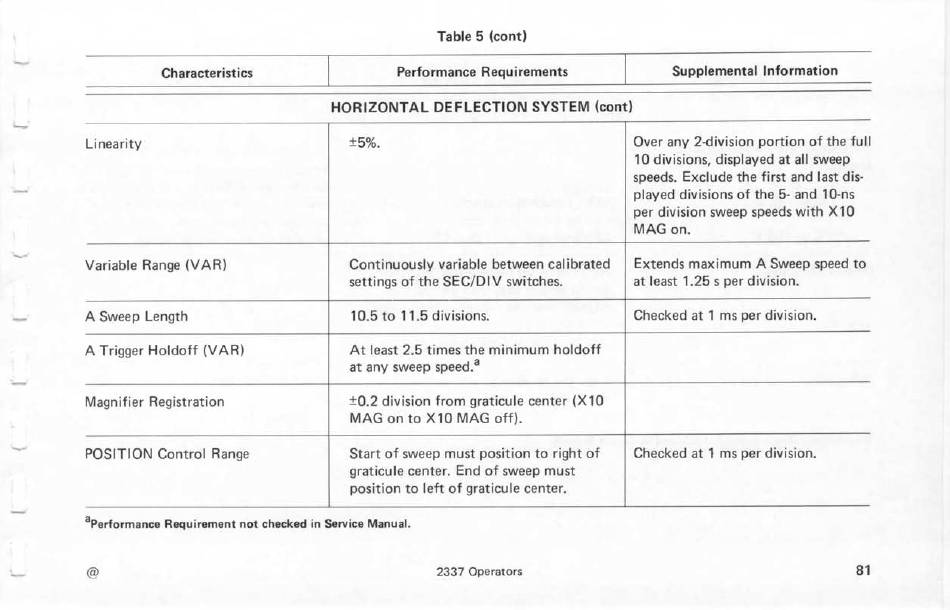

Tektronix 2337 Instruction Manual page 90

Characteristics
Performance Requirements
HORIZONTAL DEFLECTION SYSTEM (cont)
Linearity
5%.
Over any 2-division portion of the full
10 divisions, displayed at all sweep
speeds. Exclude the first and last dis-
played divisions of the 5- and 10-ns
per division sweep speeds with X10
MAG on.
Continuously variable between calibrated
settings of the SEC/DIV switches.
Extends maximum A Sweep speed to
A Sweep Length
Checked at 1 ms per division.
A Trigger Holdoff (VAR) At least 2.5 times the minimum holdoff
at any sweep speed.?
Magnifier Registration
+0.2 division from graticule center (X10
MAG on to X10 MAG off).
POSITION Control Range
Start of sweep must position to right of
graticule center. End of sweep must
position to left of graticule center.
Checked at 1 ms per division.
Performance Requirement not checked in Service Manual.
@
