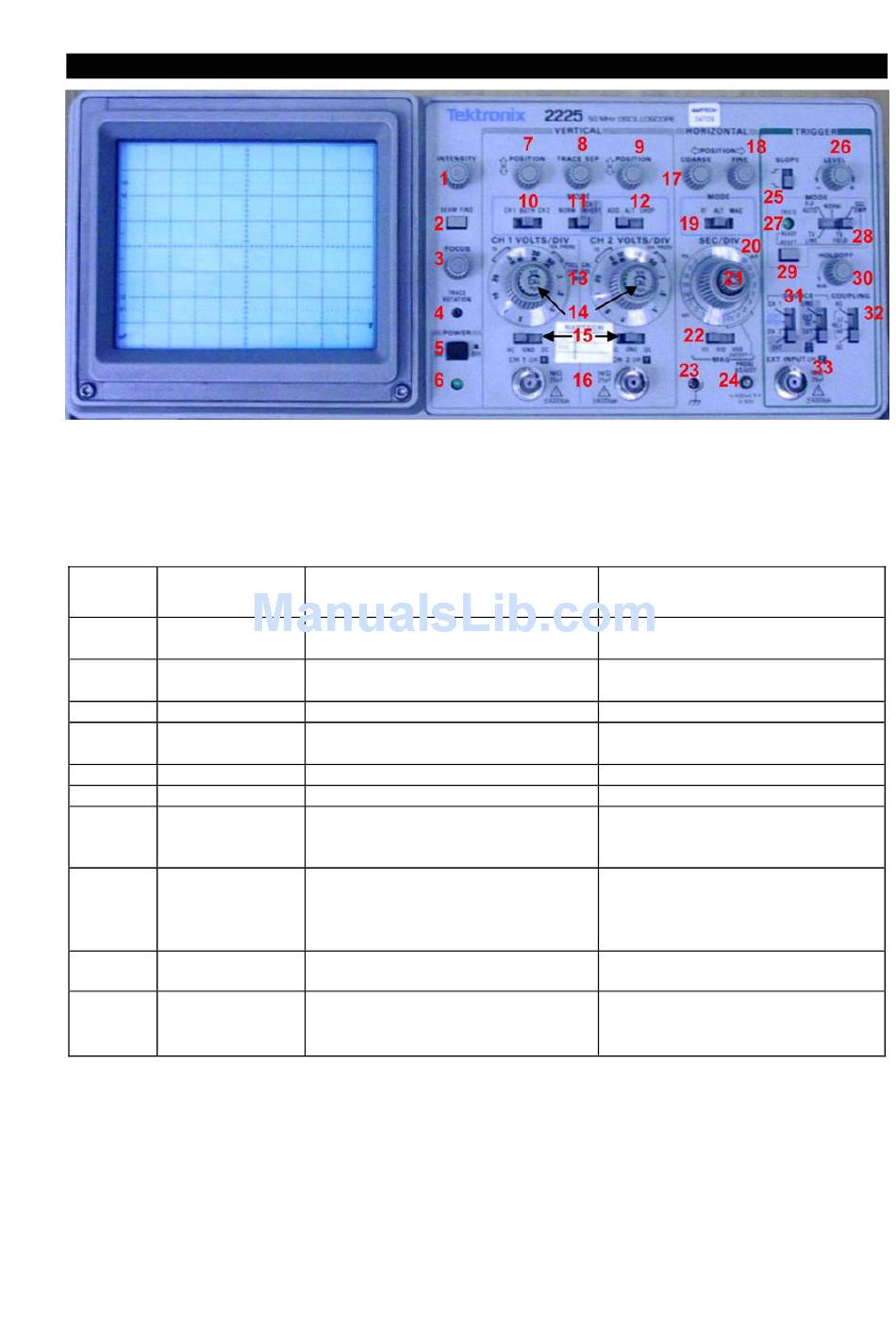

Tektronix 2225 Oscilloscope
1. Summary of Controls, Connectors, and Indicators
No.
Title
1
INTENSITY
2
BEAM FIND
3
FOCUS
4
TRACE
ROTATION
5
POWER
6
Power Indicator
7,9
POSITION
8
TRACE SEP
10
CH 1-BOTH -
CH2
11
NORM- INVERT
Function
Adjusts trace brightness.
Compresses display to within CRT
limits.
Adjusts for finest trace thickness.
Adjusts trace parallel to centerline.
Turns power on and off.
Illuminates when power is turned on.
Moves trace up or down screen.
Moves the magnified trace vertically
with respect to the unmagnified trace
when HORIZONTAL MODE is set to
ALT.
Selects signal inputs for display.
Inverts the Channel 2 signal display.
Recommended Use
Compensate for ambient lighting,
trace speed, trigger frequency.
Locate off-screen phenomena.
Optimize display definition.
Compensate for earth's field.
Control power to the instrument.
Know power condition.
Position trace vertically and
compensate for dc component of
signal.
Position unmagnified and
horizontally magnified traces for
convenient viewing and
measurement.
View either channel independently
or both channels simultaneously
Provide for differential (CH 1 - CH 2)
or summed (CH 1 + CH 2) signals
when ADD is selected.
