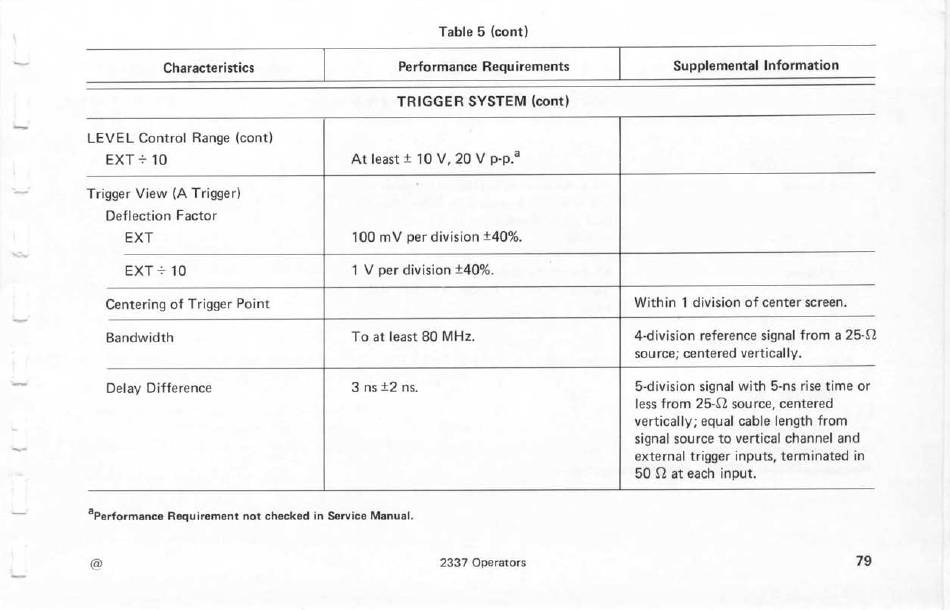

Tektronix 2337 Instruction Manual page 88

Characteristics
Performance Requirements
TRIGGER SYSTEM (cont)
LEVEL Control Range (cont)
At least + 10 V, 20 V p-p.?
Deflection Factor
EXT 100 mV per division +40%.
EXT +10
1 V per division +40%.
Within 1 division of center screen.
Bandwidth
4-division reference signal from a 25-Q
Delay Difference
3ns £2 ns,
5-division signal with 5-ns rise time or
less from 25-Q source, centered
vertically; equal cable length from
signal source to vertical channel and
external trigger inputs, terminated in
Performance Requirement not checked in Service Manual.
@
79
