Danfoss CD302 Manual page 4

Manual

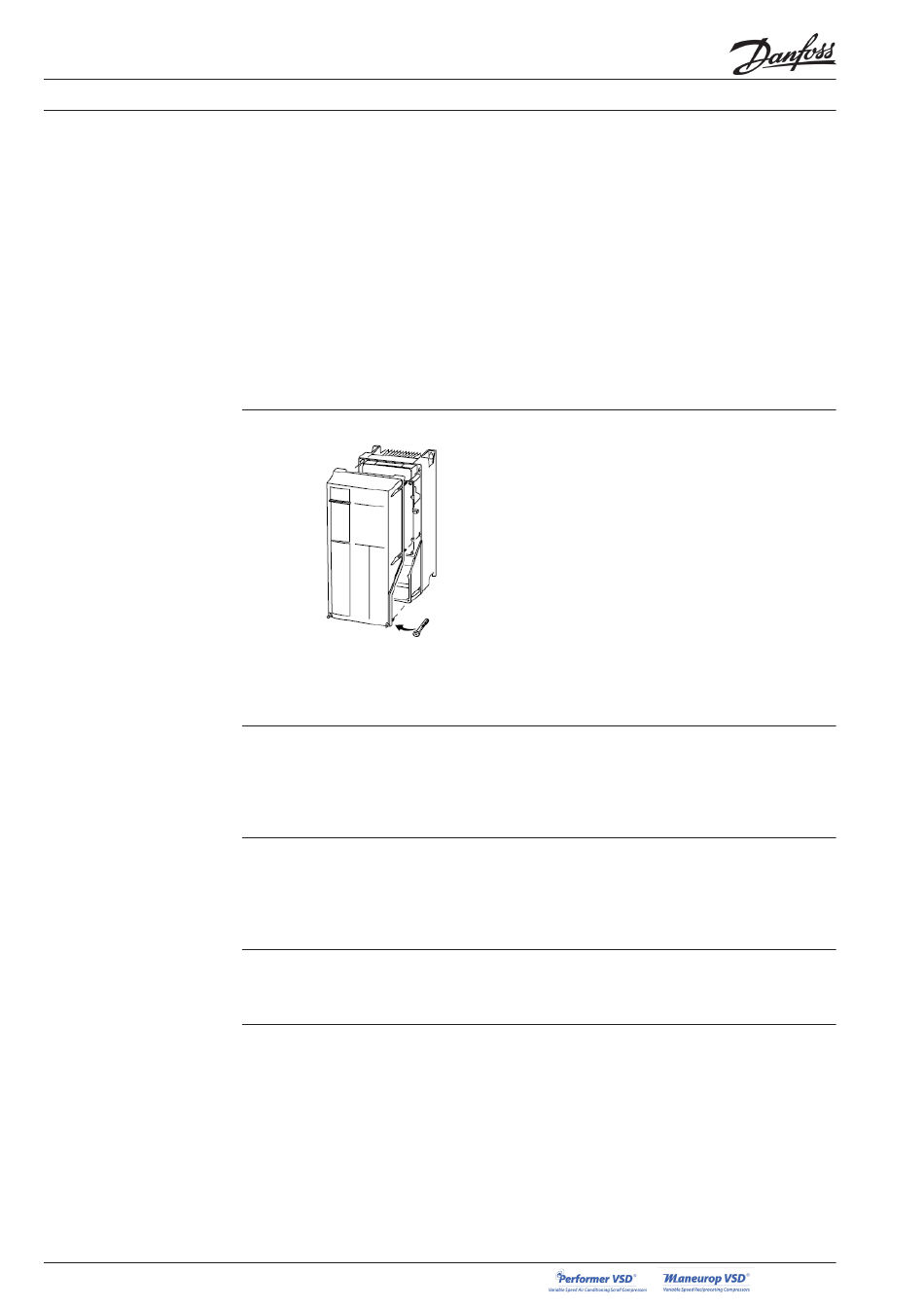

VSD with IP55 enclosure
LCP, front panel and terminals
Heat sink fan (main fan)
Optional relay card
Control card
Internal fan
4
S
ERVICE PARTS REPLACEMENT
The internal parts from VSD's with IP55 enclosure must be dismounted in the following sequential order:
1. LCP, front panel and terminals
2. Heat sink fan
3. Optional relay card
4. Control card
5. Internal fan
6. Power card
It is recommended to keep each dismounted part grouped together with its screws. This will facilitate
remounting.
Remounting non-defective or new parts must be done in reverse order (starting with the power card,
ending with the LCP).
• Unscrew all cover screws and remove the cover. Take care not to loose the cover gasket.
• Unscrew the metallic plate in front of the compressor terminals.
• Unscrew and remove mains terminals and compressor terminals.
The main fan is accessible from the outside of the aluminium housing.
• Unscrew the fan from its support.
• Disconnect it from the power card, and remove it.
The optional relay card (130B1110) is located below the LCP, if installed. It is plugged on the control card,
without any screws.
• Take it out from the control card connector.
• Unscrew and remove the metallic plates in front of the control card.
• Take out the control card from the power card connector.
IP55 VSD's have an extra internal fan dedicated to electronic boards cooling.
• Unscrew and remove the aluminium plate above the power card.
• Unplug the internal fan from the power card and remove it.
FRCC.ES.007.A1.02
