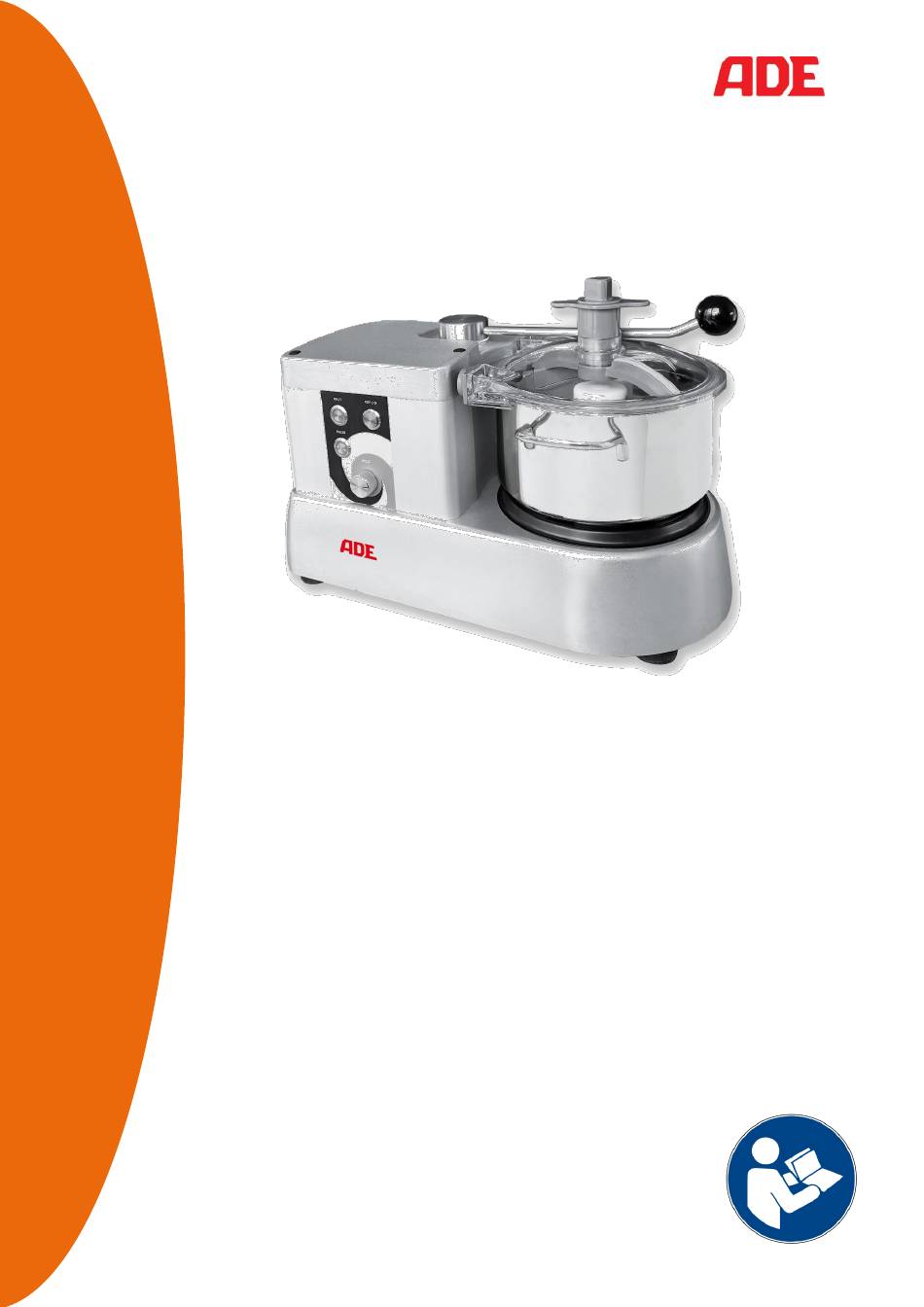

- Page 1 OPERATING INSTRUCTIONS Kitchen Cutter Rotomat-V Series Kitchen Cutter Rotomat-V-230609-Rev001-UM-en...
-
Page 2: Table Of Contents
CONTENTS CONTENTS ........................... 1 FOREWORD ......................... 2 Introduction ..........................2 Use ............................2 START-UP..........................3 Opening the packaging ......................3 Installation ..........................3 Wiring ............................ 4 Checkup Before Use ......................4 START-UP AND SAFETY PRECAUTIONS ................4 General Precautions ......................4 Mechanical and Electrical Safety Devices ................ -
Page 3: Foreword
Introduction The design of the Rotomat-V series kitchen cutters complies with applicable safety standards. Consequently, all our appliances are fitted with a plate featuring the “CE” mark attesting to the product's conformity with said standards. -
Page 4: Start-Up
If you notice any signs of damage to the safety devices, defects, malfunctions, broken parts, incorrect operation, unusual noises, or similar, shut down the machine immediately and contact ADE for repair or replacement. -
Page 5: Wiring
Wiring Before plugging in the machine, check that the machine's power rating specified on its nameplate matches the specifications of your local power grid. Before plugging the machine into the power outlet, ensure the power grid features an electrical overload cutout. Checkup Before Use Check the kitchen cutter for proper functioning before using it for the first time. -
Page 6: Residual Risks
Relay in the control circuit; The machine must be restarted after a power failure or power interruption. All safety devices are permanently fitted to the machine and must not be removed. Dismantling or tampering with them or any unauthorized modifications would make the machine unsafe. This will result in the manufacturer no longer being responsible for accidents or injuries. -
Page 7: Product Overview
PRODUCT OVERVIEW Machine Components Designation Designation Housing cover Filler plug Housing Housing base Machine controls Speed controller Pot lid Adjustable feet Locking arm Overview of Controls Marking Designation ON / I Start button OFF / 0 Stop button PULSE Pulse operation SPEED Speed controller Rotomat-V-230609-Rev001-UM-en... -
Page 8: Operating The Kitchen Cutter
OPERATING THE KITCHEN CUTTER Operating functions Switching on Press the start button (ON / I) to switch the machine on. Switching off Press the stop button (OFF / 0) to switch the machine off. Pulse operation Press the PULSE button to activate the pulse mode. Speed controller Turn the speed controller clockwise to increase the speed. -
Page 9: Sharpening The Blade
Sharpening the Blade Always sharpen the blades as soon as you notice a decrease in performance. Use the following procedure to sharpen the blades: Turn the locking arm counterclockwise until the lid can be removed. Remove the blade holder. Move the cutting edge of the blades from heel to tip evenly across the sharpening stone until the cutting edge feels perfectly sharp. -
Page 10: Maintenance
If this product is proven to have failed within 1 year from the date of purchase (proof of purchase is required) due to defects in material and workmanship, ADE will repair or replace this product. The warranty does not cover all moving parts, such as cables, blades, pots, etc. The warranty does not extend to external normal wear and tear or damage caused by accident or misuse. -
Page 11: Technical Data
10. TECHNICAL DATA Model Rotomat-V3-230 Rotomat-V5-230 Rotomat-V9-230 Pot capacity (gross) 3 liters 5 liters 9 liters Pot capacity (net) 1.5 liters 3.1 liters 5.4 liters We recommend filling the pot to about one-third of its capacity, depending on the product to be processed, to achieve perfect cutting results. -
Page 12: Ce Declaration Of Conformity
11. CE DECLARATION OF CONFORMITY EC Declaration of Conformity Manufacturer: ADE Germany GmbH Neuer Höltigbaum 15 22143 Hamburg ADE Germany GmbH Neuer Höltigbaum 15 Person authorized to compile the 22143 Hamburg relevant technical documentation: Type/Model: Kitchen Cutter Rotomat-V Serial numbers:... -
Page 13: Wiring Diagram
12. WIRING DIAGRAM Rotomat-V Rotomat-V-230609-Rev001-UM-en... -
Page 14: Exploded Views
13. EXPLODED VIEWS Rotomat V3 Rotomat-V-230609-Rev001-UM-en... - Page 15 Rotomat V5 Rotomat-V-230609-Rev001-UM-en...
- Page 16 Rotomat V9 Rotomat-V-230609-Rev001-UM-en...
-
Page 17: Spare Parts Lists
14. SPARE PARTS LISTS To be inserted Rotomat-V-230609-Rev001-UM-en... - Page 18 Rotomat-V-230609-Rev001-UM-en...
- Page 19 Distributor: Manufacturer: ADE Germany GmbH Neuer Höltigbaum 15 22143 Hamburg +49 40 432 776 - 0 +49 40 432 776 - 10 info@ade-germany.de www.ade-germany.de Rotomat-V-230609-Rev001-UM-en...
