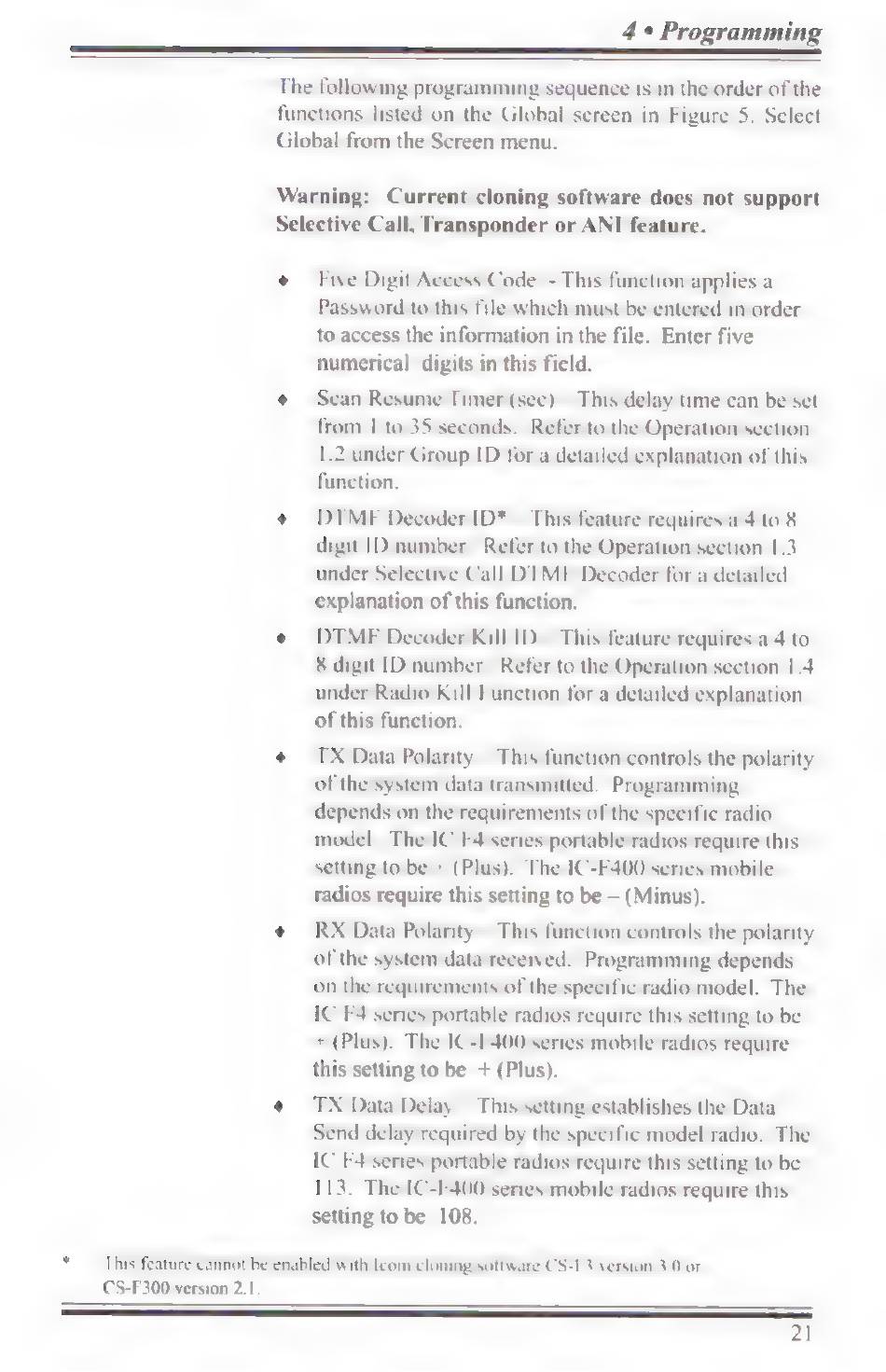

Icom UT-111 Instruction Manual page 24

4° Programming
The following programming sequence is in the order of the
functions listed on the Global screen in Figure 5. Select
Global from the Screen menu.
Warning: Current cloning software does not support
Selective Call, Transponder or ANI feature.
¢
Five Digit Access Code - This function applies a
Password to this file which must be entered in order
to access the information in the file. Enter five
numerical digits in this field.
Scan Resume Timer (sec) ~ This delay time can be set
from | to 35 seconds. Refer to the Operation section
1.2 under Group ID for a detailed explanation of this
function.
DTMF Decoder ID* ~ This feature requires a 4 to 8
digit ID number. Refer to the Operation section 1.3
under Selective Call DIMF Decoder for a detailed
explanation of this function.
DTMF Decoder Kill ID — This feature requires a 4 to
8 digit ID number. Refer to the Operation section 1.4
under Radio Kill Function for a detailed explanation
of this function.
TX Data Polarity — This function controls the polarity
of the system data transmitted. Programming
depends on the requirements of the specific radio
model. The IC F4 series portable radios require this
setting to be + (Plus). The IC-F400 series mobile
radios require this setting to be — (Minus).
RX Data Polarity — This function controls the polarity
of the system data received. Programming depends
on the requirements of the specific radio model. The
IC F4 series portable radios require this setting to be
+ (Plus). The IC-F400 series mobile radios require
this setting to be + (Plus).
TX Data Delay — This setting establishes the Data
Send delay required by the specific model radio. The
IC F4 series portable radios require this setting to be
113. The IC-F400 series mobile radios require this
setting to be 108.
* This feature cannot be enabled with Icom cloning software CS-F3 version 3.0 or
CS-F300 version 2.1.
