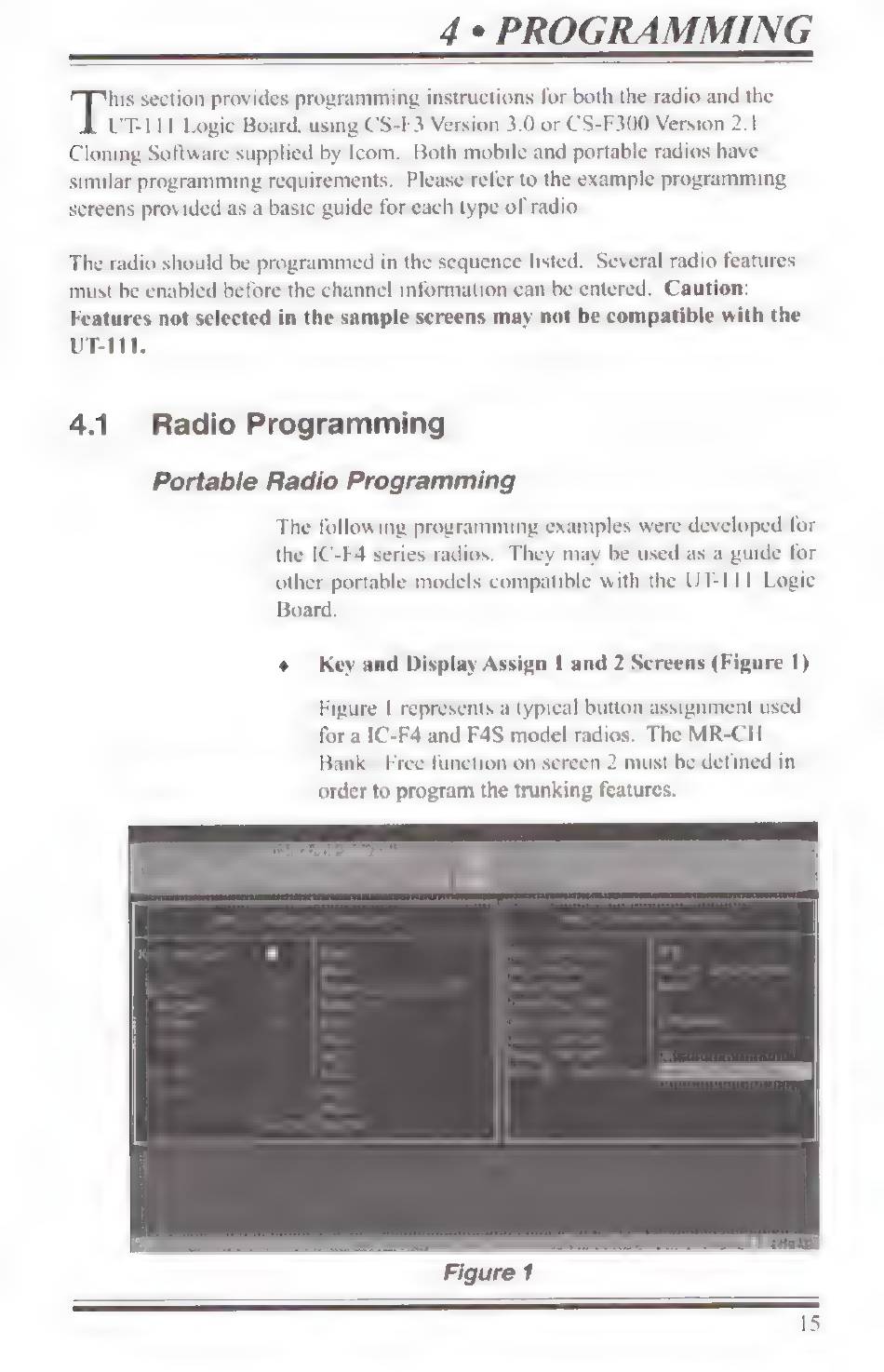

4 « PROGRAMMING
his section provides programming instructions for both the radio and the
UT-111 Logic Board, using CS-F3 Version 3.0 or CS-F300 Version 2.1
Cloning Software supplied by Icom. Both mobile and portable radios have
similar programming requirements. Please refer to the example programming
screens provided as a basic guide for each type of radio.
The radio should be programmed in the sequence listed. Several radio features
must be enabled before the channel information can be entered. Caution:
Features not selected in the sample screens may not be compatible with the
UT-111.
4.1 Radio Programming
Portable Radio Programming
The following programming examples were developed for
the IC-F4 series radios. They may be used as a guide for
other portable models compatible with the UT-111 Logic
Board.
¢ Key and Display Assign 1 and 2 Screens (Figure 1)
Figure | represents a typical button assignment used
for a IC-F4 and F4S model radios. The MR-CH
Bank / Free function on screen 2 must be defined in
order to program the trunking features.
ICHO3/F4 Rev. 1-3
Figure 1
